Package Includes:

• Pioneer 16.5cm 6.5" 2-Way Component Car Audio Speaker System 350W
• Speaker Adaptor Plugs
• Pioneer TS-WX140DA Class-D Space Saving Sub Under Seat Active Subwoofer 170W

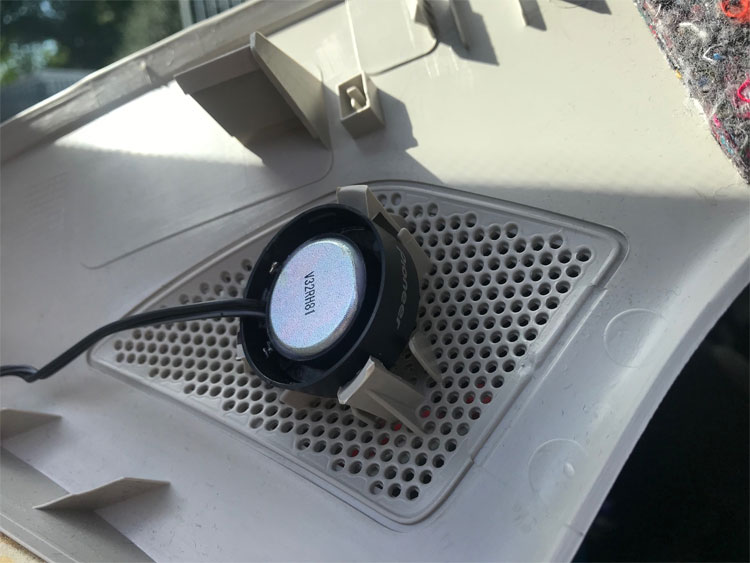

Kit consists of 2 Mids / 2 Tweeters Speaker brackets and wiring harness for main door speaker. Tweeter wiring will need manual connection to existing wiring by using suitable connectors. Please be sure to use the provided tweeter protection as damage to tweeter will arise if no protection is used.

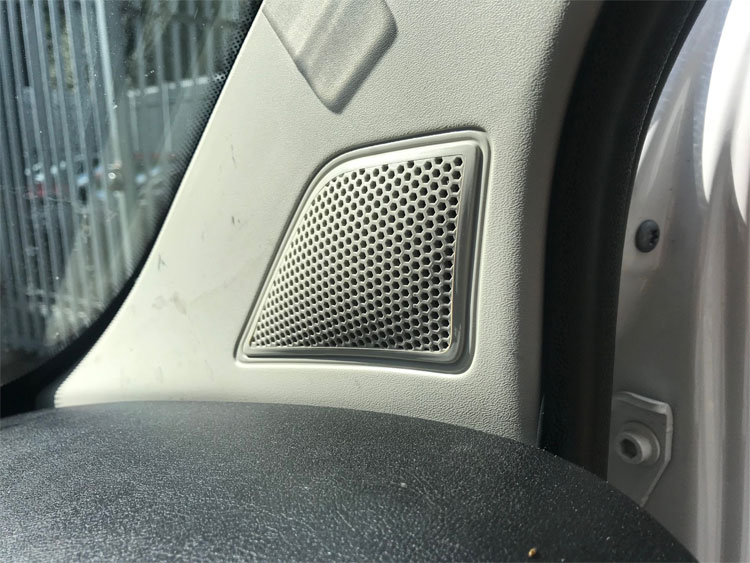

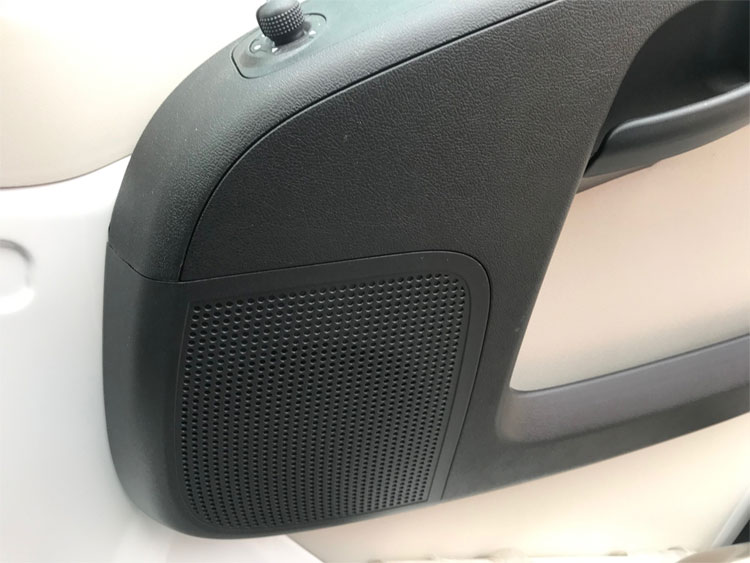

Suitable for below door and tweeter layout:

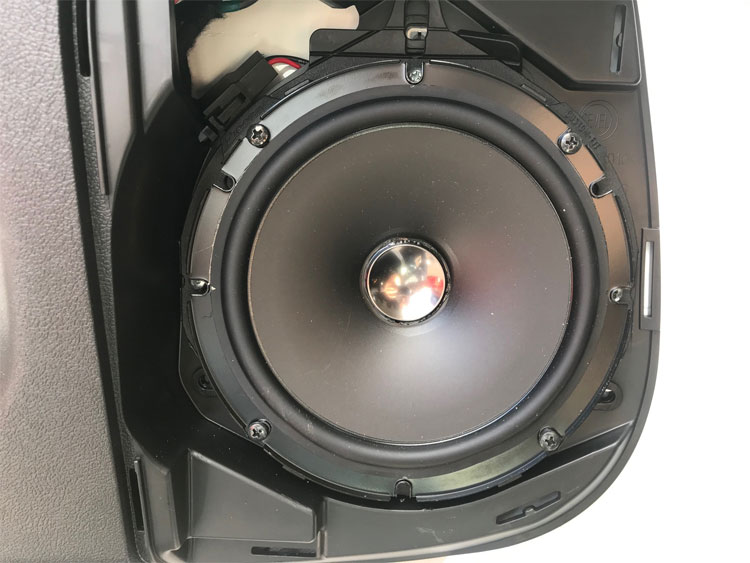

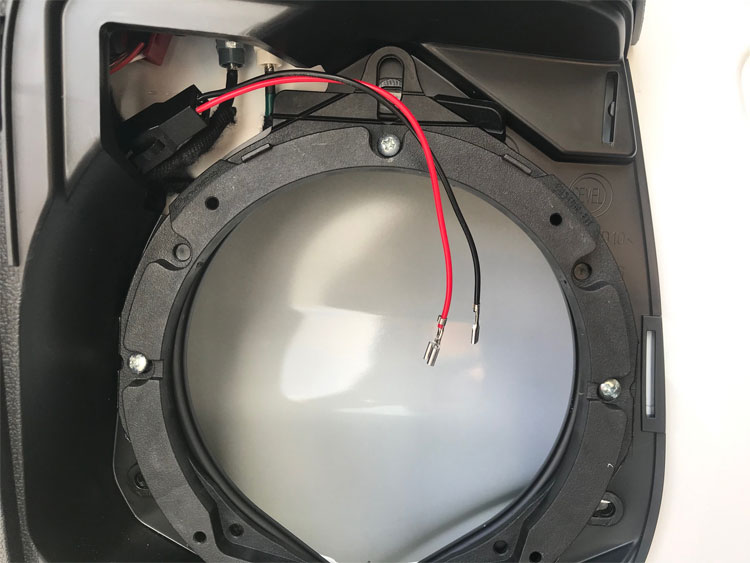

Speaker brackets supplied are universal so break off tabs not required so it fits comfortably inside. 3 new screw mount holes will need to be drilled in to secure the bracket as in photo.

It Just Got Easier to Upgrade your Genuine OEM Sound.

Upgrade the original sound system of your car. Our A series line up can give you the easy to install sound upgrade solution that you have been looking for.

The A series line up has carefully selected materials to improve bass response and high frequencies, whilst delivering Pioneer's famous Open & Smooth™ sound concept, all in an easy to install package.

For an even greater experience, please download Pioneer's free CarSoundFit application, to hear what your car could sound like before and after it has been upgraded with Pioneer.

This product includes Pioneer's unique Multi-Fit installation adaptor, (designed by Pioneer), to greatly expand installtion flexibility and improve acoustic performances.

Car Sound Fit App

Car sound simulator application for an improved in-car sound experience.

Open & Smooth

Open & Smooth delivers smooth frequency response and an expansive soundstage.

IMPP

Enjoy outstanding midbass response with the Injection Molded Polypropylene Cone.

Main Features

• Speaker Size 16.5 cm
• Type  2-Way Component System
• Max Power 350 Watt
• Continuous Power Output 80 W
• Frequency response 33 Hz - 58 kHz
• Sensitivity 90 dB
• Impedance 4 Ω
• Woofer material IMPP™ Composite Cone
• Voice Coil type Copper
• Voice Coil bobbin type GLASS IMIDE
• Cut-out Hole 144 mm
• Tweeter Type DOME
• 2-Way Component

Powerful Bass, without losing space.

Pioneer launches another product in its generation of Class-D amplified subwoofers integrating DIGITAL BASS CONTROL. This unique feature generates three selectable Bass Modes: DEEP, NATURAL and DYNAMIC, producing 170 Watts of strong, rich, deep bass that you can feel, without giving up space. Users can easily control and customise the three bass modes directly from the supplied wired remote control, and you can easily mount the TS-WX140DA under the front seats or in the boot.

Thanks to the inclusion of Class-D technology, Pioneer’s TS-WX140DA is even easier to install, as it is capable of taking both High (Speaker Line Input) and Low (RCA Line Input) input signals, meaning you can connect it to your aftermarket or original factory fitted stereo, to easily upgrade the sound you have now.

TS-WX140DA is a small active subwoofer in a sealed enclosure, delivering 170 W Maximum power and 50 W Nominal Power.

EV Optimized

This compact subwoofer is the perfect solution to add more deep and powerful bass in your Electric Vehicle (EV), without the typical sacrifice in space! With a built-in high-efficiency Class-D amplifier, low power consumption, low weight design and compact size you don't have to worry about lower mileage due to your bass addition.

Car Sound Fit App Car

sound simulator application for an improved in-car sound experience

Digital Bass Control

Selectable "BASS MODE" (DEEP/DYNAMIC) allows you to match the best bass style to your choice of favourite music.

Main Features

• EV Optimized
• CarSoundFit App
• DIGITAL BASS CONTROL
• Size 20 cm
• Maximum power 170 W
• Continuous power output 50 W
• Frequency Response
  • DEEP Bass Mode: 20 - 200 Hz
  • NATURAL Bass Mode: 40 - 200 Hz
  • DYNAMIC Bass Mode: 40 - 160 Hz
• Sensitivity
  • DEEP Bass Mode: 95 dB
  • NATURAL Bass Mode: 98 dB
  • DYNAMIC Bass Mode: 100 dB
• Woofer material Aluminium
• Surround Urethane
• Voice Coil type Copper Round Wire 4-Layer
• Voice Coil bobbin type Glass Imide
• Magnets Strontium
• Weight 3,1 kg
• Dimensions (W x H x D) 280 x 200 x 70
