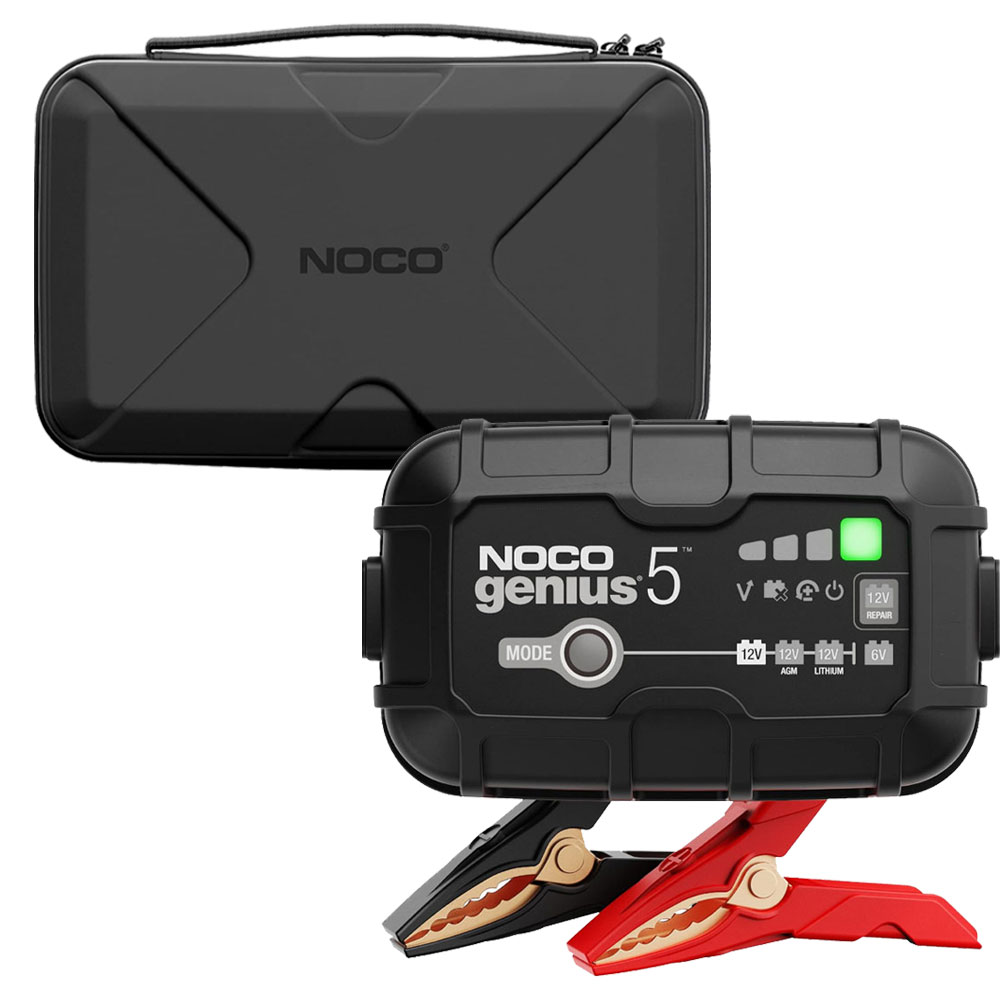

Package Includes

• NOCO GENIUS5 Battery Maintainer + Battery Desulfator 6V/12V 5A Smart Trickle Battery Charger
• NOCO GC040 Universal EVA Protective Case

GENIUS5 6V/12V 5A Smart Battery Charger

Introducing the all-new GENIUS5, one of our most powerful, highest-performing, energy-efficient, and compact chargers yet. The GENIUS5 is a 6-volt and 12-volt battery charger, battery maintainer, and battery desulfator rated at 5-amps for lead-acid automotive, marine, and deep-cycle batteries, including flooded, gel, AGM, and maintenance-free, plus lithium-ion batteries.

The All New Genius.

Better Performance.

The NOCO GENIUS5 Next To The Previous NOCO G3500.

Multi-Voltage. Multi-Chemistry. Multi-Battery Type.

Do More With One Charger

A multi-functional design that allows you to charge in more ways. Effortlessly charge multiple battery voltages (6-Volt and 12-volt lead-acid and lithium-ion batteries) chemistries (Flooded, gel, maintenance-free and AGM batteries) and types (Starter, deep-cycle, marine, powersport and more).

Powerful, Efficient, and Compact The Next Generations

Compact, yet powerful battery charger. A mix of electrical engineering and industrial design pack a powerful battery charger into a tiny footprint. The GENIUS5 uses high-frequency switch-mode technology to efficiently convert A/C power into safe D/C power for battery charging. And its onboard microcomputer precisely controls the charging to minimize power loss to create an incredibly compact form factor.

Improved Start Voltage Sensor. All-New Force Mode.

Charge Dead Batteries.

The all-new start-voltage sensor allows the GENIUS to detect and charge dead batteries as low as 1-volt. For extremely dead batteries lower than 1-volt, manually turn on force mode to detect and charge batteries all the way down to zero volts.

Year-Round Charging Zero Overcharge Auto Memory.

Completely Automatic

Finally a charger from start to finish that’s completely automatic. No special modes, no technical knowledge required. Genius will safely charge any battery. Detect damaged batteries and intuitively repair them. And actively monitor for long-term battery maintenance and extend battery life. This system allows for continuous operation without user intervention, and zero risk of overcharging your battery.

Thermal Compensation

More Precise Charging in Any Climate.

The new integrated thermal sensor automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, limiting the chance of under-charging or over-charging, providing a more accurate and fully charged battery. Avoids under-charging in cold weather down to -4 F and avoids over-charging in hot weather up to 104 F.

Bring Batteries Back to Life

Auto Detection. Auto Repair. Improved Performance.

The GENIUS5 automatically detects sulfation/acid stratification. If any is found, the GENIUS5 will automatically repair and reverse the damage done to the battery, extending the usable life and increasing the performance.

Improved Clamping Range Improved Clamping Force.

Redesigned Clamps

Genius clamps are built with needle-nose profiles for smaller terminal applications and detachable integrated eyelets for permanent mounting the accessory to battery. Designed to fit battery terminals of any shape and size. Engineered for improved clamping range, clamping force, and higher conductivity.

Technical Specification

Operating Requirements

• Line Voltage: 120V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4° to 104°F(-20° to 40°C)
• Storage Temperature: -22° to 140°F(-30° to 60°C)

Charging

• Current: 5 Amps DC
• Voltages:
  • 6 Volts 12 Volts
• Chemistry: Lead-Acid and Lithium Types:
  • AGM
  • CA
  • EFB
  • Gel
  • Lithium
  • MF
  • Wet
• Capacity Range: Up to 120 Amp-Hours
• Maintenance: All Battery Sizes

Power

• Consumption: 75 Watts (Max)
• Efficiency: 86% (120VAC / 230VAC)

Safety

• Short-Circuit
• Open-Circuit
• Overheating
• Overcharge
• Spark-Proof
• Reverse Polarity

Product Size

• Height: 2.91in (74mm)
• Width: 4.61in (117mm)
• Depth: 1.93in (49mm)
• Weight: 1.5lb (0.68kg)

Cable Management

• DC Cable + Clamp Length: 77in (195cm)
• DC Cable Size: 16 AWG AWG
• DC Fuse Size: 10 Amp Mini Blade Fuse AMP MINI ® Blade Fuse
• AC Cable Length: 71.7in (182cm)
• AC Cable Size: 18 AWG
• Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating

• IP65

What's In The Box

• GENIUS5 Battery Charger w/ Interchangeable Connector
• Clamps w/ Integrated Eyelets (M6)
• Mounting Bracket w/ Strap
• (2) Self-Tapping Screws
• User Guide & Warranty Information

GC040 Universal EVA Protective Case

The GC040 Universal EVA Protection Case is a portable EVA protection case for GENIUS1, GENIUS2, GENIUS2D, GENIUS5, and GENIUS10 battery chargers. It features a rugged and durable EVA material with a soft melange velvet lining for a secure, scratch-free fit, as well as precision steel-rimmed zippers, a built-in reinforced handle, and custom over-molded pull tabs. Not designed for NOCO Boost or Boost X UltraSafe Lithium Jump Starters.

Key Features

• Protect your GENIUS1, GENIUS2, GENIUS5, and GENIUS10 charger with a lightweight, crush-resistant, anti-shock, and weather-resistant case.
• Made from a rugged and durable EVA material with a soft melange velvet lining for a secure, scratch-free fit.
• Secure enclosure with a durable, precision steel-rimmed zipper, a built-in reinforced handle, and custom over-molded pull tabs.
• Portable carrying case design that's compact and lightweight and fits in most glove boxes or compartments.
• Customized to fit the GENIUS1, GENIUS2, GENIUS5, and GENIUS10 chargers, plus included accessories.

For Genius Battery Chargers Universal Eva Protection Case

Organize your charger and included accessories with an all-in-one storage case. Protect your GENIUS1, GENIUS2, GENIUS5, and GENIUS10.

Adaptable Space & Secure Fit Adjustable Straps

Built-in straps can be adjusted to fit any Genius charger. Made with a soft melange velvet lining for a secure, scratch-free fit.

Accessory Storage Convenient Zippered Pocket

Secure enclosure with a durable, precision steel-rimmed zipper, a built-in reinforced handle, and custom over-molded pull tabs.

Fits Genius Chargers

Customized to fit the GENIUS1, GENIUS2, GENIUS5, and GENIUS10 chargers, plus included accessories.

Complete Impact Protection Rugged Design

GC040 is made from a rugged, durable, and lightweight EVA material. This crush-resistant material protects GENIUS chargers against impacts and drops, as well as dust and splashes.

Bring Incredible Power With You Customize Your Kit

Portable carrying case design that's compact and lightweight and fits in most glove boxes or compartments.

Technical Specifications

• External Dimensions
  • Height: 7.8in (198mm)
  • Width: 12in (305mm)
  • Depth: 4.3in (110mm)
• Internal Dimensions
  • Height: in (mm)
  • Width: in (mm)
  • Depth: in (mm)
• Product Weight 1.1lbs (0.5kg)

What's In The Box

• GC040 Protective Case
