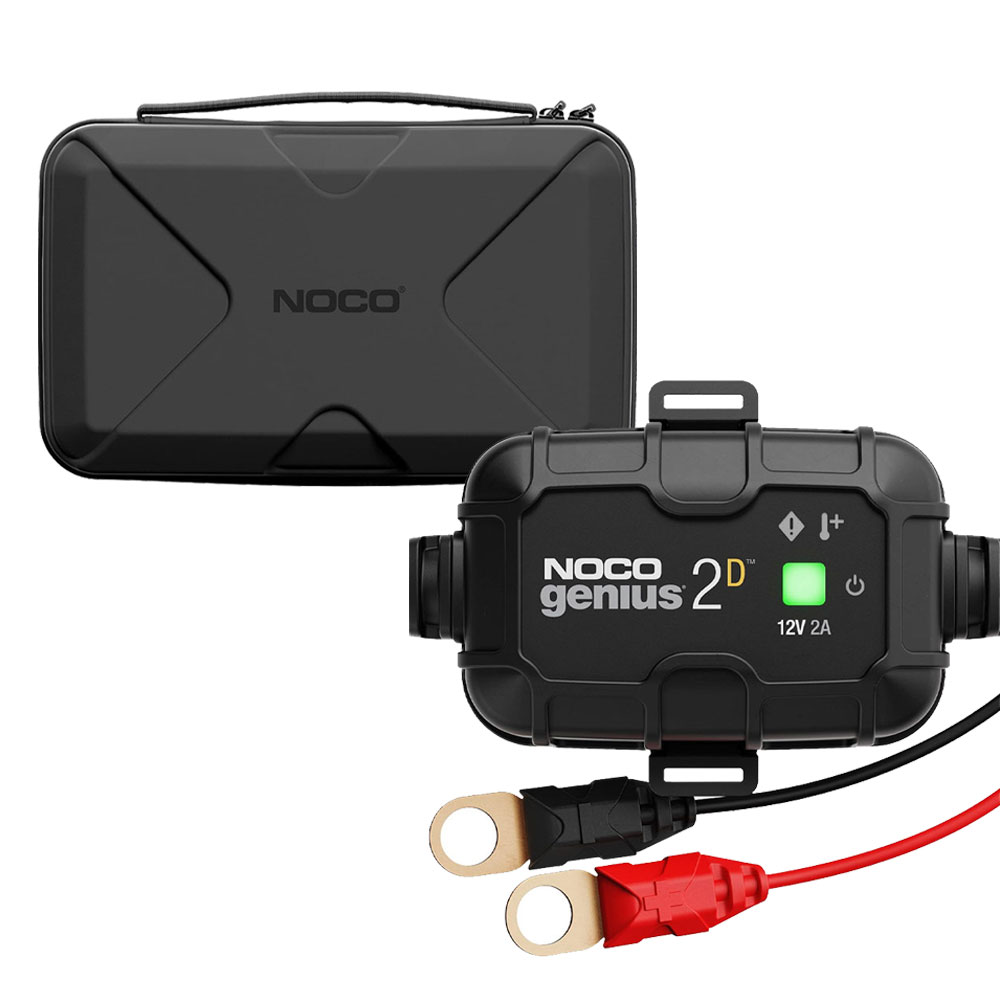

Package Includes

• NOCO GENIUS2D Battery Charger + Battery Maintainer 12V Direct-Mount 2A Trickle Battery Charger
• NOCO GC040 Universal EVA Protective Case

GENIUS2D

2-Amp Direct-Mount Battery Charger + Battery Maintainer

Introducing the GENIUS2D, one of our most powerful, highest-performing, energy-efficient, and compact chargers yet. The GENIUS2D is a 2-amp direct-mount battery charger and battery maintainer engineered to be securely mounted nearby the battery. Its designed for all types of 12-volt lead-acid batteries, including flooded, gel, AGM and other maintenance-free batteries.

The Next Generation

Onboard Charging Solution Direct-Mount

Engineered and tested to withstand rugged working environments, like high-heat engine compartments, shock, vibration, and even water exposure. The GENIUS2D is the ultimate mountable on-board battery charger and battery maintainer for any car, boat, truck, RV, or equipment, and is designed to be located in close proximity to the battery.

More Powerful More Compact Incredibly Smart

Introducing the next-generation of battery charging with the all-new maximum power density technology. This smart charger has insanely high performance and it is designed to be the most compact, lightweight and energy efficient charger on the market. Using advanced power conversion topologies as its foundation, the Genius 2D has significantly increased the power-to-space ratio utilizing power magnetics, consolidated components, and innovative thermal management techniques.

Worry Free Year-Round Charging Completely Automatic

Finally a charger from start to finish that’s completely automatic. No special modes, no technical knowledge required. Genius will safely charge any battery. Detect damaged batteries and intuitively repair them. And actively monitor for long-term battery maintenance and extend battery life. This system allows for continuous operation without user intervention, and zero risk of overcharging your battery.

Optimized For Any Climate Thermal Compensation

The GENIUS2D now features an integrated thermal sensor that automatically monitors and adjusts the charging cycle based on fluctuations of ambient temperature, enabling it to provide more precision charging in both hot and cold climates. Not only does it increase charge performance, but it extends battery life by limiting the impact of under-charging/over-charging caused by temperature changes. So now when you are charging in cold temperatures, the charging rates increase, and when in hotter temperatures, the rates will decrease. The result, better, more accurate, fully-charged batteries.

Simple Installation

Technical Specification

Operating Requirements

• Line Voltage: 100V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating Temperature: -4°F to 140°F(-20° to 60°C)
• Storage Temperature: -40° to 212°F(-40° to 100°C)
• Relative Humidity: 0 to 95% Non-Condensing

Charging

• Current: 2 Amps DC
• Voltages: 12 Volts
• Chemistry: Lead-Acid Types:
  • AGM
  • CA
  • EFB
  • Gel
  • MF
  • Wet
• Capacity Range: Up to 40 Amp-Hours
• Maintenance: All Battery Sizes

Power

• Consumption: 28 Watts (Max)
• Efficiency: 87%

Safety

• Short-Circuit
• Open-Circuit
• Overheating
• Overcharge
• Spark-Proof
• Reverse Polarity

Product Size

• Height: 3in (76.2mm)
• Width: 3.5in (89mm)
• Depth: 1.6in (40.6mm)
• Weight: 0.5lb (0.23kg)

Cable Management

• DC Cable + Clamp Length: 24in (609cm)
• DC Cable Size: 18 AWG
• DC Fuse Size: 4 Amp Mini Blade Fuse
• AC Cable Length: 24in (60.9cm)
• AC Cable Size: 18
• Oil, gas, grease, water, chemical, UV, abrasion resistant

IP Rating

• IP65

What's In The Box

• GENIUS2D Battery Charger and Maintainer
• Mounting Bracket with Strap
• Self-Tapping Screws
• User Guide

GC040 Universal EVA Protective Case

The GC040 Universal EVA Protection Case is a portable EVA protection case for GENIUS1, GENIUS2, GENIUS2D, GENIUS5, and GENIUS10 battery chargers. It features a rugged and durable EVA material with a soft melange velvet lining for a secure, scratch-free fit, as well as precision steel-rimmed zippers, a built-in reinforced handle, and custom over-molded pull tabs. Not designed for NOCO Boost or Boost X UltraSafe Lithium Jump Starters.

Key Features

• Protect your GENIUS1, GENIUS2, GENIUS5, and GENIUS10 charger with a lightweight, crush-resistant, anti-shock, and weather-resistant case.
• Made from a rugged and durable EVA material with a soft melange velvet lining for a secure, scratch-free fit.
• Secure enclosure with a durable, precision steel-rimmed zipper, a built-in reinforced handle, and custom over-molded pull tabs.
• Portable carrying case design that's compact and lightweight and fits in most glove boxes or compartments.
• Customized to fit the GENIUS1, GENIUS2, GENIUS5, and GENIUS10 chargers, plus included accessories.

For Genius Battery Chargers Universal Eva Protection Case

Organize your charger and included accessories with an all-in-one storage case. Protect your GENIUS1, GENIUS2, GENIUS5, and GENIUS10.

Adaptable Space & Secure Fit Adjustable Straps

Built-in straps can be adjusted to fit any Genius charger. Made with a soft melange velvet lining for a secure, scratch-free fit.

Accessory Storage Convenient Zippered Pocket

Secure enclosure with a durable, precision steel-rimmed zipper, a built-in reinforced handle, and custom over-molded pull tabs.

Fits Genius Chargers

Customized to fit the GENIUS1, GENIUS2, GENIUS5, and GENIUS10 chargers, plus included accessories.

Complete Impact Protection Rugged Design

GC040 is made from a rugged, durable, and lightweight EVA material. This crush-resistant material protects GENIUS chargers against impacts and drops, as well as dust and splashes.

Bring Incredible Power With You Customize Your Kit

Portable carrying case design that's compact and lightweight and fits in most glove boxes or compartments.

Technical Specifications

• External Dimensions
  • Height: 7.8in (198mm)
  • Width: 12in (305mm)
  • Depth: 4.3in (110mm)
• Internal Dimensions
  • Height: in (mm)
  • Width: in (mm)
  • Depth: in (mm)
• Product Weight 1.1lbs (0.5kg)

What's In The Box

• GC040 Protective Case
