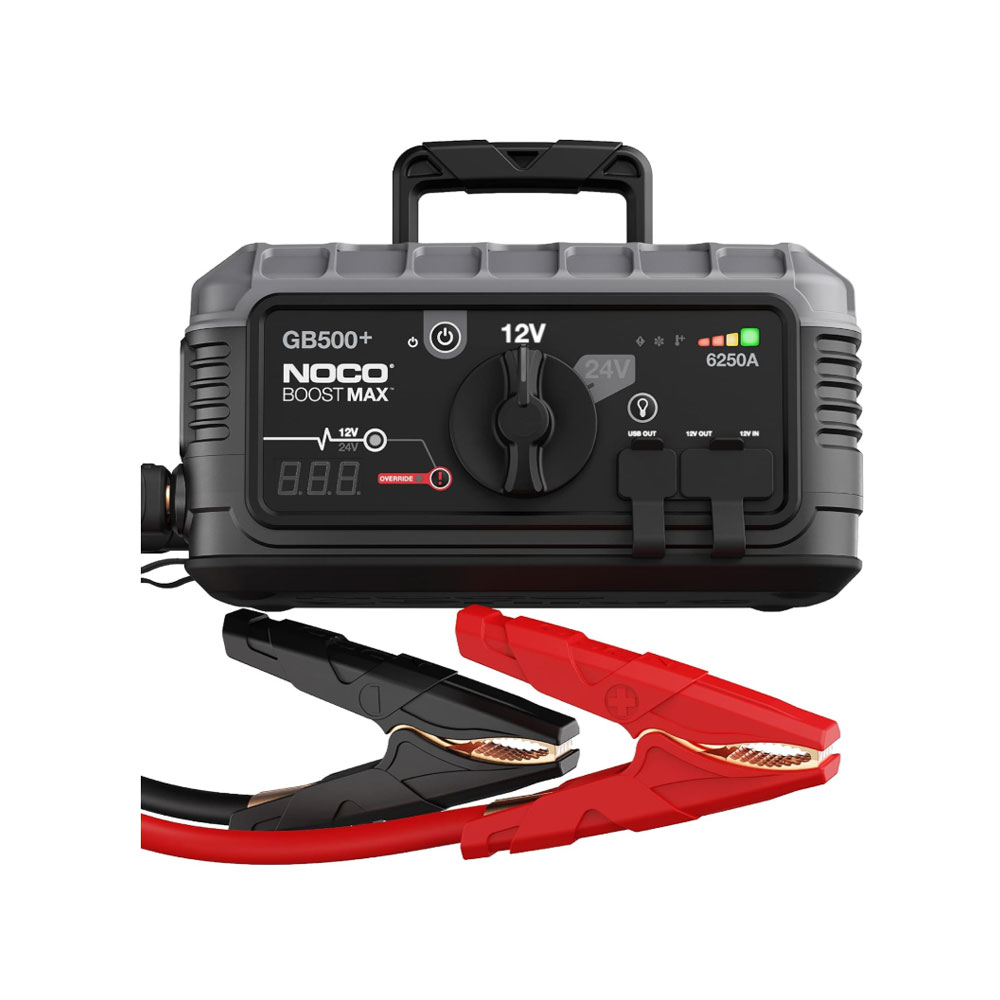

GB500+ 6250A 12/24V Boost MAX UltraSafe Jump Starter

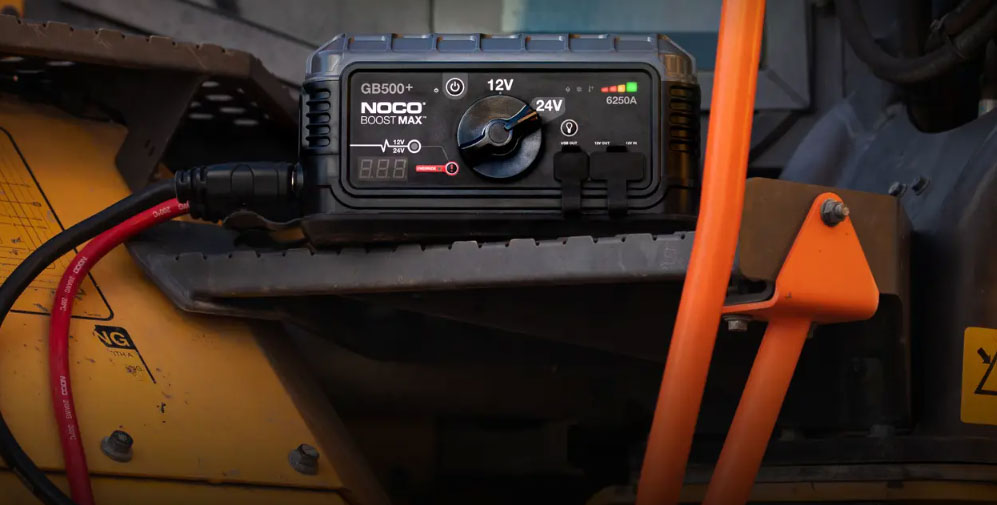

Introducing our most powerful lithium jump starters yet. Designed for the largest, most challenging engine starts ever. With over 6250-amps of starting power, it can jump start gasoline and diesel engines up to 45-liters. It jump starts almost every type of vehicle and equipment, including semi-trucks (up to class 8), motorhomes, coaches, buses, mining, agricultural, construction, and vocational equipment - 6, 8, 12, and 16 cylinder - and more.

Massive Power

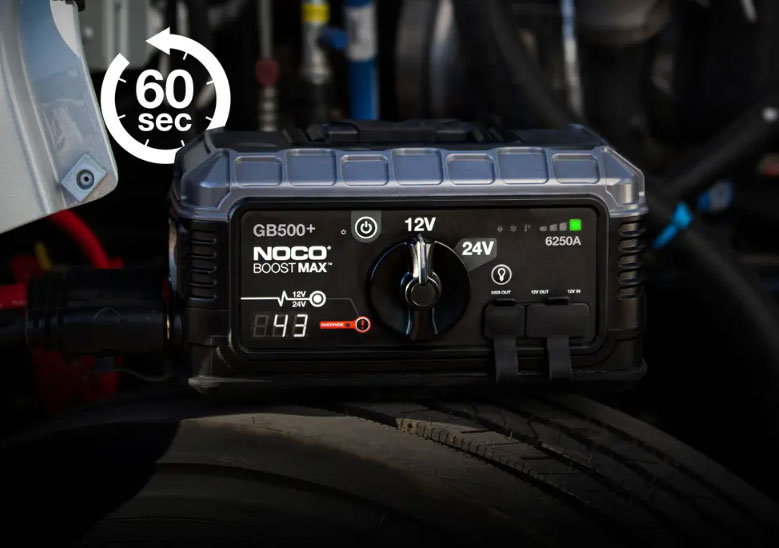

Start Vehicle Within 60 Seconds Auto Power Conservation

Start the vehicle within 60 seconds after pressing the power button on Boost. After the 60-second timeout is complete, the unit must be powered off, then back on, to initiate a new jump-start sequence. The yellow power LED indicates the 60-second sequence is over and can be reset if another jump start sequence is needed.

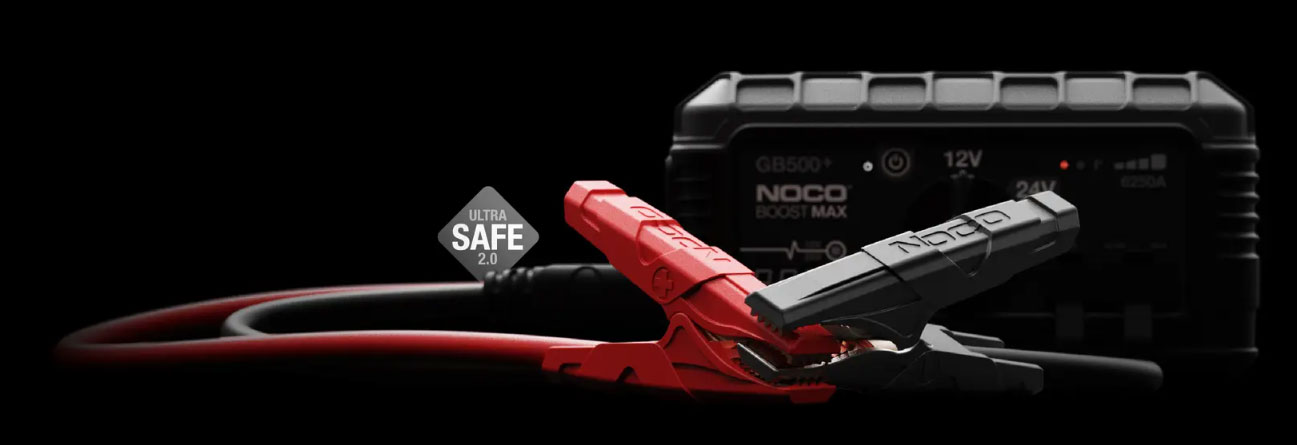

Reverse Polarity Protection Spark-Proof

We took our UltraSafe technology and made it better— UltraSafe 2.0. It's still our simple, mistake-free design featuring spark-proof technology and reverse polarity protection, but with enhanced thermal efficiency and power management to provide better performance and longer battery life.

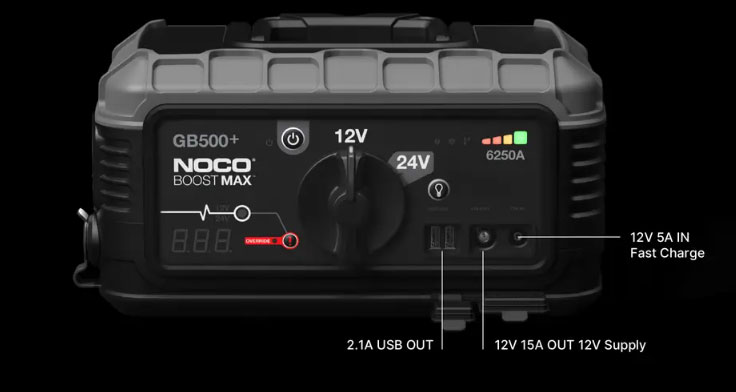

USB Practical Charge & Recharge

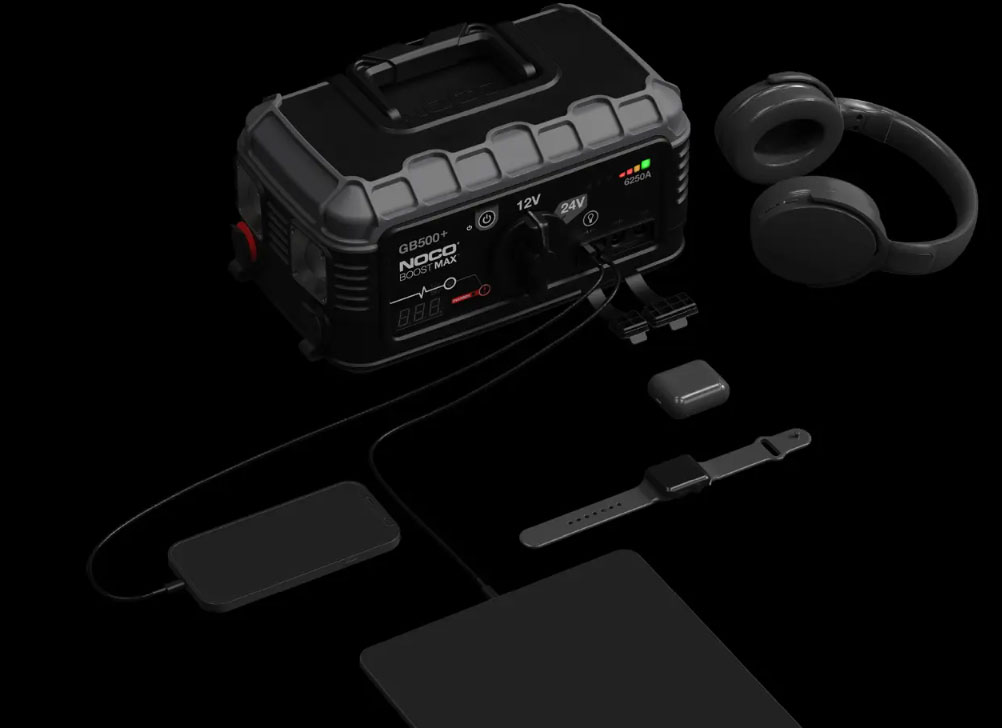

Charge Devices USB Charge & Recharge

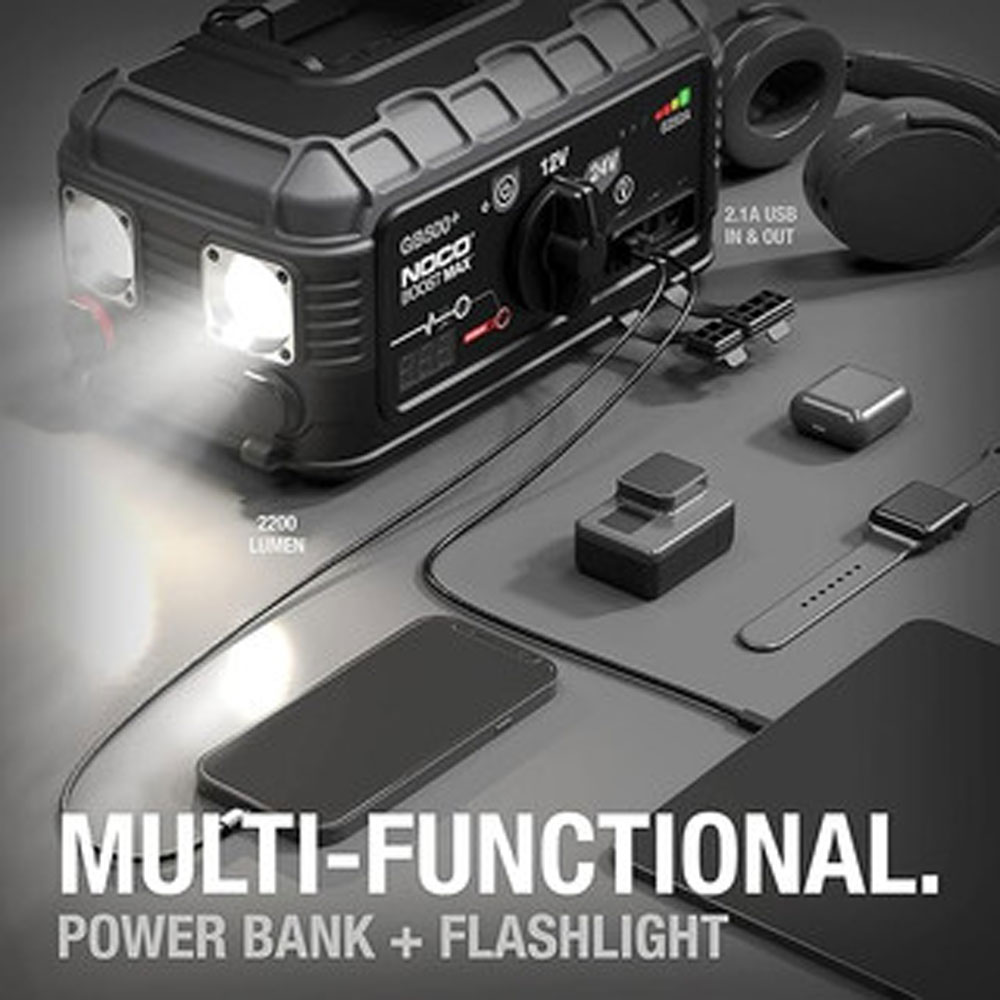

With two built-in 2.1A USB ports, you can power multiple devices at the same time, such as smartphones, tablets, action cameras, wireless headphones, wearables and more. With over 266 watt-hours of lithium power, the GB500+ can provide endless hours of operation and recharge your devices multiple times before needing a recharge.

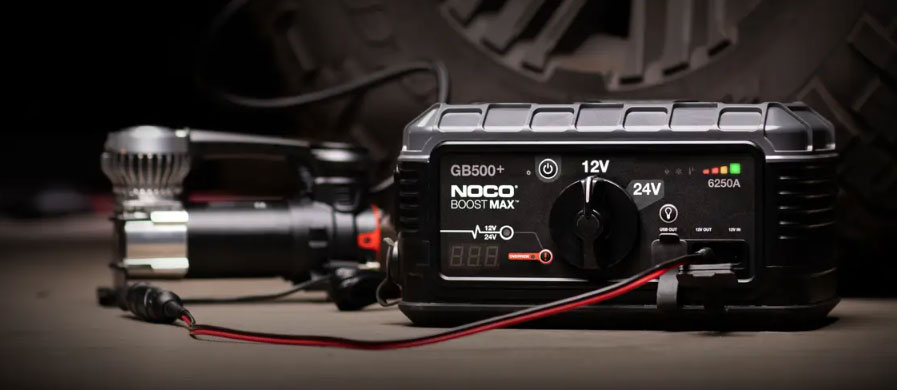

Power 12V Devices Portable Power

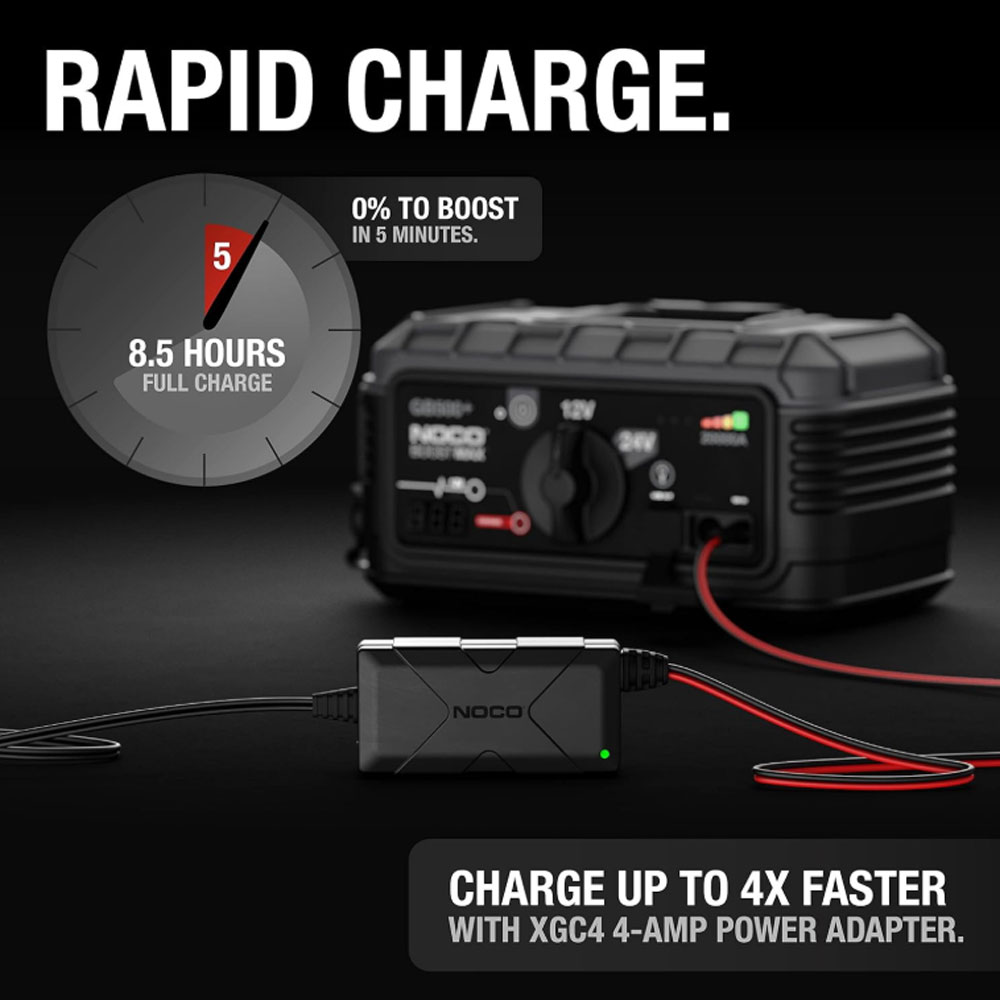

Charge Up To 4X Faster Rapid Recharge

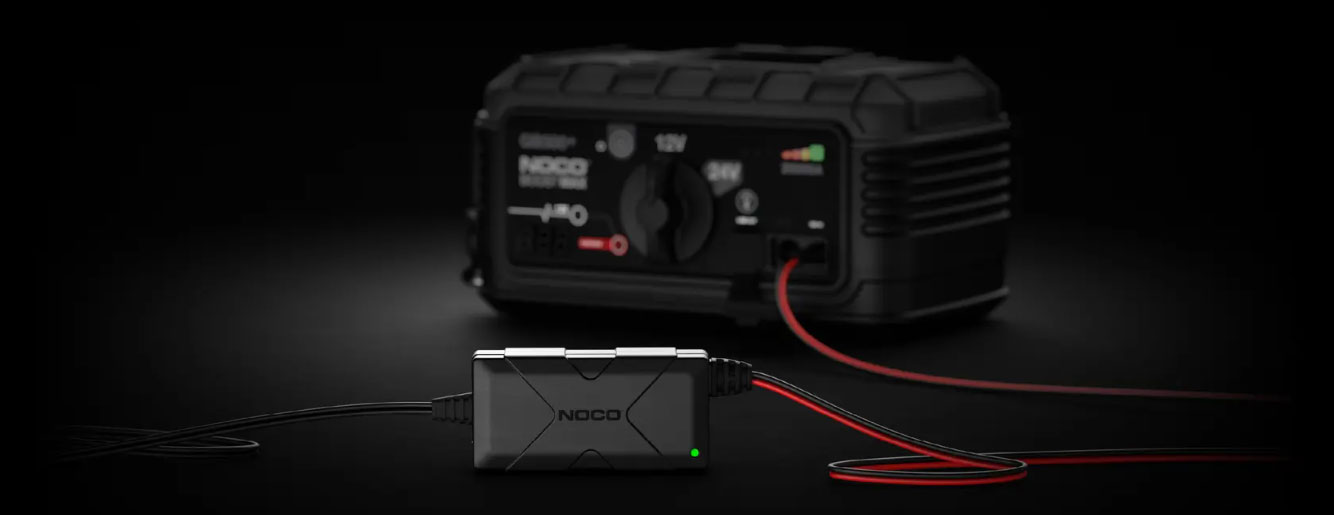

From 0-100% 4X Faster. Charge directly from the vehicle's 12-volt auxiliary port or the XGC4 4-Amp Power Adapter to recharge it’s 266 watt-hours lithium-ion battery in 8.5 hours.

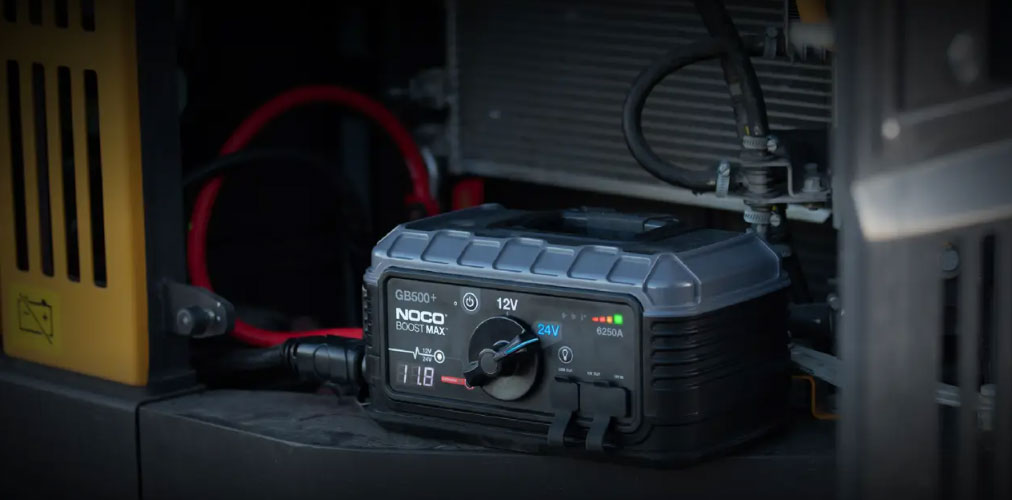

Understand The Problem Integrated Voltmeter

Integrated Voltmeter / 60 Second Countdown Timer. The Boost MAX GB500+ is equipped with an integrated voltmeter to help pinpoint battery issues. The voltmeter doubles as a 60-second countdown timer, which shuts off GB500+ after 60 seconds to help preserve internal battery charge.

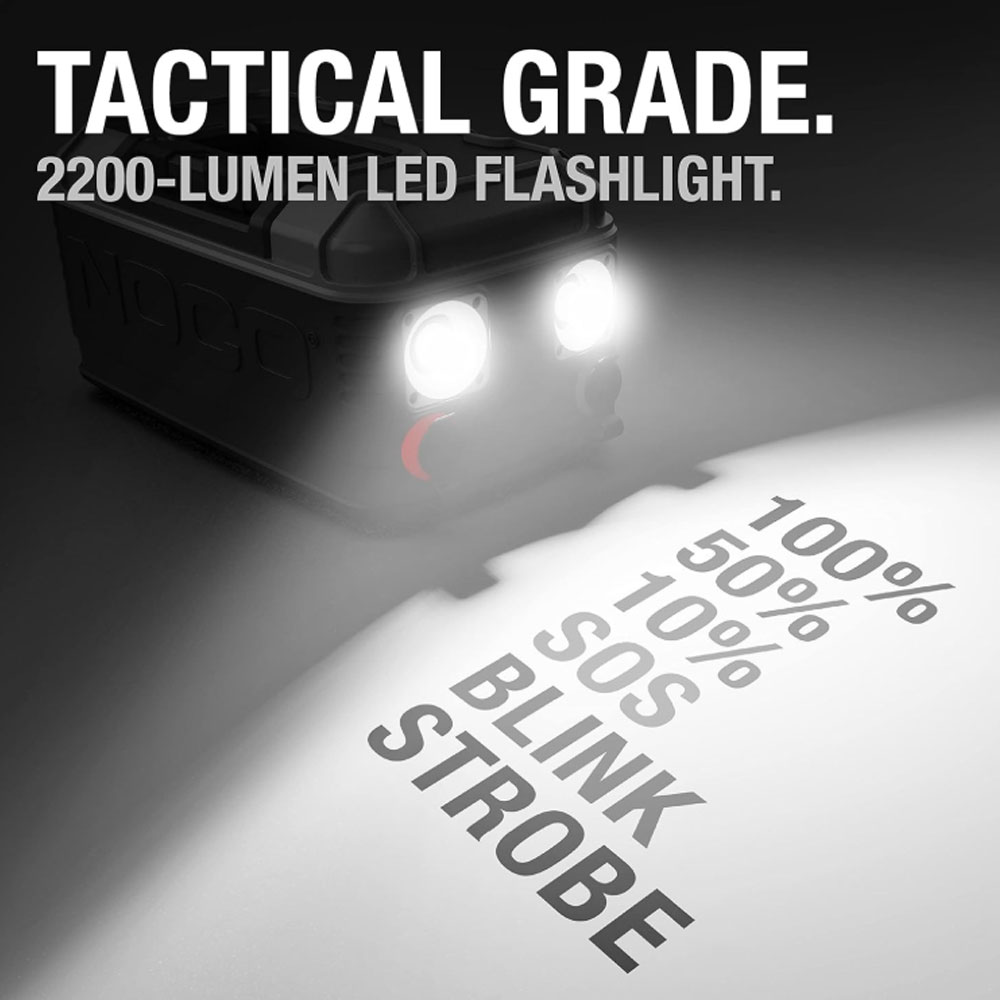

Ultra-Bright High-Lumen Flashlight

More than a jump starter, Boost MAX is a useful tool for daily use and emergency situations alike. The GB500+ is equipped with a 2,200-Lumen LED flashlight with various brightness modes, SOS, and emergency strobe— handy to have as a roadside or road trip tool.

Compact & Lightweight Unrivaled Portability

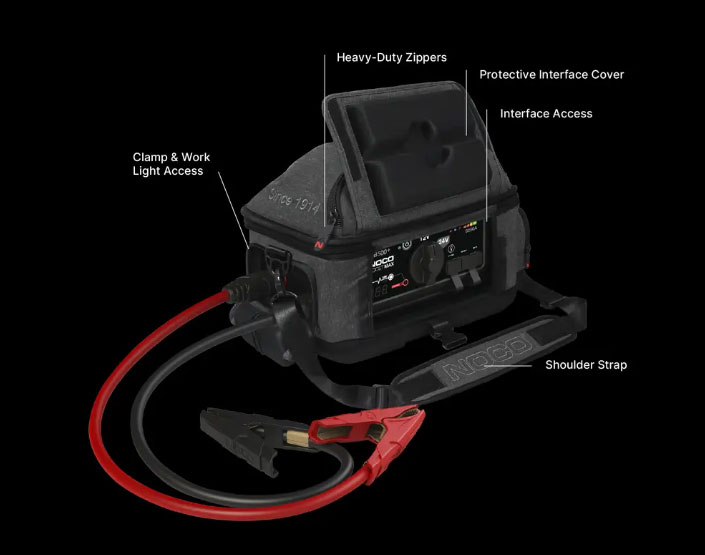

Jump starters this powerful typically are enormous and weigh hundreds of pounds, but our high discharge lithium technology makes it the most compact and lightweight design in the world - weighing a mere 24-pounds. And its portable carrying case makes jump starting more convenient than ever.

Technical Specification

• Voltage 12V & 24 Volt
• Starting Current 6250 Amps (Peak)
• Battery Types 12 Volt & 24 Volt Lead-Acid Battery Systems
• Internal Battery 266 Watt-Hour Lithium-Ion
• Operating Temperature -22°F to 122°F (-30°C to +50°C)
• Charging Temperature 32°F to 104°F (0°C to +40°C)
• Storage Temperature -4° to 122° F (-20°C to +50°C)
• Cooling Natural Convection
• USB Output Dual 5 Volts, 2.1 Amps Max
• XGC Input 12 Volts, 5 Amp
• XGC Output 12.8 Volt, 15 Amp
• Gas Engine Rating Up to 45 LitersSafe On All Engine Sizes
• Diesel Engine Rating Up to 45 Liters Safe On All Engine Sizes
• LED Flashlight 2,200 Lumens

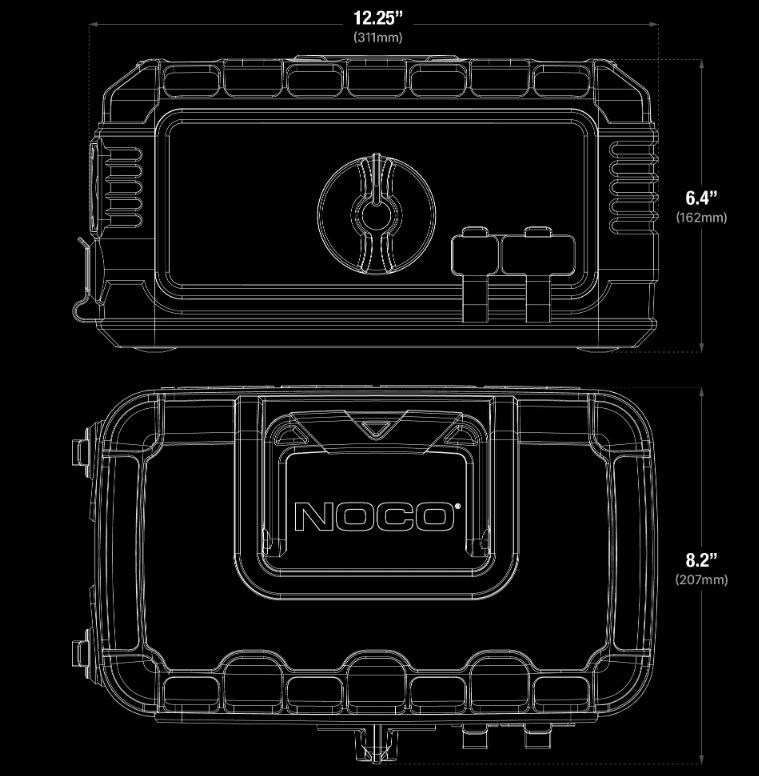

• Product Size
  • Height: 6.36in (162mm)
  • Width: 12.24in (311mm)
  • Depth: 8.15in (207mm)
  • Weight: 14.7lbs (6.67kg)
• IP Rating: IP65 (w/ Ports Closed)

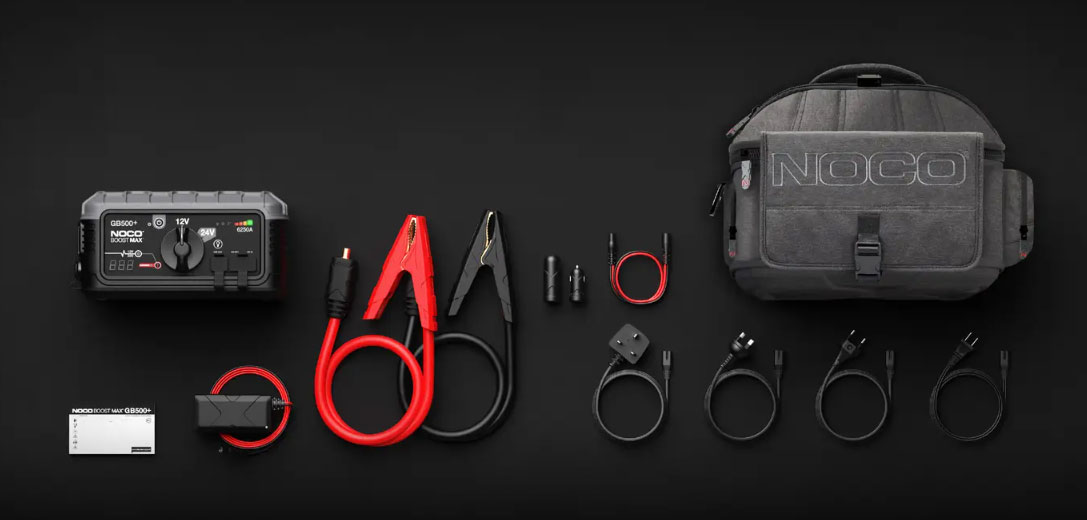

What's In The Box

• GB500+ Lithium Battery Jump Starter
• Boost Max 24-Inch 2/0 AWG Connectors
• 56-Watt XGC Power Adapter
• 12-Volt Female Plug 12-Volt Male Plug
• 12-Volt 2-Foot XGC Cable
• Protective Carrying Case
• User Guide & Warranty Information
