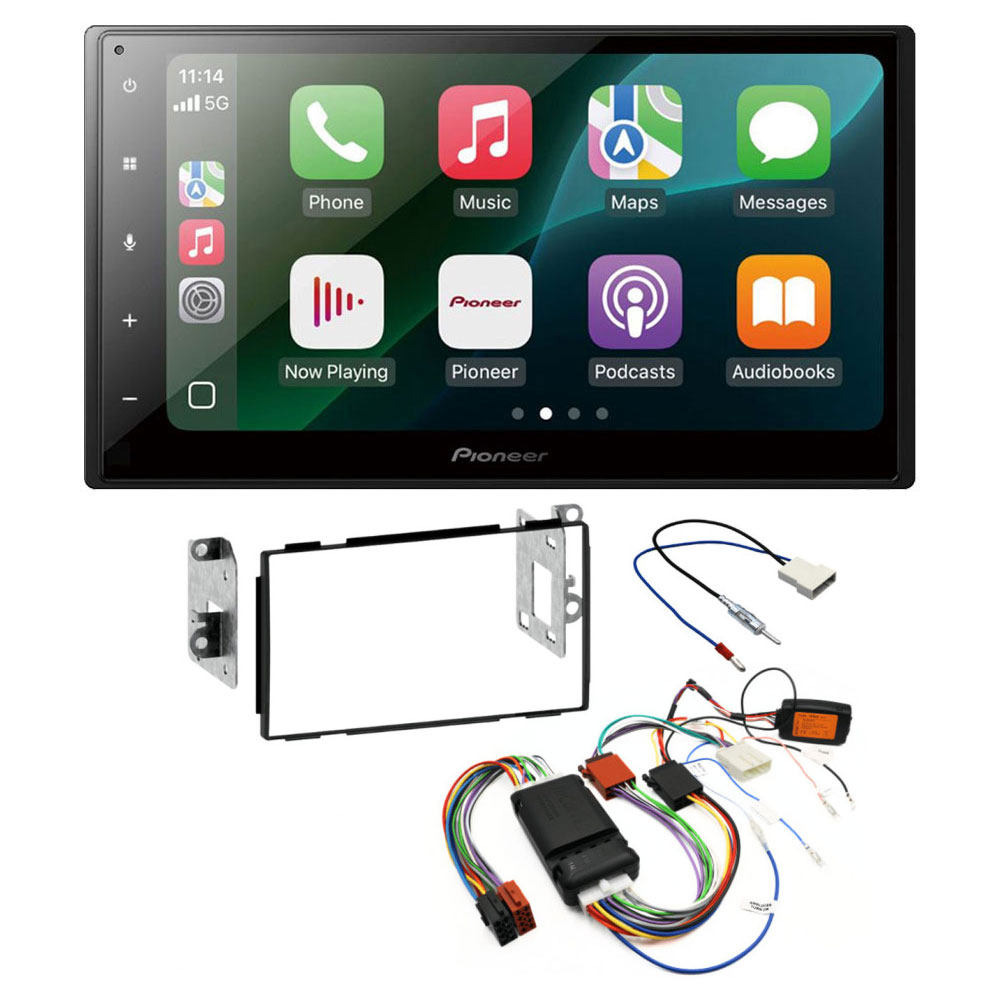

Package Includes

• Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
• Double Din Fascia Adaptor - Matt Black
• Steering Control and BOSE Retention Interface
• Aerial Antenna Adaptor
• Stereo Patch Lead

Fascia Adaptor

Car radio fascia adaptor panel to allow the fitting of an aftermarket Double DIN car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

Colour: MATT BLACK

Steering Control Adaptor and BOSE Retention Interface

Car audio steering wheel control and BOSE retention interface for select Nissan car models with 6 function audio controls on the steering wheel and 20 pin connectors at the back of the radio. (Does not include the i button)
The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. (6 function steering wheels)
This interface fits cars with the newer 20 way car audio connector that has two larger size terminals at either end of the connector.

These radios will also have an additional smaller connector, this is used for CD changer and navigation audio. It is not used when changing the head unit.

The amplifier interface included with this product converts the high level audio output of a new head unit to a low level pre amplified signal which will work with the factory fit Nissan BOSE amplifier.

(Grey Rectangle to DIN connector) Antenna Adaptor (With male bullet connection)

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable. This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.

The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.

SPH-DA150BT

Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Aux-in - Plug your compatible device for easy and convenient playback.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.

Key Features

• Installation Type: 2-DIN
• Navigation: Via Android Auto , Via Apple CarPlay
• Screen Size: 6.8 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wired
• Android Auto™ Connection: Wired
• DAB Antenna Lorem Ipsum
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination:

Audio Features

• Graphic Equaliser: 13-Band
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Input: 1
• RCA AV Input: 1
• RCA Rear AV Output:
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Hand Held Remote Control: Optional CD-R33 (Sold separately)
• Steering Wheel Control: Supported
• Mechafree
• Short Chassis

PLEASE NOTE : This stereo does not have DAB radio. If you would like DAB radio then you will need to look at the following stereo Pioneer SPH-DA160DAB

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
