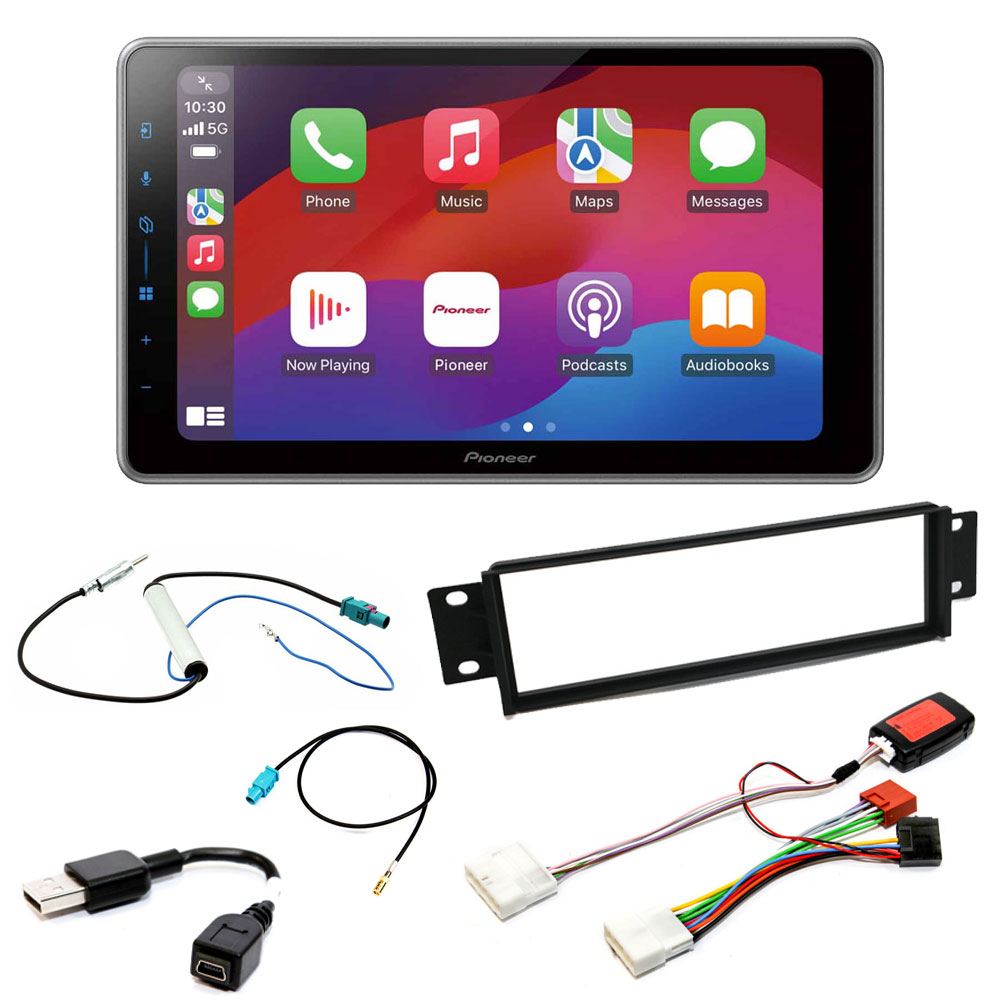

Package Includes

• Pioneer SPH-DA97DAB-1D 9" Wireless CarPlay / Android Auto Bluetooth DAB+ Digital Radio
• Single Din Fascia Adaptor Panel (MATT BLACK)
• Steering Wheel Control Interface Stalk
• Fakra to DIN Aerial Antenna Adaptor
• Fakra DAB Male to DAB SMB Female Antenna Adaptor Cable (50cm)
• Mini USB Female To Male USB Adaptor
• Stereo Patch Lead

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Single DIN aftermarket version. The fascia is cage fit and uses the radio cage supplied with the after market radio to slide in to place.

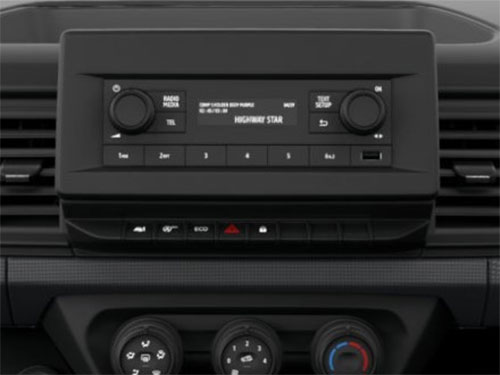

Fits Nissan Primastar (2022 onwards) in start specification with original single DIN radio. Not suitable for models with the Easy-Link screen/navigation system.

Steering Wheel Interface

Steering wheel control interface with standard original radios. This interface also adapts from the white connector in the vehicle to standard after market ISO connectors. This interface will give volume, seek/track, source and telephone commands to compatible after market head units. Must be used with patch lead to suit make of head unit being fitted.

Fakra to DIN Aerial Antenna Adaptor

Fakra to Din Antenna Adaptor with Phantom Power Supply. This adapter converts car specific antenna connecter to a DIN aftermarket connector.

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit. Antenna Adaptors are available in both ISO and DIN versions. Antenna Aerial Adaptor, converts car specific antenna connector to a universal aftermarket connector.

Blue wire requires connection to stereo remote control wire normally Blue or Blue with White stripe as shown in the image above.

Fakra DAB Male to DAB SMB Female Antenna Adaptor Cable (50cm)

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Mini USB Female To Male USB Adaptor

Commonly used to retain original USB when fitting an aftermarket head unit.

Some original head units have mini SUB connection, using this adapter the original USB dashboard connection can be used with an aftermarket head unit.

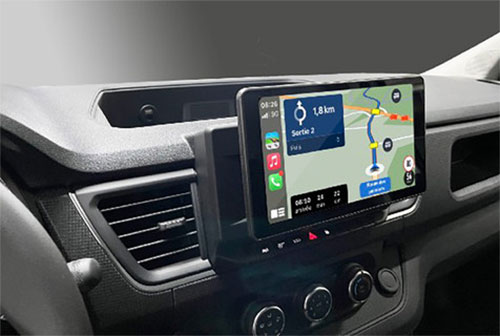

SPH-DA97DAB-1D For 1-DIN Floating Installation Style

The 9.0” Wi-Fi® enabled SPH-DA97DAB can now be fitted to multiple different vehicles thanks to the 1-DIN floating installation style. Featuring Apple CarPlay® (wireless & wired), Android Auto™ (wireless & wired), DAB+ Digital Radio, Bluetooth®, and Pioneer’s Direct Key for quick, easy, safe one touch operation.

Single Din Chassis with one Din Fitting Cage

	Wi-Fi® Wireless connectivity specifically designed to support a cable free connection between your smartphone and the receiver.
	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto  Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	Capacitive Touchscreen Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Modular Design The screen panel can be installed separately from the main unit, useful for cars with no dashboard space expanding your installation options.
	WebLink The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
	Aux-in Plug your compatible device for easy and convenient playback.
	Advanced Sound Retriever Reproduce high-quality sound from compressed digital audio files and Bluetooth® wireless audio streams.
	Pioneer PxLink Companion App Pioneer PxLink brings a custom-fit interface to your lifestyle. Enhancing the operability and the convenience of the Pioneer In-Dash receiver, PxLink provides a safe and comfortable in-car experience. What you can do with PxLink: - Easily change the equalizer, source, etc. with shortcut keys without switching the receiver screen - Customize the shortcut keys to your preference and change the receiver wallpaper - Get notified of new features, updates, and important news - Easily update the receiver to the latest firmware using PxLink
	Pioneer Split Screen Mode Display Apple CarPlay® and the receiver’s menu at the same time on one screen. Useful when you want to operate the music (i.e. Radio or USB) while looking at the map screen.

Key Features

• Installation Type: 1-DIN, Floating
• Navigation:
  • Via Android Auto
  • Via Apple CarPlay
• Screen Size: 9.0 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wireless / wired
• Android Auto™ Connection: Wireless / wired
• Wi-Fi
• Pioneer Split Screen Mode: Apple CarPlay
• Pioneer PxLink Companion App
• DAB+
• DAB Antenna: Optional CA-AN-DAB.001 (Sold separately)
• Vehicle Bus
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination

Audio Features

• Graphic Equaliser: 13-Band
• Advanced Sound Retriever
• Listening Position Selector
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• DAB+
• Digital Radio Tick Mark Approved product
• RDS FM Radio

Connections

• Camera Input: 1
• RCA AV Input: 0
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Steering Wheel Control: Supported
• Mechafree:
• Accessories:
  • External Bluetooth microphone (included)
  • GPS antenna (included)
  • USB extension cable (included)

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
