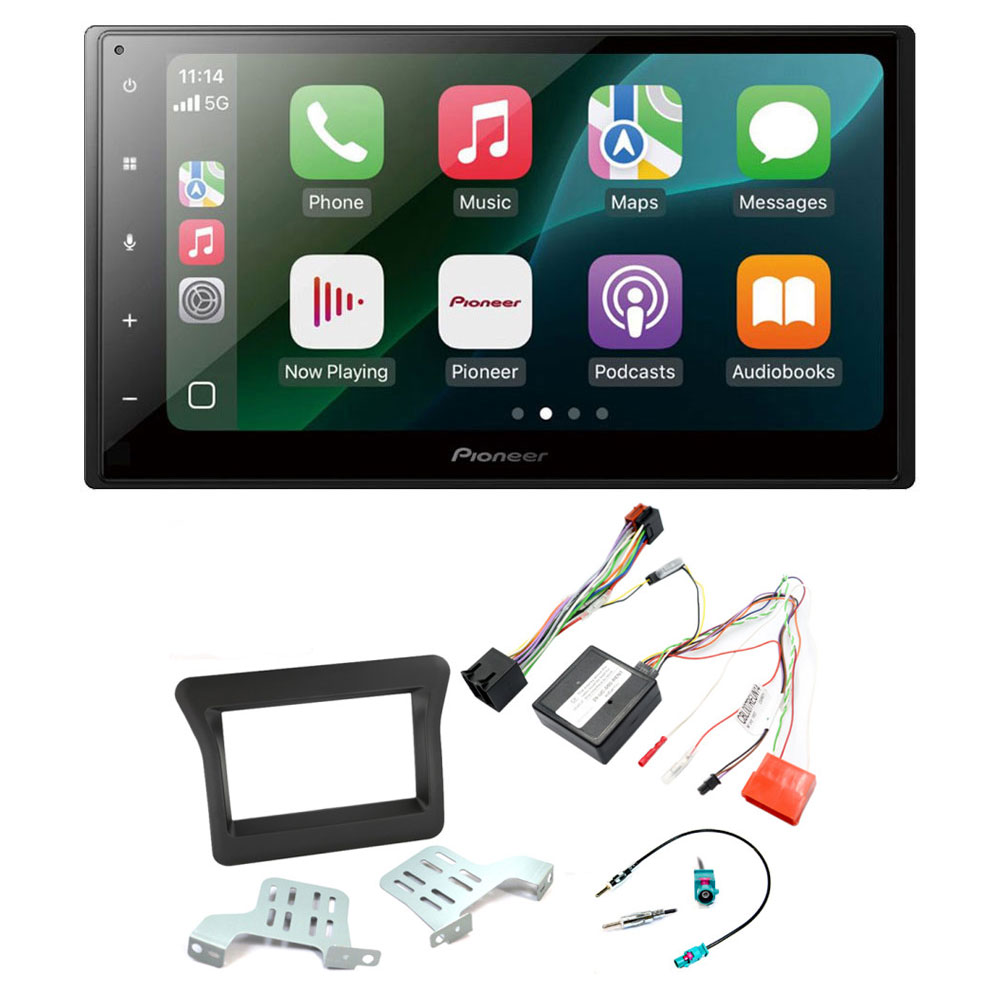

Package Includes

• Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
• Double Din Fascia with Side Fix Brackets
• Steering wheel control interface
• Fakra to DIN Antenna Adaptor
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

CANBus steering wheel audio control and CANbus interface for select Renault vehicles with either "Update List" radios and a seperate display above the original radio. This interface will retain the use of the steering wheel control buttons when fitting an after market head unit, as well as providing CANbus outputs, ignition, illumination, speed pulse, handbrake and reverse gear.(depends on vehicle)

The CANBus steering control signal runs through the display or original navigation unit, if the display or navigation unit is removed this interface will not function.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Male Fakra to Male DIN car aerial antenna adapter cable. This cable adapts from a Fakra connector in the car to a standard aftermarket DIN antenna connector, this is used when fitting an aftermarket stereo upgrade.

Modification to the dashboard is required. The plastic between the original radio and storage pocket needs to be cut away and the plastic behind the radio needs to be trimmed. We recommend this is done by an experienced professional car audio technician.

SPH-DA150BT

Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Aux-in - Plug your compatible device for easy and convenient playback.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.

Key Features

• Installation Type: 2-DIN
• Navigation: Via Android Auto , Via Apple CarPlay
• Screen Size: 6.8 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wired
• Android Auto™ Connection: Wired
• DAB Antenna Lorem Ipsum
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination:

Audio Features

• Graphic Equaliser: 13-Band
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Input: 1
• RCA AV Input: 1
• RCA Rear AV Output:
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Hand Held Remote Control: Optional CD-R33 (Sold separately)
• Steering Wheel Control: Supported
• Mechafree
• Short Chassis

PLEASE NOTE : This stereo does not have DAB radio. If you would like DAB radio then you will need to look at the following stereo Pioneer SPH-DA160DAB

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
