Package Includes

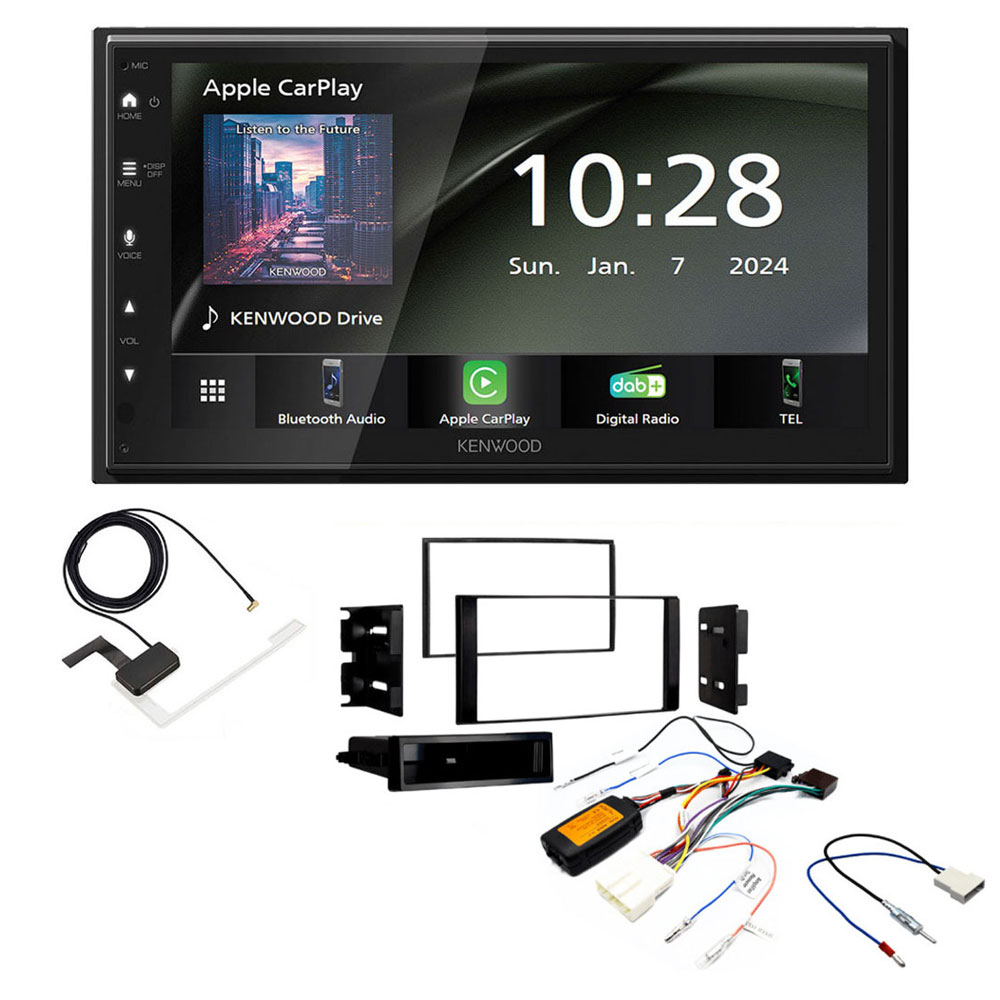

• Kenwood DMX6523DABS 6.8" WSVGA Screen Wireless CarPlay / Android Auto, Mirroring, DAB+ Bluetooth Stereo
• DAB Aerial
• Single/Double Din Fascia Adapter (Matt Black)
• Steering Wheel Control Interface Adaptor
• Aerial Antenna Adapter Cable
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement audio fascia to enable you to change the original radio in the vehicle to a Double DIN aftermarket version

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

A pocket is provided for Single DIN installation

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Steering wheel control interface and adapter cable for Nissan Navara D40, NV200, Pathfinder, Patrol and Qashqai cars to fit an aftermarket radio upgrade.

The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

The steering wheel control interface is built in to the adapter cable. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. (6 function steering wheels)

This interface fits cars with the newer 20 way car audio connector that has two larger size terminals at either end of the connector. These radios will also have an additional smaller connector, this is used for CD changer and navigation audio. It is not used when changing the head unit.

Installation notes

• Connect male ISO(S) of the steering wheel control interface to the female ISO(S) of the aftermarket radio lead/head unit
• Loose black wire - Connect the radio ground earth ring to the vehicles chassis ground
• Loose pink wire - Connect the pink wire to the speed pulse connector on the aftermarket radio (Not all radios have this, please check manufacturers instructions)
• Loose blue wire (Amplifier turn-on) - This is only required on amplified systems such as BOSE.
• Loose blue wire (Antenna turn-on) - This needs to be connected to the antenna turn on cable on the antenna adapter cable

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable.

This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.

The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.

DMX6523DABS

Digital AV Receiver • 6.8" WSVGA Display • Wireless Apple CarPlay®/Android Auto™ & iPhone & Android Mirroring • DAB+ Tuner

Key Features

• 6.8" WSVGA Display with Capacitive Touch Panel.
• Wired & Wireless CarPlay® & Android Auto™
• True Wireless Mirroring, 2-Way Touch Control for iPhone & Android
• Built-in DAB+ Digital radio Tuner
• Built-in Bluetooth® technology for Handsfree calling & Audio Streaming.
• High Current 2.1A Charging USB port.
• Front & Rear + Subwoofer (Mono) Preouts - 2.5V
• 13 Band EQ & Digital Time Alignment
• Rear View Camera Input with Parking Guidelines
• Single DIN Short Chassis Design for easy installation

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone required.

Wireless Mirroring for smartphone

By installing the “MirroringAPP+”, your iPhone & Android phone* screen is seamlessly displayed on the receiver's large screen wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

*Selected smartphones only

Built-in DAB+ Digital Radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

Easy Installation With a Compact Rear Chassis

Despite its double-DIN display, the L-shaped chassis is only half sized than conventional double-DIN units.
The reduced depth and the L-shape of the chassis contributes to a weight reduction and facilitates easier installation.

High Resolution WSVGA (1024 x 600px) LCD Display

The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Sound Adjustment Features

For optimal sound tuning enhancements.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White color
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller, (KNA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Made for iPhone
• Apple CarPlay – Connect Wirelessly or via USB
• Android Auto™ – Connect Wirelessly or via USB
• Wireless Mirroring for iPhone/Android
• Firmware upgreadable

Monitor Features

• Screen Type 6.8" Wide SVGA
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High Resolution WSVGA Screen 1024 x 600 pixel
• LCD backlight White LED
• Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
• Screen Adjustments Brightness / Tint / Color / Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Mechanism type Fixed
• NTSC/PAL judge  (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Wallpaper customizable 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guide Lines, Built-in, customizable

Network & Wifi Features

• WiFi built-in
• Frequency Range 5 GHz (5,745– 5,825 GHz)
• Output Power 5GHz / SISO: 13.78 dBm
• Wireless connection for Apple CarPlay
• Wireless connection for Android Auto
• Wireless connection for iPhone & Android Mirroring With MirrorApp+ application

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Service list by alphabet order
• Alphabet Search
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blendings
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Announcement Switching (ASW) Select
• Slide Show
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• Audio Streaming (A2DP), (SBC/AAC)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• PBAP call history Up to 20 entries of dialed, received and missed calls
• Audio/Video Remote Control Profile (AVRCP), V1.6
• iPhone & Android automatic pairing via USB
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone built-in
• Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• USB terminal, rear side / 1m cable / fix
• USB Type 2.0 High speed
• Drive Change
• File System FAT16 / FAT32 / exFAT / NTFS
• Tag Information Display
• Album Art Display
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Last Position Memory / Resume
• Time code display
• USB ports maximum output current 2.1A

iPhone Features

• Connection via: USB / Bluetooth
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth
• Works with Apple CarPlay Wired & Wireless

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Wired & Wireless
• Android Open Accessory Protocol (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 2 RCA : FRONT/REAR + SUB(mono)
• Pre-out Output Level 2.5V
• Volume Offset
• Volume Type DSP
• Built-in Amplifier Off
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Preset 4 Presets
• Position Preset
• Graphic Equalizer 13 bands
• G-EQ manual setting
• G-EQ adjustable level, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over
• Speaker Size Control
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Source Volulme Offset source independent

Connectivity

• DC-Cord 22pin (New Type) to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input (Non Switchable) (Mini-jack) audio & video
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input  JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready, Optional interface needed
• Learning Steering Remote Function

DMX6523DAB vs DMX7722DAB

Smaller 6.8" Screen / 7" Screen

2 Pre Outs / 3 Pre Outs

Built in Microphone / Wired Microphone

Single Din Chassis / Double din Chassis

Higher Resolution / Slightly Lower Resolution

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
