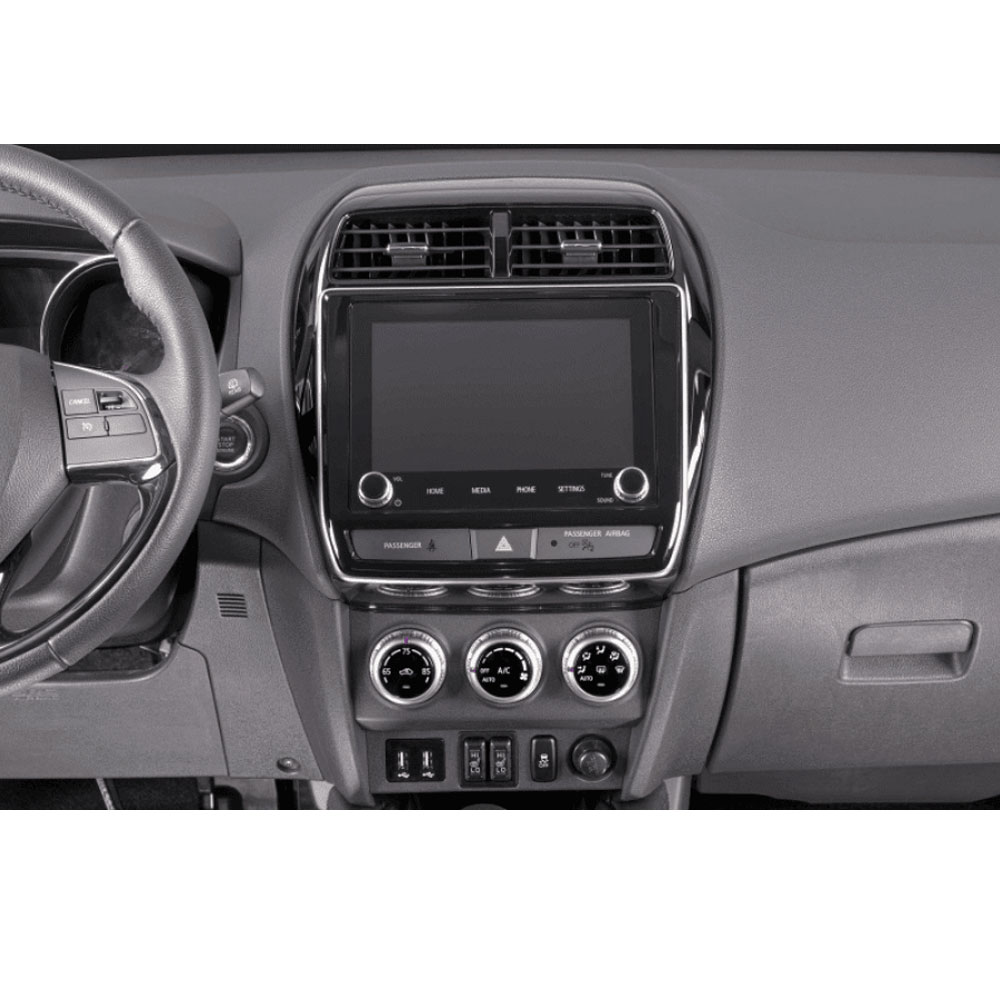

This Mitsubishi ASX Double DIN stereo fitting kit is designed for selected 2019-2023 models with factory fitted 8 inch display systems, including ASX Dynamic models with an 8 inch SDA radio and Exceed variants with an 8 inch factory TomTom navigation display. It allows the original radio to be upgraded to a compatible aftermarket Double DIN stereo while helping retain steering wheel audio controls, the factory reverse view camera and the factory DAB aerial connection.

The kit includes a Double DIN fascia adapter for a clean dashboard finish, a Mitsubishi steering wheel control interface with universal patch lead, an 8-pin Mitsubishi camera retention harness and a Fakra DAB to SMB antenna adapter. This makes it a practical solution for Mitsubishi ASX stereo upgrades where a neat installation and factory feature retention are required.

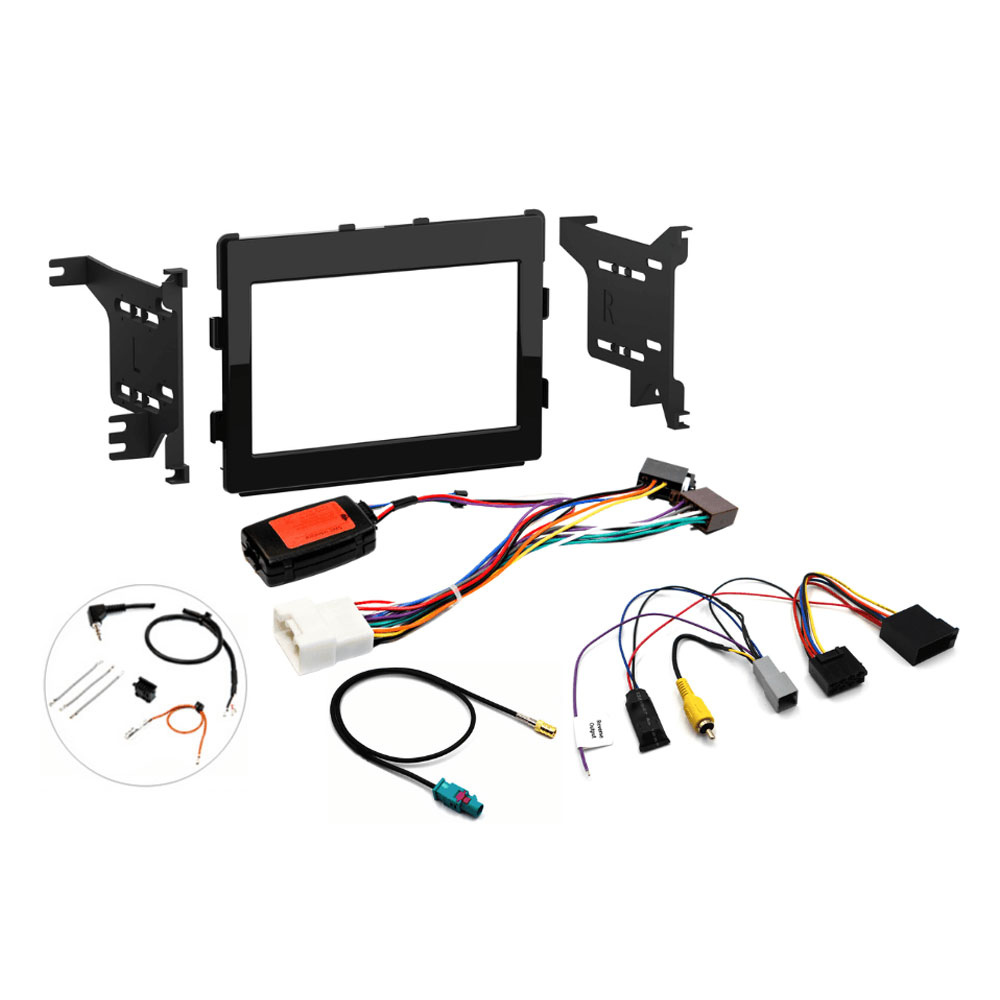

Package Includes

• Double Din Fascia Adaptor (Black)
• Steering wheel audio control interface and ISO cable
• 8-pin camera retention harness adapter
• Fakra DAB male to DAB SMB female antenna adapter cable, 50cm
• Universal patch lead (Included)

Features and Benefits

• Complete Double DIN stereo fitting kit
• Designed for selected Mitsubishi ASX 2019-2023 models
• Suitable for vehicles with factory fitted 8 inch displays
• Designed for ASX Dynamic models with factory 8 inch SDA radio
• Designed for ASX Exceed models with 8 inch factory TomTom navigation display
• Allows replacement of the original factory radio
• Retains factory steering wheel audio controls
• Retains factory reverse view camera
• Retains factory DAB aerial connection
• Includes Double DIN fascia adapter
• Includes Mitsubishi steering wheel control interface
• Includes universal patch lead
• Includes Mitsubishi 8-pin camera retention harness
• Includes Fakra DAB to SMB antenna adapter
• Helps provide a clean OEM-style dashboard finish
• Designed for compatible aftermarket Double DIN stereos
• Ideal for Mitsubishi ASX aftermarket stereo upgrades

Retained Functions

Depending on vehicle equipment and aftermarket stereo compatibility, this kit can help retain:

• Steering wheel audio controls
• Factory reverse view camera
• Factory DAB aerial connection
• Supported phone button functions where compatible
• Reverse camera trigger where compatible

Retained functions may vary depending on the exact vehicle specification and aftermarket stereo being fitted.

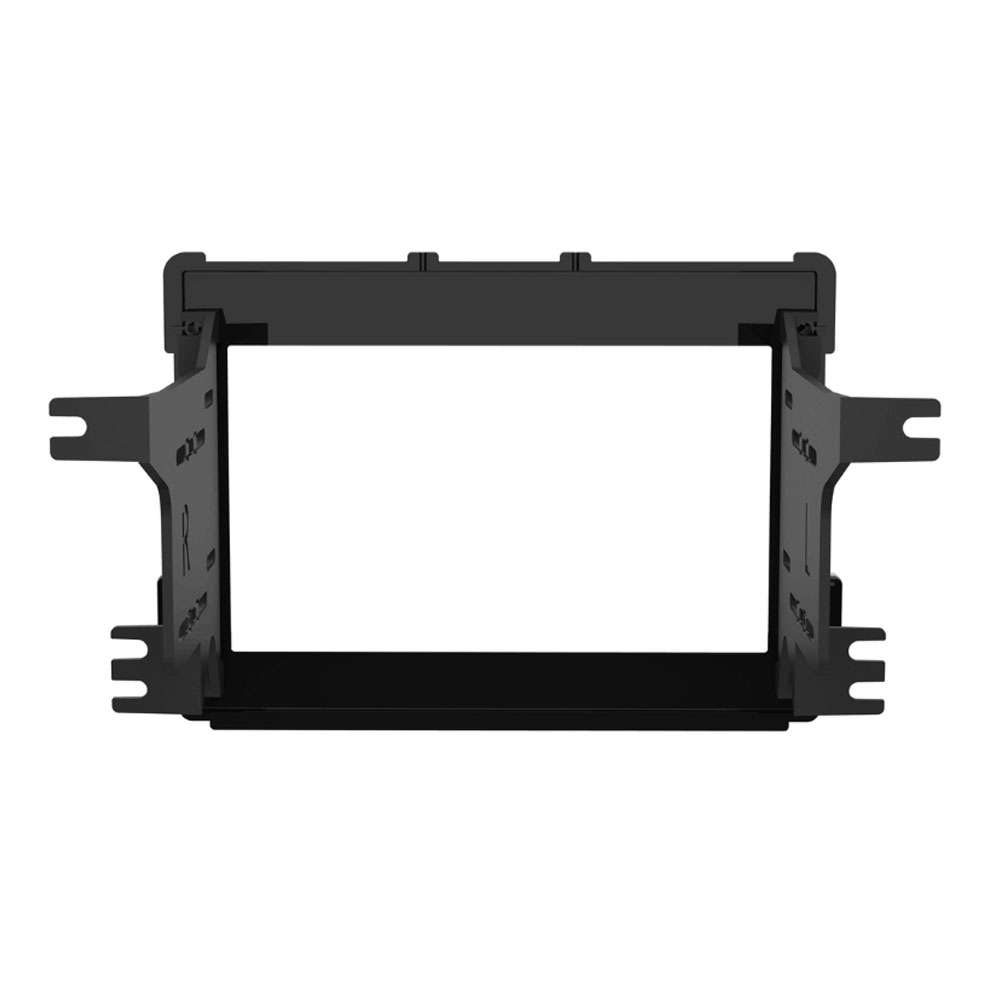

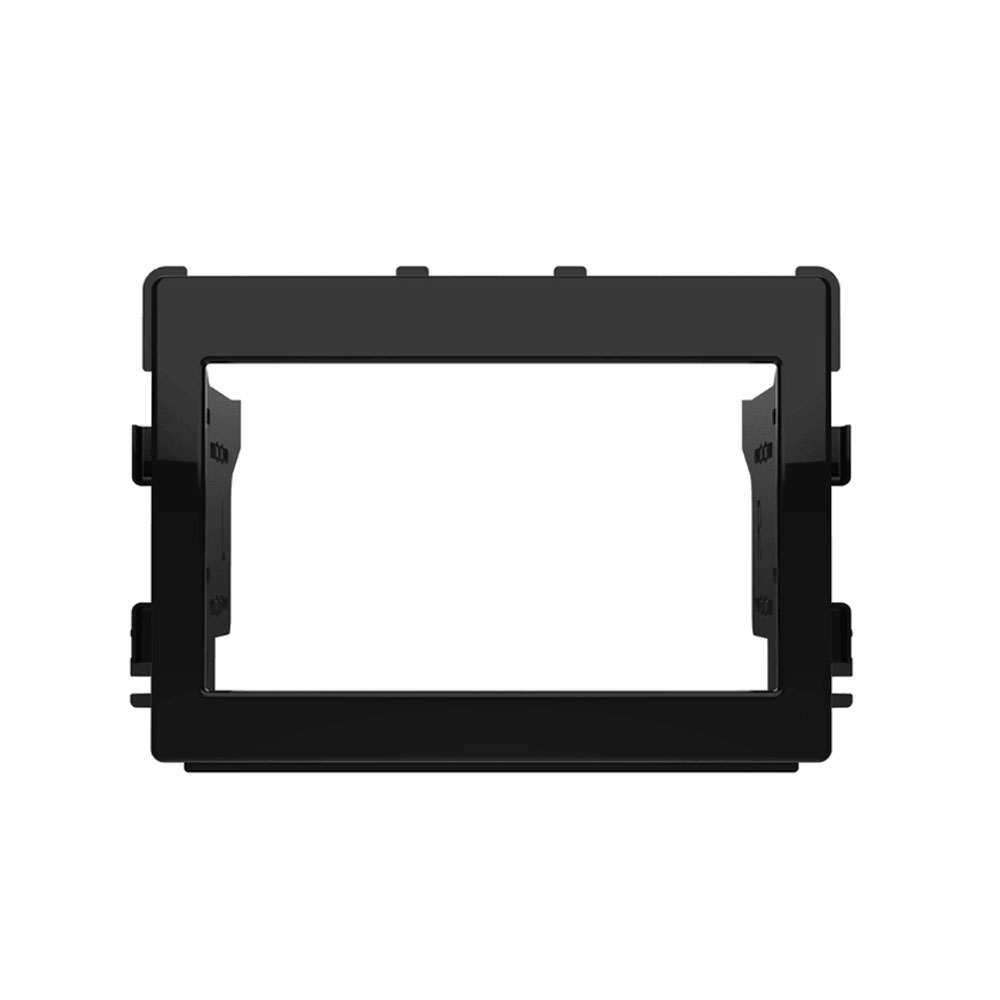

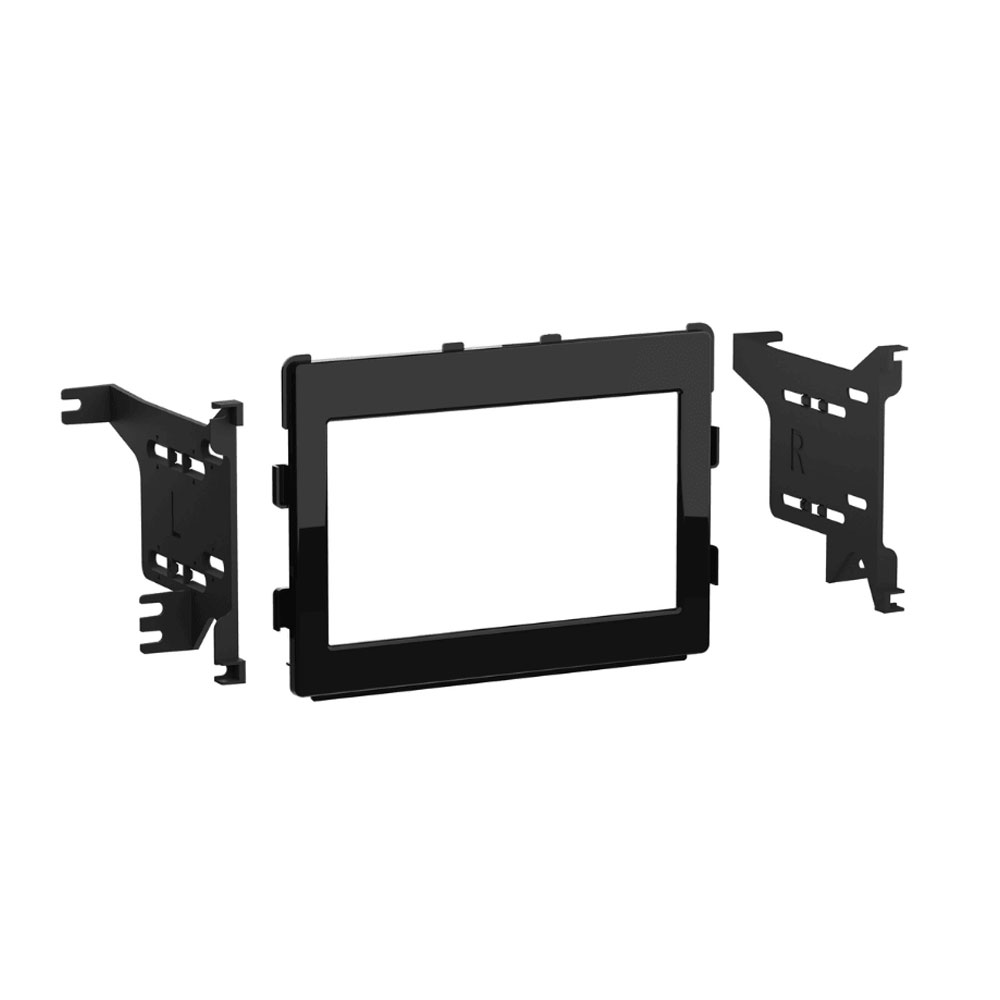

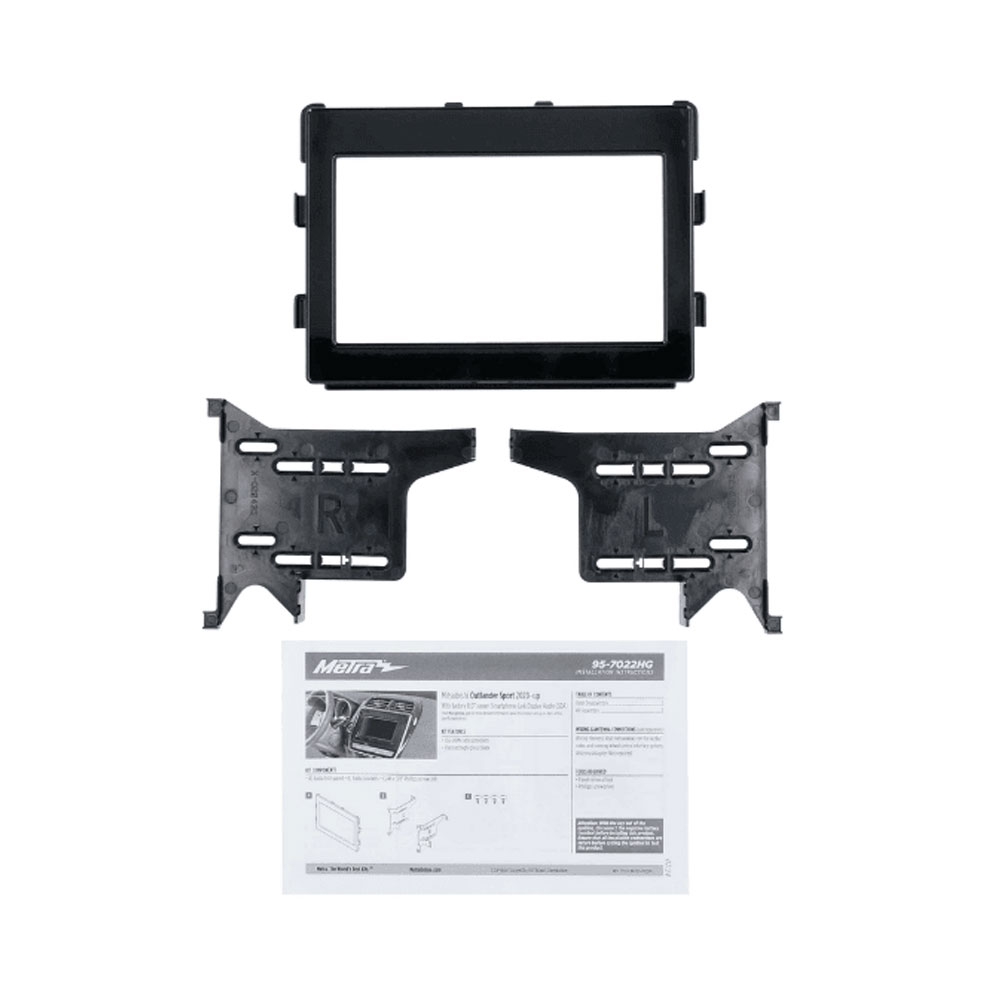

Fascia Adaptor

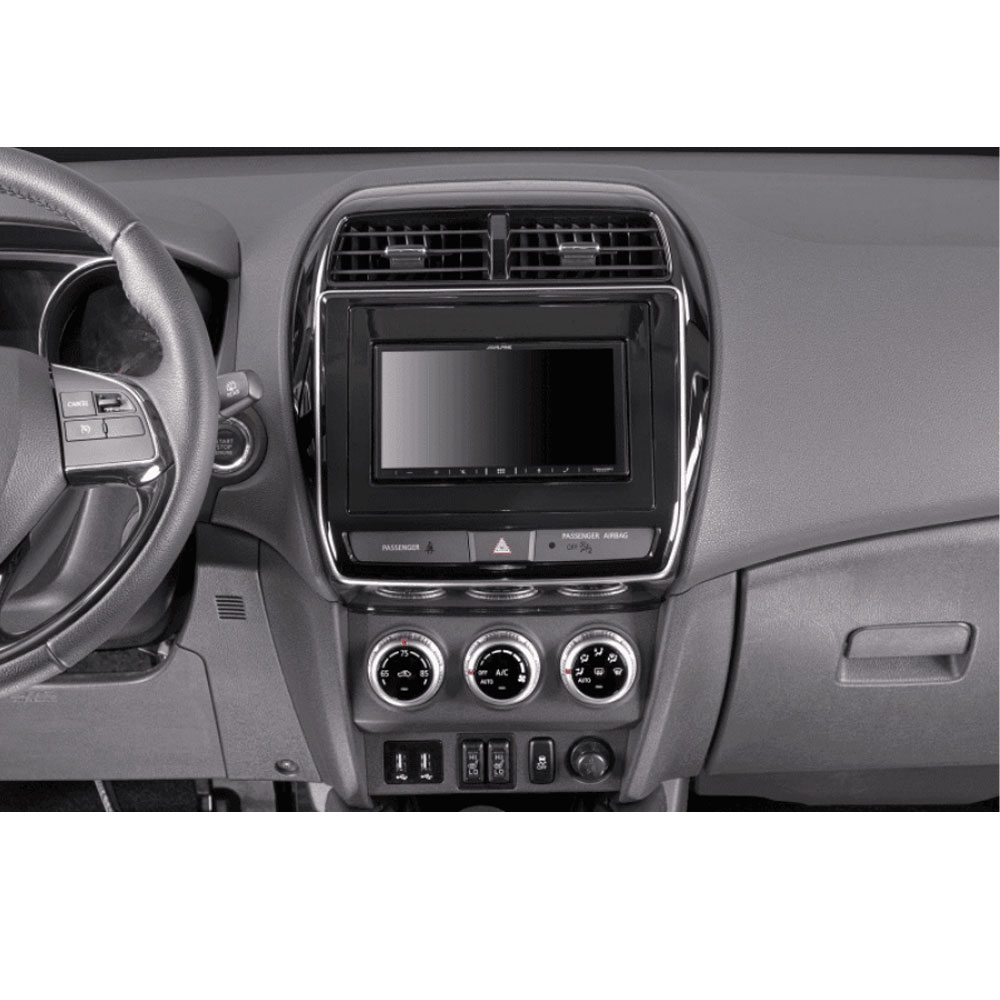

The included fascia adapter allows a compatible Double DIN aftermarket stereo to be fitted neatly into the Mitsubishi ASX dashboard.

It is designed to suit selected Mitsubishi ASX dashboard applications and helps provide a clean, factory-style finish around the new stereo.

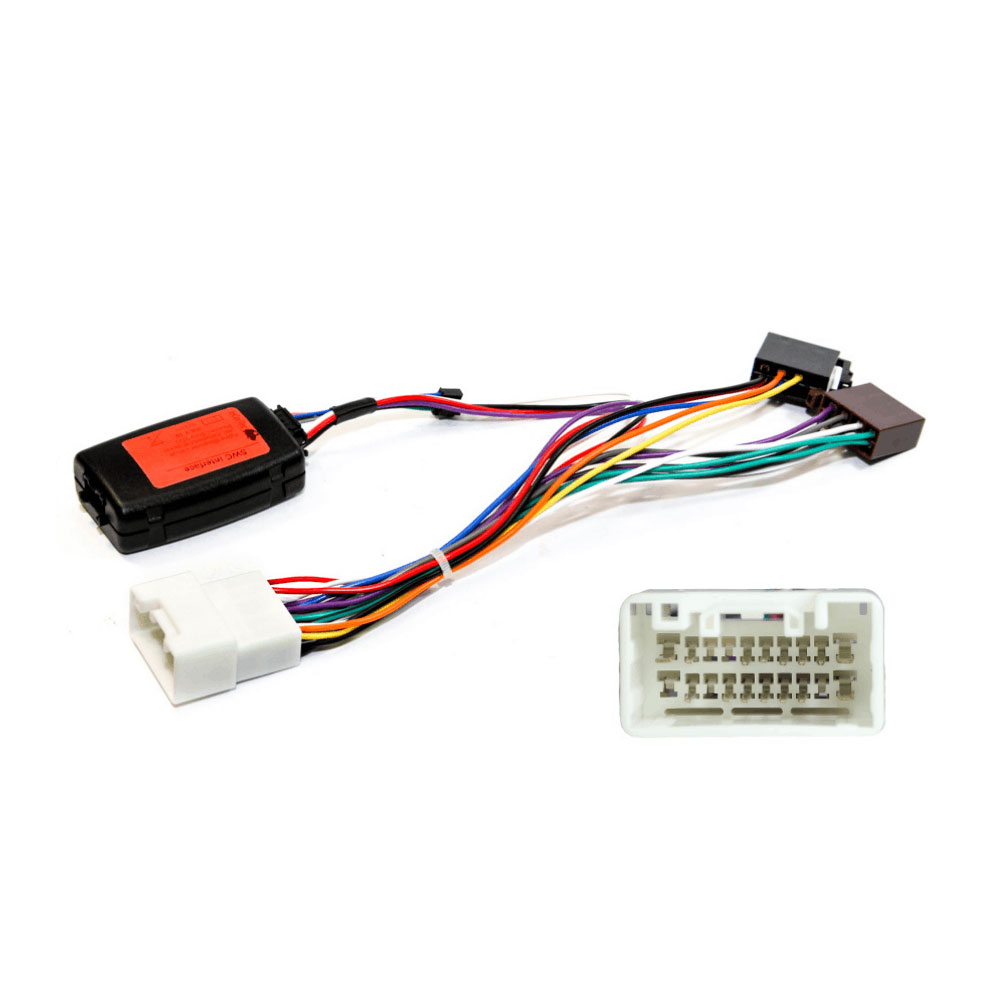

Steering Wheel Control Retention

The included steering wheel control interface allows the original steering wheel audio buttons to be retained when fitting a compatible aftermarket stereo.

The supplied universal patch lead connects the steering control interface to a wide range of compatible aftermarket head unit brands. Some stereo brands may require setup or configuration to enable steering wheel control operation.

Reverse Camera Retention

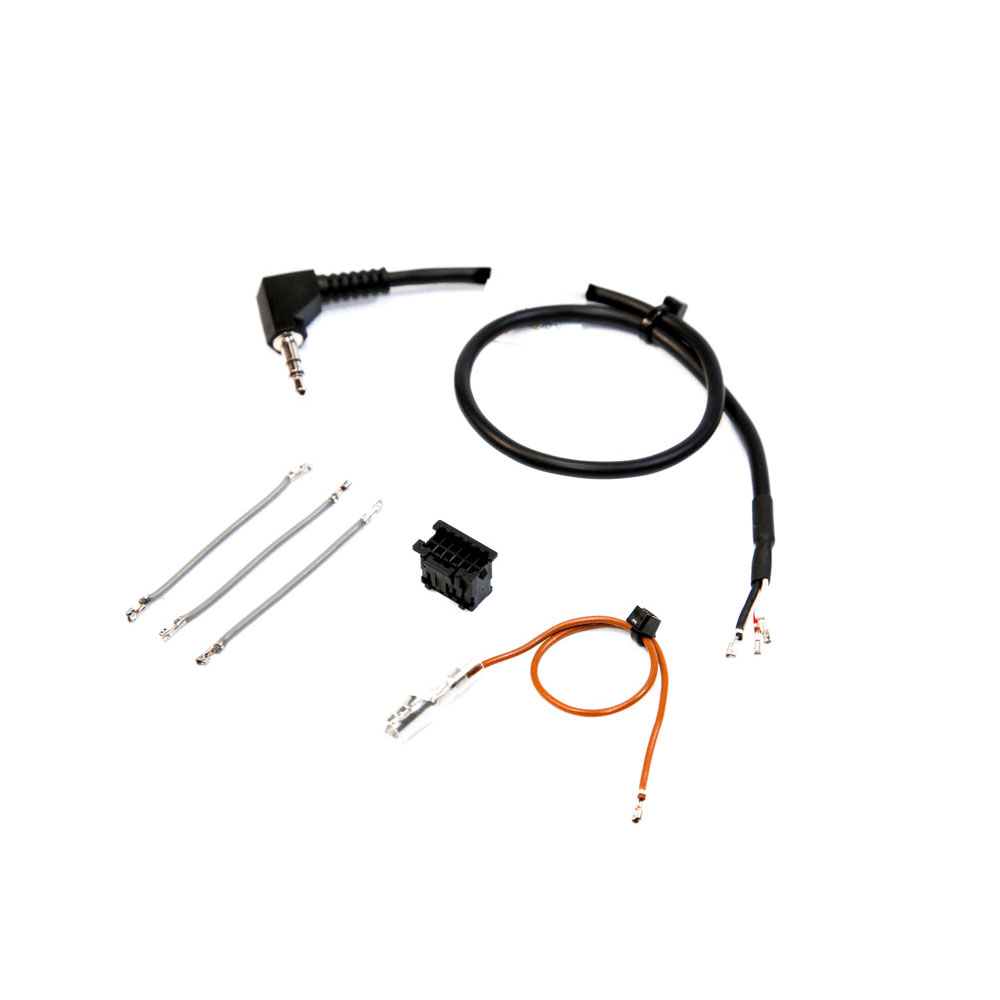

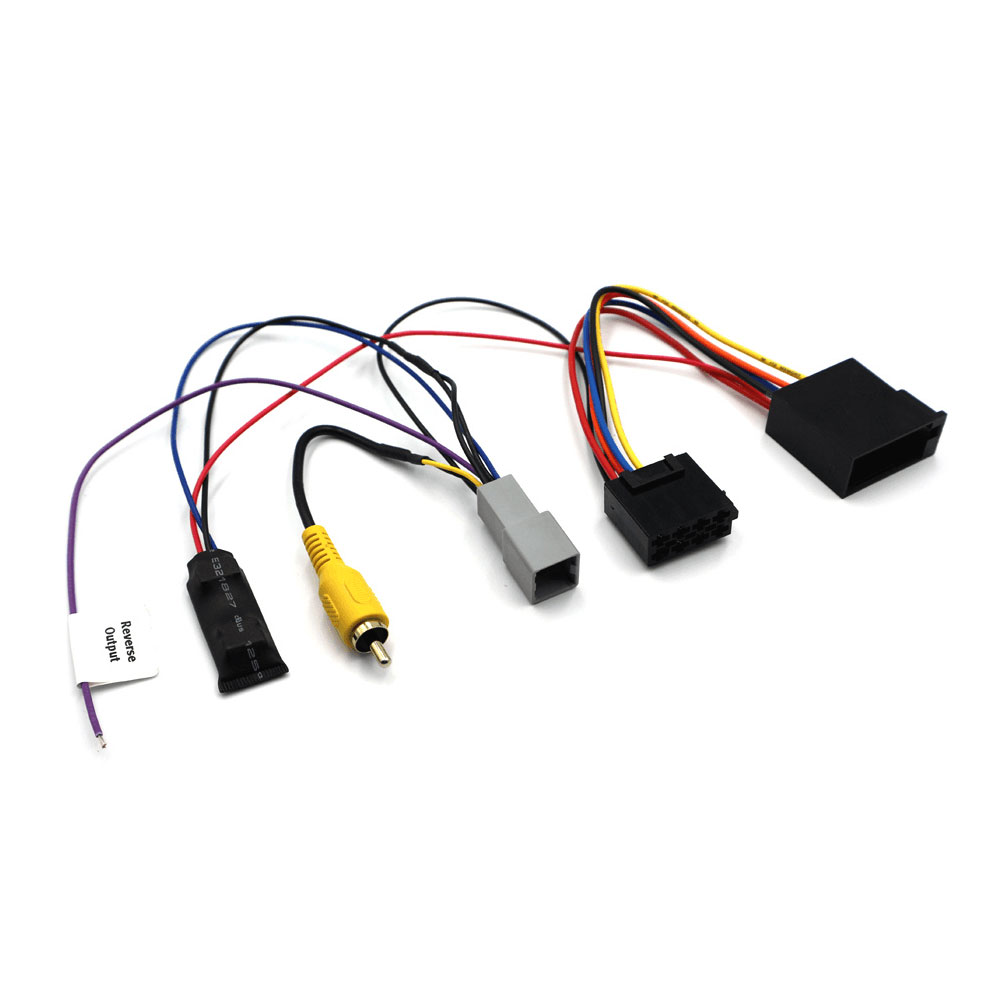

The included Mitsubishi 8-pin camera retention harness is designed to retain the original OEM reverse camera on compatible Mitsubishi vehicles with the 8-pin grey camera connector.

It includes camera retention wiring with reverse trigger and 12V-to-6V camera power conversion, allowing the factory reverse camera to be used with a compatible aftermarket stereo camera input.

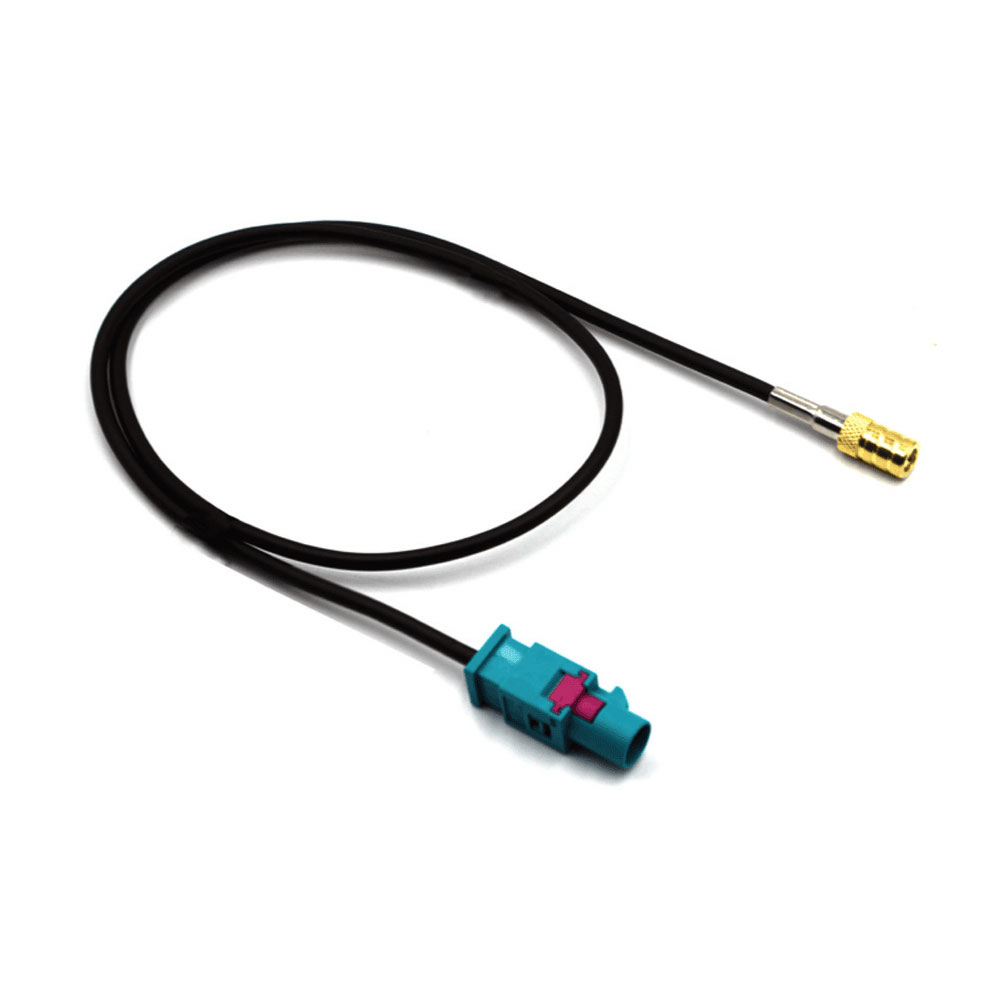

DAB Aerial Retention

The included Fakra DAB to SMB antenna adapter allows the original factory DAB aerial connection to be adapted for use with many aftermarket DAB stereos.

This helps retain the vehicle’s original DAB aerial rather than requiring a separate universal windscreen DAB antenna.

Installation Notes

Before installation, compare the vehicle’s original radio connectors with the supplied interface, camera harness, fascia adapter and DAB aerial adapter to ensure they match visually and technically.

After fitting the aftermarket stereo, test the steering wheel audio controls, factory reverse camera image, DAB reception and any required stereo settings before fully reassembling the dashboard.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
