This complete Double Din Radio Replacement Kit by Connects2. CTKMB17, allows the fitment of a Double DIN aftermarket headunit to the selected vehicle. The kit includes everything you need to complete the installation including fascia, steering stalk controls, aerial connections, Reverse Camera and USB Port Retention Cable

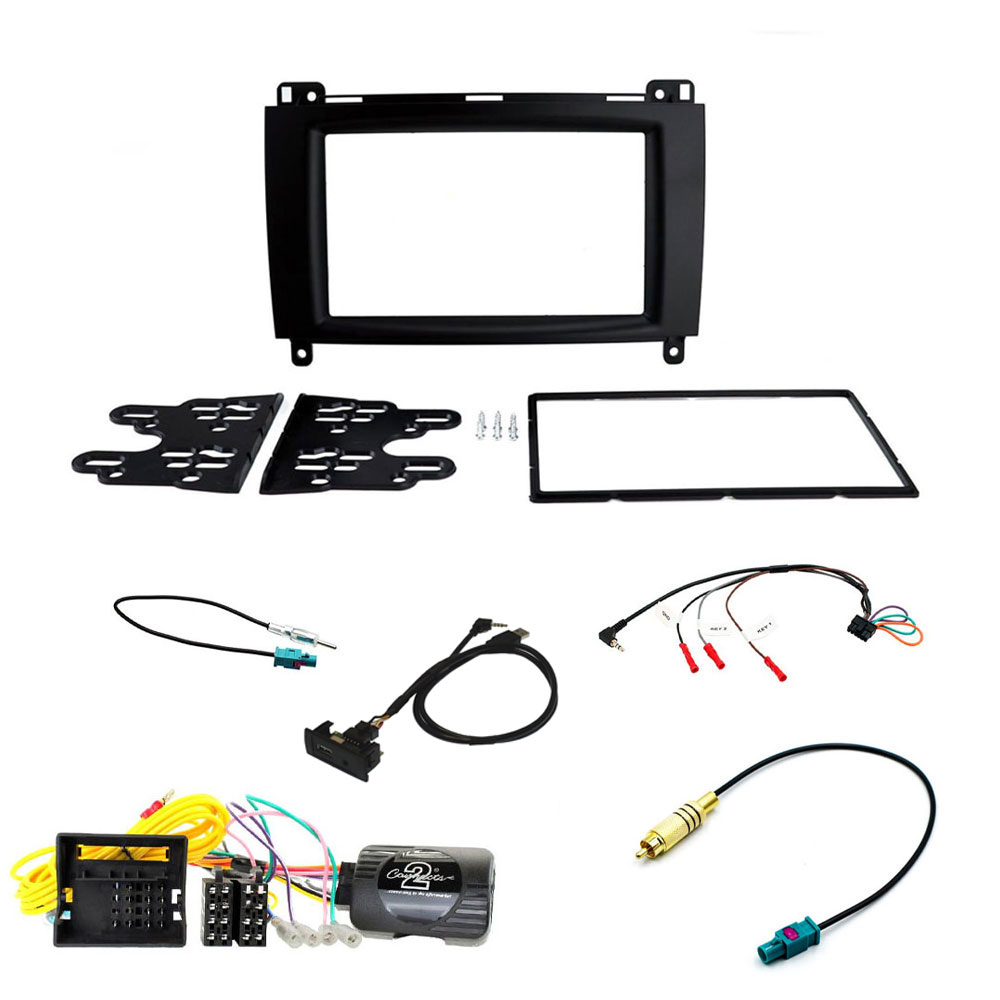

Package Includes

• Double Din Fascia (Black)
• Steering Wheel Control
• Reverse Camera Retention Interface
• Antenna Adaptor
• USB Port Retention Cable
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

Features

• Contains universal patchlead CTMULTILEAD.2

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Wheel Interface

A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

CAM-MB1-RT Mercedes Reverse Camera Retention Interface

This Universal Blue Fakra (code Z) to male PHONO socket cable allows you to retain an original reverse camera

For this cable to be compatible, your OEM system will have fakra connections present on the head unit. These are usually green or brown in colour and are not always located on the monitor itself, but quite often the media system the monitor is connected to. If it is connected to a seperate module, a Fakra extension may also be required.

This Adaptor also enables you to adapt and connect a video signal with a video input like DVD, Video Sources, DVB-T Tuner, etc. Most commonly, this adaptor is used to retain a factory Mercedes reverse camera to be used with an after-market head unit.

This cable is only compatible with single fakra connections. Double fakra connections are not supported.

Features

• Male FAKRA to male RCA fittings
• Universal blue fakra (code Z)
• Retains factory fitted camera connected with green fakra connection
• compatible with Mercedes Command PCM 2.1 / PCM 3.0 / NTG 2.5 / NTG 4.0 / NTG 4.5 / Audio 20

USB Port Retention Cable

Cable to retain the use of the original USB port when replacing the original head unit. This cable and socket kit can extend the USB and 3.5mm jack connection at the rear of an aftermarket head unit and replace the original USB and 3.5mm jack dashboard mounted sockets in the vehicle.

ONLY FOR HEAD-UNITS WITH REAR USB and  AUX IN  facility.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
