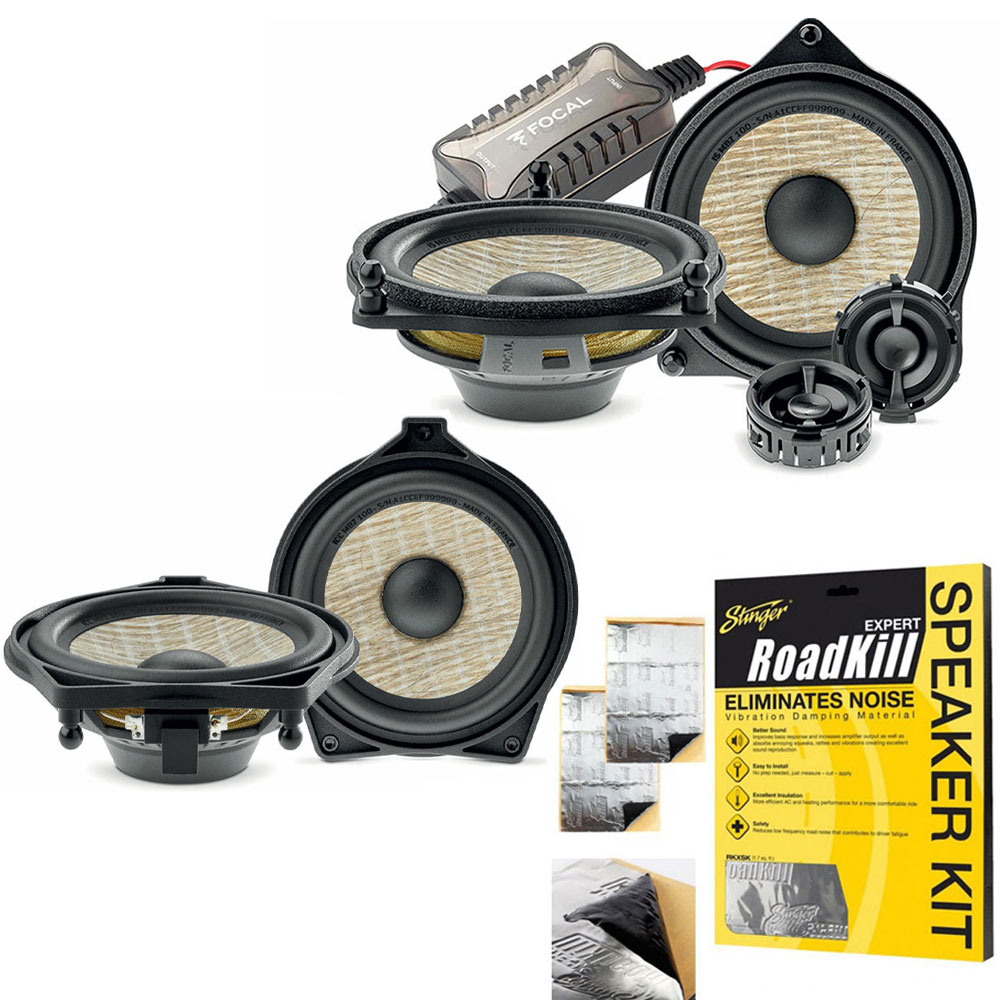

Package Included

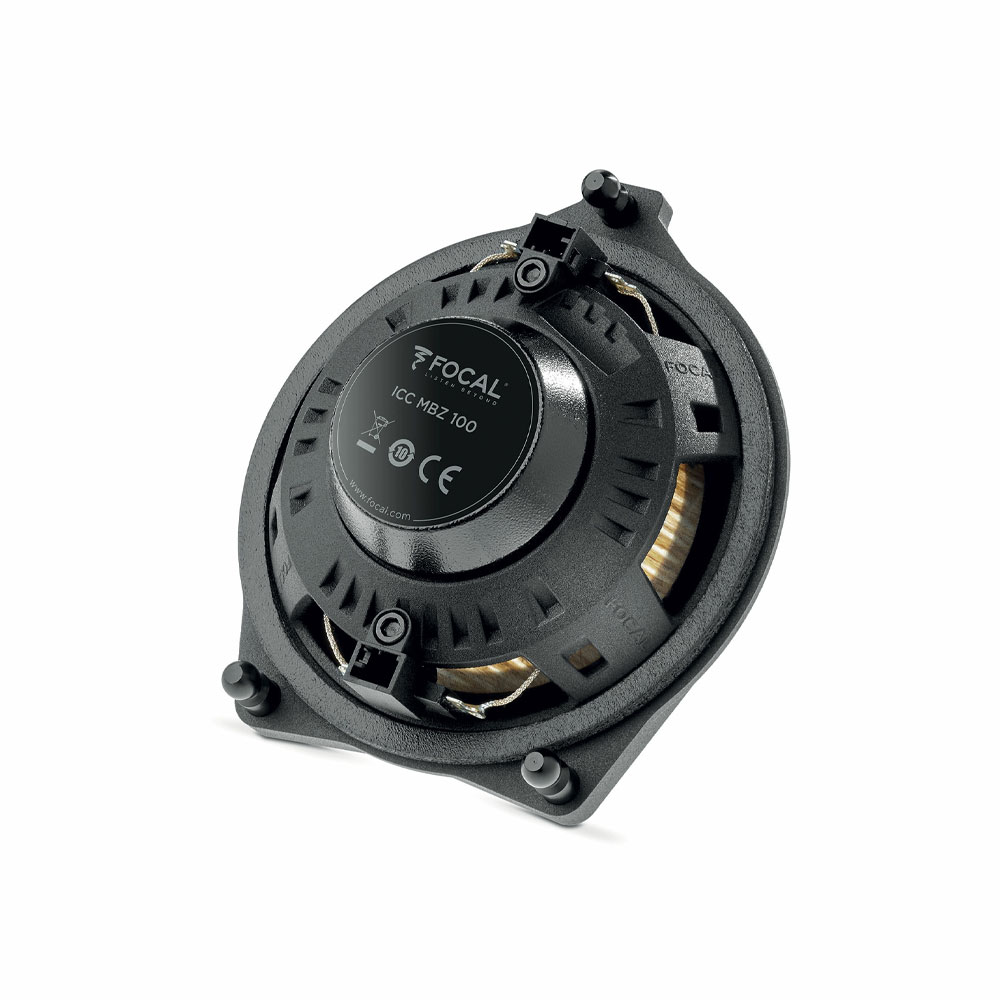

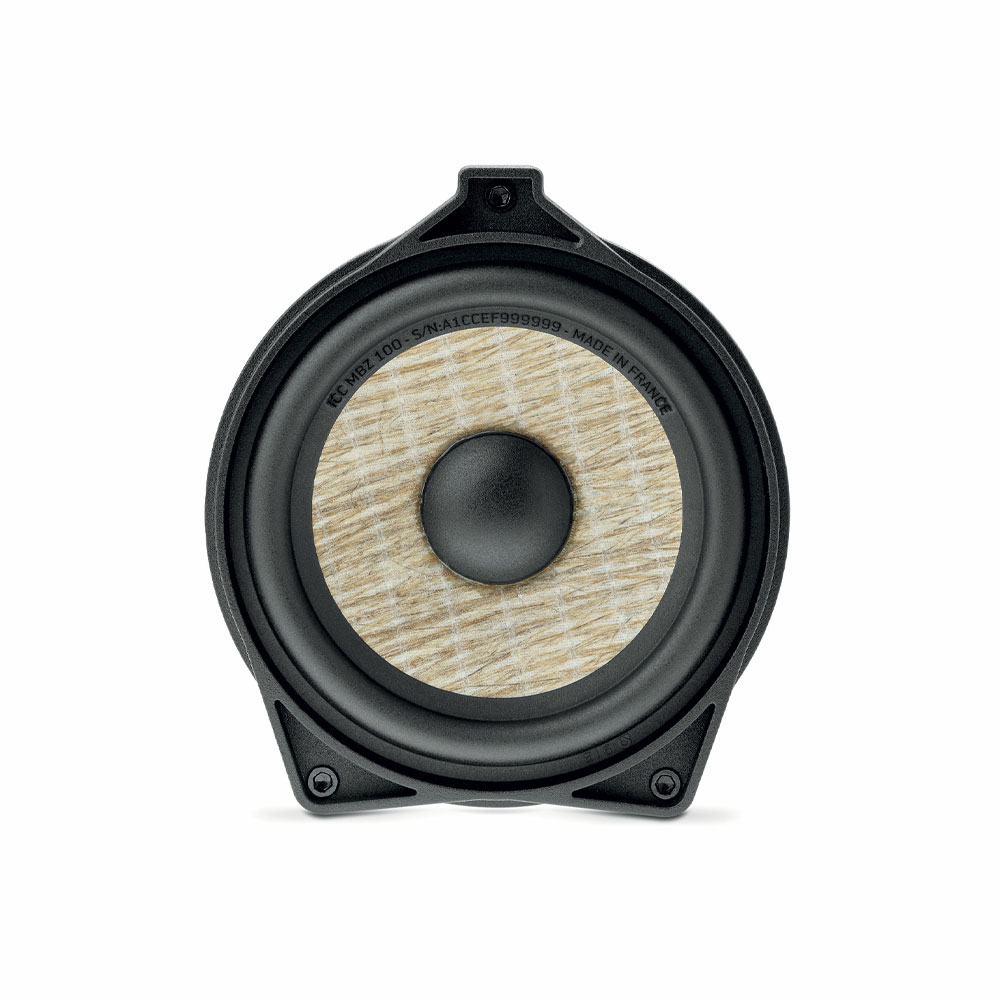

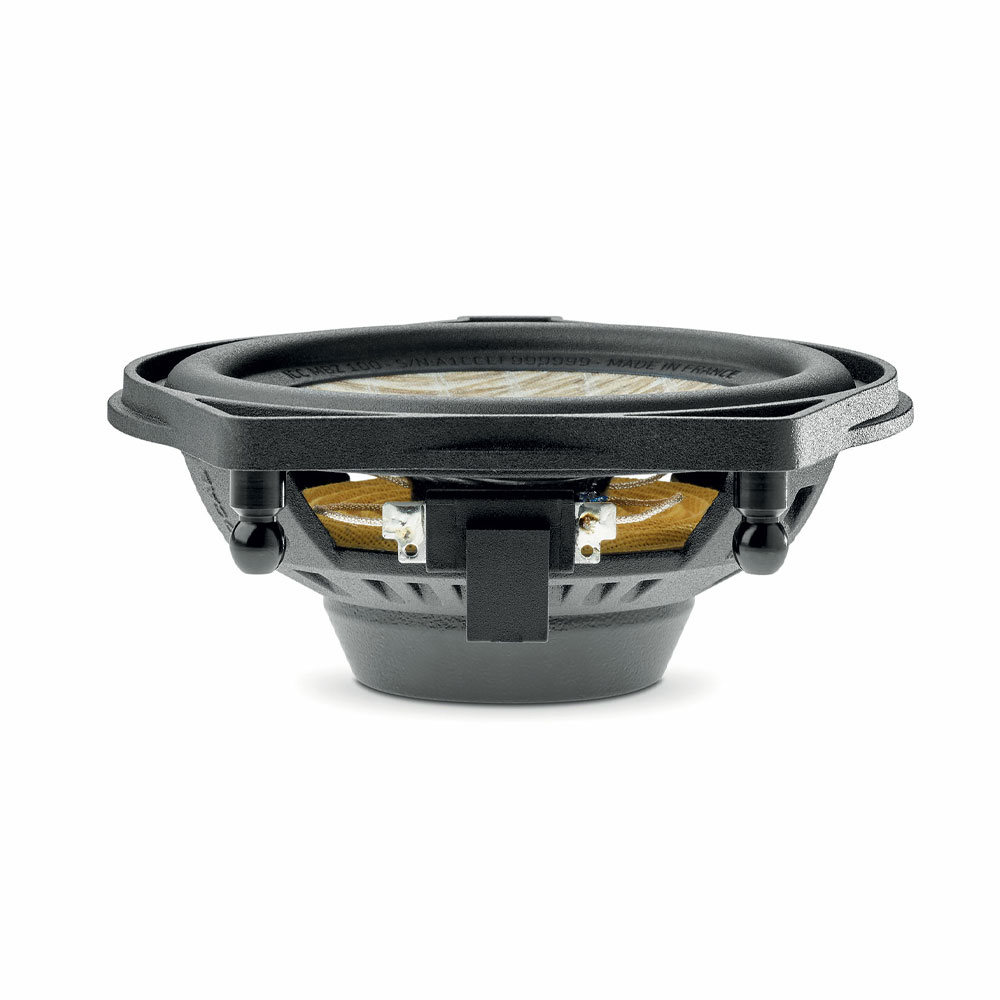

• Focal ICCMBZ100 4" (10cm) Center Way Car Speaker
• Focal ISMBZ100 4" 10cm 2 Way Component Car Speaker
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

Compatibility Chart

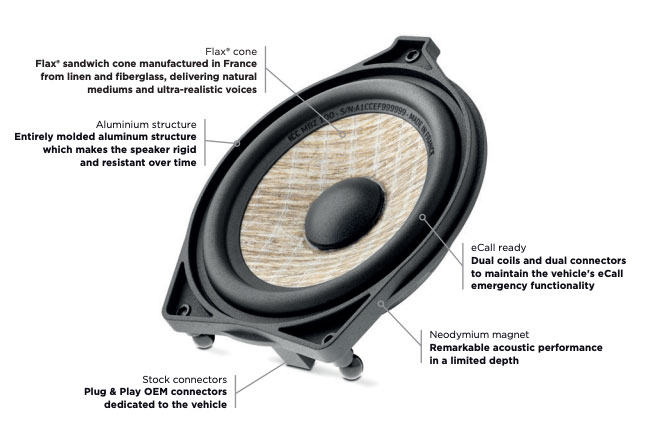

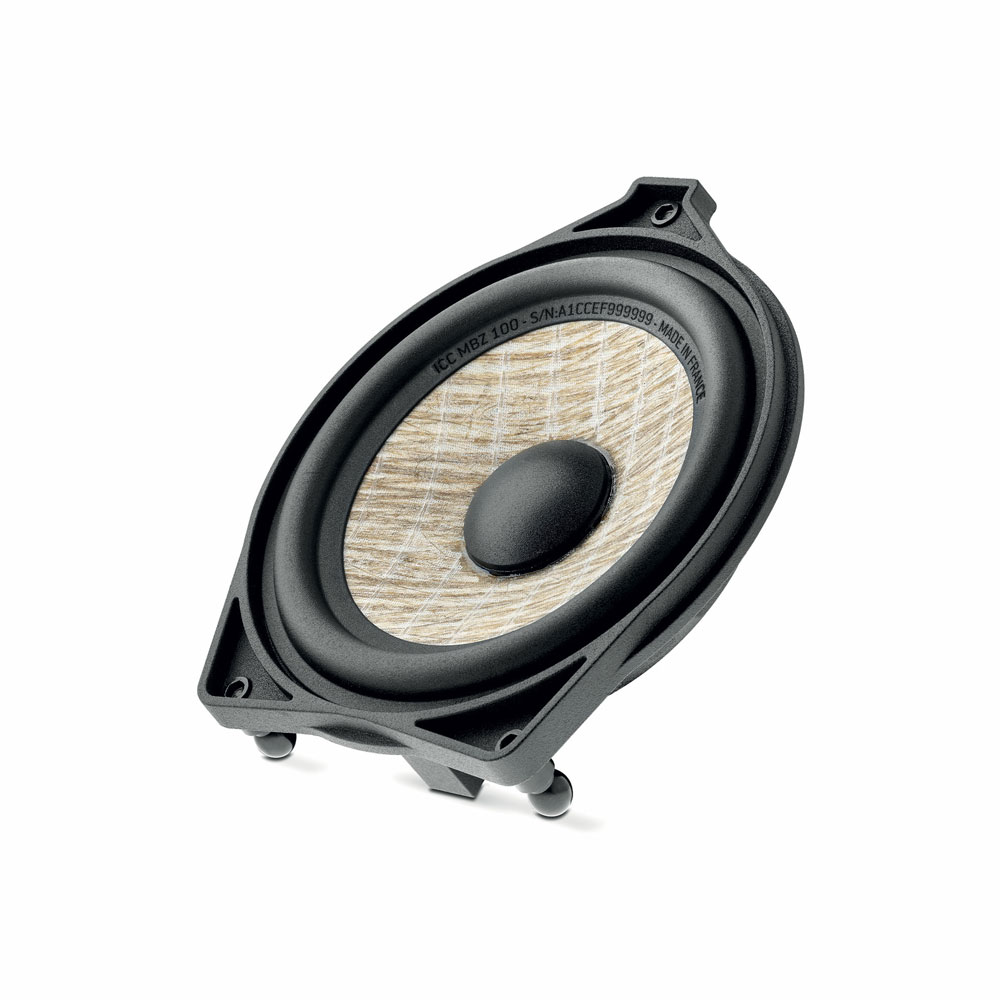

Dedicated to Mercedes-Benz vehicles, the ICC MBZ 100 high-fidelity center channel is a reference hi-fi solution that integrates easily and discreetly. ICC MBZ 100 is the ideal product for raising the sound stage to the front of the cabin, while enhancing vocals and the entire midrange register. The driver is equipped with a Flax sandwich diaphragm, manufactured in France, which delivers natural midrange and ultra-realistic vocals. And to further optimize performance in a very small space, this kit includes a Neodymium motor. Finally, it has been designed to retain the vehicle's eCall emergency call functionality.

Key Points

• Developed and manufactured in France
• Quick, easy installation with no vehicle modifications required
• Invisible integration into the passenger compartment
• High-fidelity sound and high power handling capability
• Advanced loudspeaker protection
• Vehicle-specific Plug & Play connector

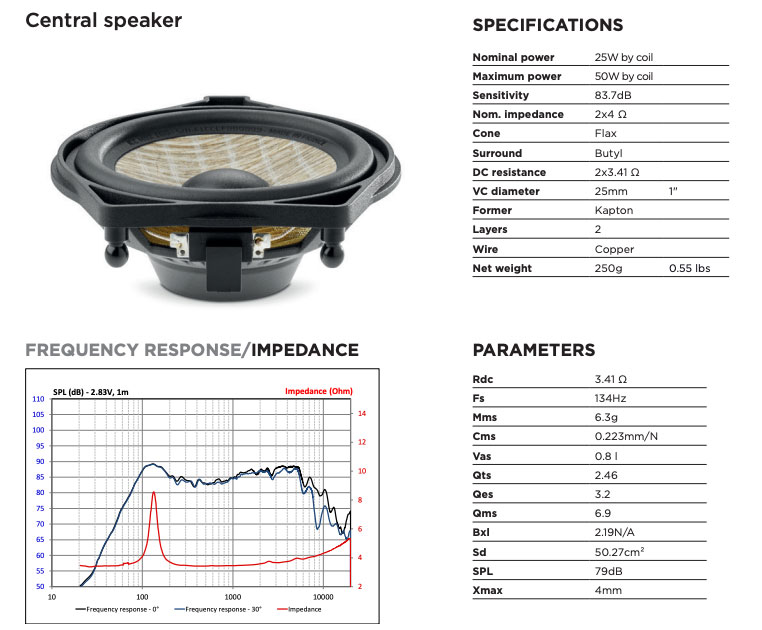

Specifications

Sound Acoustics

• Product type : Center way
• Loudspeakers : Midrange: 3.9"
• Membrane : Flax
• Medium : 4"
• Filter : Integrated
• Frequency response (+/- 3dB) : 150Hz - 20kHz
• Maximum power : 50 watts x 2
• Maximum SPL (peak@1m) : 79 DECIBEL
• Motor : Neodymium
• Sensitivity : 82.7 dB
• Surround material : Butyl

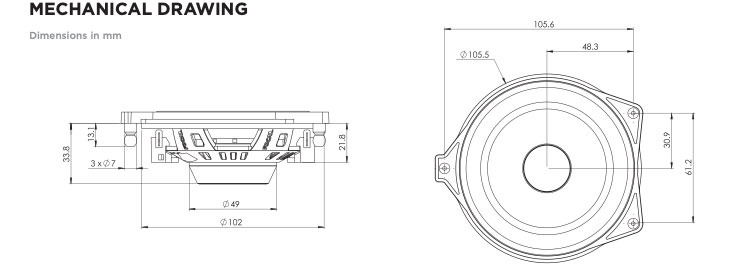

Design

• Weight : 250 g / 0.55 lb
• Cut-Out diameter : 105.5 mm / 4.13 in
• Depth behind surface (Mounting depth) : 33.8 mm / 1.3 in

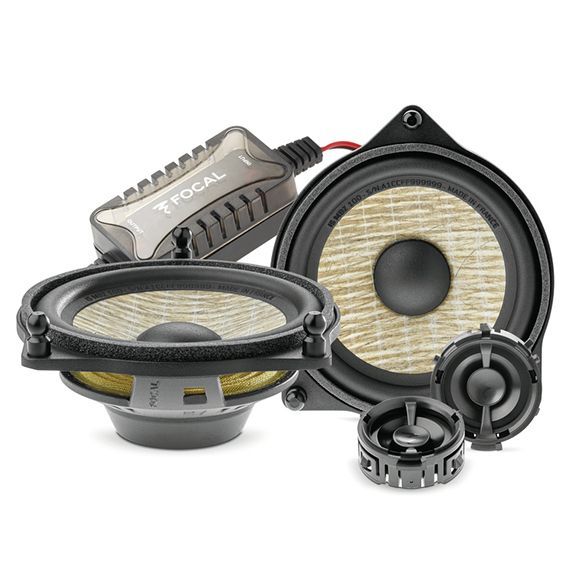

Focal ISMBZ100 4" 10cm 2 Way Component Car Speaker

2 Way Separate Kit

Dedicated to Mercedes-Benz vehicles, the IS MBZ 100 high-fidelity burst kit is a reference hi-fi solution that integrates easily and discreetly. The loudspeakers are equipped with the Flax sandwich membrane, manufactured in France, which delivers natural midrange and ultra-realistic vocals. The aluminum inverted-dome tweeter ensures faithful reproduction of high frequencies and enhanced sound spatialization. And to further optimize performance in a very small space, this kit includes a Neodymium motor.

Key Points

• Developed and manufactured in France
• Quick, easy installation with no vehicle modifications required
• Invisible integration into the passenger compartment
• High-fidelity sound and high power handling capability
• Advanced loudspeaker protection
• Vehicle-specific Plug & Play connector

Specifications

Sound Acoustics

• Product type : 2-way separate kit
• Loudspeakers :
• Midrange: 3.9"
• Membrane : Flax
• Medium : 4"
• Filter : Woofer: Online / Tweeter box: Online
• Frequency response (+/- 3dB) :
• 150Hz - 20kHz
• Maximum power : 100 watts
• Maximum SPL (peak@1m) :
• 83.15 DECIBEL
• Motor : Neodymium
• Nominal Impedance : 4 Ω
• Nominal power : 50 W RMS
• Sensitivity : 87 dB
• Surround material : Butyl

Sound Electronics

• RMS power : 50 W RMS

Design

• Weight : 250 g / 0.55 lb
• Cut-Out diameter : 101 mm / 4 in
• Depth behind surface (Mounting depth) : 33.8 mm / 1.3 in

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
