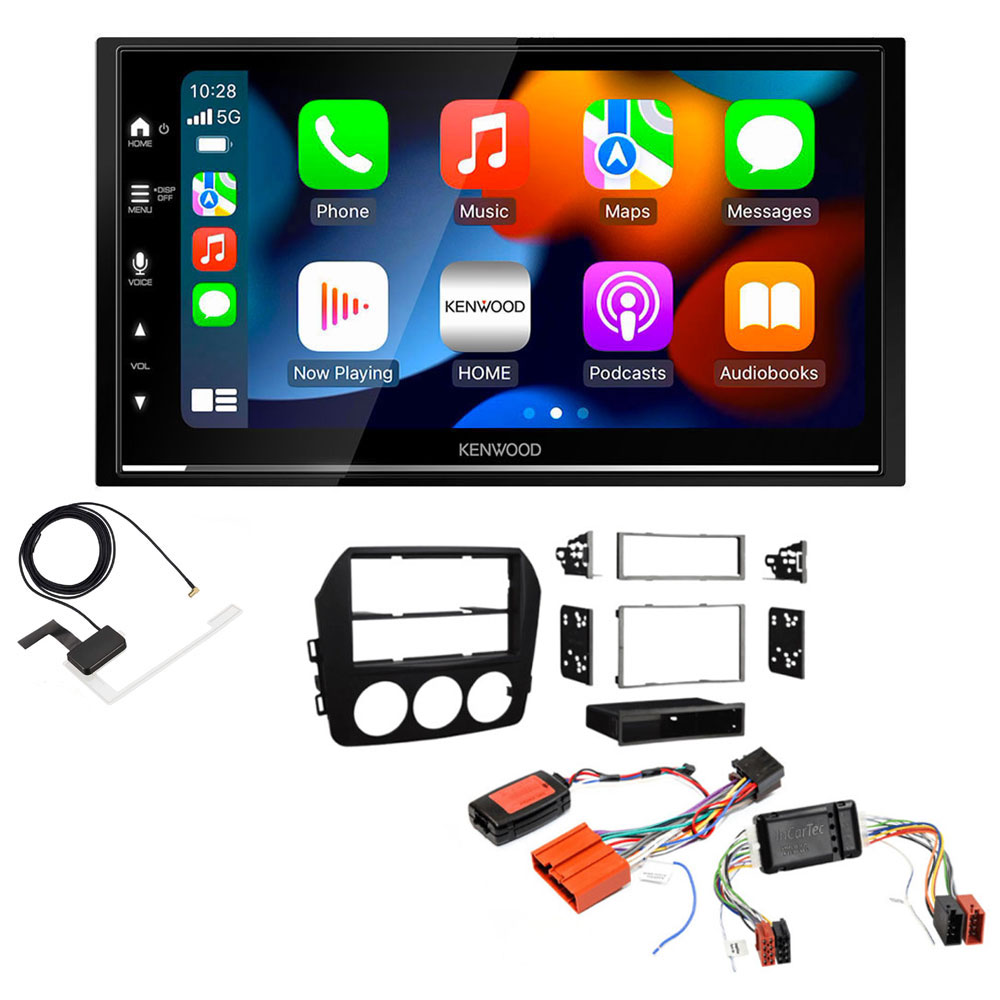

Package Includes

• Kenwood DMX7722DABS Wireless Apple CarPlay Android Auto Digital Media AV Receiver DAB Stereo
• DAB Aerial
• Single/Double Din Car Audio fascia (Matt Black)
• ISO Cable & Steering Control Interface
• ISO to ISO BOSE Amplifier Integration Interface
• Stereo Patch Lead

Upgrade your Mazda MX-5 Facelift (2009–2015) with factory Bose Audio or Sound By Bose systems using this complete Single or Double DIN stereo fitting kit. Designed to integrate seamlessly with your vehicle’s factory amplifier, this kit allows you to install an aftermarket head unit while retaining your factory steering wheel audio controls. Includes fascia panel, Bose amplifier integration interface, steering wheel control interface, and patch lead.

Enhance your Mazda MX-5 driving experience with this complete Double DIN stereo upgrade fitting kit, designed specifically for 2009–2015 Facelift models equipped with Bose Audio or Sound By Bose systems. This kit enables the installation of a modern aftermarket stereo while maintaining full functionality of your factory-fitted Bose amplifier and steering wheel audio controls.

The included amplifier integration interface allows your new head unit to connect directly to the factory Bose amplifier, ensuring high-quality audio output without the need for rewiring or bypassing the amplifier. The steering wheel control interface retains all audio button functions on your steering wheel, giving you convenient and safe control of your music.

The matt black fascia panel provides a seamless dashboard finish, maintaining the car’s original appearance while allowing easy fitment of a Double DIN stereo. This kit is compatible with major aftermarket brands including Pioneer, Sony, Kenwood, Alpine, and JVC, offering an effortless way to upgrade to CarPlay, Android Auto, or Bluetooth functionality without losing any OEM features.

Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket Single or Double DIN car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. Use the supplied pocket to fit a single din radio, or discard the pocket to fit a double DIN stereo.

COLOUR: MATT BLACK

ISO Cable & Steering Control Interface

Mazda car audio interface cable with power and speaker ISO connections allowing use of original steering wheel buttons with a new aftermarket head-unit.

ISO to ISO BOSE Amplifier Integration Interface

This interface converts the high level audio output of a new head unit to a low level pre amplified signal which will work with an amplifier. 4 adjustable channels for optimum audio quality, it has a built in ground loop isolator and filters to get the best sound from the amplifier. BOSE amplifier integration interface for cars with factory fitted Bose amplifiers. This interface can be used on cars without Bose amplifiers, the amplifier adapter will not need to be connected.

Key Features

• 6.8 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
• Supports CarPlay wirelessly (Wifi) and wired (USB).
• Supports Android Auto wirelessly (Wifi) and wired (USB).
• Supports Android USB Mirroring including 2-way touch control capability.
• Dedicated rear view camera input with parking guide lines
• 3 RCA high power (2.5V) preouts (front/rear/sub)
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements
• Short body (75mm) for easy installation.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination Variable color
• Touch sensor
• Installer Memory
• Back-up Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller KNA-RCDV340
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Wifi built-in
• Made for iPod
• Firmware upgreadable

Monitor Features

• LCD type 6,8 inch Wide VGA
• LCD backlight LED
• Display Mode 3 Mode (Full(default)/Auto/Normal)
• Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode CarPlay/Android Auto.
• Touch Panel Capacitive
• Display Type Glare
• Display film Anti Fingerprint
• Viewing Angle Adjustment "0" (Default) / "-1" / "-2" / "-3"
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Russian
  • Portuguese
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Software updates (SoC) via USB
• Demonstration Mode
• Top Menu Customize
• Background Customize preset x 9 + user set x 1
• Screen Capture
• R-CAM interrupt
• R-CAM Caution On Screen Display
• R-CAM Parking Guide Lines

Network & Wifi Features

• WiFi built-in built-in
• Frequency Range Dual Band (2.4GHz / 5GHz)
• IEEE standard 802.11a/b/g/n/ac

Tuner Features

• Station Select List
• Tuner Type JKTS
• FM Reception
• AM (MW/LW) Reception
• AM Reception
• FM(RDS) + AM(MW/LW) Tuner
• Tuner Presets (FM/AM) 5 Presets (15FM / 5AM)
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• DAB/DAB+ Band Band III
• DAB/DAB+ Mode I, II, III, IV
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 5 ch * 3 bank presets,
• Preset list
• Alphabet Search
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DMB (Digital Multimedia Broadcasting) support
• Announcement Switching (ASW) Select
• EPG (Electronic Program Guide)
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• 2 phones full time connection
• Audio Streaming (A2DP)
• High Quality Audio Streaming SBC/AAC
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP) V1.6
• Multi Profile Support
• iPhone & Android automatic pairing via USB
• KENWOOD Music Mix Support
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone External microphone unit

Playable Audio File

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB
• JPEG files are playable USB (for wallpaper)
• BMP files are playable USB (for wallpaper)
• PNG files are playable USB (for wallpaper)

USB Features

• USB terminal rear side
• USB Type 2.0 High speed
• Drive Change
• Works with Android Auto
• Works with Apple CarPlay
• USB Mirroring for Android install "Mirroring OA for KENWOOD" from Playstore
• Repeat Play Folder/File/All
• Random play Folder / File
• Category search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

iPod Features

• Connection via: USB / BT / Wifi
• iPod Accessory Protocol (iAP) iAP2
• Works with Apple CarPlay

Audio Features

• Max. Output Power 4 x 50W
• Pre-out 3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 2.5V
• Volume Offset
• Att.(-20dB) with smooth Volume Return

Multimedia DSP Features

• DSP Chip JKTS DSP
• Position Control
• Position Preset 4 Presets
• Position Cabin Size
• Graphic Equalizer 13 bands
• G-EQ KBS
• G-EQ manual setting
• G-EQ adjustable level +9dB / -9dB
• High Pass Filter (HPF)
• Low Pass Filter (LPF)
• 3-Way X'Over
• Channel Level Control
• Space Enhancer
• Supreme
• Realizer
• Loudness
• Stage EQ
• Bass Boost
• Drive EQ
• Speaker Size & Location Control
• Listening postion control / Time Alignment
• Equalizer presets / User set 8 presets / 4 User set
• Balance & Fader Control
• Source Volulme Offset source independent

Video Features

• Audio Video Output Video: RCA, Audio: mini-jack
• Audio/Video Input Mini-jack (Rear)
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Detection Mode Rear View Camera Reverse sensor wire
• Parking Guide Line

Connectivity

• USB interface 1x Rear
• OEM Wired Remote Control ready
• Programmable OEM Steering wheel Remote Function
• DC-Cord NEW Mitsumi to ISO
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 3 x RCA (Front/rear/subwoofer)
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• Video Out RCA x1
• Reverse sensor wire
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input HRS GT5-1S connector
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
