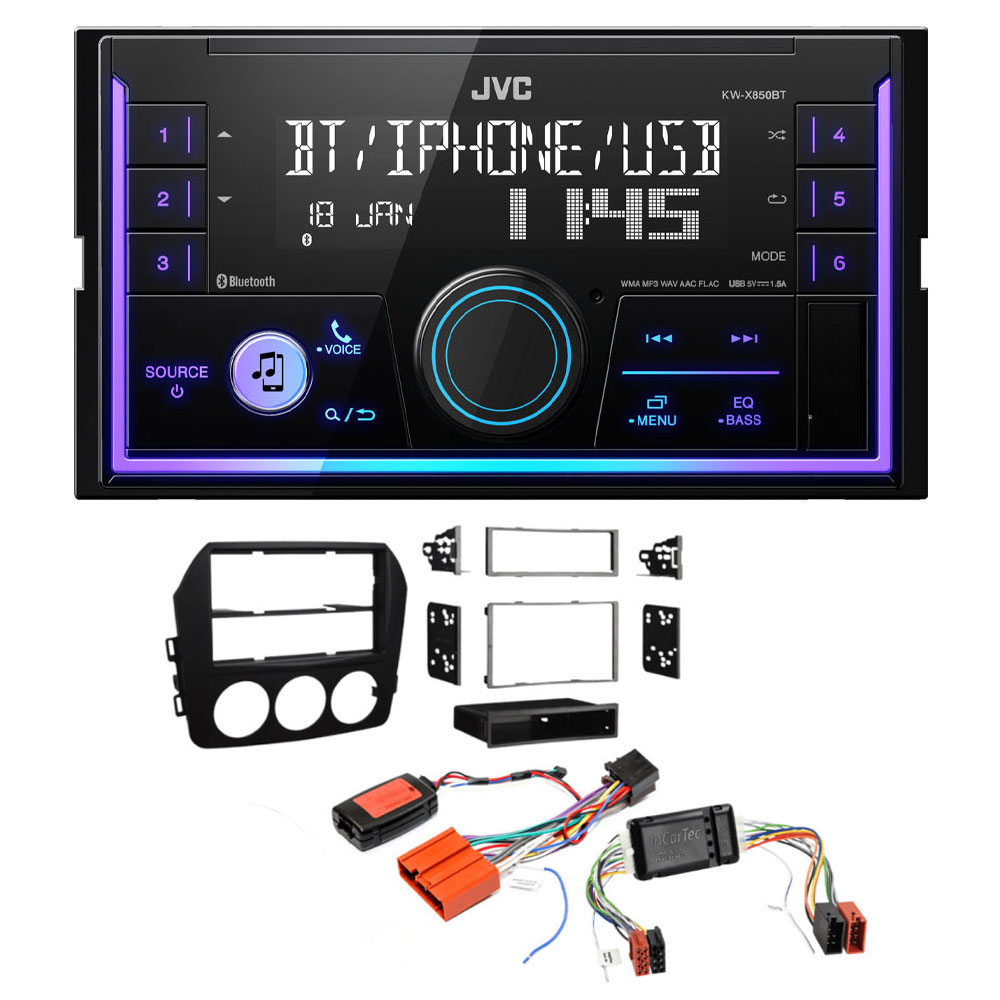

Package Includes

• JVC KW-X850BT Double Din Mechless USB, Bluetooth, AUX, iPod/iPhone Car Stereo
• Single/Double Din Car Audio fascia (Matt Black)
• ISO Cable & Steering Control Interface
• ISO to ISO BOSE Amplifier Integration Interface
• Stereo Patch Lead

PLEASE NOTE: This fitting kit is suitable for Mazda MX-5 facelift models from 2009-2015 with BOSE audio

Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket Single or Double DIN car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. Use the supplied pocket to fit a single din radio, or discard the pocket to fit a double DIN stereo.

COLOUR: MATT BLACK

ISO Cable & Steering Control Interface

Mazda car audio interface cable with power and speaker ISO connections allowing use of original steering wheel buttons with a new aftermarket head-unit.

ISO to ISO BOSE Amplifier Integration Interface

This interface converts the high level audio output of a new head unit to a low level pre amplified signal which will work with an amplifier. 4 adjustable channels for optimum audio quality, it has a built in ground loop isolator and filters to get the best sound from the amplifier. BOSE amplifier integration interface for cars with factory fitted Bose amplifiers. This interface can be used on cars without Bose amplifiers, the amplifier adapter will not need to be connected.

KW-X850BT Mechless Bluetooth Receiver

Connected through Bluetooth you enjoy safe hands-free calling and high quality audio streaming. Download the free app “JVC Remote“ and you can change audio sources or adjust audio settings with your smartphone. 13-Band equalizer and DTA gives optimal tuning enhancements.

Features

• Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
• Bluetooth technology for hands-free calls and music streaming.
• Bluetooth Phone Book Access Profile (PBAP)
• Low Battery Information
• iPhone Automatic Pairing
• iPod/iPhone Music Playback
• Front AUX input & Illuminated USB with dust cover
• USB High Current 1.5A Charging
• Use your smartphone like a wireless remote control with the JVC Remote app (IOS & Android).
• Enjoy audio streaming just by switching among 5 connected BT devices with JVC Streaming DJ.
• MP3 / WMA / AAC / WAV / FLAC music file playback.
• Wide 2 line LCD display with high contrast, wide viewing angle & white backlight
• Variable colour key Illumination
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 3 high power (2.5V) RCA preouts to connect power amplifiers.
• Menu language in English(default), Russian, Spanish, French or German.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Bluetooth Wireless Technology

2 Phone Full-Time Connection:
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.

Bluetooth AVRCP for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose songs you want to hear from the folder name and song name lists.

Bluetooth Hands-Free Profile
HPF Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.

iPhone® / Android™ Bluetooth Automatic Pairing:
Just connect your iPhone or Android device* via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about. (*JVC Music Play application is required)

Sound Optimilization

Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

Volume Link EQ:
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

2-Zone Variable-Color Illumination

You can mix the front panel illumination into 2 separate color zones. 50 preset patterns (49 colors + 1 user color preset) are available for easy customization. In addition, manual setting is possible to set each RGB color by 32 steps, providing a total of 32,768 different colors for each zone, 1 and 2, to match your preferences. You can even enjoy moving illumination, selectable from 10 color animation patterns.

Remote Control App

Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app now available for both iOS and Android. You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.

Technical Specifications

Display

• Display Type VA LCD Display
• Number of Lines 2-Line Display
• LCD Colour White
• Key Color Variable Color
• Adjustable RGB Key illumination 2-Zone
• Music Sync. Effect
• Auto Dimmer
• Brightness Control
• Russian Text Compatible
• Spanish Text Compatible
• French Text Compatible

Radio Tuner

• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5 - 108.0MHz
• LW Tuner
  • LW Frequency Range 153 - 279kHz
• MW Tuner
  • MW Frequency Range 531 - 1,611kHz
• Preset Stations 18FM + 6AM
• Tuner Preset Back-up Memory
• Automatic Preset / SSM (FM only)

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB ( Up to 96kHz/24bit )

USB

• Location Front
• Drive Change Mode for Mass Storage Class
• Random / Repeat Play
• 1.5A Max. Power Supply Current

Bluetooth®

• Built-In Bluetooth (Ver 4.2)
• Voice Dialing
• Remote Control Application JVC Remote App (IOS & Android)
  • Hands Free Call (HFP) (HFP 1.7 wideband speech)
  • Advanced Audio Distribution Profile (A2DP)
  • Audio/Video Remote Control Profile (AVRCP) (AVRCP 1.6.1)
  • Phone Book Access Profile (PBAP)
  • Serial Port Profile (SPP)
• 2 Phones Full-Time Connection
• Supported Audio Formats AAC / SBC
• JVC Streaming DJ with up to 5 Bluetooth devices
• Auto Pairing (iPhone only)
• Noise Canceller
• Echo Canceller
• Wired Microphone included
• Low Battery Information

iPod/iPhone Control

• iPod/iPhone Music Playback
• iPod/iPhone Music Playback (via USB or Bluetooth(R))
• iPod/iPhone Mode (2-Way Control Mode) (USB: Audio only)
• Siri Eyes Free Mode for iPhone
• Random/Repeat Play
• Battery Charge (USB: 1.5A Max.)

App(s)

• JVC Remote Control App
• App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink

Audio

• Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• MOS-FET Amplifier
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• K2 Technology
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ (8-preset)
  • Easy EQ Setting
  • Volume Link EQ
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
  • Time Alignment
  • Space Enhancement
  • Sound Response
  • Sound Lift
  • Digital Track Expander
• Loudness Control (Off/Low/High)
• Bass Boost (Hyper Bass System)

Inputs and Outputs

• Auxiliary (AUX) Input 1 (Front)
• Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
• Pre-Output Level 2.5V
• Pre-Out Impedance Less than 600 ohms
• Subwoofer Output with Level/Frequency Control (Level -8 - +8)
• Subwoofer Output Level 2.5V

General

• Rotary Encoder
• Beep Tone Support (From Speakers)
• Back Up Memory
• Wired Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D) 182 x 111 x 100mm
• Including Sleeve and Trim plate

[1] Available functions depend on mobile phone.
[2] Voice recognition compatible mobile phone required

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
