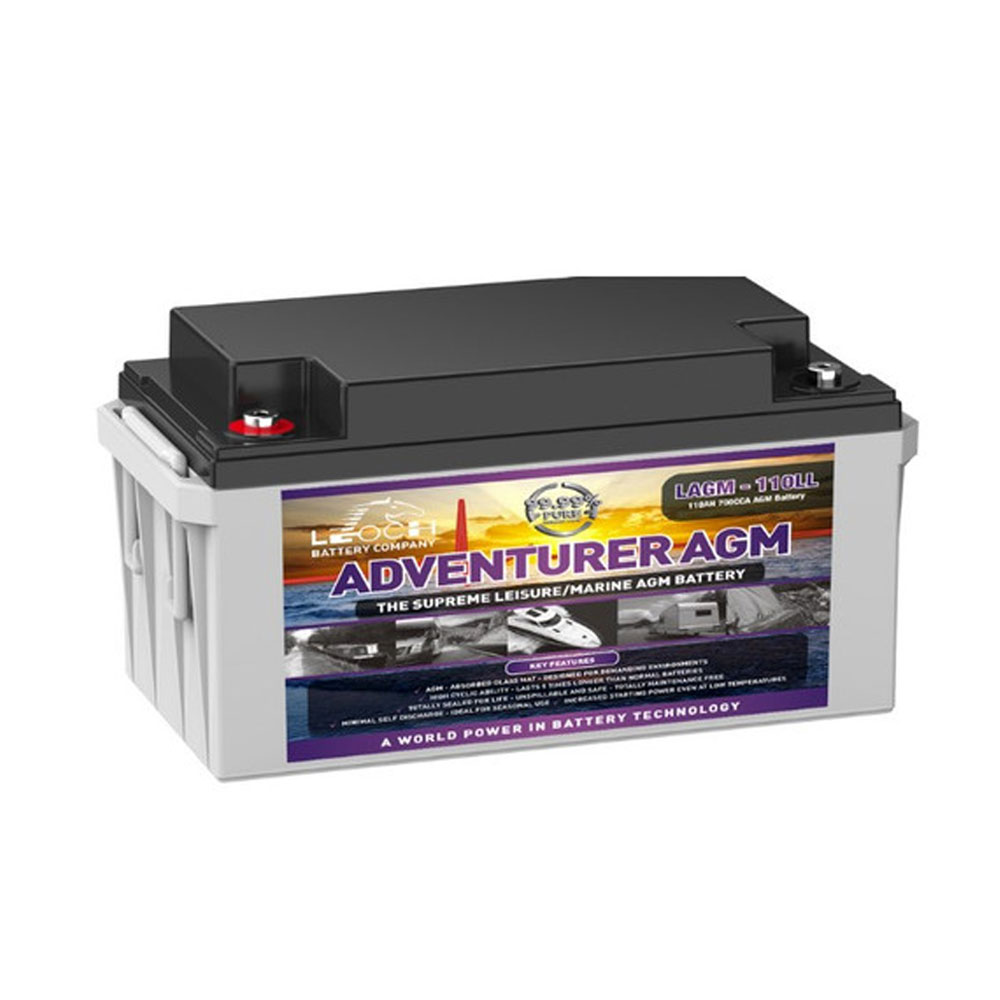

LAGM-110LL

Leoch LAGM-110LL Leisure Battery is designed to deliver exceptional performance and reliability for all your recreational needs.

Range Info:

Our Adventurer AGM has been designed with the leisure markets in mind. With deep cycling capabilities the adventure range can offer more than 600 cycles at 50% DoD, idea for marine vessels, motorhomes or caravans. Along with being created to be very safe with features such as vibration resistance, sealed for life and maintenance free.

Key Features

• Specifically designed for cyclic use over sustained periods of time (deep-cycle)
• Typical max. cycle life of 600 cycles @ 50% Depth of Discharge (DoD)
• Power demand level of intended application: Medium (casual to regular usage)
• Unique anti-explosion one-way vent valve design to minimize water loss and increase safety
• Thick plates using a special pasting formula ensures long service life
• ABS case UL94-HB (UL94-V0 Optional) is used for increased container strength
• Absorbed Glass Mat technology (great durability and vibration-resistance)
• Totally sealed for life – dry-cell, spill resistant and safe
• High Capacity: With a powerful 110Ah capacity, the Leoch LAGM-110LL ensures a consistent and reliable power supply for your leisure activities.
• Maintenance-Free Design: Enjoy hassle-free operation with our advanced AGM technology, eliminating the need for regular maintenance and electrolyte checks.
• Enhanced Durability: Built with robust materials and superior engineering, this battery is designed to withstand the demands of leisure applications, providing long-lasting performance.
• Versatile Applications: Ideal for caravans, motorhomes, boats, and other recreational vehicles, ensuring you have power when you need it most.
• Environmentally Friendly: The LAGM-110LL is crafted with eco-conscious materials, reducing environmental impact while delivering superior performance.

Specifications

• Rated Voltage 12V
• Rated Capacity C 1.80V/cell 70Ah
• Dimensions
  • Length 348mm (13.7inches)
  • Width 167mm (6.57inches)
  • Container Height178mm (7.01inches)
  • Total Height 178mm (7.01inches)
• Approx Weight 21.4Kg (47.2lbs)
• Terminal T6(M6)
• Container Material ABS
• Internal Resistance (25℃) Approx 6.6mΩ
• Operating Temp. Range
  • Discharge -15~50℃ (5~122°F)
  • Charge -20~40℃ (-4~104°F)
  • Storage -15~40℃ (5~104°F)
• Nominal Operating Temp. Range 25±3℃ (77±5°F)
• Max. Charging Current 0.3C
• Charge Voltage (25℃) Charge Voltage Temp. Coefficient
• Float 2.25 - 2.30V/cell -3mV/cell/℃
• Cycle 2.35 - 2.40V/cell -5mV/cell/℃
• Effect of temp. to capacity
  • 40℃ (104°F) 103%
  • 25℃ (77°F) 100%
  • 0℃ (32°F) 80%
• Self Discharge ≤3%/month @25°C
