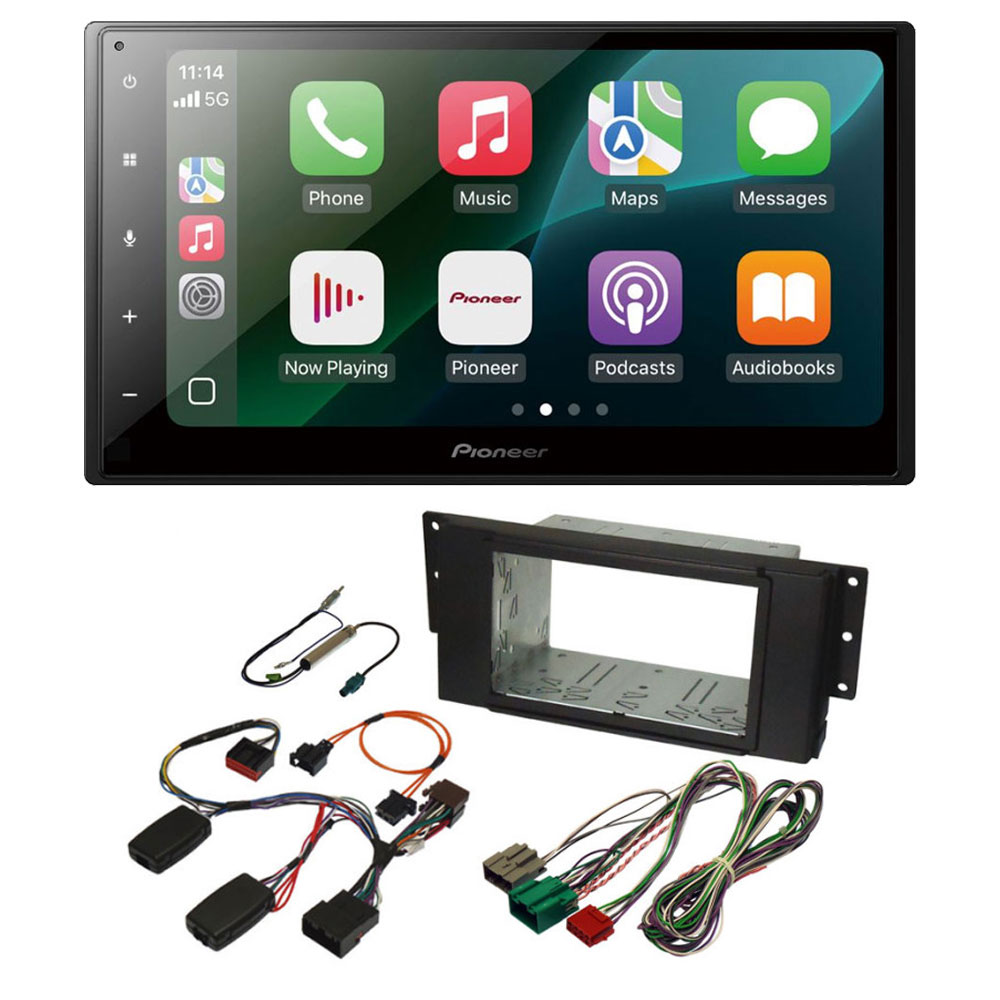

Package Includes

• Pioneer SPH-DA150BT Mechafree 6.8" Capacitive Touchscreen Apple CarPlay / Android Auto Bluetooth Stereo
• Double Din Fascia with Cage
• Steering Control Interface Adaptor
• Antenna Adaptor
• Amplifier Bypass Cable
• Fibre Optic Extension Cable
• Stereo Patch Lead

Kit comes with double din matt black fascia with 103mm fitting cage.
Steering wheel control interface, adapts the original connector to after market ISO connectors and retains the use of the original audio steering wheel controls including the ability to answer and reject phone calls with compatible head units.
Universal steering wheel control patch lead.
Fakra to DIN antenna adapter.
Cable to bypass the original Harman/Kardon amplifier that is under the driver's seat.
Fibre optic extension and head unit relocation cable to keep the original head unit connected to the car to retain the use of the navigation and vehicle touch screen.

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

this kit will retain the use of the original navigation and vehicle settings screen, however, the navigation audio will be lost. An additional NAVAMP interface will be required to retain the navigation audio.

A new extra amplifier will be needed to keep the original sub-woofer. (use BL-RA301D  compact monoblock )

SPH-DA150BT

Mechafree 6.8" Capacitive touchscreen multimedia player, with easy smartphone connectivity via a simple USB cable supporting compatible applications including Apple CarPlay®, Android Auto™ and USB Mirroring for Android®, Bluetooth®, 13-Band GEQ, advanced audio features and premium audio quality.

	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Aux-in - Plug your compatible device for easy and convenient playback.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.

Key Features

• Installation Type: 2-DIN
• Navigation: Via Android Auto , Via Apple CarPlay
• Screen Size: 6.8 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wired
• Android Auto™ Connection: Wired
• DAB Antenna Lorem Ipsum
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination:

Audio Features

• Graphic Equaliser: 13-Band
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• RDS FM Radio

Connections

• Camera Input: 1
• RCA AV Input: 1
• RCA Rear AV Output:
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• Hand Held Remote Control: Optional CD-R33 (Sold separately)
• Steering Wheel Control: Supported
• Mechafree
• Short Chassis

PLEASE NOTE : This stereo does not have DAB radio. If you would like DAB radio then you will need to look at the following stereo Pioneer SPH-DA160DAB

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
