KFC-PS1097 Kenwood Standard Series Speaker System

10 cm 2-Way Performance Standard Speaker System. Features 240W Peak Power, Diamond Array Woofer Cone Pattern, Acoustic Sound Harmonizer, Sound Field Enhancer, Black Painted Yoke and Plate.

Key Features

• 10cm 2-Way Performance Standard Speaker System
• Woofer cone with Diamond Array Pattern Sound Tune Up Technology
• Black Coloured Elegant Design with Silver Accents
• Acoustic Sound Harmonizer Technology
• Sound Field Enhancer Technology
• 25mm Balanced Dome Tweeter with Neodymium Magnet
• 240W Peak Input Power / 50W RMS Input Power
• Low Tweeter Height Design for Shallow Install Space

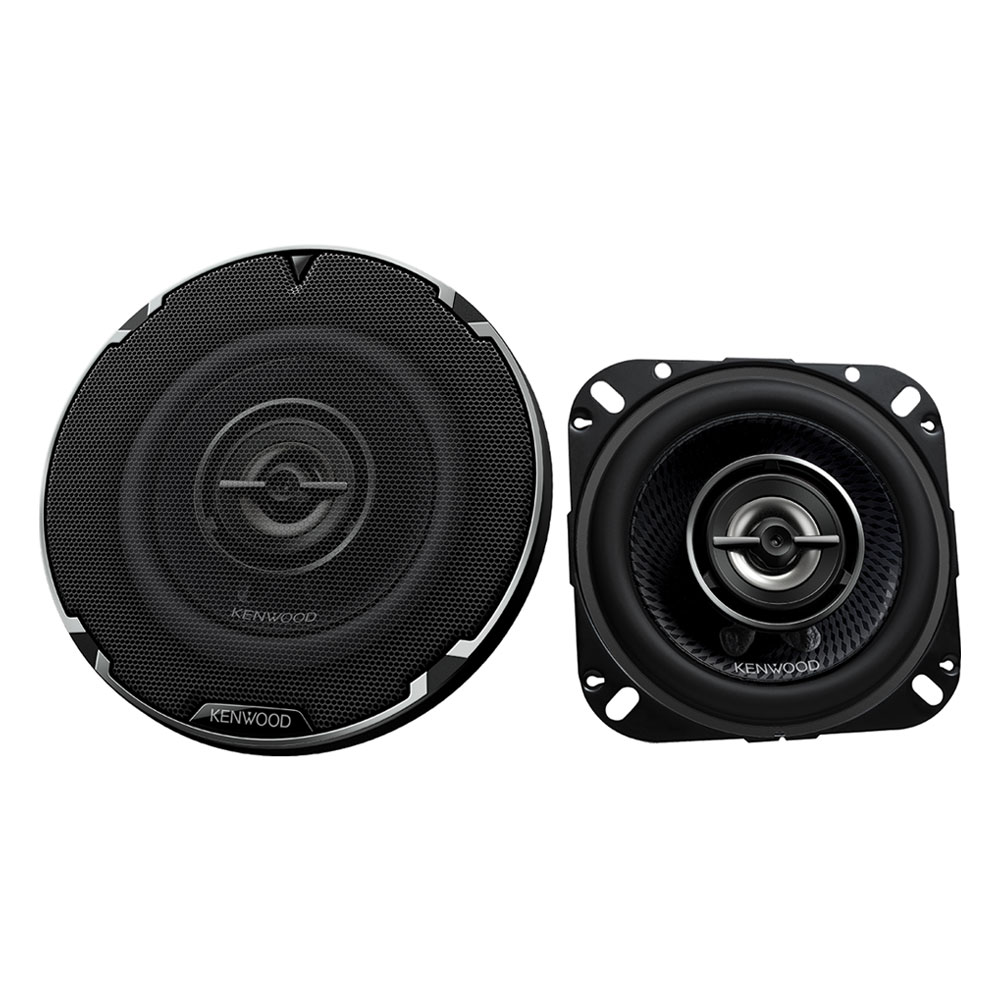

• Grille assembly included

Speaker Features

• Speaker System  2-way 2-speaker
• Speaker Type Coaxial
• Diamond Array Pattern Woofer Cone
• Sound Field Enhancer
• Acoustic Sound Harmonizer
• Black-painted Woofer Yoke Plate
• Factory Location Fit

Speaker / Woofer Specifications

• Peak Input Power 240W
• Rated Input Power 50W
• Woofer Cone material Black Polypropylene (PP) Cone
• Woofer cone dimensions 100mm Ø
• Speaker Basket Steel (Black painted)
• Magnet type Ferrit (Ø70 x t10)
• Speaker Surround Rubber
• Sensitivity 85dB/W/m
• Frequency Response 107Hz ~ 21000Hz
• Speaker Impedance 4Ω

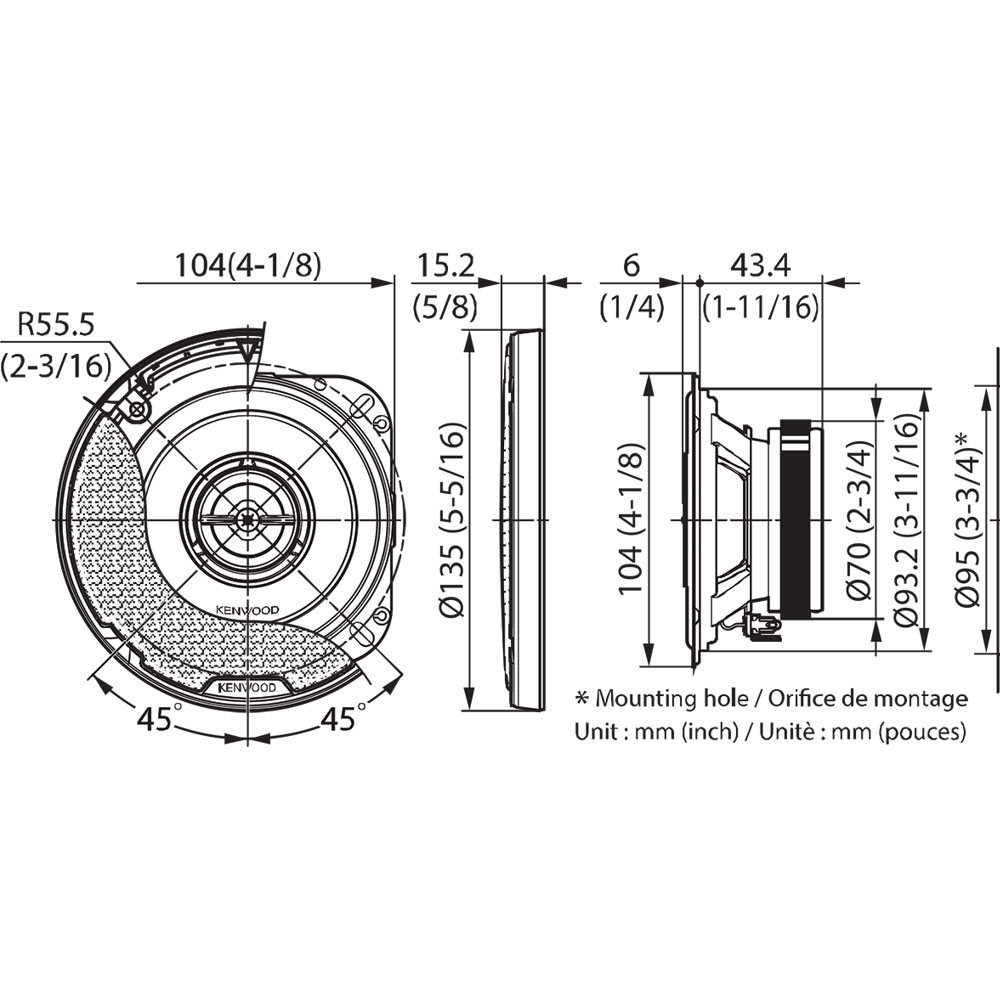

• Dimensions with Grill (WxHxD) 135 x 135 x 59.1mm
• Dimensions w/o Grill (WxHxD) 104 x 104 x 49.4mm
• Mouting Hole Diameter Ø 93.2mm
• Mounting Depth 43.4mm
• Tweeter Height 6mm

Tweeter Specifications

• Cone Size 25mm
• Cone Material Silver Balanced Dome
• Magnet Type Neodymium

Accessories

• Screws (Parker-type) Ø 4 x 25mm, 8 pieces
• Speed nut φ 4, 8 pieces
• Adhesive tape pad 1 piece(s)
• Grille assembly included
• Speaker cable 0.5m
