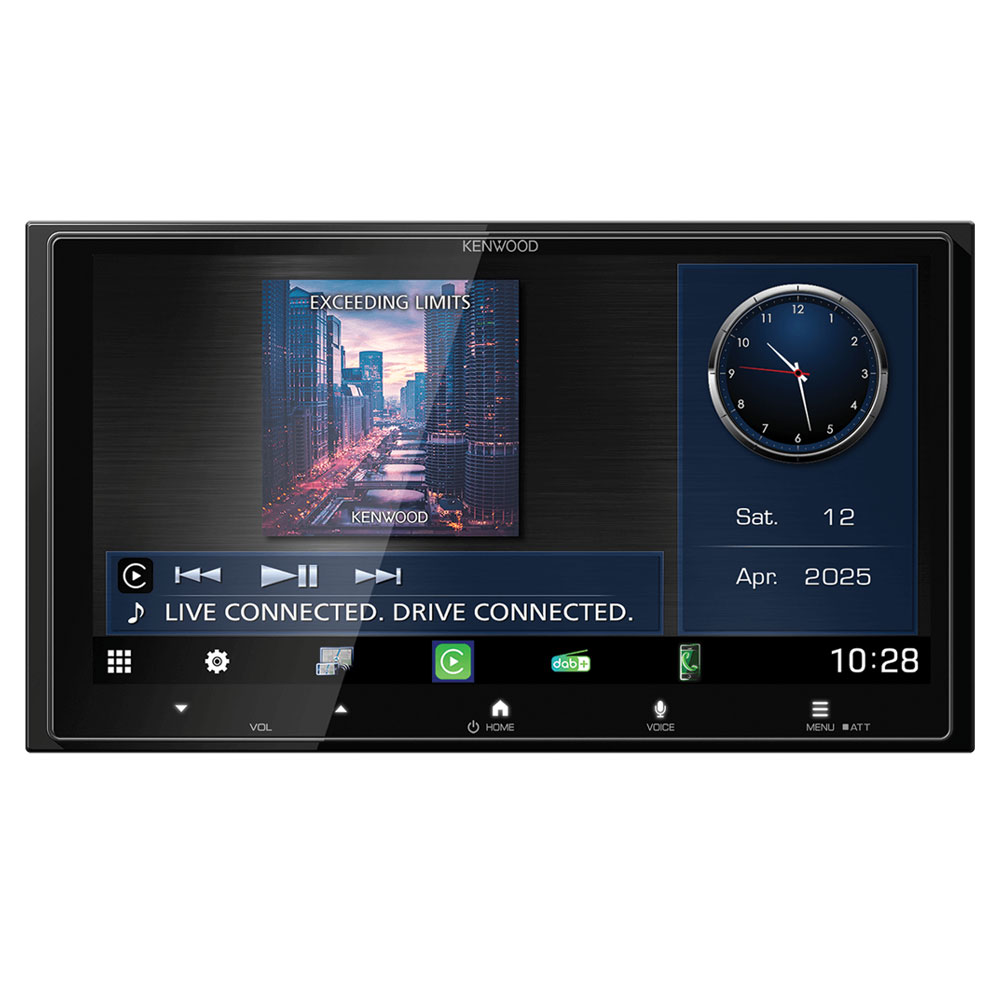

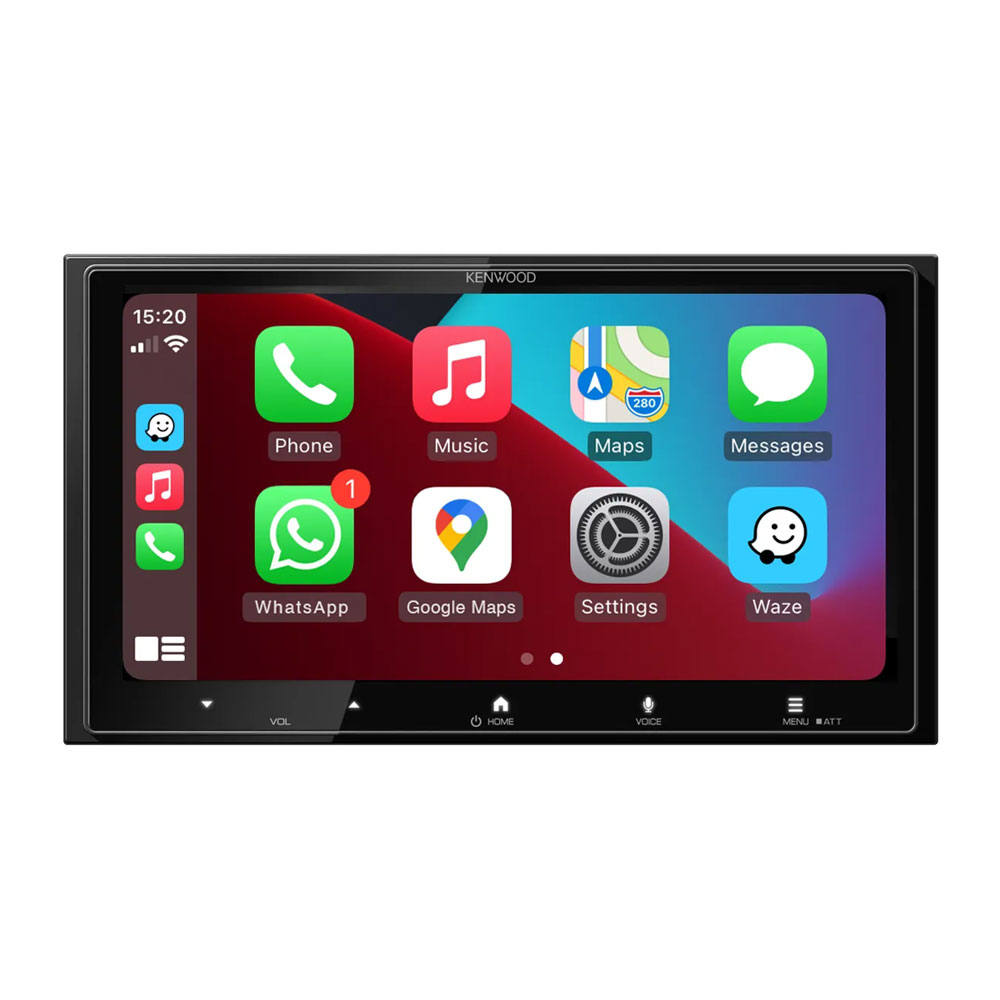

DMX7525DAB

6.8” HD Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone/Android Mirroring, DAB+

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

Key Features

• 6.8" High Definition screen with high luminance LED backlight and superior wide viewing angles.
• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
• Wireless & Wired iPhone & Android Screen Mirroring with Car-EasyConnection app (Touch control via USB wired Android only)
• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
• Built-in Bluetooth® Hands-free calling & Audio Streaming.
• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)
• 3 Preouts (3.0V) to customise & upgrade your audio system
• 13 Band EQ & Digital Time Alignment to optimise the sound performance
• Rear View Camera Input with Parking Guidelines, compatible with HD camera
• 2DIN Short Chassis Design for more flexible installation

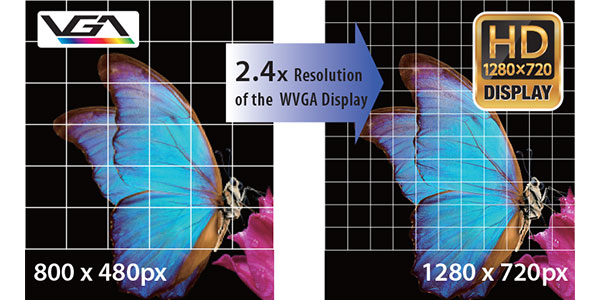

High Definition Display — Overwhelming Power of Expression

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

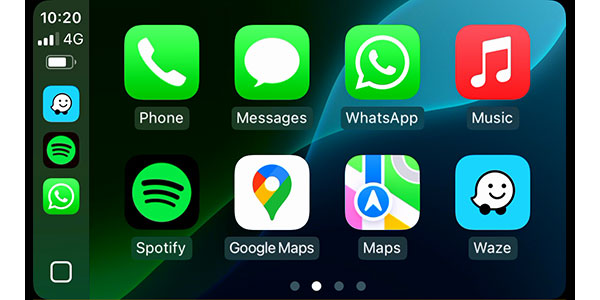

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see:www.apple.com/ios/feature-availability/#applecarplay-applecarplay

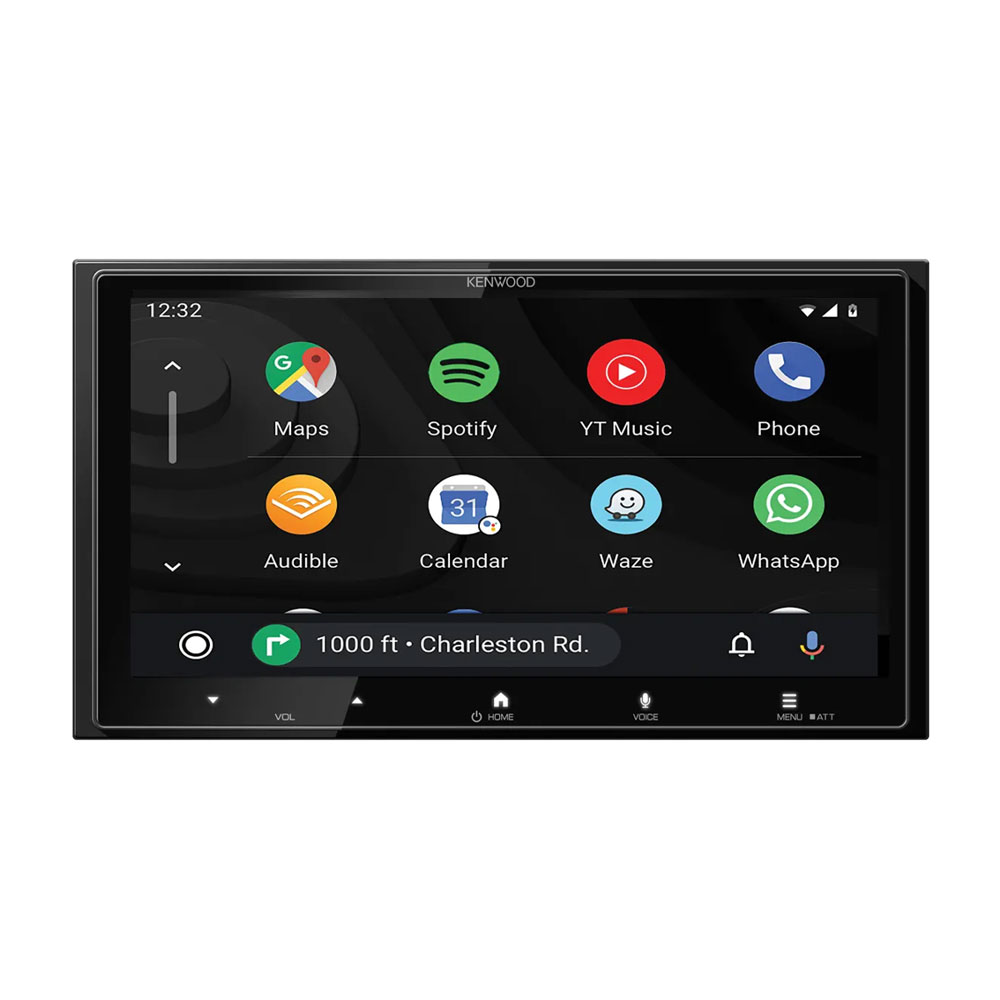

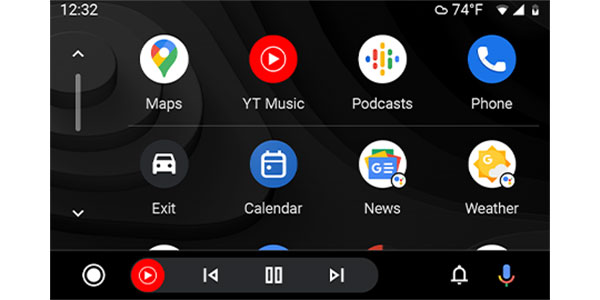

Android Auto – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

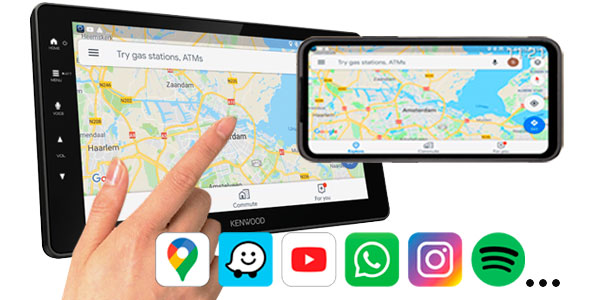

Mirroring for Compatible Smartphones

By installing the “EasyConnection”, your mobile phone is seamlessly displayed on the receiver's large screen wired or wirelessly. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. (Touch control via USB wired Android only)

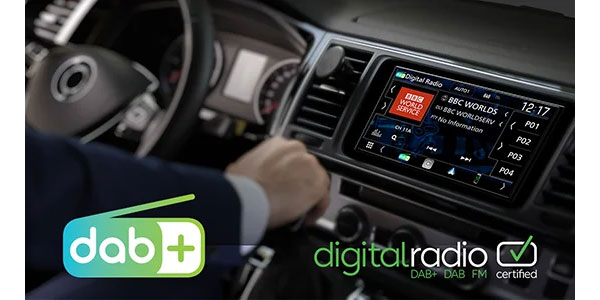

Built-in DAB+ Digital radio Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality, crystal clear reception with low noise and no audio distortion. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

*Images are for illustrative purposes only and may differ from the actual interface.

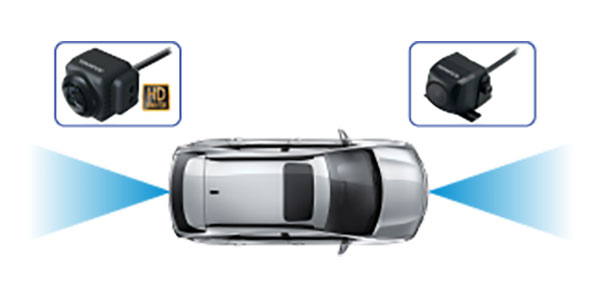

2-Camera Inputs

Enable users to add an optional rear view camera that enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness. Supports HD camera systems with 1280×720 pixel resolution, displaying the camera's footage on the High Definition Screen. Adding a front camera (sold separately), further enhances driver safety and convenience by offering a clear view of the vehicle's immediate front.

*For Best Performance, use the KENWOOD CMOS-740HD(rear only), CMOS-320 or CMOS-230.

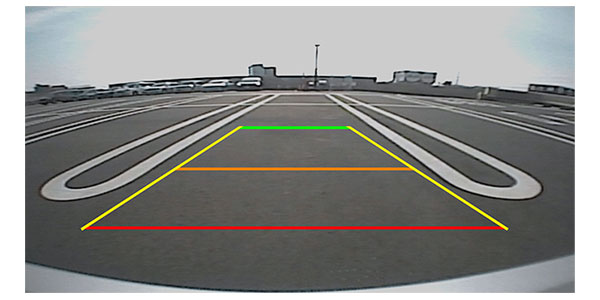

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

*Images are for illustrative purposes only and may differ from the actual interface.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White colour
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller, (KNA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Wifi built-in
• Made for iPhone
• Apple CarPlay – Connect Wirelessly or via USB
• Android Auto™ – Connect Wirelessly or via USB
• Wired & Wireless screen-mirroring for IOS & Android with CarbitLink-Easy Connection app
• Firmware upgreadable
• Gyro Sensor Built-in

Monitor Features

• Screen Type 6.92" High Definition
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High Definition Display
• LCD backlight White LED
• Display Mode 3 Mode (Full(default)/Auto/Normal)
• Screen Adjustments Colour / Contrast / Backlight
• Dimmer function SYNC by Illumination line
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Mechanism type Fixed
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text available languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Greek
  • Polish
  • Czech
  • Hungarian
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type KENWOOD
• Wallpaper customizable Preset x4
• R-CAM interrupt
• R-CAM Parking Guide Lines, Built-in, customizable

Network & Wifi Features

• WiFi built-in built-in
• Frequency Range 5 GHz (5,745– 5,825 GHz)
• Output Power 5GHz / SISO: 13.78 dBm
• Wireless connection for Apple CarPlay
• Wireless connection for Android Auto
• Wireless connection for iPhone & Android Mirroring with CarbitLink-Easy Connection app

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• DAB/DAB+ Band Band III
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• Tuning mode / Seek mode  Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Alphabet Search
• Service list by alphabet order
• Intelligent seek
• Announcement Switching (ASW) Select
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Slide Show
• Soft linking
• Antenna power supply on/off switch
• Digital Radio Certification Mark

Bluetooth General Features

• Hands Free Profile (HPF) V1.7
• 2 phones full time connection
• Audio Streaming (A2DP), (SBC/AAC)
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• PBAP call history Up to 20 entries of dialed, received and missed calls
• Audio/Video Remote Control Profile (AVRCP), V1.5
• Wireless Music Browsing (AVRCP)
• Private mode
• Interrupt call request
• Alphabet Search (Phonebook)
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone Included (rear wired)
• Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable  USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• USB Type Type-A (2.0 High speed)
• Drive Change
• File System FAT16 / FAT32 / exFAT / NTFS
• Works with Android Auto
• Works with Apple CarPlay
• USB Screen Mirroring with CarbitLink-Easy Connection app
• Tag Information Display
• Album Art Display
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Last Position Memory / Resume
• Time code display
• USB ports maximum output current 2.1A

iPod Features

• Connection via: USB / Bluetooth
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth
• Works with Apple CarPlay Wired & Wireless

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Wired & Wireless
• Android Open Accessory Protocol (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 3V
• Volume Offset
• Volume Type DSP
• Built-in Amplifier Off
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Control
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting
• G-EQ adjustable level, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over
• Speaker Size Control
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Source Volulme Offset source independent

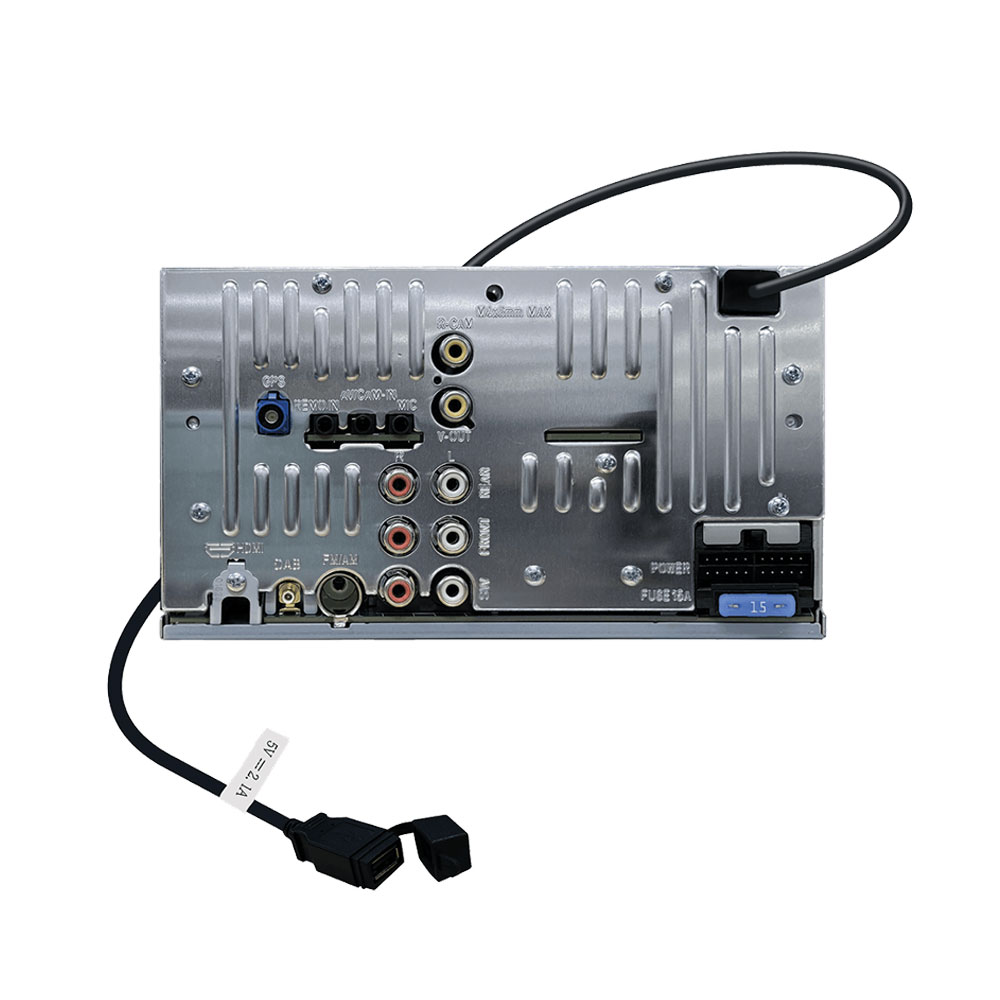

Connectivity

• DC-Cord 22pin (New Type) to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input (Non Switchable) (Mini-jack) audio & video
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready, Optional interface needed
• Learning Steering Remote Function
