Kenwood CMOS-740HD Universal HD Rear / Front High Definition Camera For DMX9720XDS only

  • Stock Status: In Stock
  • Item Condition : New
  • Available QTY : 4
  • Brand: Kenwood
  • Model: CMOS-740HD
  • EAN: 0019048230782
  • Warranty: 2 Year Warranty
£239.99
Ex Tax: £239.99
Free Delivery on this item (Main Land UK only )
We use Royal Mail Tracked 48 post which normally takes 2-3 days to arrive but sometimes can take longer. Get it Fast with DPD Courier Next working day delivery (1-2 DAYS) for £9.99.

Description

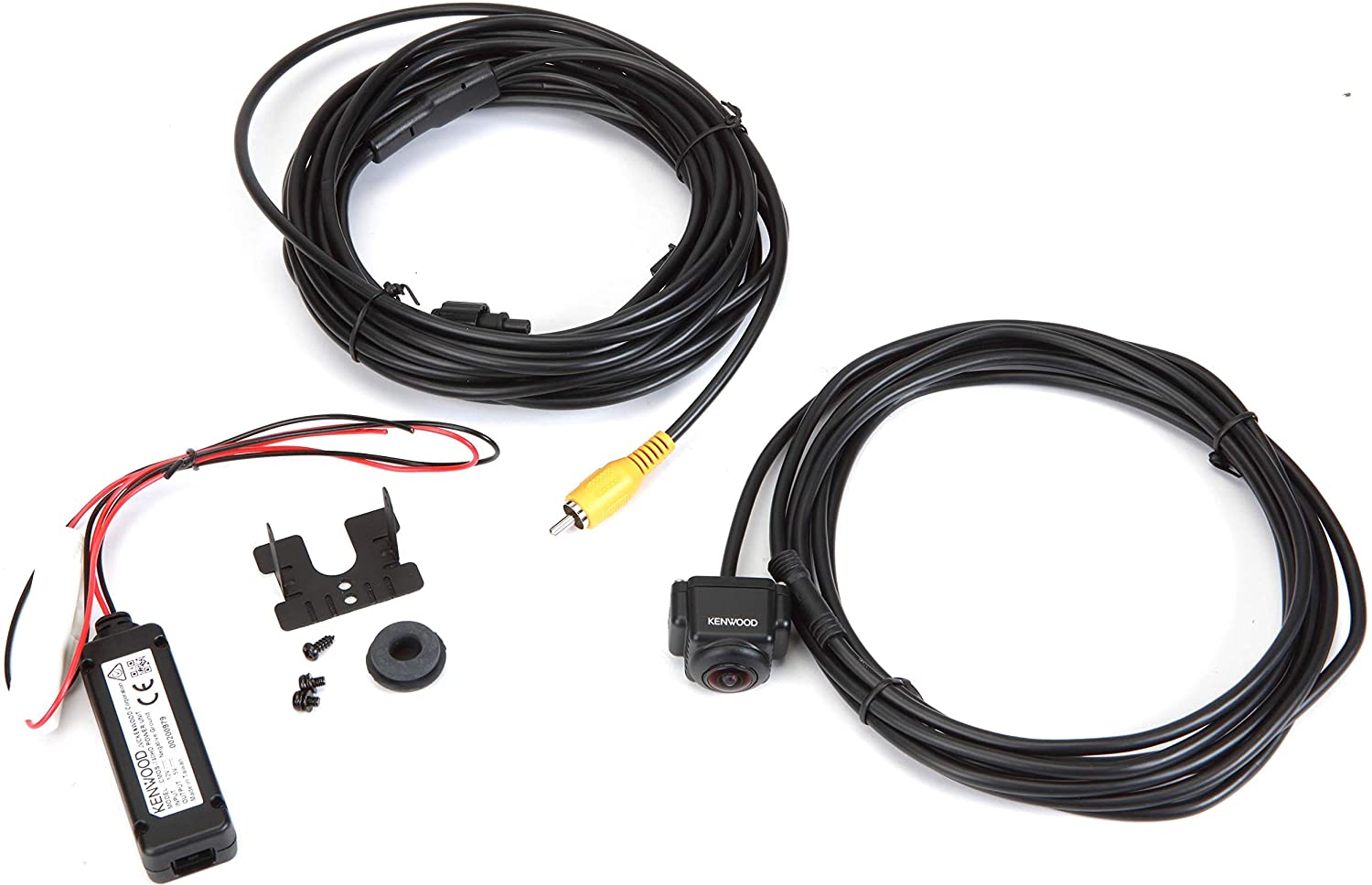

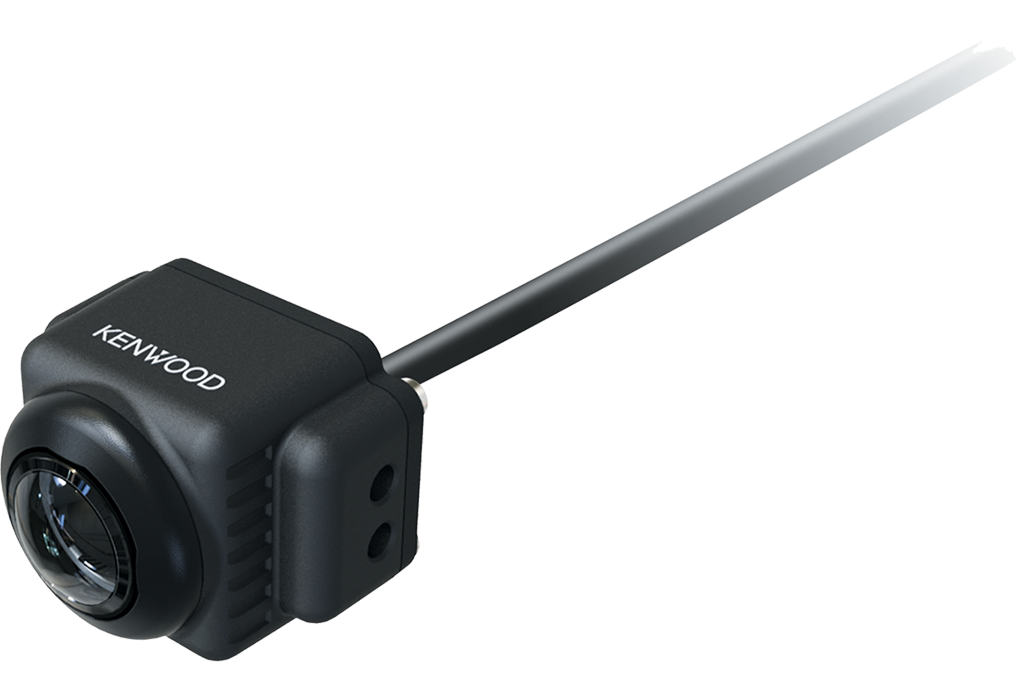

CMOS-740HD HD Rear / Front Camera

The CMOS-740HD High Definition camera, exclusive for DMX9720XDS, can be connected to the rear or front camera inputs of the receiver, displaying the image in true HD 1280 x 720 pixels on the large screen of the DMX9720XDS.

Key Features

  • Rear / Front Camera for DMX9720XDS
  • High-Definition Imaging (1280 x 720px)
  • HDR (High Dynamic Range)
  • IP67 Waterproof and dustproof
  • Wide angle lens, focal length: 1.86mm F:2.0
  • Horizontal 180°/ Vertical 103° angles of view
  • HD-TVI output signal
  • Total cable lenght: 9 meter

Camera Unit

  • Camera Type 1/3.8-inch colour CMOS sensor
  • Number of pixels 1280 (Vertical) x 720 (Horizontal)
  • Effective number of pixels roughly 1300000
  • High sensitivity Pixels
  • Output video HD-TVI
  • Waterproof chassis
  • Mounting system Fix mount base
  • Installation positions Front or rear
  • Rear view switching Reverse line
  • High voltage protection
  • Wide angle lens
  • Focal length f: 1.86mm, F value 2
  • Horizontal Angle view +/- 180°
  • Vertical Angle View +/- 103°
  • Illumination range approx. 1 to 100 lux
  • White balance HDR
  • Video signal format HD-TVI
  • Camera cable to power supply box 3 meter
  • DC cord 6 meter

General Specifications

  • Operating voltage 12V (12 ~ 24V Allowable)
  • Dimensions Hideaway Unit (WxHxD) 69.2 x 23.6 x 15.5mm
  • Dimensions (WxHxD) 31.1 x 23 x 25.2mm
  • Weight 33.2 gr.
  • Operation Temperature Range --30°C ~ 85°C
  • Instruction Manuals Multi-language quick Guide
