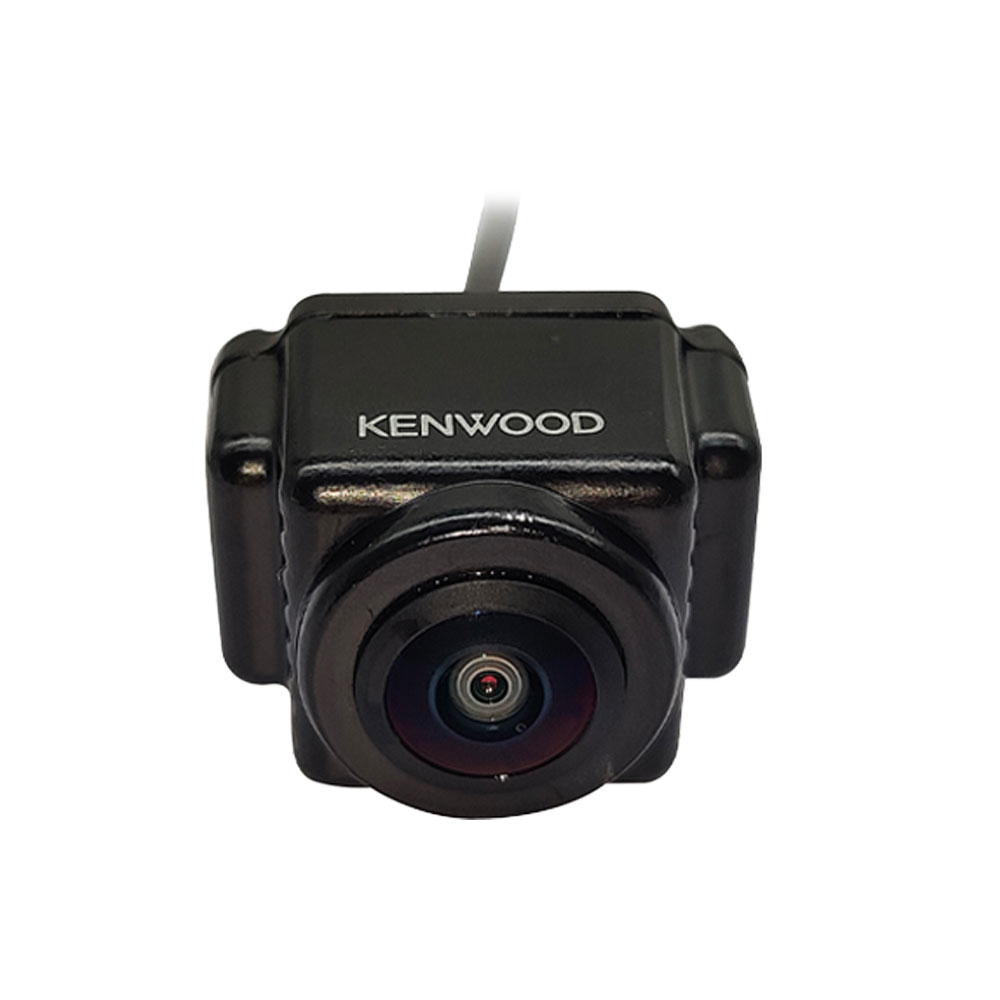

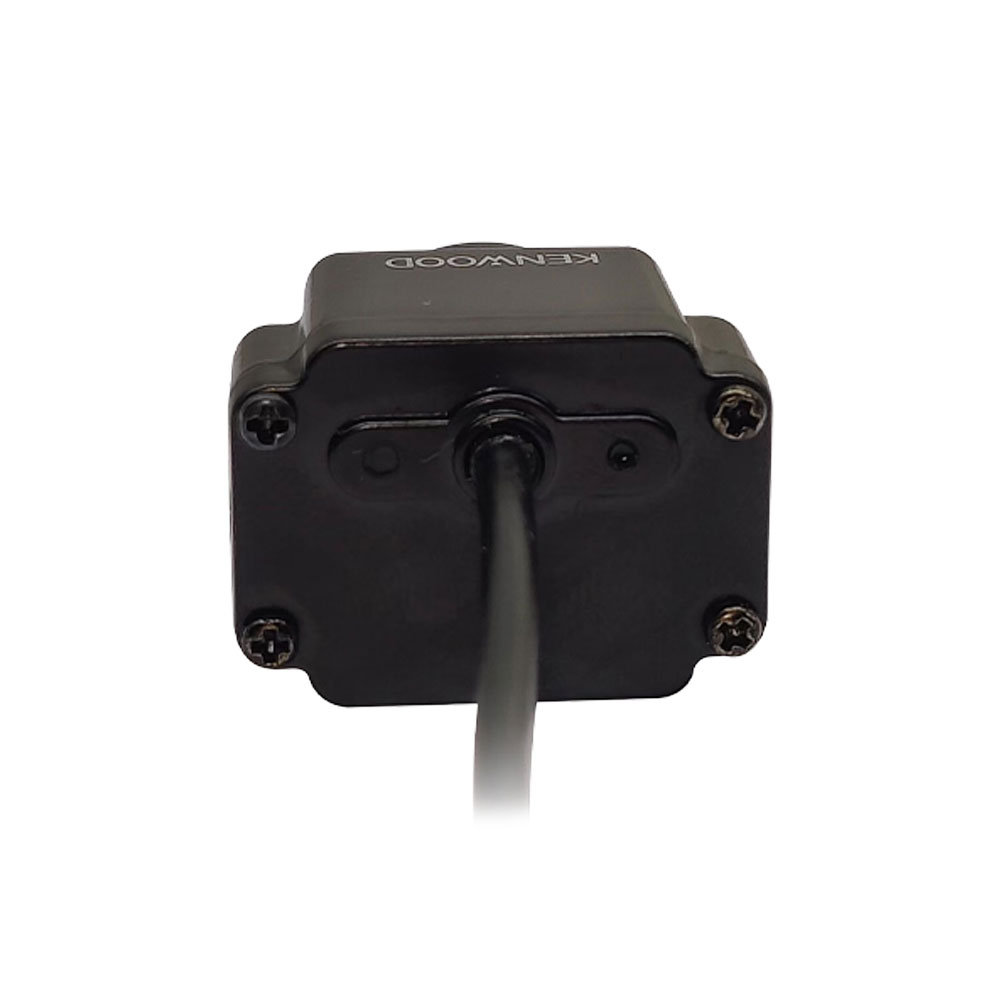

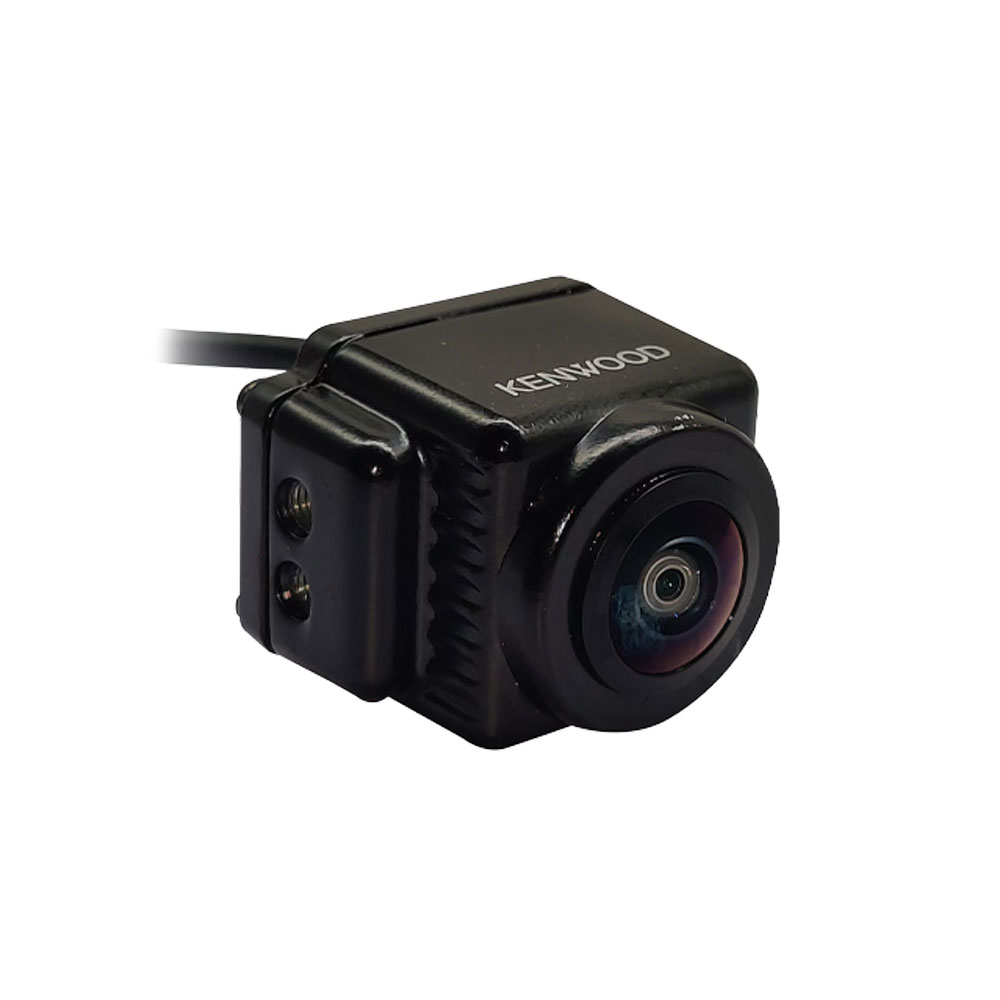

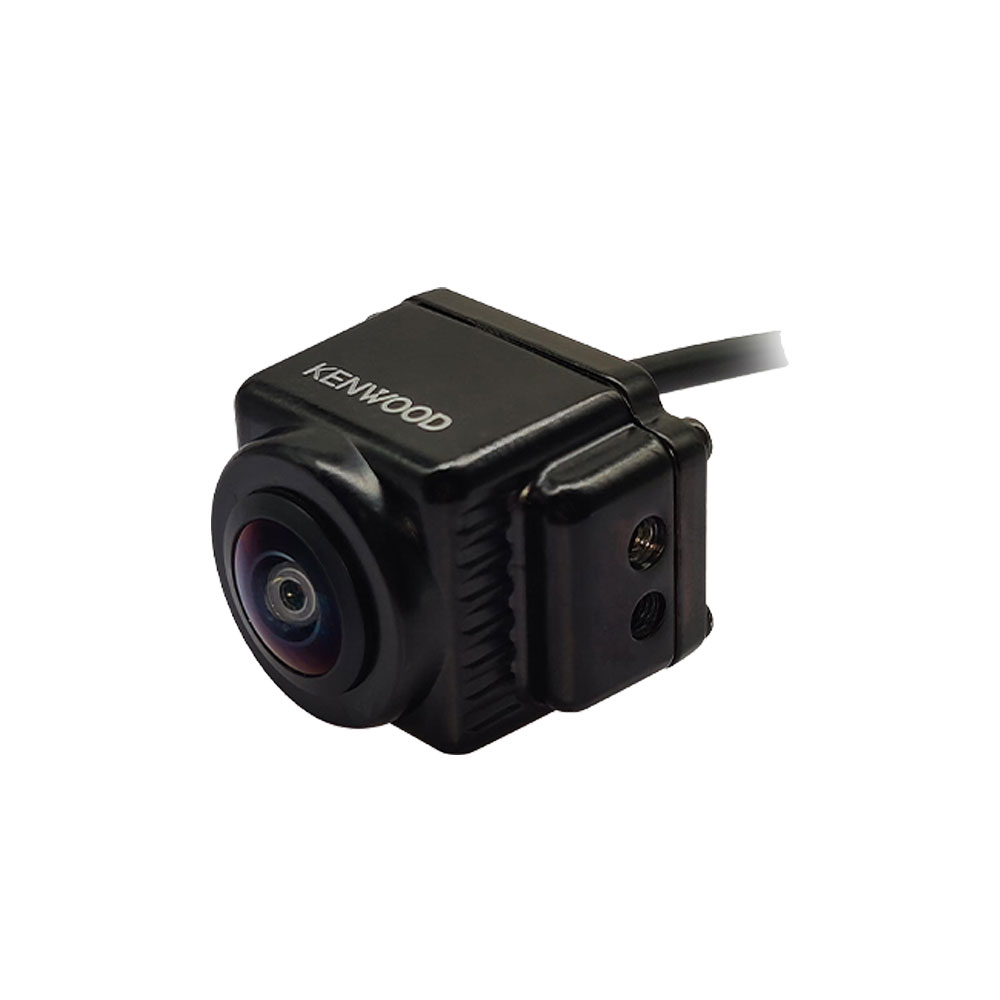

CMOS-150HD Multi View HD Camera

The CMOS-150HD is a compact, IP67-waterproof Multi View HD Camera that delivers clear 720p video at 30fps with an ultra-wide 170° horizontal viewing angle for both 12V and 24V systems.

Key Features

• HD (1280 x 720)
• Lens: F:2.0
• Frame Rate: 30fps
• Viewing Angle: Horizontal 170°/ Vertical 100°
• Operating Voltage: 12V/24V
• Operating Temperature: -30℃ to 85℃
• IP67 certified Waterproof & Dust Proof
• Output: HD-TVI
• Dimensions (WxHxD): 31.1mm x23.0mm x25.2mm
• Weight: 50g ( Camera without cable )
• Weight: 100g ( DC Box Unit side & other )

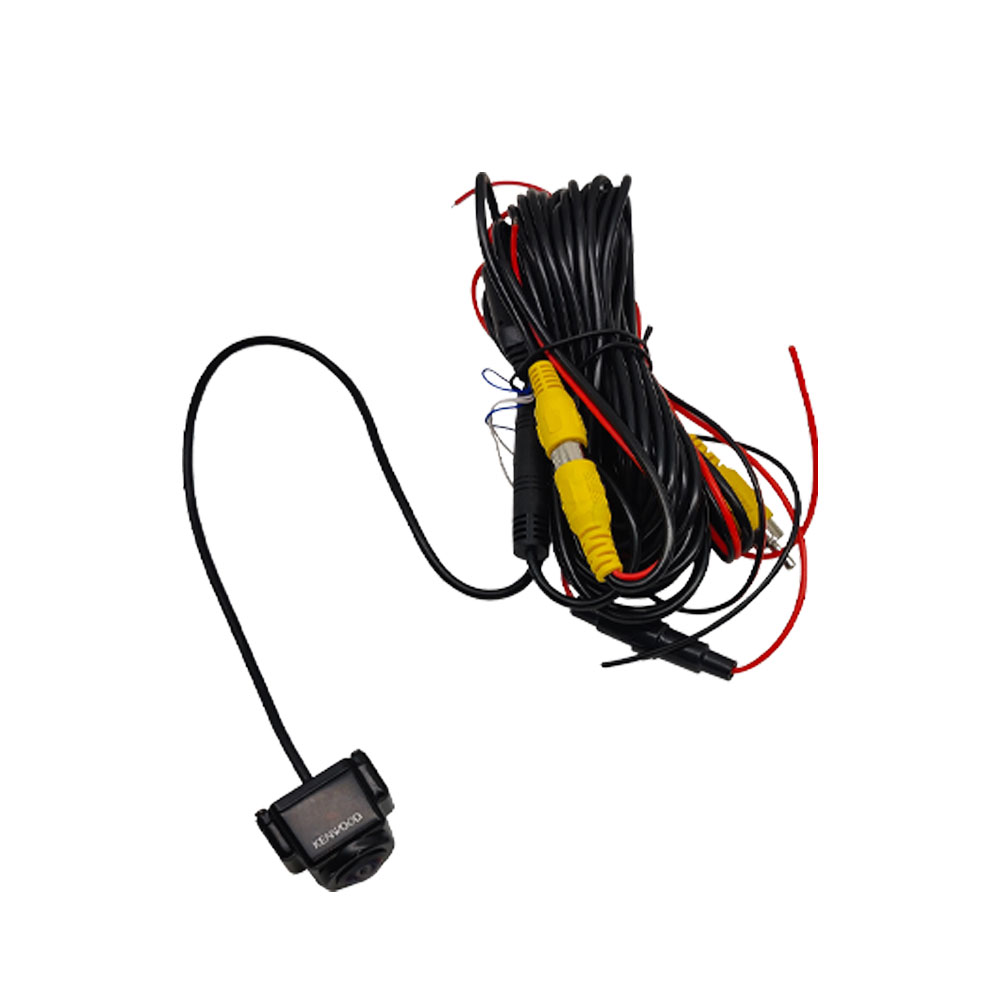

• Cable Length: 2.14m (Camera Unit side)

High Definition View

Displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.

Selectable Rear / Front View (Mirror camera image) by disconnecting the signal wire.
