CA-DR1130

Dashboard camera hard-wired kit for extended Parking Mode

With the hard-wired kit CA-DR1130 you can enable the Smart parking mode on the dashboard cameras DRV-A310W, DRV-A510W & DRV-A610W.

You can select one of the following modes: Vibration or Motion detection: The camera will automatically record 30-second videos as long as the camera senses vibrations or motions (depending of the setting) and store them safely. When Time-lapse is set, the camera will create time-lapse videos and store them safely. The parking mode becomes automatically active when the car engine is turned off until the next time the car is started.

Key Features

• Hard-Wired kit to Enabled Enhanced Smart Parking Surveillance Mode.
• Connects a compatible dashboard camera directly to the fuse box in the vehicule
• Made for DRV-A610W, DRV-A510W and DRV-A310W
• The 4m long cable can help you to easily tuck and hide the car power cable into the headliner
• Smart Parking mode is ACC power (accessory power) controlled
• The parked monitoring time is up to a maximum 24 hours to protect the battery
• When the car battery voltage drops below 12V, it will automatically power-off to protect the car battery.
• 2 sets of 4 types "add a circuit" Fuse Tap Included
• 2Amp fuses for Low Profile, Mini & Standard Fuse Tap and 5Amp fuse for Micro2 Fuse Tap Included.

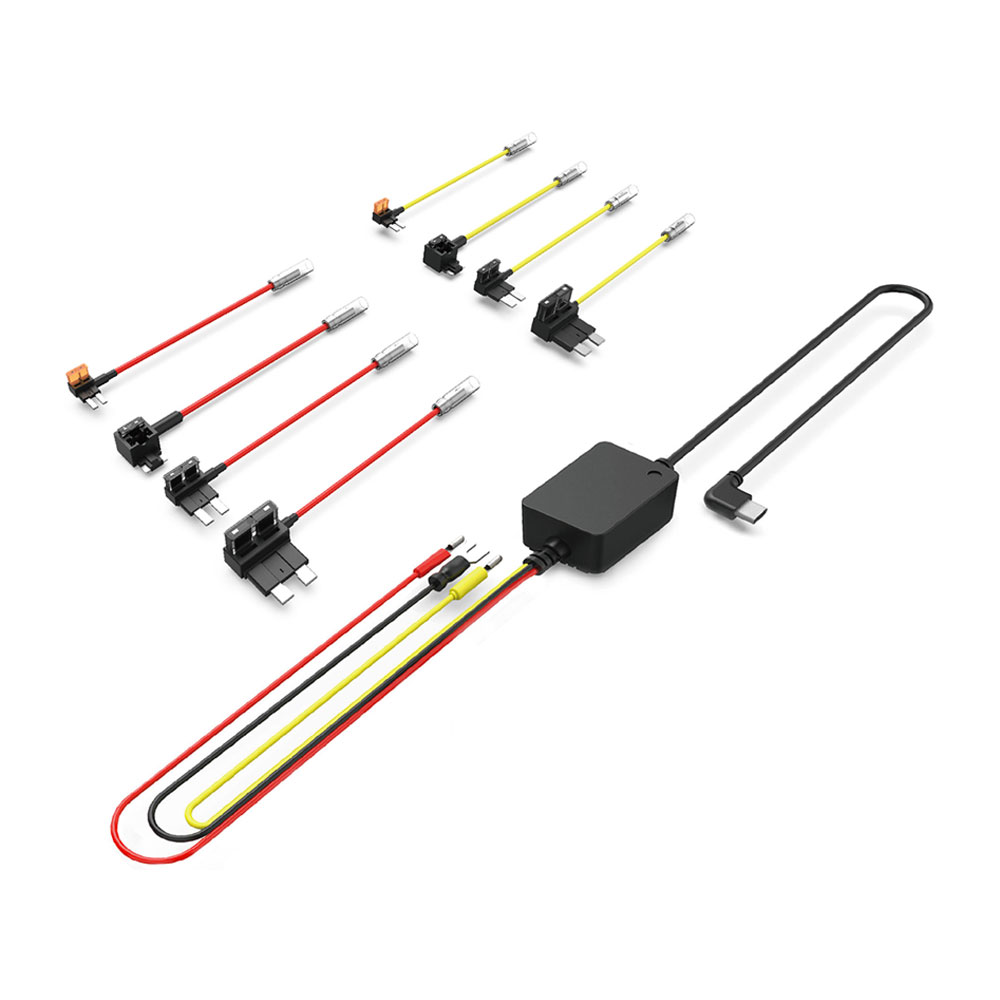

What's in the Box

• 12V/USB adapter with attached 10' USB-C cable and 40" power & ground wires
• 2 x  6" ATC/ATO fuse-tap wires (red & yellow) with installed 2A fuses
• 2 x 6" ATM fuse-tap wires (red & yellow) with installed 2A fuses
• 2 x 6" LP-mini fuse-tap wires (red & yellow) with installed 2A fuses
• 2 x 6" Micro2 fuse-tap wires (red & yellow) with installed 5A fuses
• Instruction manual (En/Sp/Fr/Others)
• Warranty information (En/Sp/Fr/Others)
