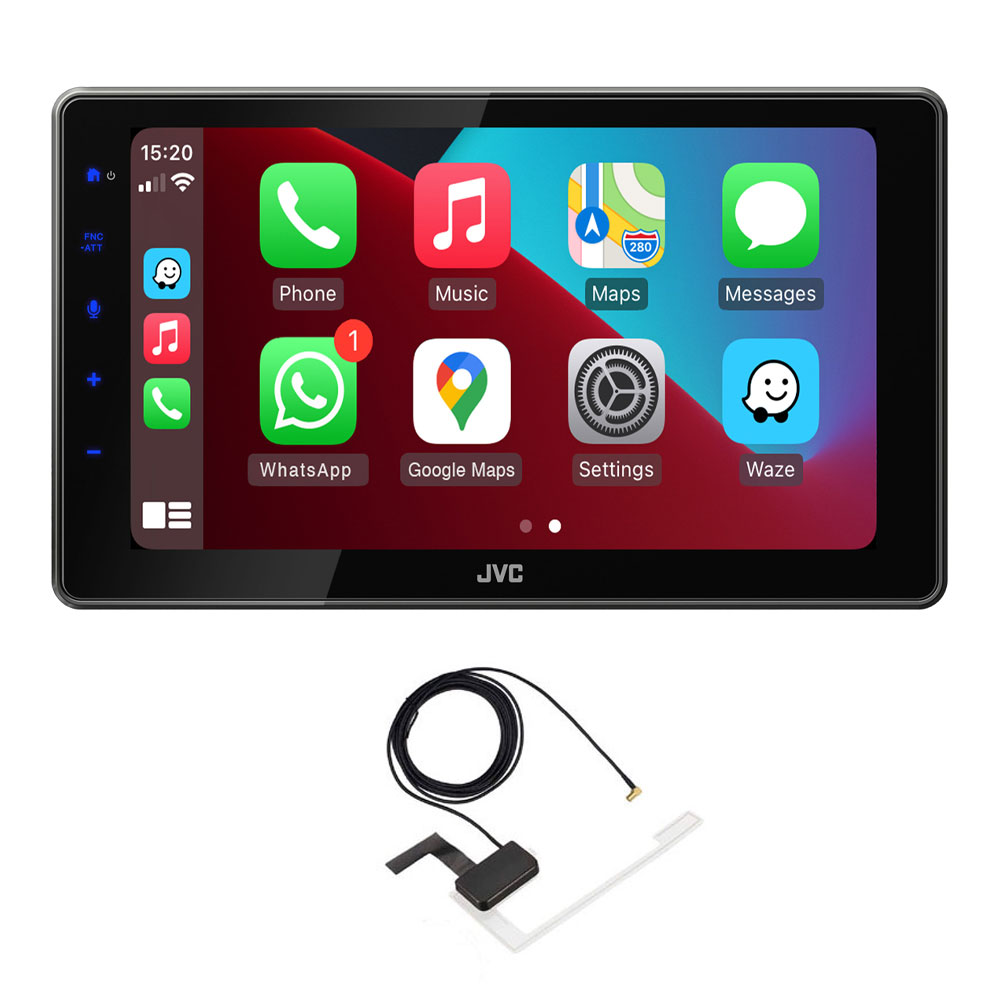

KW-Z900DBW

9” Floating HD Screen Wireless/Wired CarPlay, Android Auto, Wireless iPhone & Android Mirroring, DAB+

DAB AERIAL INCLUDED

360°Fully Adjustable Floating Mechanism

The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with tilt, left and right motion for optimal viewing.

Features

• 360° Fully Adjustable Floating Mechanism
• 9.0" Display with HD LCD screen, sharp & high-contrast images, vivid colours and wide viewing angles.
• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
• Wired & Wireless Screen Mirroring with CarbitLink-EasyConnection app for IOS & Android
• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
• Bluetooth(R) Wireless Hands-Free Calling (*Available functions depend on smartphone).
• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 1x AV input • 1x Video output • 1x Rear View Camera input • HD camera ready.
• 3 RCA line outs (3.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.
• Playable USB Audio Files: MP3 • WMA • AAC • WAV • FLAC
• Playable USB Video Files: MPEG1/2 • MPEG4 • H.264 • MKV • WMV
• 9.0" Floating Panel Mechanism with 1DIN Short chassis for easy installation.
• Steering wheel remote control adapter input (Optional, car specific interface required).
• Wireless IR remote controller ready.

Large 9.0 Inch HD Display

Provides room for more information that is large and easy to see with just a glance.

Large & High Definition Display (1280 x 720)

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Android Auto – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

HDMI Mirroring for Smartphones

Display your smartphone screen on the JVC Multimedia Receivers display via an HDMI cable*.

*Optional HDMI cable and smartphone specific third party adapter are required (sold separately).

HD-Camera Input

An optional High Definition camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on this receivers screen.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Monitor

• Screen Size 9 inches (diagonal) wide
• High Definition Monitor
• Touch Panel Type Capacitive with Anti-finger Print film
• Display System TN LCD panel
• Drive System TFT active matrix system
• Number of Pixels 1,152,000 (800 x 480 x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB striped arrangment
• Back Lighting LED
• Touch Control
• Gesture Touch Control
• Key Illumination Colour Blue
• Dimmer, Illumination line Sync (Auto/On/Off)
• Customizable GUI
• Multilanguage Display, available languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Greek
  • Polish
  • Czech
  • Hungarian

Radio Tuner

• DAB+ Tuner
  • Digital Radio Certification Mark
  • DAB+ Frequency Band III 174.928MHz to 239.2MHz
  • DAB-DAB / DAB-FM Auto Switch
  • Seamless DAB-FM Blending
• FM Tuner
  • Radio Data System (RDS), (with Radio Text Plus)
  • FM Frequency Range 87.5 ~ 108.0MHz (50kHz step)
• AM Tuner
  • AM Frequency Range 531kHz ~ 1,611kHz (9kHz Frequency Step)
• Preset Stations 20 (FM:15ch, AM:5ch)
• Tuner Preset Back-up Memory
• Automatic Preset / SSM

Media Playback

• Audio Decoder
  • MP3 Compatible with Tag
  • WMA Compatible with Tag
  • WAV Compatible with Tag
  • AAC Compatible with Tag
  • FLAC Compatible with Tag
• Video Decoder
  • MPEG-1 / MPEG-2 Compatible
  • MPEG-4 Compatible
  • WMV Compatible
  • H.264 Compatible
  • MKV Compatible

USB

• USB Standard High Speed 2.0
• Location Rear
• File System FAT16 / FAT32 / exFAT
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Alphabet Search
• Category search
• Link Search
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume

Bluetooth®

• Built-In Bluetooth (Version 5.0)
• Supported profiles Multi profile
  • Hands Free Call (HFP) (HFP1.8)
  • Advanced Audio Distribution Profile (A2DP) V1.3.2
  • Audio/Video Remote Control Profile (AVRCP) V1.6.2
  • Phone Book Access Profile (PBAP)
  • Alphabetical Search for Phone Book
  • Serial Port Profile (SPP)
• 2 Phones Full-Time Connection
• Supported Audio Formats AAC / SBC
• JVC Streaming DJ with up to 5 Bluetooth devices
• Auto Pairing
• Noise Canceller
• Echo Canceller
• Wired Microphone included

Wi-Fi Control

• Built-in Wi-Fi
• IEEE Standard 802.11 a/b/g/n/ac
• Frequency Range Dual Band (2.4GHz/5GHz)

Android Control

• Android Auto wired
• Android Auto wireless, (WiFi)

iPod/iPhone Control

• CarPlay wired, (via USB)
• CarPlay wireless, (WiFi)

Audio

• Maximum Power Output (Front & Rear)  50W x 4
• Full Bandwidth Power (at less than 1%THD)  22W x 4 (Front & Rear)
• Speaker Load Impedance 4 Ω ~ 8 Ω
• Output Frequency Band 20 Hz ~ 88.000Hz
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ Preset x8 + User x4 / Source
  • Volume Link EQ
• 3-Way X'over
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
  • Time Alignment
  • Space Enhancement
  • Sound Response
  • Sound Lift
• Loudness Control
• Bass Boost (Hyper Bass System)

Inputs and Outputs

• Audio Inputs and Outputs
  • Pre-Out Terminals
  • Pre-Out Impedance Less than 600 ohms
  • Pre-Out Level/Impedance 3.0V/10k ohms
  • Audio Output level (mini jacks) 2V / 25k ohms
  • Subwoofer Output with Level/Frequency Control
• Video Inputs and Outputs
  • Video Input Level/Impedance 1.0Vp-p / 75 ohms
  • AV Input mini jack (AV-IN or Camera switchable)
  • Video Out RCA
  • Colour System NTSC/PAL
  • Video Output Level/Impedance 1.0Vp-p / 75 ohms
• Camera inputs
  • Rear view camera Input
  • HD camera compatible input
  • Convert AV-input to camera input

General

• Back Up Memory
• Installer Memory
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote
• ISO Connector 20-pin (New Type) to ISO Wiring harness
• Short Chassis
• Operation Voltage 12 VDC
• Dimensions Monitor unit (WxHxD) 240 x 140 x 31mm
• Weight Monitor unit 0.66 kg
• Dimensions chassis unit (WxHxD)) 178 x 50 x 120mm
• Weight chassis unit 0.94 kg
• Unit weight in individual package 2.44kg
