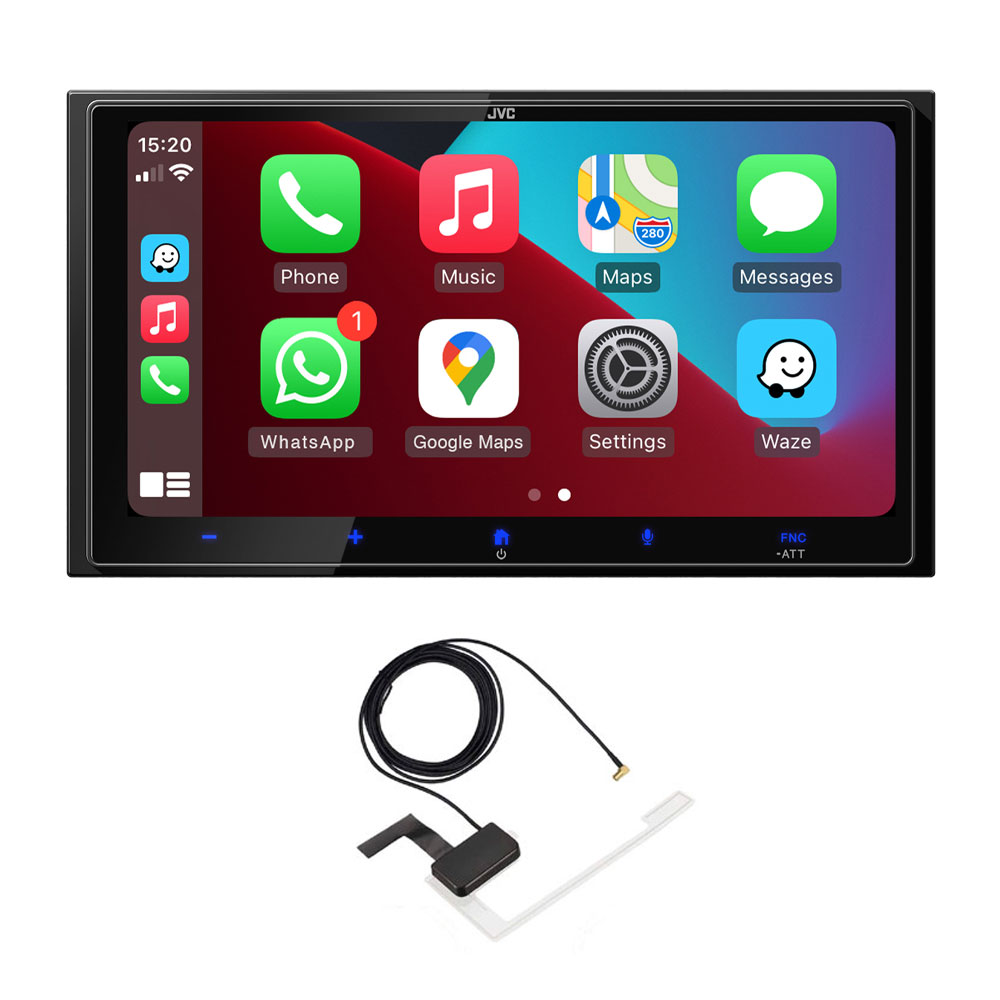

KW-M795DBW

6.92" High Definition screen • DAB+ Tuner • Wired & wirelessly Apple CarPlay® & Android Auto™ + IOS & Android screen screen mirroring.

Digital Media Receiver featuring 6.92" HD Capacitive Touch Control Monitor / Apple CarPlay (Wireless, Wired) / Android Auto™ (Wireless, Wired) / HDMI Input / Mirroring (Wireless, Wired) / Bluetooth® / HD Rear Camera Input

Features

• 6.92" Display with HD LCD screen, sharp & high-contrast images, vivid colors and wide viewing angles.
• Wired & Wireless CarPlay® & Android Auto™, the ideal way to use your smartphone in the car.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• DAB+ Digital radio tuner for noise & interference free, crystal-clear digital stereo sound,
• Screen mirroring with CarbitLink-EasyConnection app for IOS & Android
• Bluetooth(R) Wireless Hands-Free Calling (*Available functions depend on smartphone).
• High Speed USB Type-A terminal for your compatible USB- enabled devices. (2.1A Max)
• Playable USB Audio Files: MP3 • WMA • AAC • WAV • FLAC
• Playable USB Video Files: MPEG1/2 • MPEG4 • H.264 • MKV • WMV
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 3 RCA line outs (3.0V) to upgrade your system with power amplifiers to create a more immersive audio experience.
• 1x AV input • 1x Video output • 1x Rear View Camera input • HD-TVI camera ready.
• 2DIN Short chassis for easy installation.
• Steering wheel remote control adapter input (Optional, car specific interface required).
• Wireless IR remote controller ready.

DAB AERIAL INCLUDED

Large & High Definition Display (1280 x 720)

The HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Android Auto™ – Connect Wirelessly or via USB

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

* Compatible Android phone and compatible active data plan required.
* Some features and devices may not be available in all countries. Subject to availability.

Wirelessly or USB Mirroring for iPhone & Android Smartphone

Wireless or USB Mirroring is enabled by installing the "CarbitLink-EasyConnection" app on your iPhone or Android mobile phone*. This is a groundbreaking solution for seamlessly displaying your smartphone apps, such as Waze, YouTube, Instagram and much more on the JVC Multimedia receiver large screen.

DAB+ Tuner

DAB+ is short for Digital Audio Broadcasting, which means digital sound transmission. DAB+ radios are digital radios that are the successors to classic FM radios. DAB+ delivers CD-quality, crystal-clear reception with little noise and no sound distortion. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

HDMI™ Mirroring for Smartphones

Display your smartphone screen on the JVC Multimedia Receivers display via an HDMI cable*.

*Optional HDMI cable and smartphone specific third party adapter are required (sold separately).

2-Camera Inputs

The 2 inputs enable users to add an optional (High definition) rear view camera that enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness. The Rear Camera input supports HD-TVI camera systems with 1280×720 pixel resolution @ 30fps, displaying the HD camera's footage on the High Definition Screen of the receiver. The AV-in input can be set as an additional camera input. Adding a front camera (sold separately), further enhances driver safety and convenience by offering a clear view of the vehicle's immediate front.

HD-Camera Input

Enable users to add an optional (High Definition) Rear View Camera that enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness. Supports HD-TVI camera systems with 1280×720 pixel resolution @ 30fps, displaying the HD camera's footage on the high definition screen of the receiver.

Monitor

• Screen Size 6.92 inches (diagonal) wide
• High Definition Monitor 1280 x 720 px
• Touch Panel Type Capacitive with Anti-finger Print film
• Display System TN LCD panel
• Drive System TFT active matrix system
• Number of Pixels 1,152,000 (800 x 480 x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB striped arrangment
• Back Lighting LED
• Touch Control
• Gesture Touch Control
• Key Illumination Colour Blue
• Dimmer, Illumination line Sync (Auto/On/Off)
• Customizable GUI

Multilanguage Display

Available languages:

• English(UK)(Default)
• English(US)
• Spanish
• French
• German
• Italian
• Dutch
• Portuguese
• Arabic
• Greek
• Polish
• Czech
• Hungarian

Radio Tuner

• DAB+ Tuner
  • Digital Radio Certification Mark
  • DAB+ Frequency Band III 174.928MHz to 239.2MHz
  • DAB-DAB / DAB-FM Auto Switch
  • Seamless DAB-FM Blending
• FM Tuner
  • Radio Data System (RDS), (with Radio Text Plus)
  • FM Frequency Range 87.5 ~ 108.0MHz (50kHz step)
• AM Tuner
  • AM Frequency Range    531kHz ~ 1,611kHz (9kHz Frequency Step)
• Preset Stations 20 (FM:15ch, AM:5ch)
• Tuner Preset Back-up Memory
• Automatic Preset / SSM

Media Playback

• Audio Decoder
  • MP3 Compatible with Tag
  • WMA Compatible with Tag
  • WAV Compatible with Tag
  • AAC Compatible with Tag
  • FLAC Compatible with Tag
• Video Decoder
  • MPEG-1 / MPEG-2 Compatible
  • MPEG-4 Compatible
  • WMV Compatible
  • H.264 Compatible
  • MKV Compatible
• JPEG File Playback For user background only
• BMP File Playback For user background only
• PNG File Playback For user background only

USB

• USB Standard
• Location Rear
• File System FAT16 / FAT32 / exFAT
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Alphabet Search
• Category search
• Link Search
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume

Bluetooth®

• Built-In Bluetooth (Version 5.0)
• Supported profiles Multi profile
• Hands Free Call (HFP1.8)
• Advanced Audio Distribution Profile (A2DP) V1.3.2
• Audio/Video Remote Control Profile (AVRCP) V1.6.2
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Serial Port Profile (SPP)
• Supported Audio Formats AAC / SBC
• Auto Pairing
• Noise Canceller
• Echo Canceller
• Wired Microphone included

Wi-Fi Control

• Built-in Wi-Fi
• IEEE Standard 802.11 a/b/g/n/ac
• Frequency Range Dual Band (2.4GHz/5GHz)

Android Control

• Android Auto wired, (via USB)
• Android Auto wireless, (WiFi)
• Screen mirroring for Android
• Wired screen mirroring for Android with CarbitLink-EasyConnection app
• Wireless screen mirroring for Android with CarbitLink-EasyConnection app

iPod/iPhone Control

• CarPlay wired, (via USB)
• CarPlay wireless, (WiFi)
• Screen mirroring for iPhone
• Wireless screen mirroring with CarbitLink-EasyConnection app

Audio

• Maximum Power Output (Front & Rear) 50W x 4
• Full Bandwidth Power (at less than 1%THD) 22W x 4 (Front & Rear)
• Speaker Load Impedance 4 Ω ~ 8 Ω
• Output Frequency Band 20 Hz ~ 88.000Hz
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ Preset x8 + User x4 / Source
  • Volume Link EQ
• 3-Way X'over
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
  • Time Alignment
  • Space Enhancement
  • Sound Response
  • Sound Lift
• Loudness Control
• Bass Boost (Hyper Bass System)

Inputs and Outputs

• Audio Inputs and Outputs
  • Pre-Out Terminals
  • Pre-Out Impedance Less than 600 ohms
  • Pre-Out Level/Impedance 3.0V/10k ohms
  • Audio Output level (mini jacks) 2V / 25k ohms
  • Subwoofer Output with Level/Frequency Control
• Video Inputs and Outputs
  • Video Input Level/Impedance
  • AV Input mini jack (AV-IN or Camera switchable)
  • Video Out RCA
  • Colour System NTSC/PAL
  • Video Output Level/Impedance 1.0Vp-p / 75 ohms
• Camera inputs
• Rear view camera Input
• HD camera compatible input
• Convert AV-input to camera input.

General

• Back Up Memory
• Installer Memory
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote
• ISO Connector 20-pin (New Type) to ISO Wiring harness
• Short Chassis
• Operation Voltage 12 VDC
• Dimensions (W x H x D) 178mm x 100mm x 109mm
• Weight 1,14 kg

Available functions depend on mobile phone.
