KW-M695DBW

Digital Media Receiver featuring 6.8" High Res WSVGA Monitor / Wired or Wireless Apple CarPlay® & Android Auto™ / iPhone & Android Wireless Mirroring / DAB+ Digtal Radio / Bluetooth® / 13-Band EQ / Short Chassis.

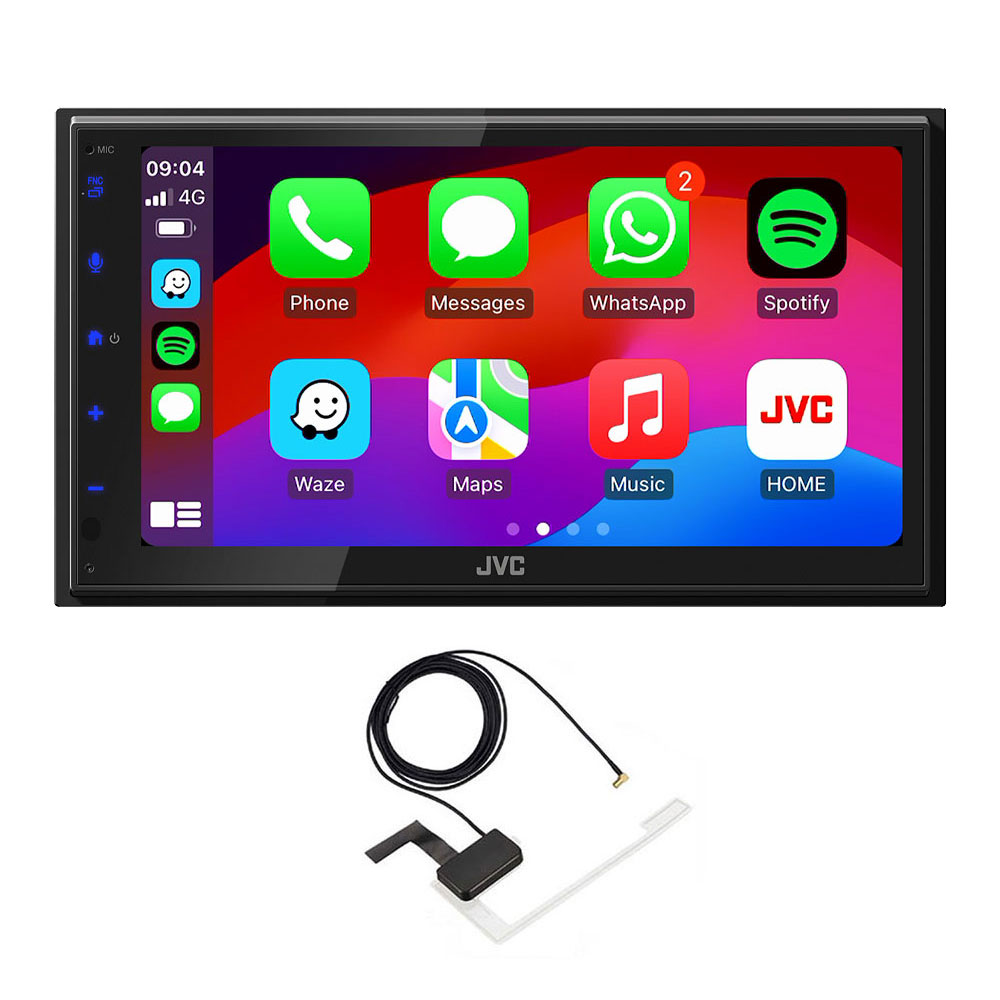

DAB AERIAL INCLUDED

Features

• Wireless and Wired Apple CarPlay® & Android Auto™ Ready
• Wireless Mirroring for iPhone / Android
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Advanced Wireless Bluetooth® Technolgy
• High Speed USB port with up to 2.1A High Current Charging
• Rear View Camera Input with Parking Guidelines
• 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
• Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
• 2 Preouts 2.5V & Subwoofer Out

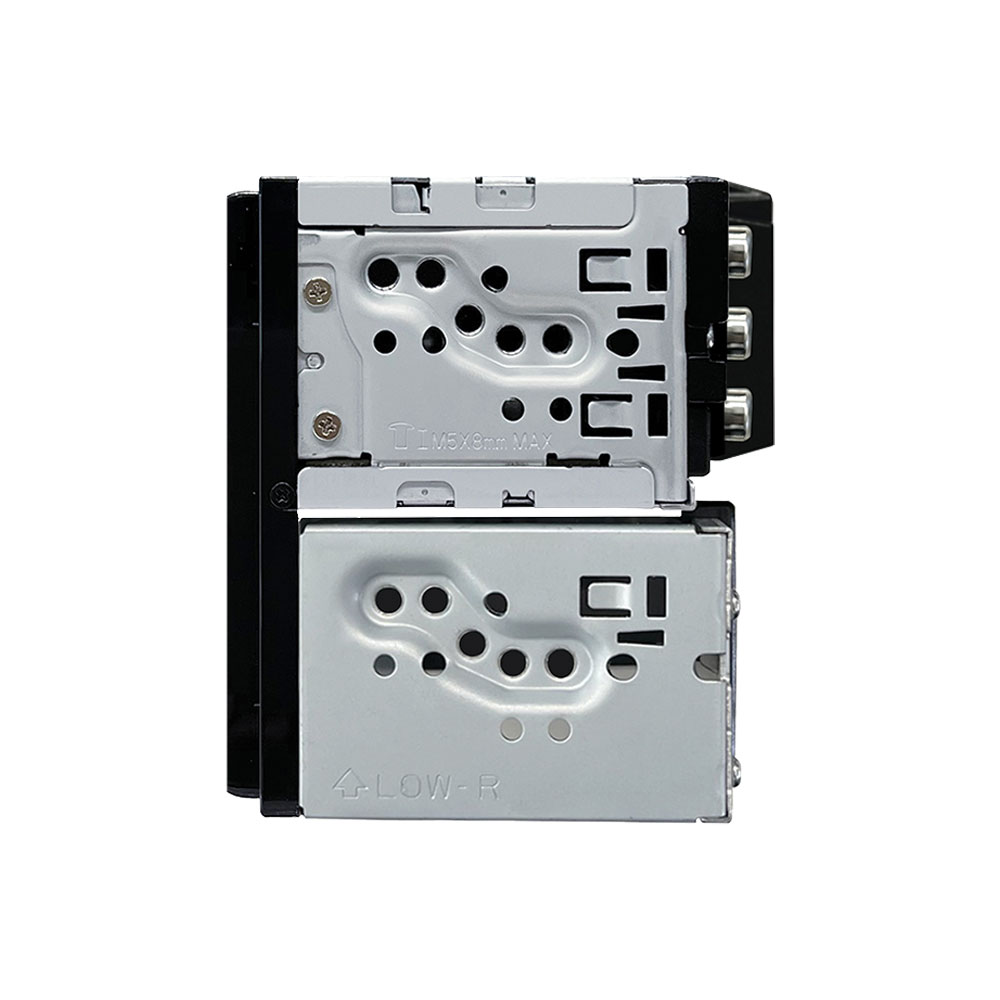

• Short body (86mm) for easy installation in a wide range of cars

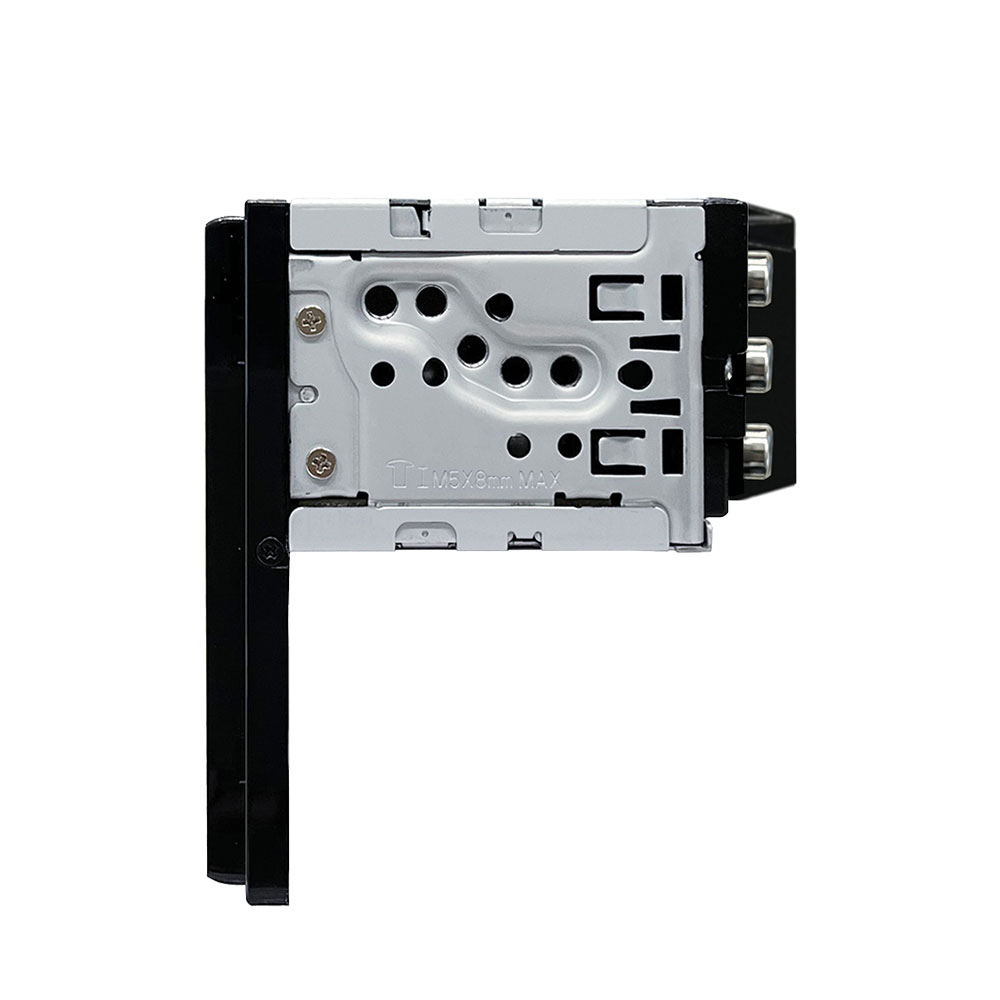

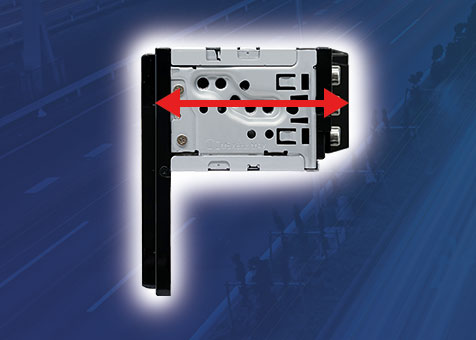

Short Chassis Design

The reduced depth and the P-shape of the chassis contributes to a weight reduction and facilitates easier installation.

Apple CarPlay – Connect Wirelessly or via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch. With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay

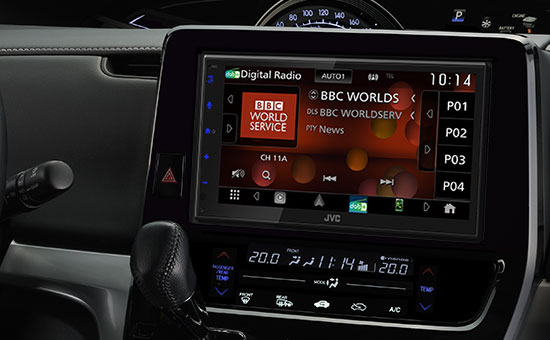

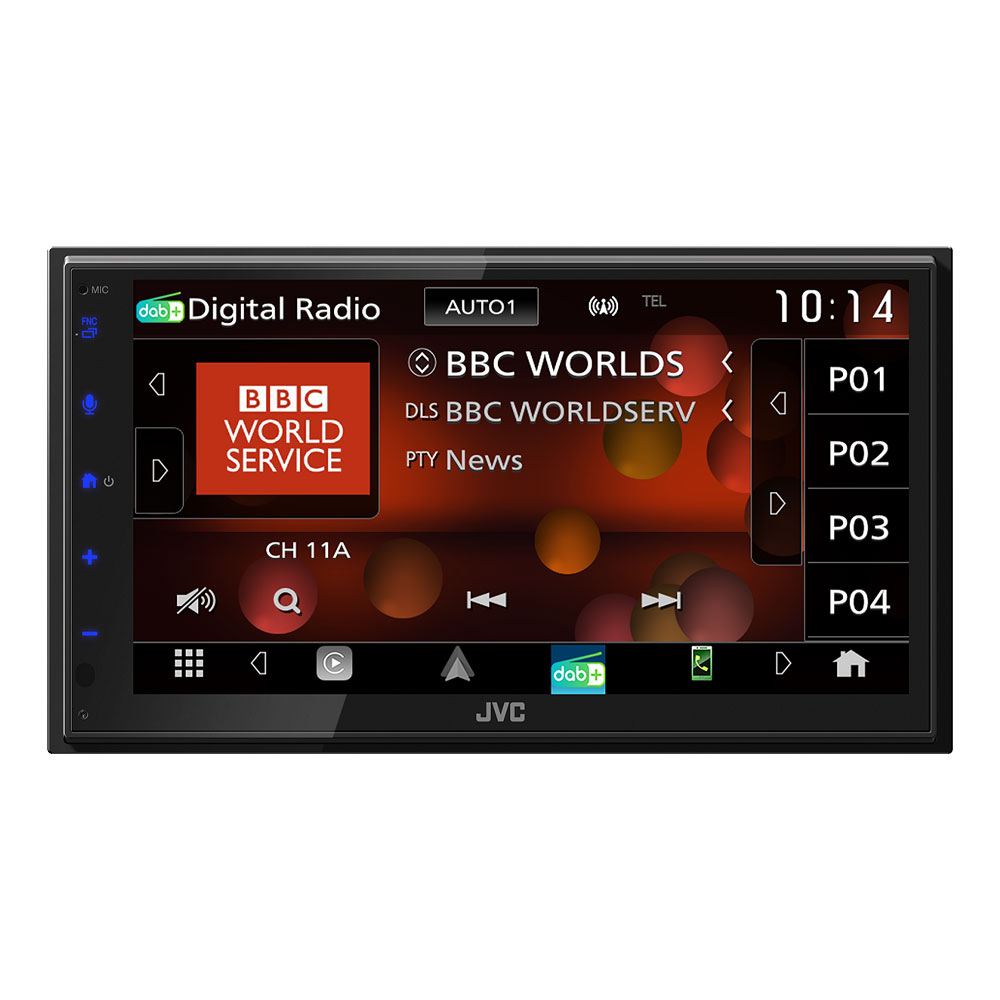

DAB+ Tuner

DAB+ is short for Digital Audio Broadcasting, meaning the digital transmission of sound. DAB+ radios are digital radios that are the successors of classic FM radios. DAB+ delivers CD-quality crystal clear sound and doesn't suffer from the same types of interference or static issues than with analogue AM/FM radio. Tuning is also easier: simply select your favourite radio station from the alphabetical station list.

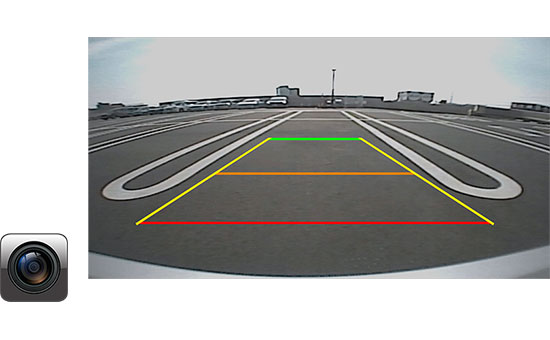

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

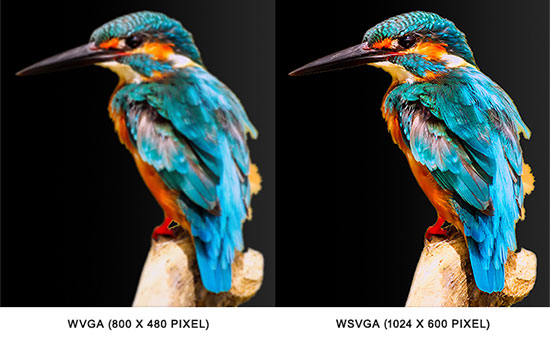

Wide Super VGA LCD Display

The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Technical Specifications

Monitor

• Screen Size 6.8 inches (diagonal) wide
• High Definition Monitor WSVGA (1024 x 600px)
• Touch Panel Type Capacitive
• Display System TN LCD panel
• Drive System TFT active matrix system
• Number of Pixels 1.843.200 (1024H x 600V x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB striped arrangment
• Back Lighting LED
• Touch Control
• Key Illumination Colour Blue
• Dimmer, Manual/Sync (Auto/On/Off)
• Customizable GUI
• Multilanguage Display, 14 languages: English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.

Radio Tuner

• DAB+ Tuner
  • Digital Radio Certification Mark
  • DAB+ Frequency Band III 174.928MHz to 239.2MHz
  • DAB-DAB / DAB-FM Auto Switch
  • Seamless DAB-FM Blending
  • ASW Select
  • DLS (Dynamic Label)
  • Slide Show
  • Softlink
• FM Tuner
  • Radio Data System (RDS)    Yes
  • FM Frequency Range    87.5 ~108.0 MHz (50kHz Step)
• AM Tuner
  • AM Frequency Range    531kHz ~ 1611kHz (9kHz Frequency Step)
• Preset Stations DAB: 15 / FM: 24 / AM: 12 presets
• Traffic Information DAB / RDS
• PTY Search DAB / RDS
• PTY Watch DAB
• Automatic Preset / SSM (FM only)

Media Playback

• Audio Decoder
  • MP3 Compatible with Tag USB
  • WMA Compatible with Tag USB
  • WAV Compatible with Tag USB
  • AAC Compatible with Tag USB
  • FLAC Compatible with Tag USB
• Video Decoder
  • MPEG-1 / MPEG-2 Compatible USB
  • MPEG-4 Compatible USB
  • WMV Compatible USB
  • H.264 Compatible USB
  • MKV Compatible USB
  • JPEG File Playback USB (For user background only)
  • BMP File Playback USB (For user background only)
  • PNG File Playback USB (For user background only)

USB

• USB Port(s  x 1
• Location Rear
• USB Standard High Speed
• File System FAT16 / FAT32 / exFAT / NTFS
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Category search
• Link Search
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume
• Digital / Analog Converter (DAC) 24 bit
• Signal-to-Noise Ratio (S/N) 75 dB
• 2.1A Max Power Supply Current

Bluetooth®

• Bluetooth Technology V 5.0
• Hands Free Call (HFP) (HFP1.8)
• Advanced Audio Distribution Profile (A2DP) V1.3
• Audio/Video Remote Control Profile (AVRCP) V 1.6
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Secure Simple Pairing (SSP)
• Audio Codec AAC / SBC
• Noise Canceller (Auto)
• Echo Canceller (Auto)
• Built-in BT Microphone

Wi-Fi Control

• Built-in Wi-Fi
• Frequency Range 5 GHz

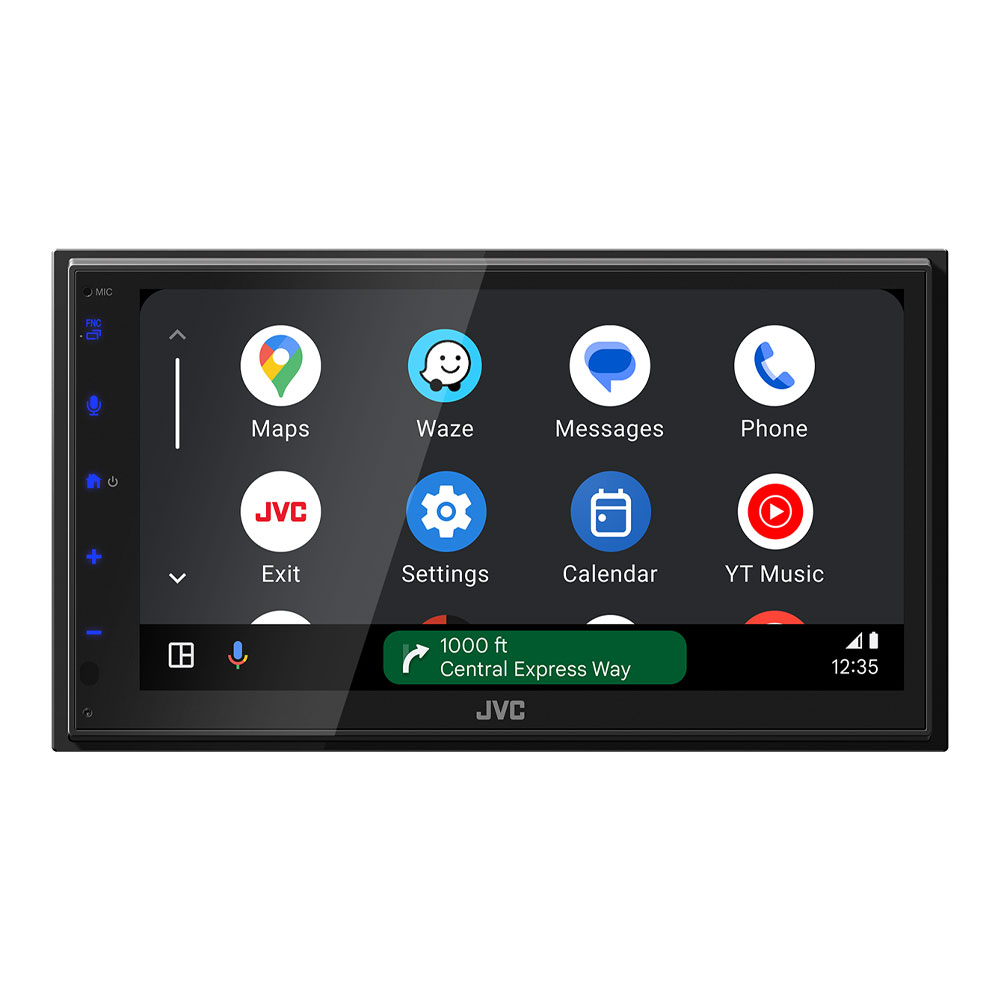

Android Control

• ANDROID AUTO
  • Android Auto wired, (via USB)
  • Android Auto wireless
  • USB mirroring for Android
  • Wireless mirroring for Android
• Android Music Playback (via Bluetooth

iPod/iPhone Control

• CARPLAY
  • CarPlay wired, (via USB)
  • CarPlay wireless
• Mirroring for iPhone (via USB) *Need mirroring App
• iPhone Music Playback (via USB or Bluetooth®)
• Random/Repeat Play

App(s)

• MirrorApp+ via USB
• App Store https://apps.apple.com/us/app/mirrorapp/id1560645614
• Google Play https://play.google.com/store/apps/details?id=hk.com.soundmax.mirrorapp&hl=en

Audio

• Maximum Power Output (Front & Rear) 50W x 4
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• Output Frequency Band 20 - 20,000Hz
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ    Preset x 7 + User set x 3 / All SRC
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Loudness Control (Off/Low/High)
• Bass Boost (Hyper Bass System) (on/off)

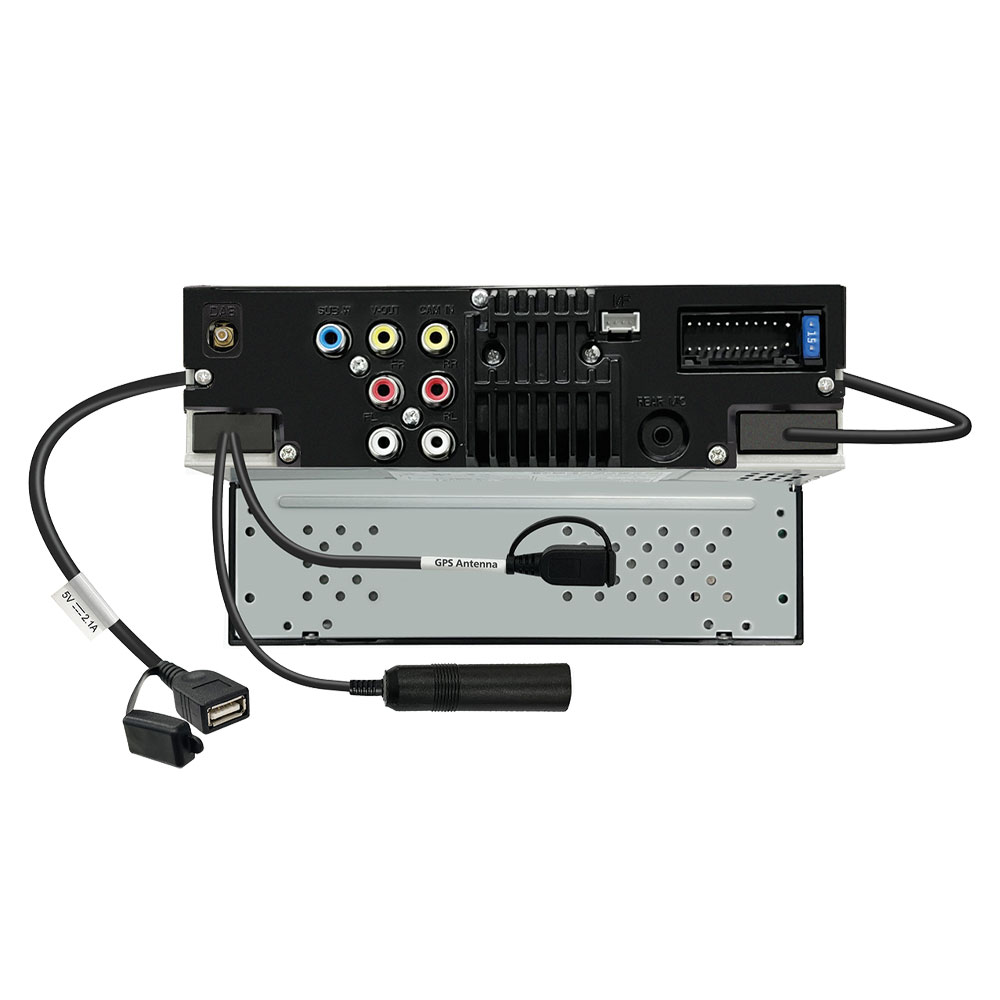

Inputs and Outputs

• Audio Inputs and Outputs
  • Pre-Out Terminals Front (L+R), Rear (L+R), Subwoofer (mono)
  • Pre-Output Level 2.5V
  • Pre-Out Impedance 1,4 kΩ
• Video Inputs and Outputs
  • Video Out x 1 (V:RCA)
  • Colour System NTSC/PAL
  • Video Output Level/Impedance 1Vp-p / 75 ohms
• Camera inputs
  • Rear view camera Input

General

• Back Up Memory
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote (Resistive protocol only)
• ISO Connector 22pin (New Type) to ISO Wiring harness
• Short Chassis (86mm)
• Operation Voltage 12 VDC
• Installation Size (W x H x D) 182 x 112 x 86mm
• Weight, inlcuding sleeve and escutcheon 1.27 kg
