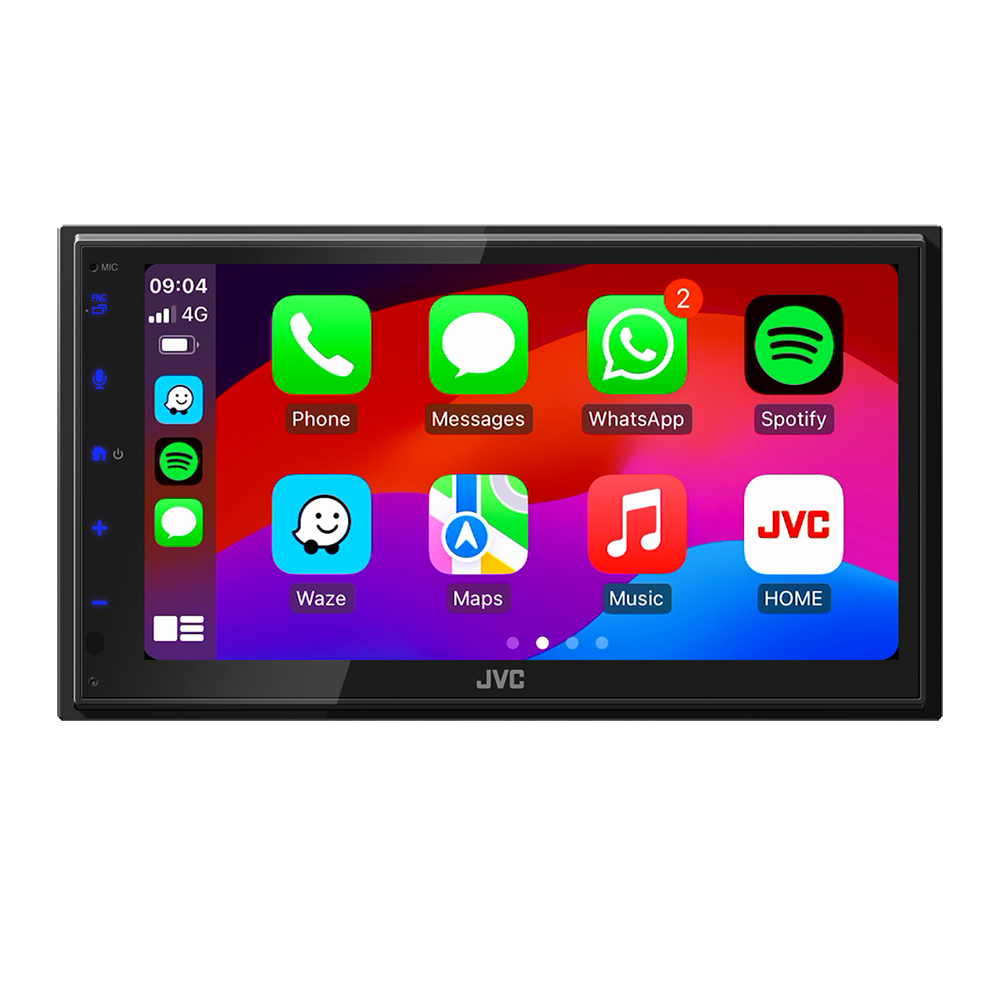

KW-M593BT

Digital Media Receiver featuring 6.8" High Res WSVGA Monitor / Wired Apple CarPlay® & Android Auto™ / iPhone & Android USB Mirroring / Bluetooth® / 13-Band EQ / Short Chassis.

Features

• Apple CarPlay® & Android Auto™ Ready
• USB Mirroring for iPhone / Android
• Advanced Wireless Bluetooth® Technolgy
• High Speed USB port with up to 2.1A High Current Charging
• Rear View Camera Input with Parking Guidelines
• 2 Preouts 2.5V & Subwoofer Out
• 6.8" WSVGA LCD Display & Convenient and Easy-to-Use Capacitive Touch Panel
• Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
• Short body (86mm) for easy installation in a wide range of cars

Apple CarPlay – Connect via USB

Apple CarPlay is a safer and more fun way to use your iPhone in the car via USB connection. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

• Some features, applications, and services are not available in all areas

Android Auto – Connect via USB

Android Auto* was designed with safety in mind, helping you to minimize distractions and stay focused on the road. JVC’s multimedia receiver, connected via USB, combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Spotify.

• Compatible Android phone and compatible active data plan required.
• Some features and devices may not be available in all countries. Subject to availability.

USB Mirroring for iPhone & Android Smartphone.

By installing the “MirroringAPP+”, your iPhone & Android phone* is seamlessly displayed on the JVC receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Wide Super VGA LCD Display

The 1024x600px Wide Super VGA (WSVGA) display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

Short Chassis Design

The reduced depth and the P-shape of the chassis contributes to a weight reduction and facilitates easier installation.

Technical Specification

Monitor

• Screen Size 6.8 inches (diagonal) wide
• High Definition Monitor WSVGA (1024 x 600px)
• Touch Panel Type Capacitive
• Display System TN LCD panel
• Drive System TFT active matrix system
• Number of Pixels 1.843.200 (1024H x 600V x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB striped arrangment
• Back Lighting LED
• Touch Control
• Key Illumination Colour Blue
• Dimmer, Manual/Sync (Auto/On/Off)
• Customizable GUI
• Multilanguage Display, 14 languages: English(UK(Default) / English US / Spanish / French / German / Italian / Dutch / Portuguese / Arabic / Hebrew / Greek / Polish / Czech / Hungarian.

Radio Tuner

• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5 ~108.0 MHz (50kHz Step)
• AM Tuner
  • AM Frequency Range  531kHz ~ 1611kHz (9kHz Frequency Step)
• Preset Stations 36(FM:24ch, AM:12ch)
• Automatic Preset / SSM (FM only)

Media Playback

• Audio Decoder
  • MP3 Compatible with Tag USB
  • WMA Compatible with Tag USB
  • WAV Compatible with Tag USB
  • AAC Compatible with Tag USB
  • FLAC Compatible with Tag USB
• Video Decoder
  • MPEG-1 / MPEG-2 Compatible USB
  • MPEG-4 Compatible USB
  • WMV Compatible USB
  • H.264 Compatible USB
  • MKV Compatible USB
  • JPEG File Playback USB (For user background only)
  • BMP File Playback USB (For user background only)
  • PNG File Playback USB (For user background only)

USB

• USB Port(s) x 1
• Location Rear
• USB Standard High Speed
• File System FAT16 / FAT32 / exFAT / NTFS
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Tag Information Display
• Album Art Display
• List Access
• Category search
• Link Search
• Random / Repeat Play
• Skip
• Time Code Display
• Last Position Memory / Resume
• Digital / Analog Converter (DAC) 24 bit
• Signal-to-Noise Ratio (S/N) 75 dB
• 2.1A Max Power Supply Current

Bluetooth

• Bluetooth Technology V 5.0
  • Hands Free Call (HFP) HFP1.8 Wideband Speech
  • Advanced Audio Distribution Profile (A2DP) V1.3
  • Audio/Video Remote Control Profile (AVRCP) V 1.6
  • Phone Book Access Profile (PBAP)
  • Alphabetical Search for Phone Book
  • Secure Simple Pairing (SSP)
• Audio Codec AAC / SBC
• Noise Canceller (Auto)
• Echo Canceller (Auto)
• Built-in BT Microphone

Android Control

• Android Auto
  • Android Auto wired, (via USB)
  • USB mirroring for Android
  • Android Music Playback (via Bluetooth(R)

iPod/iPhone Control

• CarPlay
  • CarPlay wired, (via USB)
  • Mirroring for iPhone (via USB)
  • iPhone Music Playback (via USB or Bluetooth®)
  • Random/Repeat Play

App(s)

• MirrorApp+ via USB
• App Store https://apps.apple.com/us/app/mirrorapp/id1560645614
• Google Play https://play.google.com/store/apps/details?id=hk.com.soundmax.mirrorapp&hl=en

Audio

• Maximum Power Output (Front & Rear) 50W x 4
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• Output Frequency Band 20 - 20,000Hz
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ Preset x 7 + User set x 3 / All SRC
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Loudness Control (Off/Low/High)
• Bass Boost (Hyper Bass System) (on/off)

Inputs and Outputs

• Audio Inputs and Outputs
  • Pre-Out Terminals Front (L+R), Rear (L+R), Subwoofer (mono)
  • Pre-Output Level 2.5V
  • Pre-Out Impedance 1,4 kΩ
• Video Inputs and Outputs
  • Video Out x 1 (V:RCA)
  • Colour System NTSC/PAL
  • Video Output Level/Impedance 1Vp-p / 75 ohms
• Camera inputs
  • Rear view camera Input

General

• Back Up Memory
• GPS Antenna Input
• Wireless Remote Control
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote (Resistive protocol only)
• ISO Connector 22pin (New Type) to ISO Wiring harness
• Short Chassis (86mm)
• Operation Voltage 12 VDC
• Installation Size (W x H x D) 182 x 112 x 86mm
• Weight, inlcuding sleeve and escutcheon 1.27 kg

AUTO MODE for Android (Version 4.1 and higher) requires the JVC Music Play app.
