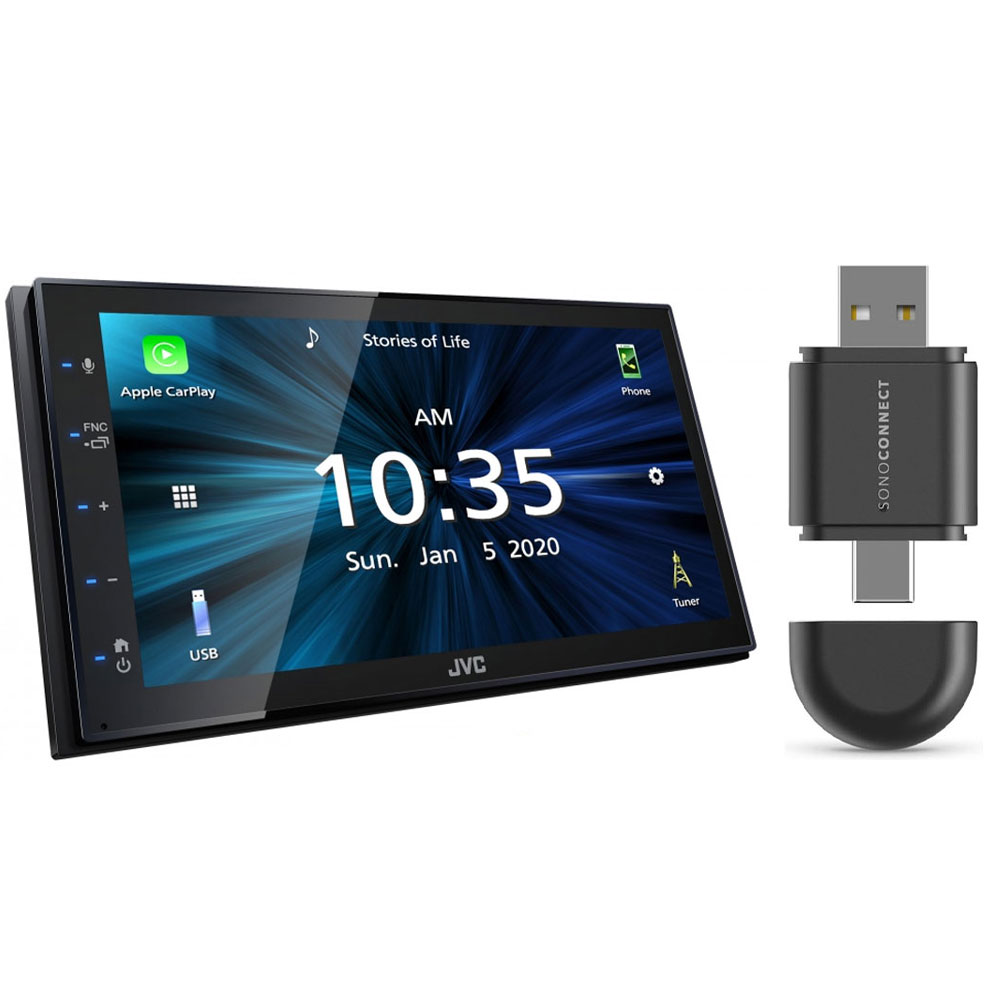

Package Includes

• JVC KW-M560BT 6.8" Double Din Stereo Apple CarPlay Android Auto, Bluetooth USB
• SonoConnect SC-MIWCA 2-IN-1 Wireless Carplay / Android Auto Adapter USB Type-C Plug & Play Car Dongle

KW-M560BT 2-DIN AV Receiver

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Shallow Chassis

Smartphone Integration

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

Apple CarPlay™ – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

Some Features, applications, and services are not available in all areas.

Mirroring for Android Phone Connect via USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Android™ Bluetooth Automatic Pairing

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.

Shallow Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately). Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Monitor

• Screen Size 6.8"W VGA Screen
• Touch Panel Capacitive
• Monitor Touch Control
• Customizable GUI
• Key Illumination Color Blue
• Dimmer
• Multilingual Display [4]

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB
• H.264 Compatible USB
• WMV Compatible USB
• MPEG 1/2 Compatible USB
• MPEG 4 Compatible USB
• AVI/MKV Compatible USB

Bluetooth Control

• Built-in Bluetooth[1] (Wired-Mic included)
• Hands Free Call (HFP1.6 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP)
• Supported Audio Formats  AAC / SBC
• Voice Dialing (voice recognition compatible mobile phone required)
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Auto Pairing for iPhone/Android (Android only)

Android Control

• Android Auto[2] (via USB)
• Mirroring for Android (via USB) *Need mirroring App
• Android Music Playback (via Bluetooth(R))

iPod/iPhone Control

• CarPlay[3] (via USB)

USB

• USB Port x 1 (High Speed)
• Position Rear
• USB Power Supply  (1.5A High Current Charging)

Radio Tuner

• SiriusXM Ready
• Radio Broadcast Data System (RBDS)
• Preset Stations 20(FM:15ch, AM:5ch)
• Automatic Presetting (Strong Station Sequential Memory)
• FM
  • Frequency Range 87.9 - 107.9MHz
• AM
  • Frequency Range 530-1,700kHz

Audio

• Maximum Power Output (Front & Rear) 50Wx4
• Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
• EQ  (13-Band Graphic EQ)
• Preset EQ (7Preset + 3user)
• Bass Boost
• High-Pass Filter/Low-Pass Filter
• Time Alignment

Inputs and Outputs

• AV Input mini jack (AV-IN or Camera switchable)
• Video Out RCA
• Rear view camera Input
• Line Output Terminals  2Preouts (Terminal) + Sub WF (Cable)
• Pre-output Level/Impedance 2.0V / 10k ohms
• Subwoofer Output with Level/Frequency Control

General

• Back Up Memory
• Wireless Remote Control Ready (RM-RK258 required)
• Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D)
  • Installation Size 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)
  • Weight  2.8 lbs. (1.3kg) Including Sleeve and Trim plate
  • Unit weight in individual package    1.8kg

Wireless CarPlay and Android Auto Adaptor

• Converts wired CarPlay and Android Auto to wireless
• Works with both original (OEM) and aftermarket instruments
• USB-A and USB-C connection
• Built-in Bluetooth and WiFi
• Supports over-the-air (OTA) updates
• Inside Cortex-A7 processor
• Very stable connection

5GHZ Wifi, Fast Transmission

5GHZ WIFI technology ensures fast and stable data transmission, and the built-in 5G chip enhances reception to provide an uninterrupted browsing experience. With its fast processing speed, you can enjoy smooth navigation, hands-free calling and music streaming, making every drive convenient and enjoyable. Upgrade your car today with the Volam 2-in-1 Carplay and Android Auto Wireless Adapter.

Plug And Play

The wireless Carplay and Android Auto adapter is the perfect accessory to enhance your driving experience. Plug and Play, a convenient and easy solution to connect your iOS or Android phone to a wired Carplay or Android Auto car (model years: 2015 to 2024), ensures a seamless connection between your car and smartphone with a simple plug-and-play setup. Includes a 2-in-1 USB and Type-C adapter so it can support both USB and Type-C-car port access.

Wide Compatibility

This wireless adapter is compatible with 98% of cars on the market that support wired Capplay and Android Auto. If you can use Carplay or Android Auto function by connecting your phone and car via data cable, you can buy and use this 2-in-1 Carplay & Android Auto wireless adapter. Please make sure your phone also supports Carplay/Android Auto, we recommend iOS 10 and above, Android 11 and above for best performance.

Easy To Carry

This adapter has a compact and lightweight design that doesn't take up any space, making it easy to carry wherever you go. Say goodbye to tangled wires and messy cables. It also features convenient storage, this innovative adapter automatically recognizes your phone after the first pairing without any additional drivers, apps or system upgrades.

Carplay Android Box

• This product is suitable for wired 99% carplay and Android Auto feature car to wireless
• Car Upgrade. Cell phone independent, plug and play, fast sensorless connection, support OTA upgrade. Original Installation
• car buttons, knobs, microphone and other operations are not affected.
• The Smart Car Adapter lets you use your phone's features intelligently and drive your car safely.
• You can navigate, call, send and receive messages and listen to your favorite songs.

Parameters

• Processor: Quad-core A53,1.5HZ
• Bluetooth:Bluetooth 5.0
• WIFI:5.8
• Wireless Carplay:Support
• Voltage: DC/5V 0.75w
• Connection: WIFI 802.11 b/g/n/ac 2.4 Ghz+5Ghz
• Secondary connection: power on automatic connection
• Size/Weight: 65.5*29*10.7mm/12g
• Operating Temperature: 0°C-60°C/32°F-140°F
• Support cell phone: Apple 6 and Apple 6 or above, iOS10 or above; Android 11.0 or above
• Support vehicle: built-in Carplay (USB)
