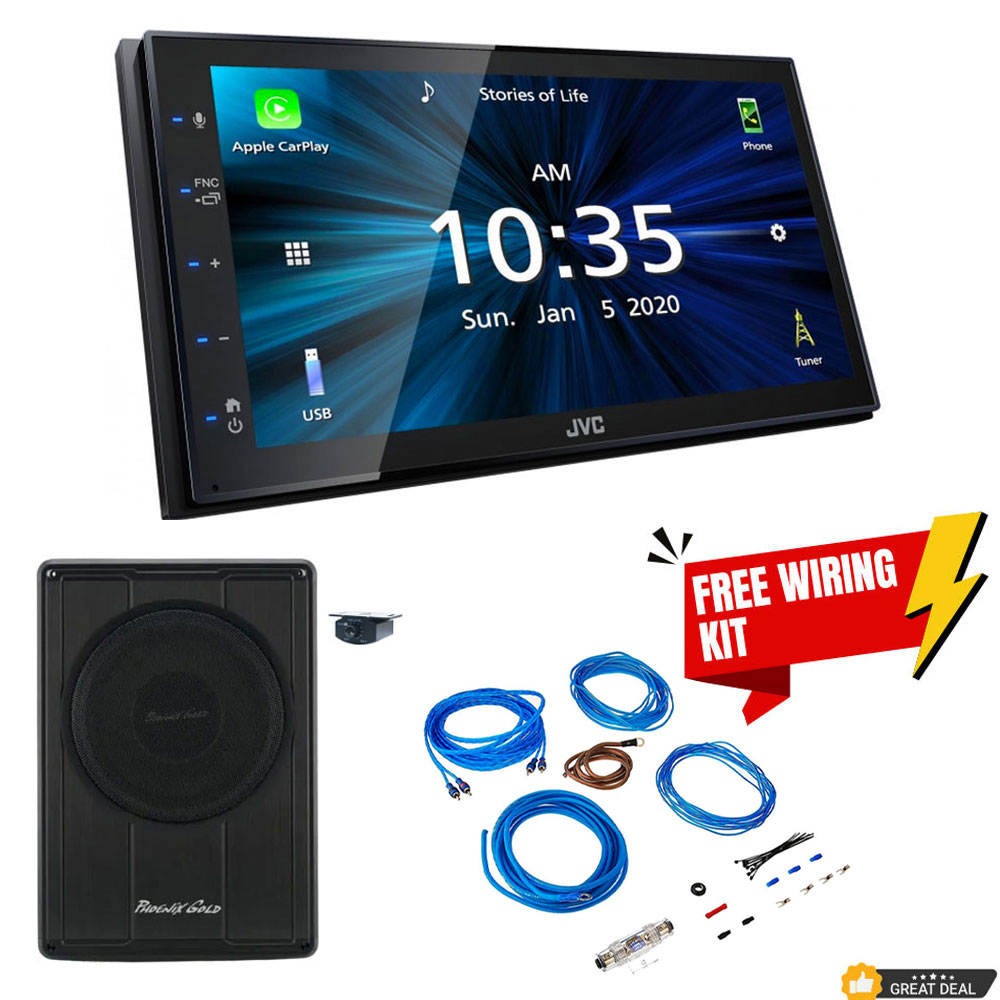

Package Includes

• JVC KW-M560BT 6.8" Double Din Stereo Apple CarPlay Android Auto, Bluetooth USB
• Phoenix Gold Z8150V2 8" Active Underseat Subwoofer Car Bass Amplifier
• Phoenix Gold 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit (Free ZXK10 Wiring Kit)

KW-M560BT 2-DIN AV Receiver

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Shallow Chassis

Smartphone Integration

JVC multimedia receivers interface your smartphone with your car to enrich your driving experience. Enjoy your favorite apps and view content on a big screen, in comfort and safety.

Apple CarPlay™ – Connect via USB

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

Android Auto™ – Connect via USB

Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.

Some Features, applications, and services are not available in all areas.

Mirroring for Android Phone Connect via USB

By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

Android™ Bluetooth Automatic Pairing

Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.

Capacitive Touchscreen

The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.

Shallow Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately). Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Monitor

• Screen Size 6.8"W VGA Screen
• Touch Panel Capacitive
• Monitor Touch Control
• Customizable GUI
• Key Illumination Color Blue
• Dimmer
• Multilingual Display [4]

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag USB
• FLAC Compatible with Tag USB
• H.264 Compatible USB
• WMV Compatible USB
• MPEG 1/2 Compatible USB
• MPEG 4 Compatible USB
• AVI/MKV Compatible USB

Bluetooth Control

• Built-in Bluetooth[1] (Wired-Mic included)
• Hands Free Call (HFP1.6 Wideband Speech)
• Audio Streaming & Control (A2DP, AVRCP)
• Supported Audio Formats  AAC / SBC
• Voice Dialing (voice recognition compatible mobile phone required)
• Phone Book Access Profile (PBAP)
• Alphabetical Search for Phone Book
• Auto Pairing for iPhone/Android (Android only)

Android Control

• Android Auto[2] (via USB)
• Mirroring for Android (via USB) *Need mirroring App
• Android Music Playback (via Bluetooth(R))

iPod/iPhone Control

• CarPlay[3] (via USB)

USB

• USB Port x 1 (High Speed)
• Position Rear
• USB Power Supply  (1.5A High Current Charging)

Radio Tuner

• SiriusXM Ready
• Radio Broadcast Data System (RBDS)
• Preset Stations 20(FM:15ch, AM:5ch)
• Automatic Presetting (Strong Station Sequential Memory)
• FM
  • Frequency Range 87.9 - 107.9MHz
• AM
  • Frequency Range 530-1,700kHz

Audio

• Maximum Power Output (Front & Rear) 50Wx4
• Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
• EQ  (13-Band Graphic EQ)
• Preset EQ (7Preset + 3user)
• Bass Boost
• High-Pass Filter/Low-Pass Filter
• Time Alignment

Inputs and Outputs

• AV Input mini jack (AV-IN or Camera switchable)
• Video Out RCA
• Rear view camera Input
• Line Output Terminals  2Preouts (Terminal) + Sub WF (Cable)
• Pre-output Level/Impedance 2.0V / 10k ohms
• Subwoofer Output with Level/Frequency Control

General

• Back Up Memory
• Wireless Remote Control Ready (RM-RK258 required)
• Steering Remote Control Ready
• ISO Connector
• Dimensions (W x H x D)
  • Installation Size 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)
  • Weight  2.8 lbs. (1.3kg) Including Sleeve and Trim plate
  • Unit weight in individual package    1.8kg

Phoenix Gold Z8150V2 8" Active Underseat Subwoofer Car Bass Amplifier

8 Inch Slim Active Bass Enclosure | Thermal, overload and speaker short protection | Remote subwoofer level control

Slim enough to fit under-seat or any other hide away location, the Z8150V2 is an 8″ Slim Active Bass Enclosure which offers a quick and easy way to add a high-powered subwoofer solution to your audio system. The integrated amplifier in the subwoofer features both subsonic and low pass crossovers, and a control for adjusting the input sensitivity from 0.2V to 6V. Both high level (speaker level) and low level (RCA type) inputs are present, making the Z8150V2 a universal solution for use with any head unit or other input source. For further flexibility, a variable bass boost control has been included with the Z8150V2, allowing you to control the subwoofer from the front seat.

Z8150V2 Product Features

• MOSFET PWM (Pulse Width Modulated) Power Supply
• Thermal, overload and speaker short protection
• Soft turn-on circuit u Remote turn-on/turn-off circuit
• Variable input gain control
• Variable low and subsonic crossovers
• Variable bass boost (0 to 18dB)
• Variable phase (0 to 180 degree)
• RCA low level & high level inputs
• Auto Power On: ON/OFF
• LED power & protection indicators
• Remote subwoofer level control

Specifications

• RMS power 150W RMS
• THD <0.4% @ 100Hz
• Signal-to-noise ratio >90dB
• Frequency response 20Hz-150Hz
• Input Sensitivity, High Level 0.5V
• Input Sensitivity, High Level 110mV
• Low Pass Filter 50Hz-150Hz
• Bass Boost 0-18dB @ 45Hz
• Subsonic Filter 20Hz-50Hz
• Variable Phase 0-180 degrees
• Fuse Rating 20A
• Subwoofer 8” - 2 Ohm
• Dimensions (L x W H) mm 354 x 250 x 68

What's in the Box?

• Phoenix Gold Z8150V2 Amplified subwoofer
• Remote subwoofer level control
• Remote subwoofer control cable
• High level input harness/wire
• Mounting hardware
• Instruction manual

Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit

Phoenix Gold now releases its own cable kits. The ZXK10 series includes CCA (Copper Clad Aluminium) cable. Paired with a twisted pair RCA cable, this ZXK10 kit will be a perfect complement to your Phoenix Gold power amplifiers or any power amplifier for that matter.

Features

• Complete set for audio systems up to 600 watts
• Premium 10mm2 CCA power and ground cable for optimal power transfer
• Nickel-plated connections for maximum corrosion resistance
• Incl. twisted RCA cable 5.2m
• Original Phoenix Gold Accessories

Contains

• 1 x 5.2m 10mm2 CCA Red Power Wire
• 1 x 0.8m 10mm2 CCA Black Ground Wire
• 1 x 5.2m Twisted RCA Cable
• 1 x 1.8m Split Loom Tubing
• 1 x Fuse Holder and Fuse
