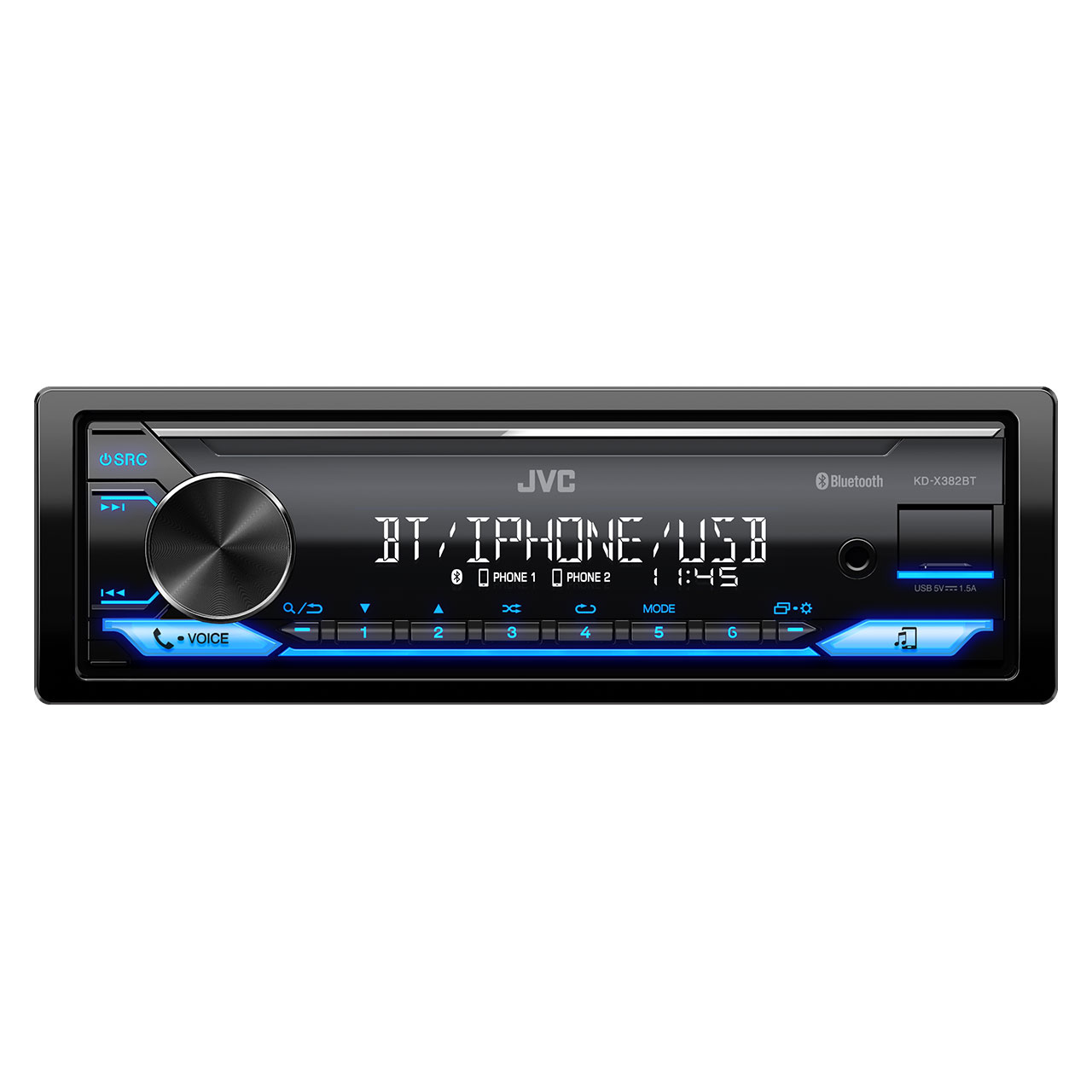

KD-X382BT

Digital Media Receiver featuring Bluetooth® / Front USB / DSP with DTA & 13-Band EQ / JVC Remote App Compatibility.

Features

• Bluetooth(R) Wireless Technology (*Available functions depend on cell phone.)
• Bluetooth technology for hands-free calls and music streaming.
• Enjoy audio streaming just by switching among 5 connected BT devices with JVC Streaming DJ.
• Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
• Bluetooth Phone Book Access Profile (PBAP)
• iPhone Automatic Pairing
• Low Battery Information
• MP3 / WMA / AAC / WAV / FLAC music file playback.
• iPod/iPhone Music Playback
• Front AUX input & Illuminated USB with dust cover
• Use your smartphone like a wireless remote control with the JVC Remote app (IOS & Android).
• USB High Current 1.5A Charging
• Wide 1 line LCD display with high contrast, wide viewing angle & white backlight
• Blue key Illumination
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 2 RCA Line Output (Front + Rear/Subwoofer Selectable)
• K2 Technology (K2 is a JVCKENWOODs original technology that reproduces the original master sound by expanding the bit rate and frequency range.)
• Menu language in English(default), Russian, Spanish, French or German.
• Short body (100mm) for easy installation.

Display

• Detachable Face Panel
• Display Type 1-Line VA LCD Display
• LCD Colour White
• Key Color Blue
• Music Sync. Effect
• Auto Dimmer
• Brightness Control
• Russian Text Compatible
• Spanish Text Compatible
• French Text Compatible
• German Text Compatible

Media Playback

• MP3 Compatible with Tag USB
• WMA Compatible with Tag USB
• WAV Compatible with Tag USB
• FLAC Compatible with Tag USB (Up to 16bit, 48kHz)

Tuner

• Tuner Preset Memory (for power disconnection)
• Radio Data System (RDS)
• Auto presetting/SSM (for FM only)
• Digital Processing Tuner
• Preset Stations 18FM + 6AM + 18DAB
• Frequency Range 87.5 - 108.0MHz
• Usable Sensitivity 6.2dBf (0.56V/75 ohms)
• Stereo Separation 40dB
• Quieting Sensitivity (46dB) 1.58uV / 75 ohms
• Frequency Range 531 - 1,611kHz
• Sensitivity 28,5uV
• Frequency Range 153 - 279kHz
• Sensitivity 45uV

USB

• Position Front
• Drive Change Mode for Mass Storage Class
• Random / Repeat Play
• 1.5A Max. Power Supply Current

Bluetooth®

• Built-In Bluetooth®  (Ver 4.2, Wired-Mic included)
• Audio Codec AAC / SBC
• 2 Phones Full-Time Connection
• Remote Control Application JVC Remote App (IOS & Android)
• Hands Free Call (HFP) (HFP 1.7 wideband speech)
• Audio/Video Remote Control Profile (AVRCP) (AVRCP 1.6.1)
• Phone Book Access Profile (PBAP)
• 5 BT-Audio Connection [JVC Streaming DJ]
• Wired Microphone included
• Voice Dialing
• Voice Dialing
• Low Battery Information

iPod/iPhone Control

• iPod/iPhone Music Playback
• iPod/iPhone Music Playback (via USB or Bluetooth(R))
• iPod/iPhone Mode (2-Way Control Mode) (USB & Bluetooth)
• iPod/iPhone Mode (2-Way Control Mode) (USB: Audio only)
• Random/Repeat Play
• Text
• Battery Charge (USB: 1.5A Max.)

App(s)

• JVC Remote Control App
• App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink

Audio

• Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 30W x 4 (PWR DIN45324, +B=14.4V)
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• MOS-FET Amplifier
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• Auxiliary (AUX) Input 1 (Front)
• Auxiliary (AUX) Input 1 (Front)

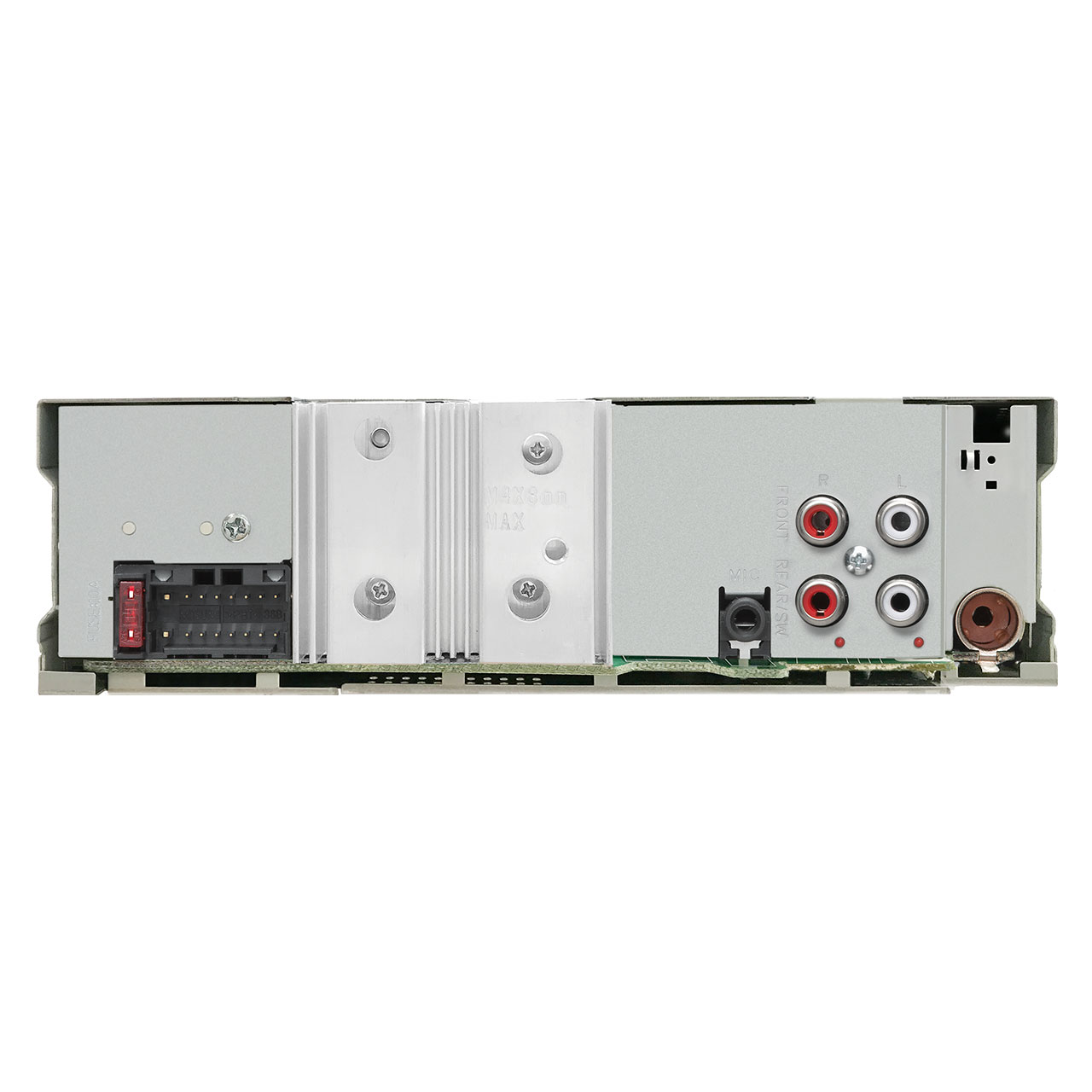

• Line-Out Terminals ( Pair) 2Pairs (Front + Rear/Subwoofer Selectable)
• Line-Out Impedance Less than 600 ohms
• Line-Out Level 2.5V
• Subwoofer Output with Level/Frequency Control (Level -8 - +8)
• Subwoofer Output Level 2.5V
• K2 Technology
• 13-Band Graphic EQ
• Preset EQ (8-preset)
• Easy EQ Setting
• Volume Link EQ
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
• Time Alignment
• Sound Enhancement
• Space Enhancement
• Sound Response
• Sound Lift
• Digital Track Expander
• Digital Track Expander
• Loudness Control (Off/Low/High)
• Bass Boost

General

• Rotary Encoder
• Beep Tone Support (From Speakers)
• Back Up Memory
• Wired Steering Remote Control Ready
• ISO Connector Cable
• Shallow Chassis
• Dimensions (W x H x D) 182 x 53 x 100mm
• Weight 0.60kg

Video

• Line Output Terminals 2 Pairs (Front + Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Subwoofer Output with Level/Frequency Control (Level -50 to +10)
• Subwoofer Output Level 2.5V
