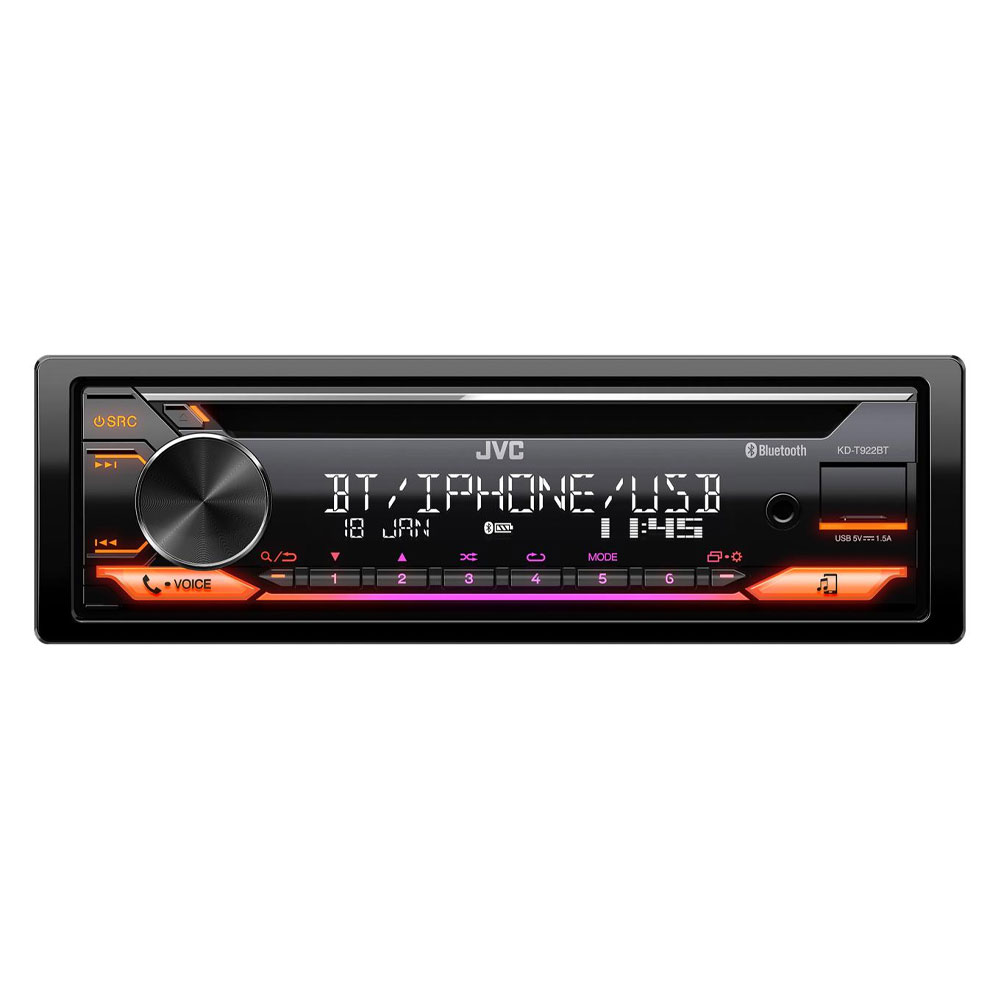

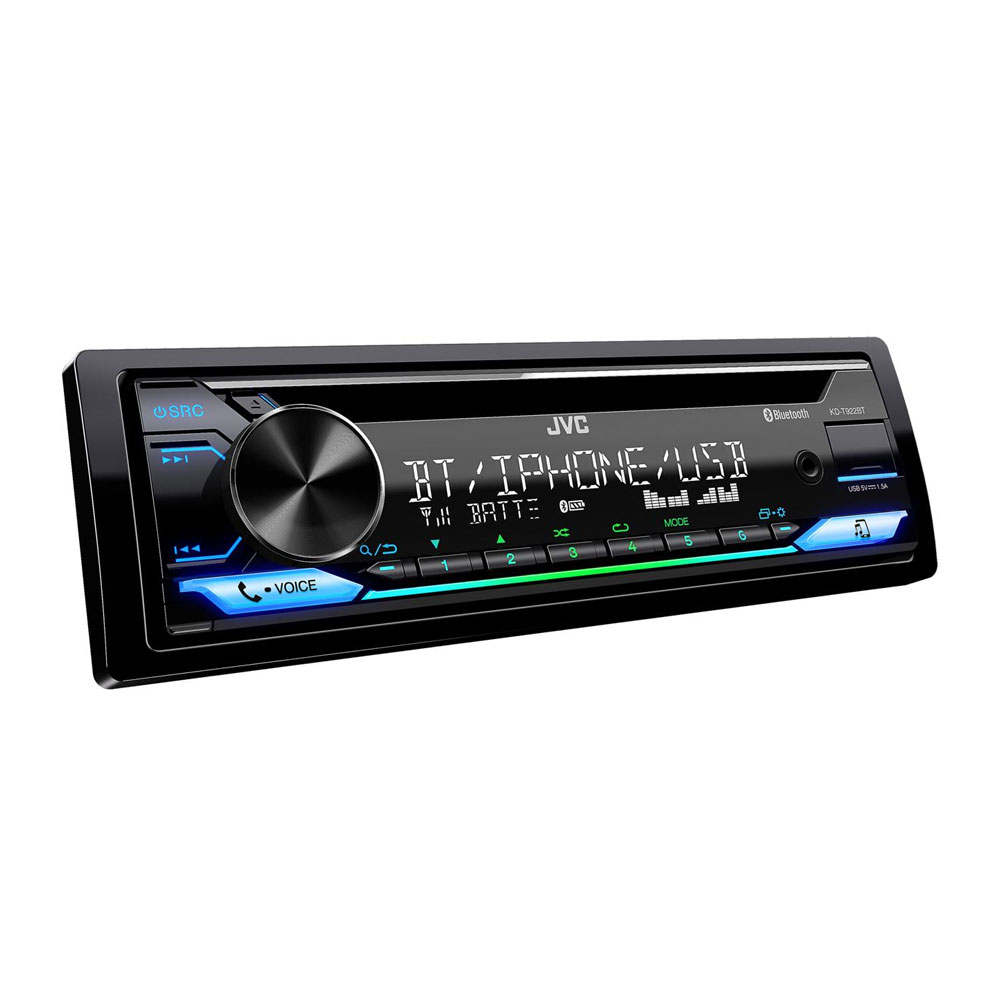

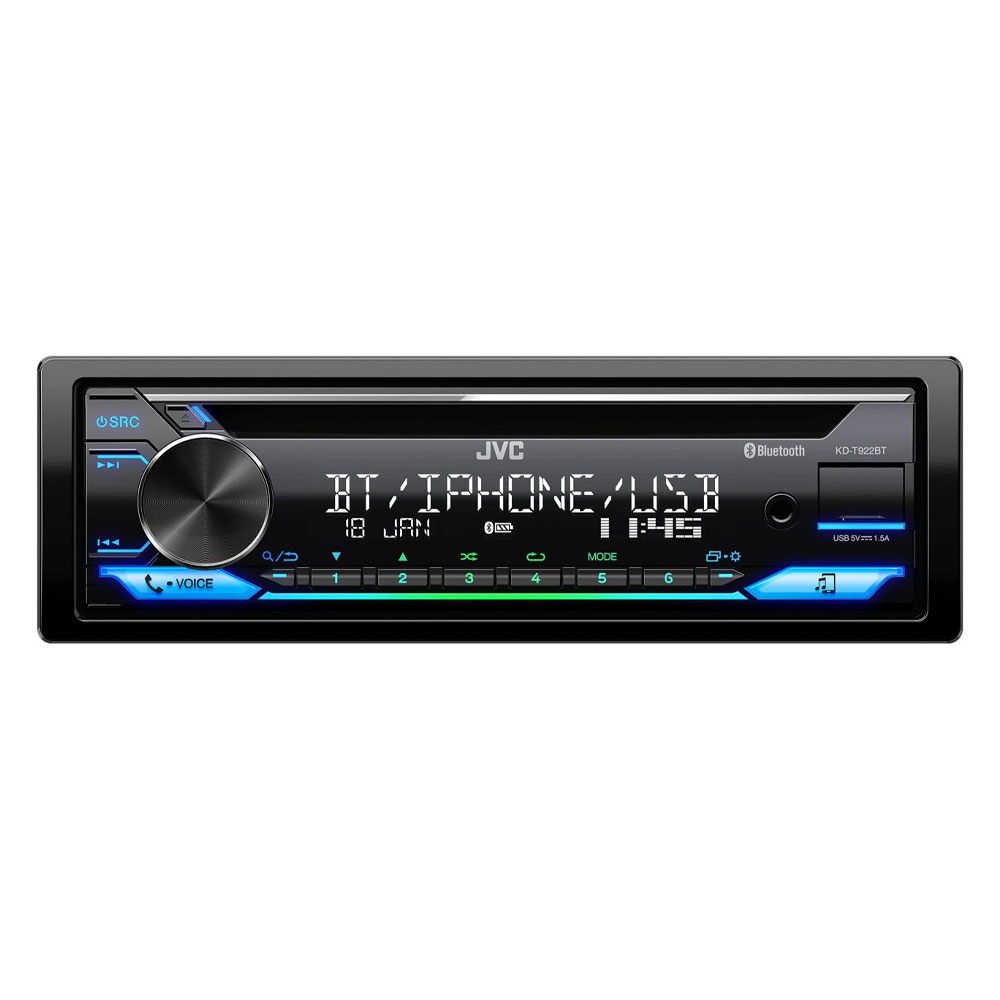

KD-T922BT

Connected through Bluetooth you enjoy safe hands-free calling and high quality audio streaming. Download the free app “JVC Remote“ and you can change audio sources or adjust audio settings with your smartphone. Bright variable color LEDs can be adjusted to match any color dash lighting. 13-Band equalizer and DTA gives optimal tuning enhancements.

Bluetooth Wireless Technology

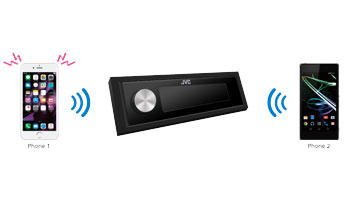

2 Phone Full-Time Connection:
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.

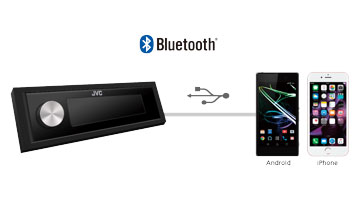

iPhone® Bluetooth Automatic Pairing:
Just connect your iPhone device via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about.

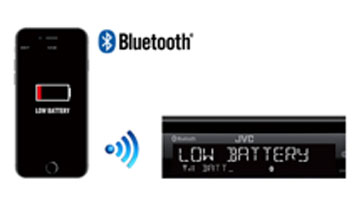

Low Battery Information
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.

Sound Optimalization

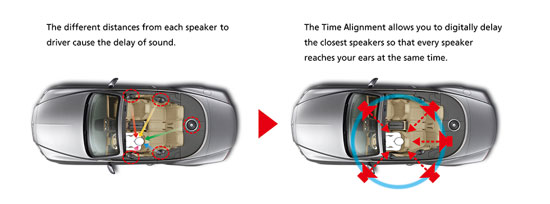

Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

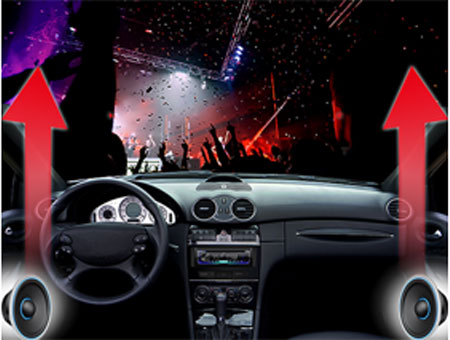

Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

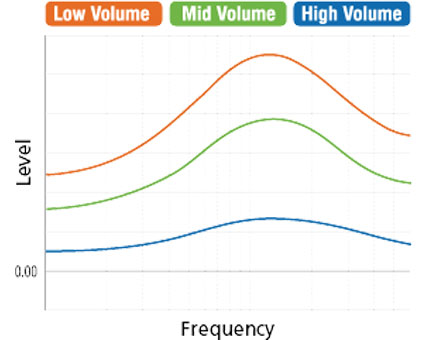

Volume Link EQ:
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

Features

• Bluetooth(R) Wireless Technology (*Available functions depend on cell phone.)
• Bluetooth Hands Free Call (HFP)
• Bluetooth 2 Phones Full-Time Connection
• Bluetooth Audio Streaming & Control (A2DP, AVRCP)
• 5 BT-Audio Connection (JVC Streaming DJ)
• Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
• Bluetooth Phone Book Access Profile (PBAP)
• iPhone Automatic Pairing
• Low Battery Information
• Android Music Playback
• iPod/iPhone Music Playback
• Spotify Control (Android via Bluetooth, iPhone via Bluetooth or USB)
• USB High Current 1.5A Charging
• JVC Remote Control App
• AAC Compatible
• FLAC Compatible
• Variable Color Illumination
• 13-Band Graphic EQ
• 11-Preset EQ
• Space Enhancement
• Sound Lift
• Sound Response
• Volume Link EQ
• Steering Remote Control Ready

Display

• Detachable Face Panel
• Display Type 2-Line VA LCD Display
• LCD Colour White
• Key Color Variable Color
• Music Sync. Effect
• Auto Dimmer
• Brightness Control
• Russian Text Compatible
• Spanish Text Compatible
• French Text Compatible

Radio Tuner

• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range 87.5 - 108.0MHz (50kHz)
• AM Tuner
  • AM Frequency Range (MW) 531 - 1,611kHz (9kHz), (LW) 153 - 279kHz (9kHz)
• Preset Stations 18FM + 6AM
• Tuner Preset Back-up Memory
• Automatic Preset / SSM (FM only)

Media Playback

• MP3 Compatible with Tag CD/USB
• WMA Compatible with Tag CD/USB
• WAV Compatible with Tag USB
• AAC Compatible with Tag CD/USB
• FLAC Compatible with Tag USB

USB

• Location Front
• Drive Change Mode for Mass Storage Class
• 1.5A Max. Power Supply Current

CD Player

• Random/Repeat Play
• CD-R/RW Compatible
• CD Text
• Wow & Flutter Below measureable limit
• Frequency Response 20 ~ 20,000Hz (+/-1dB)
• Signal-to-Noise Ratio 97 dB
• Dynamic Range 91 dB
• Channel Separation 89 dB

Bluetooth®

• Built-In Bluetooth
• Bluetooth® Version 4.2
• Voice Dialing
  • Hands Free Call (HFP) (HFP 1.7)
  • Audio/Video Remote Control Profile (AVRCP)
  • Phone Book Access Profile (PBAP)
• 2 Phones Full-Time Connection
• Supported Audio Formats AAC / SBC
• JVC Streaming DJ
• Auto Pairing (iPhone only)
• Wired Microphone included
• Low Battery Information

iPod/iPhone Control

• iPod/iPhone Music Playback (via USB or Bluetooth(R))
• iPod/iPhone Mode (2-Way Control Mode) (via USB or Bluetooth(R))
• Random/Repeat Play (via USB or Bluetooth(R))
• Battery Charge (USB: 1.5A High Current Charging)

Android Control

• Spotify Control (via Bluetooth(R))
• Android Music Playback (via Bluetooth(R))

App(s)

• JVC Remote Control App
• App Store (Apple) https://apps.apple.com/nl/app/jvc-remote/id1154864875
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink

Audio

• Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• K2 Technology
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ (11-Preset)
  • Volume Link EQ
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
  • Time Alignment
  • Space Enhancement
  • Sound Response
  • Sound Lift
• Loudness Control

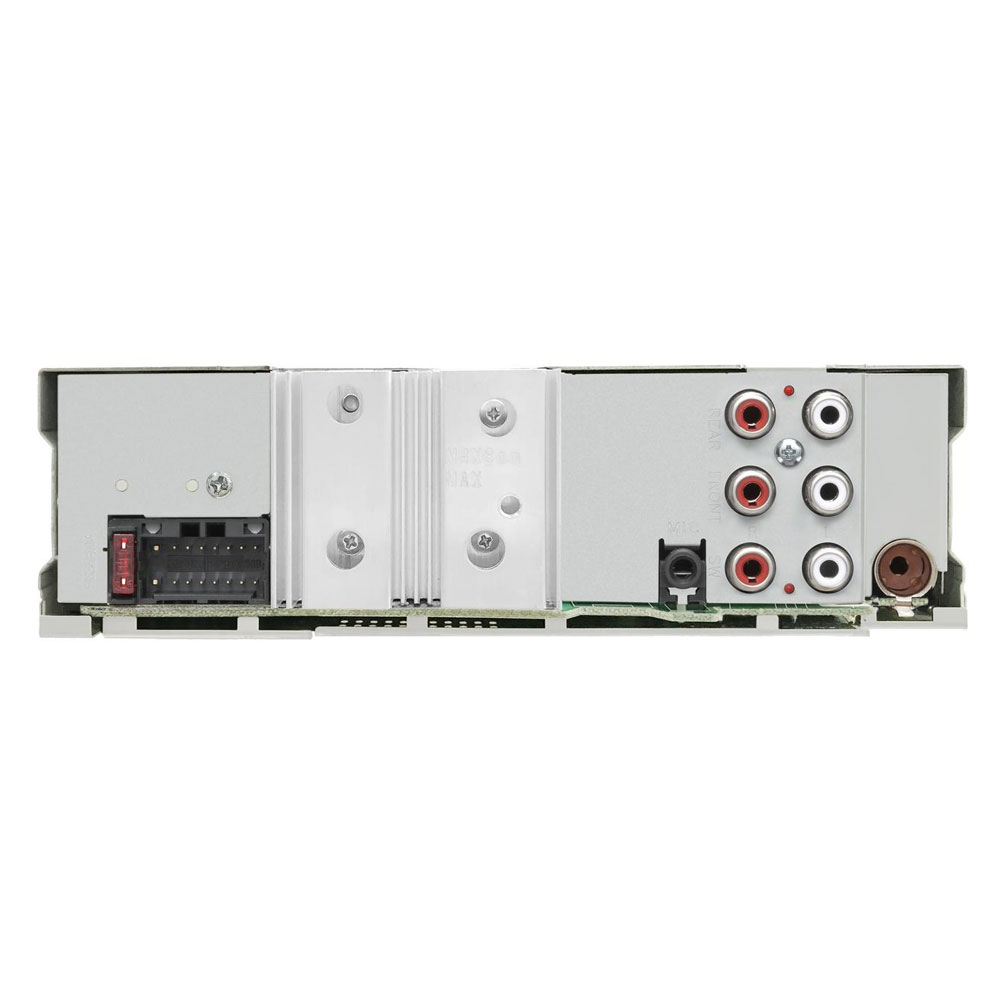

Inputs and Outputs

• Auxiliary (AUX) Input 1 (Front)
• Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
• Pre-Output Level 2.5V
• Subwoofer Output with Level/Frequency Control (Level -50 to +10)
• Subwoofer Output Level 2.5V
• Subwoofer Direct Connection (Mono Lch)

General

• Back Up Memory
• Wired Steering Remote Control Ready
• ISO Connector Cable
• Installation Size (W x H x D) 182 x 53 x 156mm
• Weight 1.2kg
• Unit weight in individual package 1.5kg

[1] Available functions depend on mobile phone.
[2] Voice recognition compatible mobile phone required
[3] AUTO MODE for Android (Version 4.1 and higher) requires the JVC Music Play app.
