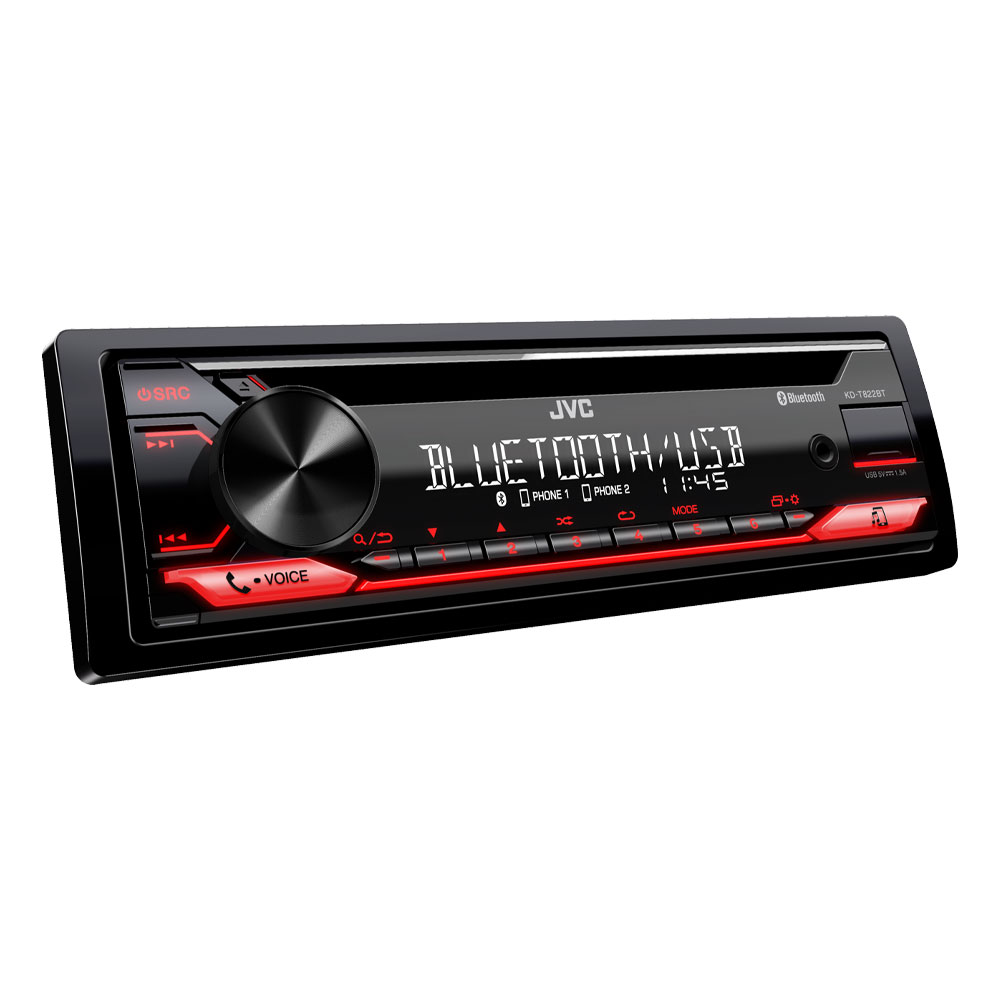

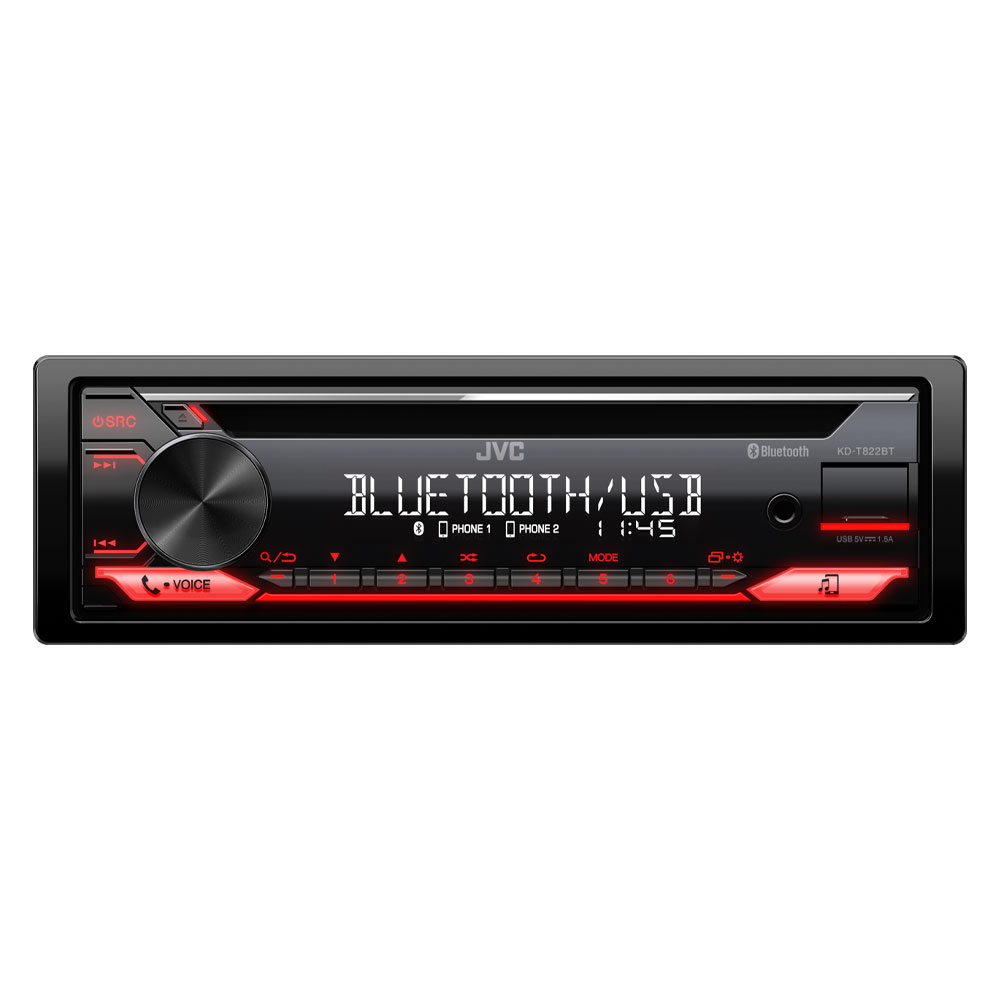

KD-T822BT

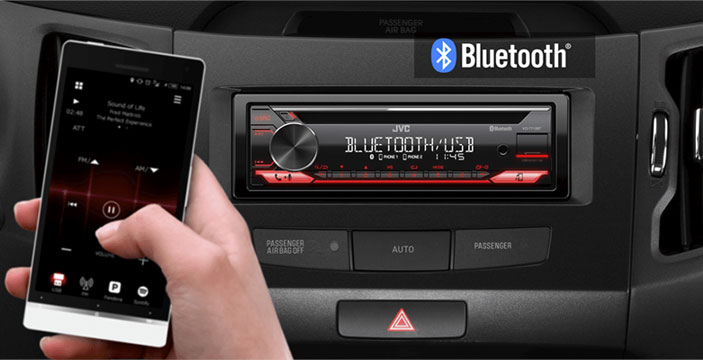

Connected through Bluetooth you enjoy safe hands-free calling and high quality audio streaming. Download the free app “JVC Remote“ and you can change audio sources or adjust audio settings with your smartphone. 13-Band equalizer and DTA gives optimal tuning enhancements.

2 Phones Full-Time Connection

You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the receiver.

Streaming Music

Listen to popular music applications and music stored on your device with basic audio controls.

* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.

JVC Streaming DJ

Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.

Sound Optimalization

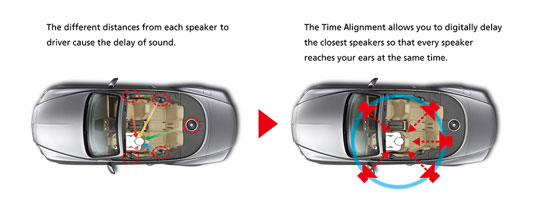

Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

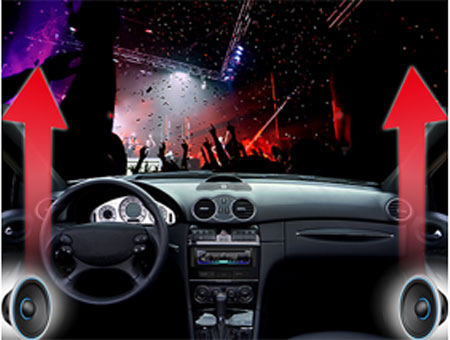

Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

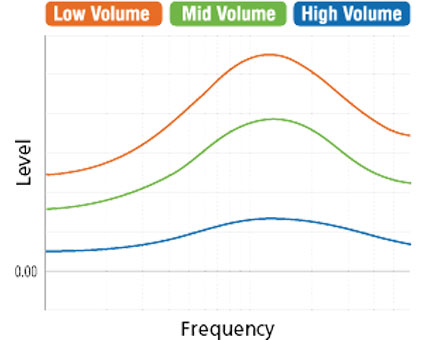

Volume Link EQ:
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

Features

• Bluetooth® Wireless Technology
• Bluetooth® Hands Free Call (HFP)
• Bluetooth® 2 Phones Full-Time Connection
• Bluetooth® Audio Streaming & Control (A2DP, AVRCP)
• Bluetooth® Phone Book Access Profile (PBAP)
• Low Battery Information
• USB High Current 1.5A Charging
• JVC Remote Control App
• Red key Illumination
• 13-Band Graphic EQ
• 11-Preset EQ
• AAC Compatible
• FLAC Compatible
• Time Alignment
• Space Enhancementby expanding the bit rate and frequency range.)
• Sound Lift
• Sound Response
• Volume Link EQ
• Steering Remote Control Ready

Display

• Detachable Face Panel
• Display Type VA LCD Display
• LCD Colour White
• Key Color Red
• Music Sync. Effect
• Auto Dimmer
• Brightness Control
• Russian Text Compatible
• Spanish Text Compatible
• French Text Compatible

Radio Tuner

• FM Tuner
  • Radio Data System (RDS)
  • FM Frequency Range
  • FM Usable Sensitivity 0.71uV/75Ω (8.2dBf)
  • FM Quieting Sensitivity (46dB)    2.0μV/75Ω
  • FM Stereo Separation 40dB(1kHz)
  • AM Frequency Range (MW) 531 - 1,611kHz (9kHz), (LW) 153 - 279kHz (9kHz)
• LW Tuner
  • LW Frequency Range 153 - 279kHz
  • LW Sensitivity 50μv (33.9dBu)
• MW Tuner
  • MW Frequency Range 531 - 1,610kHz
  • MW Sensitivity 28.2μv (29dBu)
• Preset Stations 18FM + 6AM
• Tuner Preset Back-up Memory
• Automatic Preset / SSM (FM only)

Media Playback

• MP3 Compatible with Tag CD / USB
• WMA Compatible with Tag CD / USB
• WAV Compatible with Tag USB
• FLAC Compatible with Tag USB

USB

• USB Port x 1
  • USB Standard USB 1.1, USB 2.0 (Full Speed)
• Location Front
• File System FAT 12/16/32
• USB Mass Storage Class
• Random / Repeat Play
• Digital / Analog Converter (DAC) 24 bit
• Frequency Response 20 Hz ~ 20kHz
• Signal-to-Noise Ratio (S/N) 99 dB
• Dynamic Range 94 dB
• 1.5A Max. Power Supply Current

CD Player

• Random/Repeat Play
• CD-R/RW Compatible
• CD Text
• Wow & Flutter Below measureable limit
• Frequency Response 20Hz to 20kHz(±1dB)
• Signal-to-Noise Ratio 91
• Dynamic Range 92dB
• Channel Separation

Bluetooth®

• Built-In Bluetooth (Ver 4.2)
• Voice Dialing
• Remote Control Application
  • Hands Free Call (HFP) (HFP 1.7.1)
  • Advanced Audio Distribution Profile (A2DP)
  • Audio/Video Remote Control Profile (AVRCP)
  • Phone Book Access Profile (PBAP)
  • Serial Port Profile (SPP)
• 2 Phones Full-Time Connection
• Supported Audio Formats SBC
• JVC Streaming DJ  with up to 5 Bluetooth devices
• Auto Pairing (Android only)
• Noise Canceller
• Echo Canceller
• Wired Microphone included
• Low Battery Information

Android Control

• Android Music Playback (via Bluetooth(R)

App(s)

• JVC Remote Control App
• Google Play (Android) https://play.google.com/store/apps/details?id=com.jvckenwood.jkts.jvcremoteapp.openlink
• JVC Playlist Creator (Windows(R) PC software) (USB Memory/Thumb Drive via USB)

Audio

• Maximum Power Output (Front & Rear) 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• Continuous Power Output (RMS) 20W RMS x 4Ch at 4 ohms and no more than 1.0% THD + N
• MOS-FET Amplifier
• Speaker Load Impedance 4 ohms (4 - 8 ohms allowable)
• K2 Technology
• EQUALIZER
  • 13-Band Graphic EQ
  • Preset EQ (11-Preset)
  • Easy EQ Setting
  • Volume Link EQ
• High-Pass Filter/Low-Pass Filter
• Digital Sound Processor (DSP)
  • Time Alignment
  • Space Enhancement
  • Sound Response
  • Sound Lift
  • Digital Track Expander
• Loudness Control
• Bass Boost (Hyper Bass System)

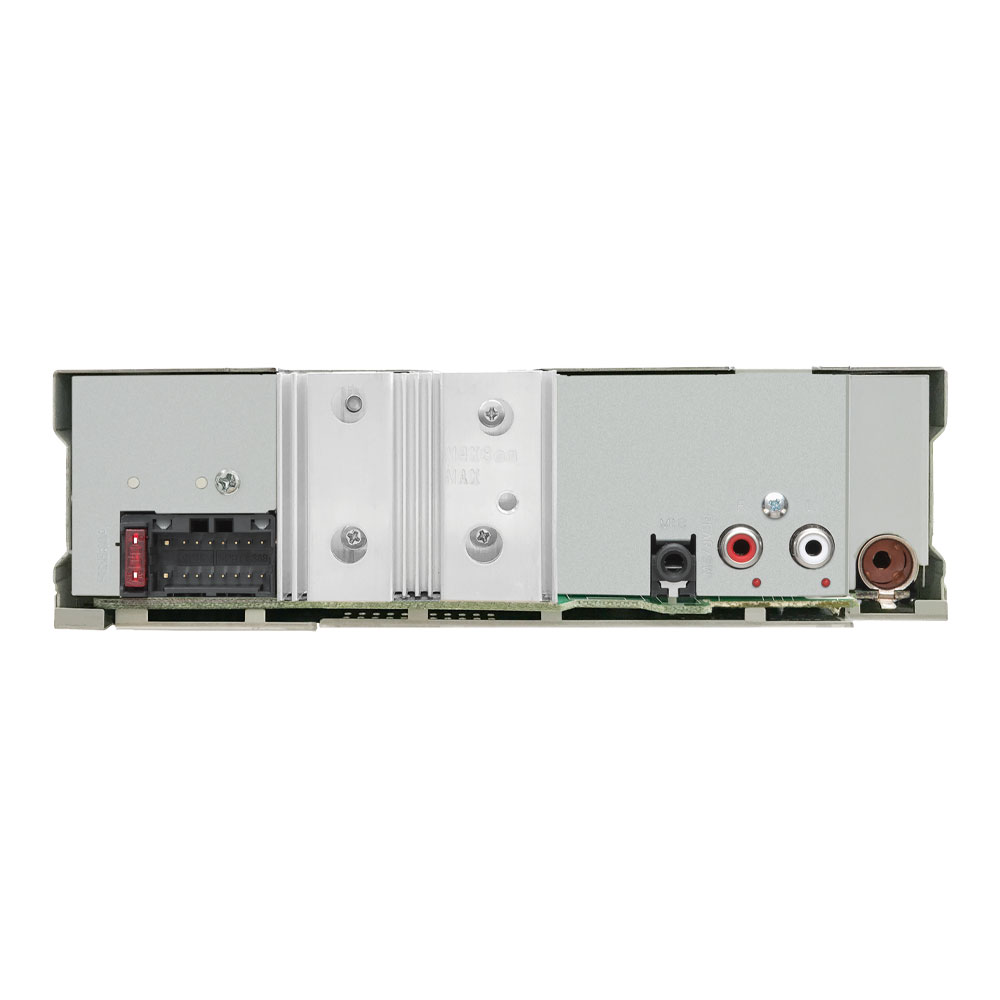

Inputs and Outputs

• Auxiliary (AUX) Input 1 (Front)
• Pre-Out Terminals 1 Pair (Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Pre-Out Impedance Less than 600 ohms
• Subwoofer Output with Level/Frequency Control (Level -50 to +10)
• Subwoofer Output Level 2.5V
• Subwoofer Direct Connection (Mono Lch)

General

• Rotary Encoder
• Beep Tone Support (From Speakers)
• Back Up Memory
• Wired Steering Remote Control Ready
• ISO Connector
• Installation Size (W x H x D) (W) 182 x (H) 53 x (D) 156mm
• Weight 1.2kg
• Unit weight in individual package 1.5kg

[1] Available functions depend on mobile phone.
[2] Voice recognition compatible mobile phone required
[3] AUTO MODE for Android (Version 4.1 and higher) requires the JVC Music Play app.
