JVC's KD-DB622BT CD Receiver with integrated DAB+ tuner for crystal clear digital radio and Bluetooth technology for hands-free calling and wireless music streaming. Comes with Spotify app and JVC Remote App ready. A large easy to read LCD display will clearly show all information in combination with red key illumination for easy operation. Steering wheel control option is included and a powerful 50 x 4 watt amplifier will boost your systems power output. In case you want to add an external amplifier, 2,5V RCA Preout is waiting on the back panel. Sound quality is ensured by using Full Digital sound processing and time alignment along with a 13 band Graphic Equalizer.

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

DAB+ Tuner

DAB (Digital Audio Broadcasting) delivers crystal clear audio from your favourite FM stations as well as a broad range of digital-only stations ranging from news and talk, to classical and rock. Normally, DAB+ is delayed by a few seconds compared to the FM broadcast.
The unit will delay the FM in order to provide seamless switching between DAB+ and FM.

Enjoy both better quality and richer content with DAB+.

Bluetooth Wireless Technology

2 Phone Full-Time Connection:
You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.

iPhone® Bluetooth Automatic Pairing:
Just connect your iPhone device via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about.

Low Battery Information
When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.

Sound Optimalization

Time Alignment:
By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

Sound Lift:
Virtually manipulate the height of the speakers by adjusting the sound frequencies.

Volume Link EQ:
Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.

High Current 1.5A Charging

Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.

Remote Control App

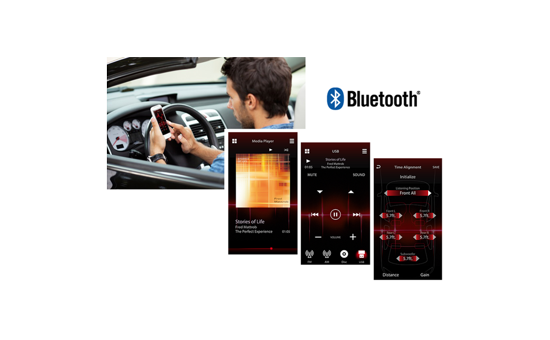

Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app now available for both iOS and Android. You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.

Features

• DAB+ Tuner built-in
• Bluetooth 2 Phones Full-Time Connection
• 5 BT-Audio Connection (JVC Streaming DJ)
• Bluetooth Voice Dialing (voice recognition compatible mobile phone required)
• Bluetooth Phone Book Access Profile (PBAP)
• Low Battery Information
• Android Music Playback
• Spotify Control (Android via Bluetooth, iPhone via Bluetooth or USB)
• USB High Current 1.5A Charging
• JVC Remote Control App
• Bluetooth(R) Wireless Technology (*Available functions depend on cell phone.)
• Bluetooth Audio Streaming & Control (A2DP, AVRCP)
• FLAC Compatible
• 13-Band Graphic EQ
• 11-Preset EQ
• K2 Technology (K2 is a JVCKENWOODs original technology that reproduces the original master sound by expanding the bit rate and frequency range.)
• Time Alignment
• Space Enhancement
• Sound Lift
• Sound Response
• Volume Link EQ
• Steering Remote Control Ready

Display

• Display Type VA LCD Display
• LCD Color White
• Key Color Red
• Music Sync. Effect
• Russian Text Display Compatible
• Spanish Text Display Compatible
• French Text Display Compatible
• Auto Dimmer
• Brightness Control

Media Playback

• MP3 Compatible with Tag CD/USB
• WMA Compatible with Tag CD/USB
• WAV Compatible with Tag USB
• FLAC Compatible with Tag USB

Bluetooth Control

• Built-In Bluetooth (Ver 4.2, Wired-Mic included)
• Hands Free Call (HFP 1.7 wideband speech)
• Audio Streaming & Control (A2DP, AVRCP)
• 5 BT-Audio Connection [Streaming DJ]
• Voice Dialing (voice recognition compatible mobile phone required)
• Phone Book Access Profile (PBAP)
• Supported Audio Formats SBC
• Low Battery Information

Android Control

• Android Music Playback (via Bluetooth(R))
• Spotify Control (via Bluetooth(R))

USB

• Position Front
• USB Power Supply (1.5A)
• Drive Change Mode for Mass Storage Class

Inputs and Outputs

• AUX Input 1 (Front)
• Line Output Terminals (Pair) 1 Pair (Rear/Subwoofer Selectable)
• Pre-Output Level 2.5V
• Subwoofer Output with Level/Frequency Control (Level -50 to +10)
• Subwoofer Output Level 2.5V

Tuner

• Built-In DAB Tuner
• Radio Data System (RDS)
• Preset Stations 18FM + 6AM
• Strong Station Memory (for FM)
• Tuner Preset Memory (for power disconnection)
• DAB
  • Frequency Range    Band lll: 174.928 - 239.200MHz
• FM
  • FM Frequency Step    87.5 - 108.0MHz (50kHz)
• AM
  • AM Frequency Step    (MW) 531 - 1,611kHz (9kHz), (LW) 153 - 279kHz (9kHz)

Audio

• Maximum Power Output 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD) 22W x 4
• Sub woofer Direct Connection (Mono Lch)
• Time Alignment
• EQ (13-Band Graphic EQ)
• Preset EQ (11-Preset)
• Space Enhancement
• Sound Response
• Sound Lift
• Volume Link EQ
• Loudness Control
• High-Pass Filter/Low-Pass Filter
• K2 Technology

General

• Back Up Memory
• Detachable Face Panel
• Steering Remote Control Ready
• Remote Control Application
• ISO Connector
• Dimensions (W x H x D)
• Installation Size (W x H x D) 182 x 53 x 156mm
• Weight 1.3kg
• Unit weight in individual package 1.5kg

Bluetooth Control

• 2 Phones Full-Time Connection
