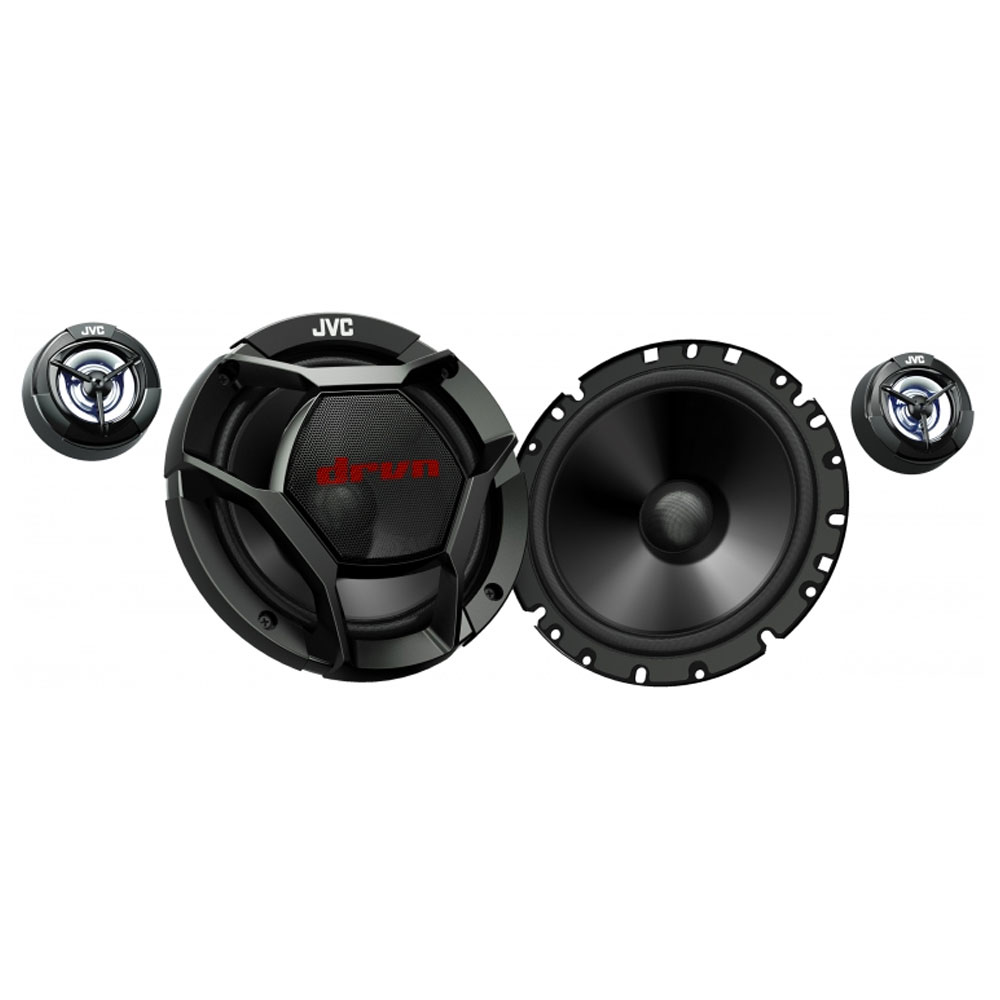

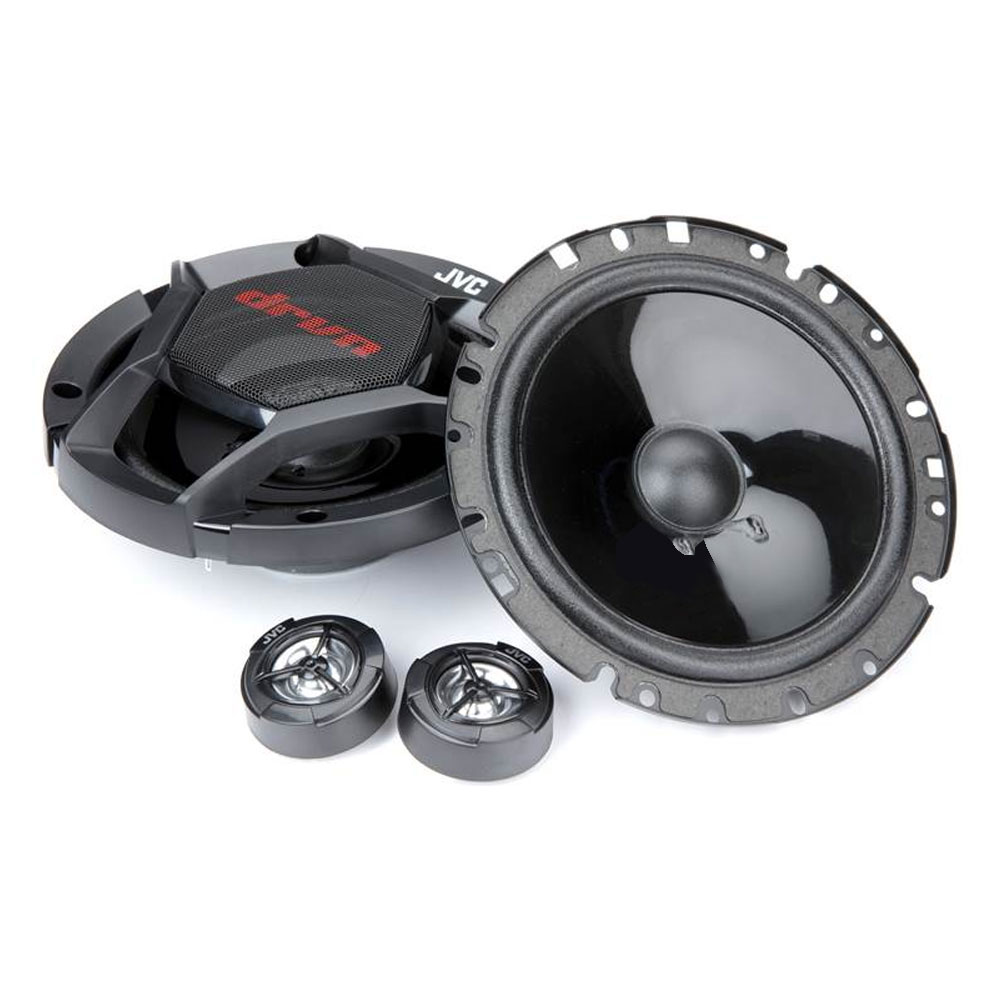

JVC CS-DR1700C 6 3/4'' 17cm 2-Way Car Door Component Speakers 360W

Features

• 2-Way Component
• 360W Peak/55W RMS Power
• Frequency Response: 66 - 23,800Hz
• Sound Pressure Level: 88dB/W.m
• 17 cm (6-3/4") Carbon Mica Cone Woofer
• 2.5 cm (1") Poly-Ether Imide Balanced Tweeter
• Ferrite Magnet (Woofer/Tweeter)
• Neodymium Magnet (Tweeter)
• Hybrid Surround
• Mounting Depth: 45 mm (1-25/32")

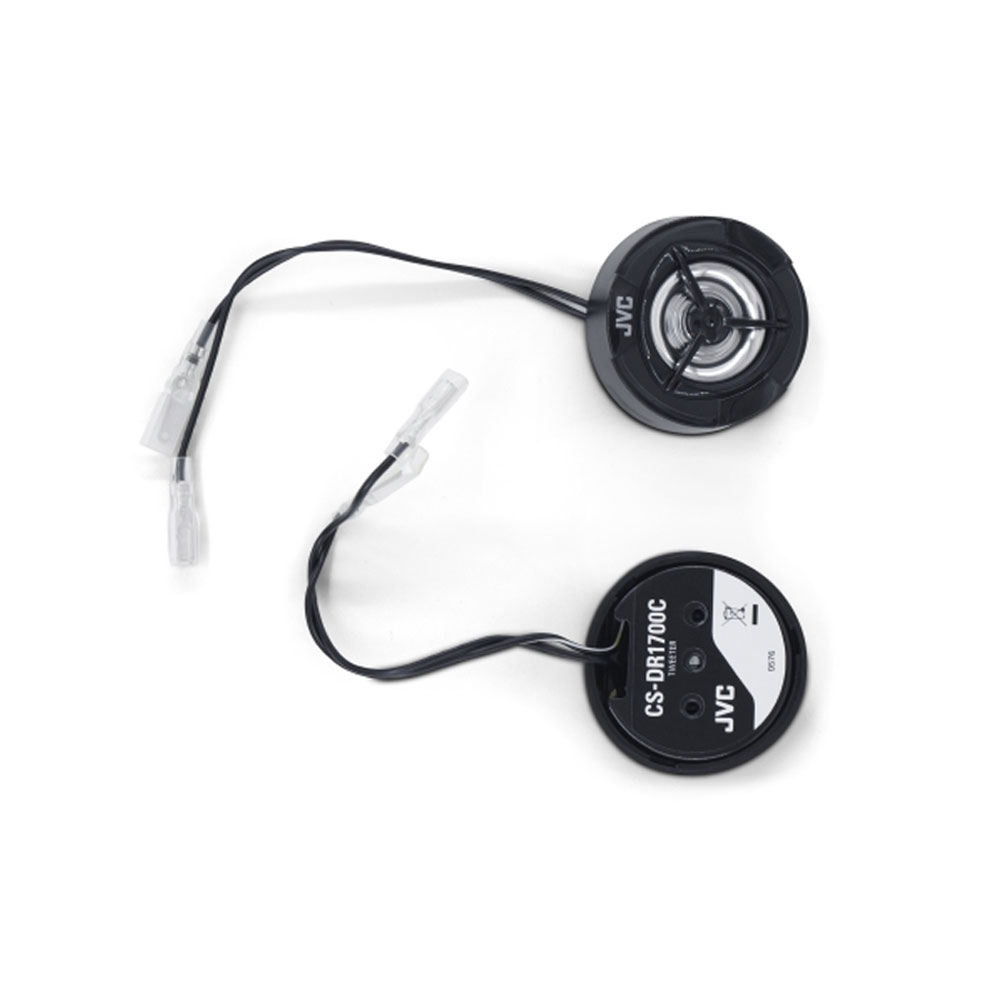

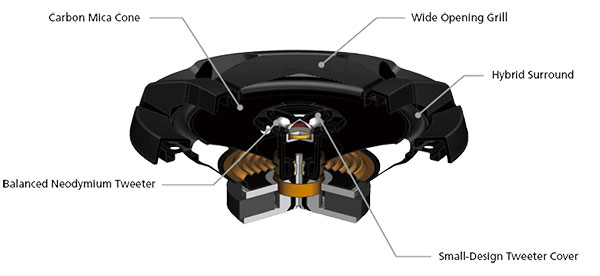

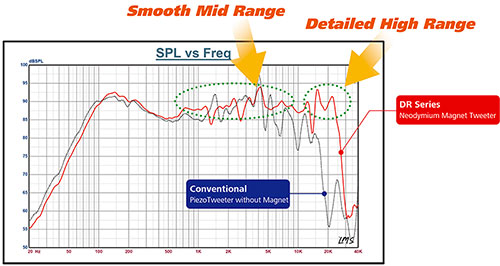

Balanced Neodymim Tweeter

It provides detailed high range and smooth mid range.

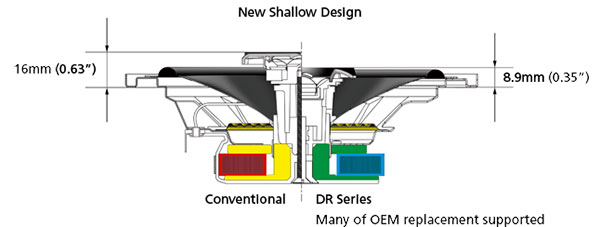

Great Factory Replacement

Installable vehicle types are greatly increased thanks to its shorter height.

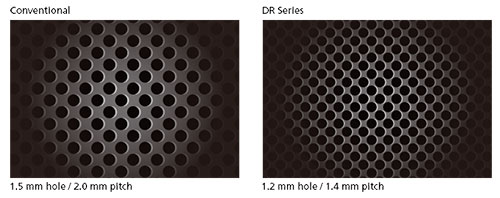

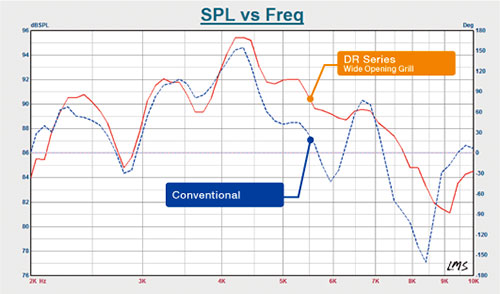

Wide Opening Grill

Grill’s opening ratio is 30% wider than the conventional model, enabling increased durability and clear sound.

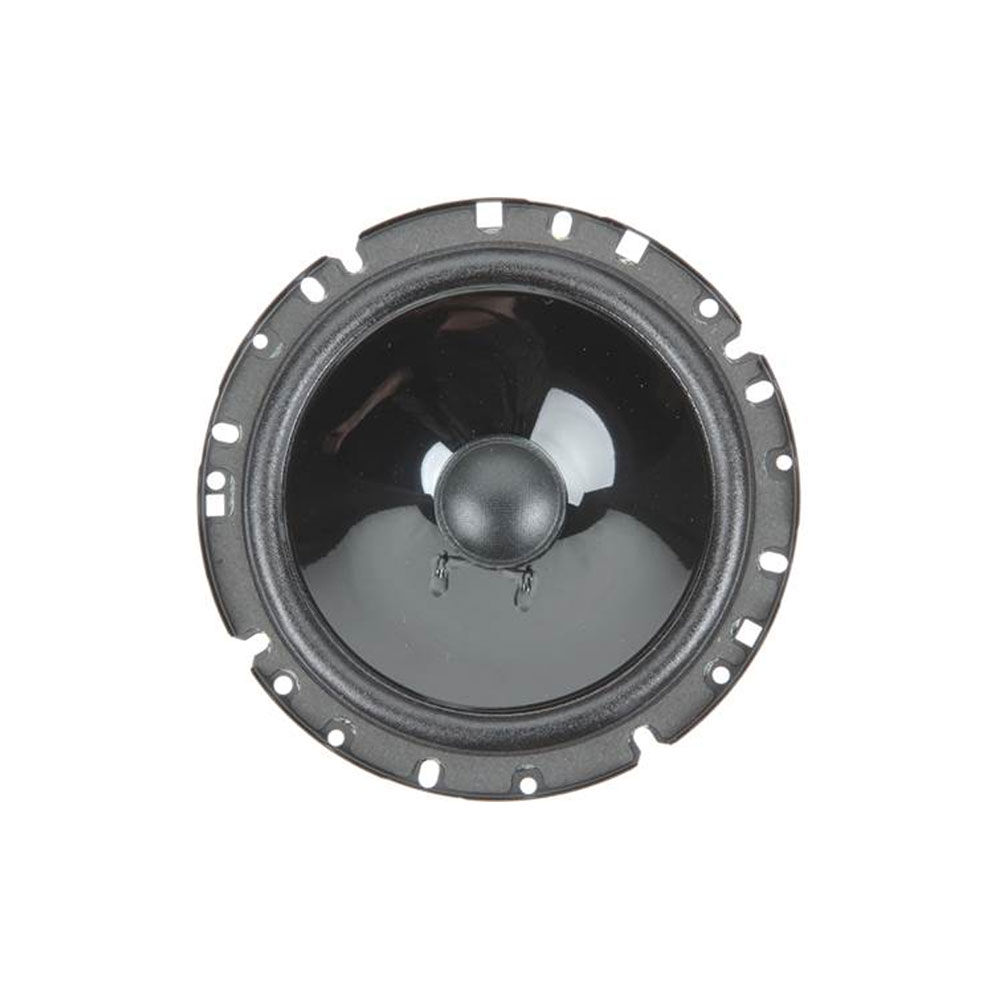

Carbon Mica Cone

Robust and lightweight carbon mica material provides highly responsive, clear and undistorted reproduction.

Hybrid Surround

Rubber Coated Cloth with increased mobility enables high efficiency and improved follow-up to audio signals.

Small Design Tweeter Cover

Newly developed small cover significantly reduces areas that interfere with the woofer cone. High-quality sound is assured.

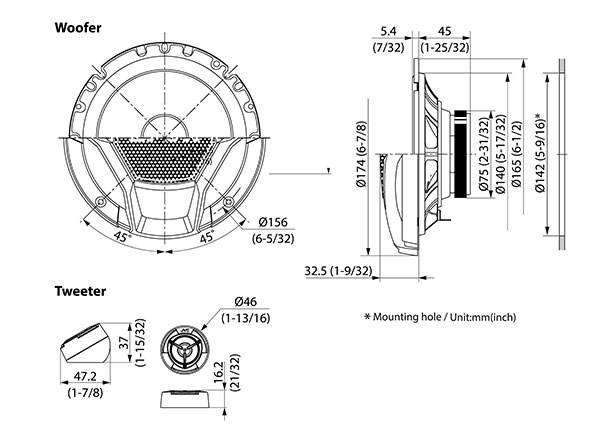

Dimensions

Specifications

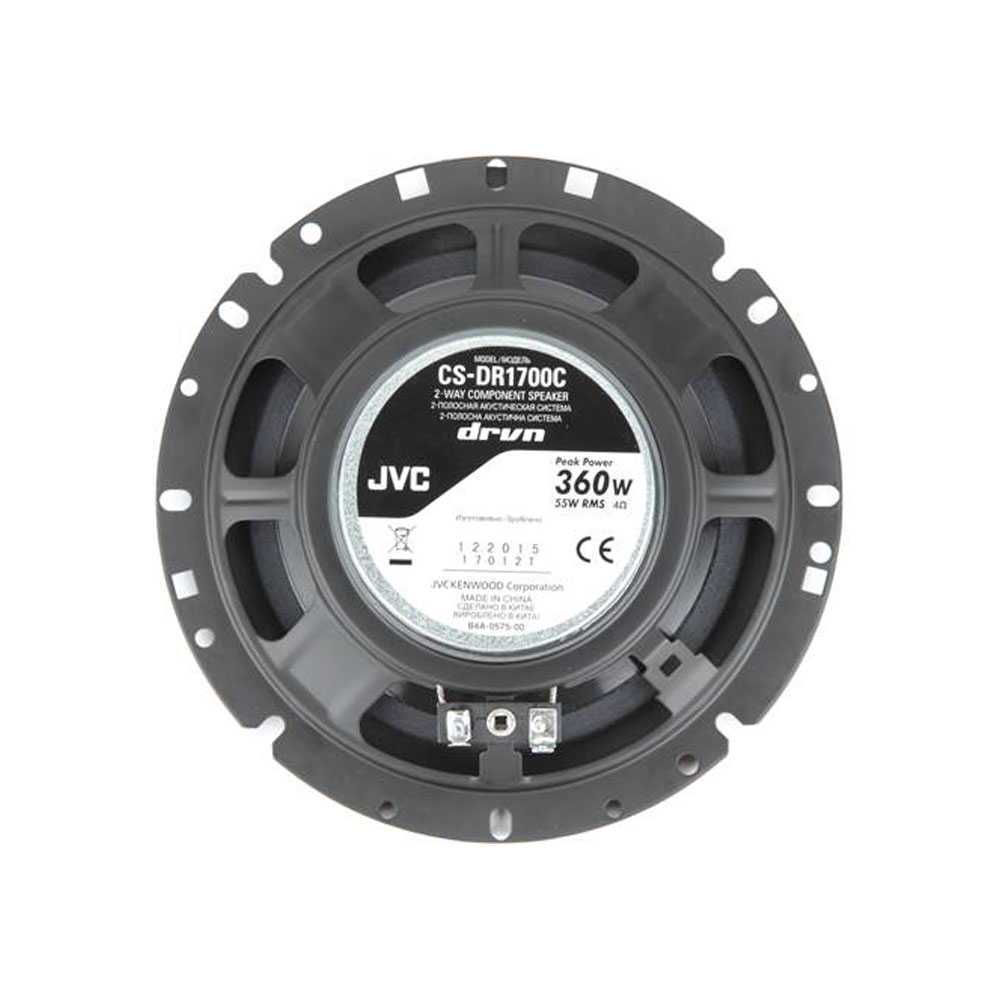

Woofer

• Size 17 cm (6-3/4'')
• Diaphragm Carbon Mica Cone
• Surround Hybrid Surround (Rubber & Cloth)
• Magnet Ferrite

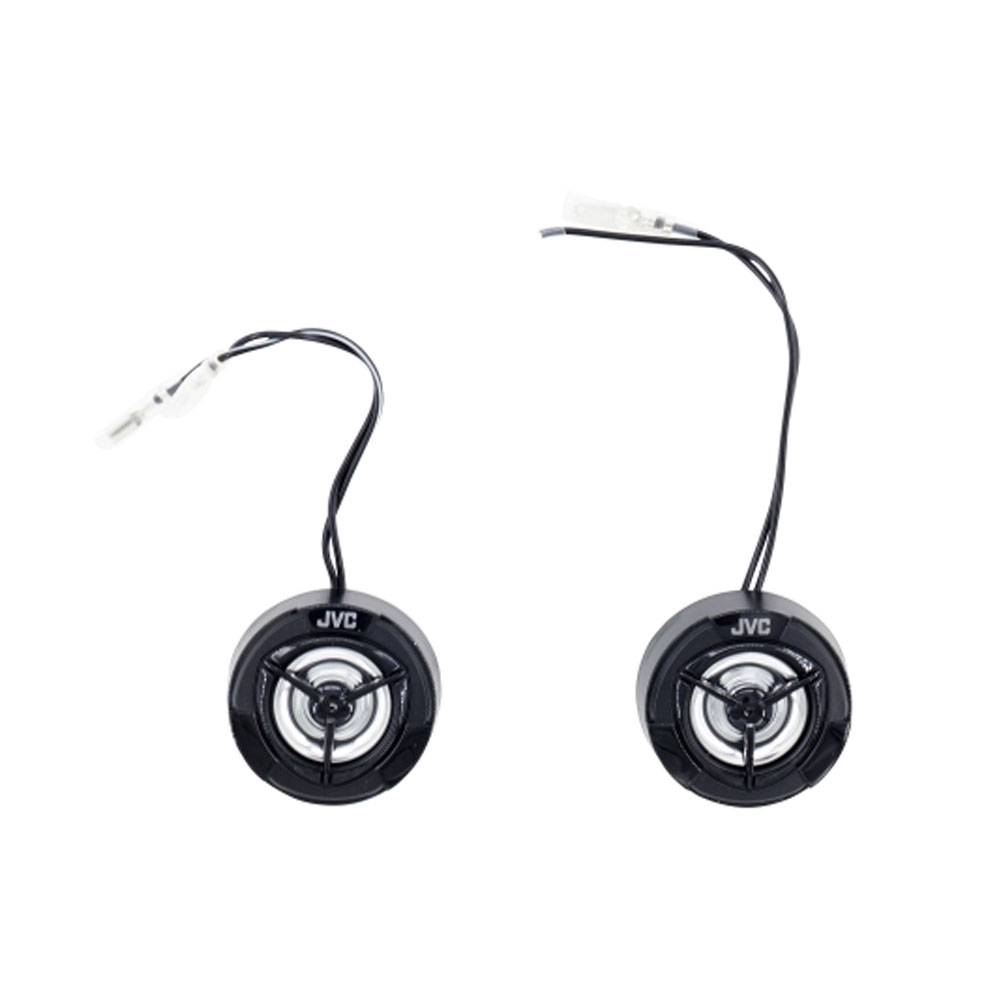

Tweeter

• Size 2.5 cm (1'')
• Type Separate Type, Unit : Balanced
• Diaphragm Poly-Ether Imide
• Magnet Neodimium

General

• Power Handling Capacity (Peak Power) 360W
• Power Handling Capacity (RMS) 55W
• Impedance 4 ohms
• Sound Pressure Level 4 ohms
• Frequency Response 66 - 23,800Hz

Weight

• Weight (w.Grille) 0.59kg (1.4lbs)
• Weight (w/o Grille) 0.52kg (1.2lbs)
• Magnet Mass 182g (6.4oz)
• Mounting Depth 45 mm (1-25/32")

What's in the box:

• 2 Woofers
• 2 Woofer grilles
• 2 Tweeters (each fixed in a surface mount housing with 4" Wire attached)
• 2 Angled surface mount tweeter housings
• 2 Speaker wires with 50" Tweeter leg (including in-line tweeter crossover) and 13.25' input leg
• Eight 1" Self-tapping screws
• 8 Speed clips
• Four M3 x 5mm Machine screws
• Two M3 x 15mm Stud bolts
• Two M3 x 30mm Stud bolts
• Four M3 Nuts
• Two M3 Wing nuts
• 2 Split lock washers
• 2 Small flat washers
• 2 Large flat washers
• Safety instructions
