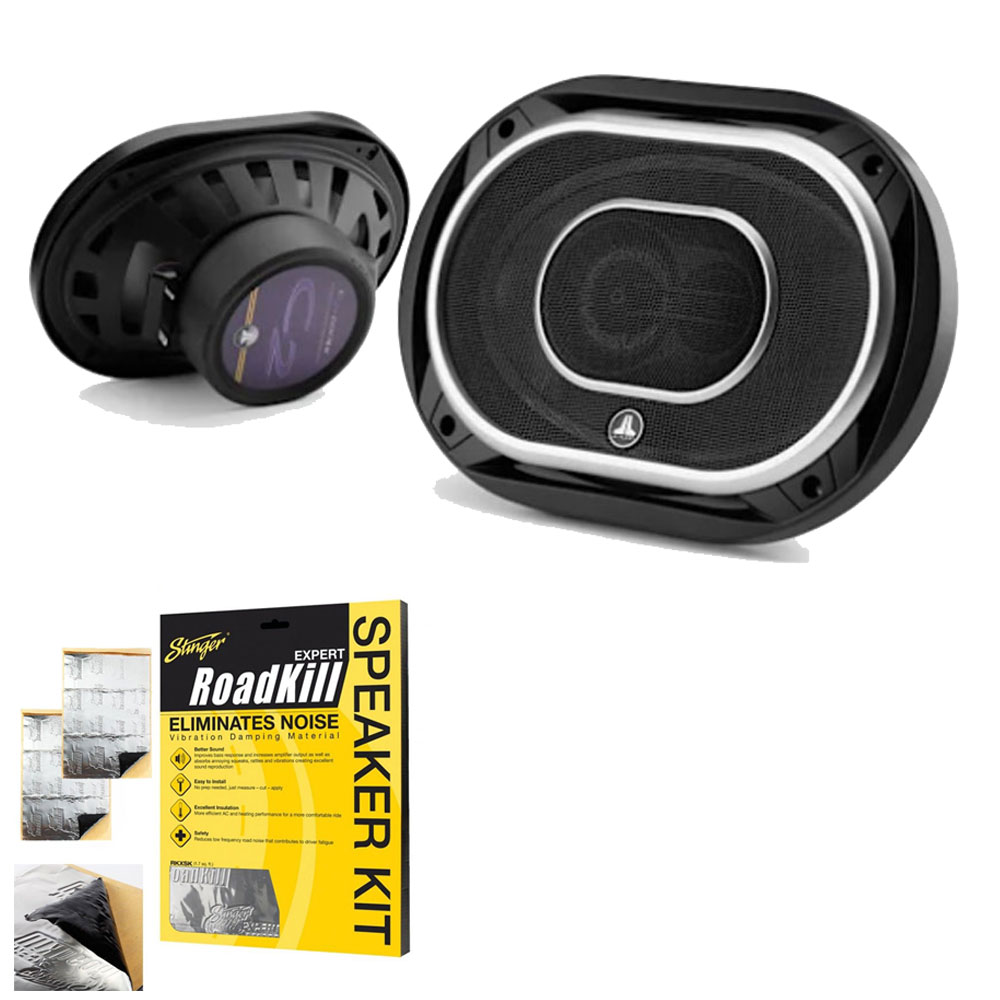

Package Includes

• JL Audio C2-690TX 6" x 9" 3 Way Coaxial Car Speaker
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

C2-690TX

All-Around Excellence

C2 speaker systems combine real silk dome tweeter performance, smooth midrange and powerful midbass capabilities in a wide range of coaxial speaker sizes.

DMA-Optimized Woofers

Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar sound quality.

Smooth Woofer Roll-Off

Woofers have no harshness in the upper midrange, and they transition smoothly to the tweeters. Well-dampened cones and suspensions minimize ringing.

Silk Dome Tweeters

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Stylish Grille Design

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Easy Installation

Speakers feature multiple hole patterns and breakaway mounting tabs (depending on model) as well as shallow woofer mounting depths and tweeters with minimal protrusion to fit behind factory grilles.

General Specifications

• Size 6" x 9"
• Continuous Power Handling (RMS) 70 W
• Sensitivity (SPL @ 1 W/1 m) 93 dB
• Frequency response (+/- 3 dB) 53 Hz-22 KHz.
• Nominal impedance 4 Ω
• Recommended amplifier power (RMS) 15-125 W/Channel
• Voice coil diameter 1.25" (32 mm)
• Cone material Mineral-filled polypropylene
• Tweeter type Silk Dome
• Tweeter size  0.75" (19 mm)
• Grille(s) included

Connections

Speaker connections Spade connectors

Mounting Dimensions

• Frame outer diameter 6.40 x 9.33" (163 x 237 mm
• Mounting depth clearance 3.06" (78 mm)
• Frontal grille protrusion 0.98" (25 mm)
• Grille tray outer diameter 6.75 x 9.63" (172 x 245 mm)
• Motor outer diameter 3.94" (100 mm)
• Frontal coaxial tweeter protrusion (frontal grille protrusion measured from mounting surface) 0.75" (19 mm)

In The Box

• Two coaxial speakers
• Two Bottom mount brackets
• Eight mounting screws
• 8 speed clips
• Two 0.205" female crimpable connectors
• Two 0.110" female crimpable connectors
• Two Grilles with JL Audio logo badges*

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
