Package Includes

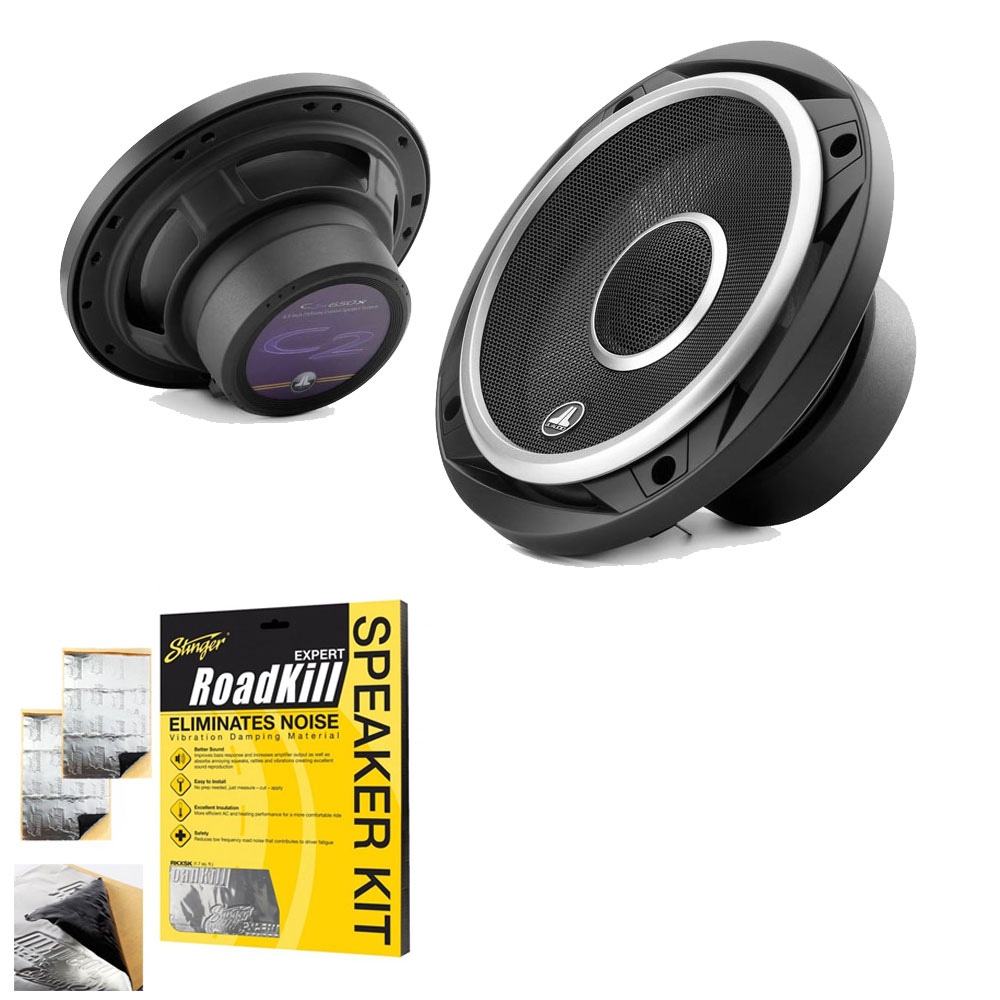

• JL Audio C2-650x Evolution C2 Series 6.5" (17cm) 2-Way Car Coaxial Speaker System
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

C2-650x

Coaxial Speaker System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Sonic character: Clean and Dynamic

Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Woofer

Injection-molded, Mica-filled, Polypropylene Cone, Butyl Rubber Surround, 1 in. Voice Coil on Kapton® Former, Flat, Symmetrical Roll Spider, Ferrite Magnet

Tweeter

0.75 in. (19 mm) Silk Dome, Ferrofluid Cooling / Damping, Neodymium Magnet

Crossover

Natural Roll-Off Low-Pass, 1st Order High-Pass Filter with Electrolytic Capacitor

General Specifications

• Continuous Power Handling (RMS) 60 W
• Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
• System Efficiency 91 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 59 Hz - 22 KHz ± 3 dB

Coaxial Physical Specifications

• Frame Outer Diameter* (A)    6.5 in / 165 mm
• Grille Tray Outer Diameter (B)    6.84 in / 174 mm
• Motor Outer Diameter (C)    3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion** (D)    0.45 in / 12 mm
• Frontal Grille Protrusion*** (E)    0.85 in / 22 mm
• Mounting Hole Diameter (F)    5.56 in / 141 mm
• Mounting Depth (G)    2.44 in / 62 mm

*Does not take into account mounting tabs
**Frontal coaxial tweeter protrusion measured from mounting surface
***Frontal grille protrusion measured from mounting surface

Included Components and Parts

• Two C2-650x 6.5-inch (165mm) Coaxial loudspeakers
• Two Grille Assemblies
• Eight #8 x 1 1/4-inch (30mm) sheet metal screws
• Eight Mounting Clips
• Two 5.2 mm female crimpable connectors
• Two 2.8 mm female crimpable connectors
• Two self-adhesive JL Audio logo name badges

Sold As A Pair

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
