Package Includes

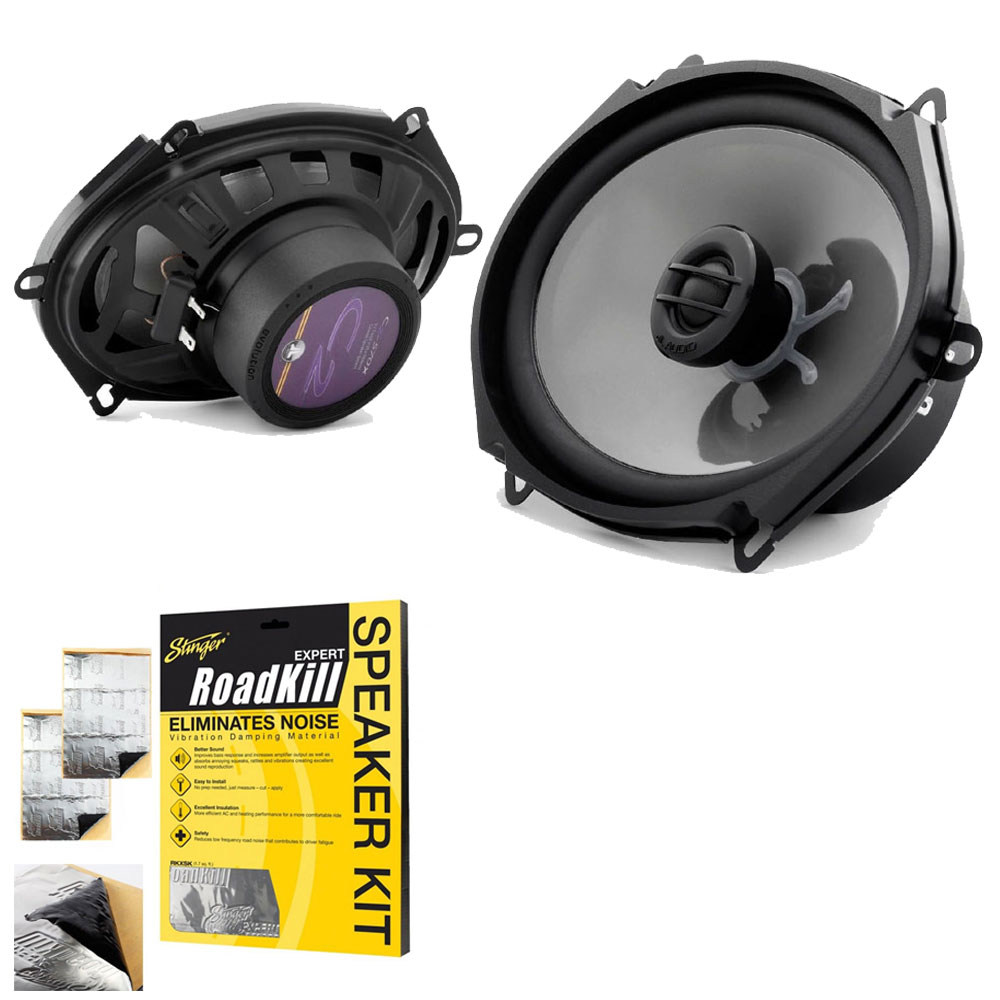

• JL Audio C2-570X 5" x 7" / 6" x 8" Car Coaxial Speaker System
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

C2-570X 5 x 7 / 6 x 8-inch (125 x 180 mm) Coaxial Speaker System

Coaxial Speaker System: 5 x 7 / 6 x 8-inch (125 x 180 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

Many people mistakenly believe that an oval speaker cannot perform as well as a round one, leading to many instances of 5.25-inch speakers being installed into 5 x 7-inch openings.

JL Audio has put in the engineering time and effort to create fantastic-sounding speakers that drop into oval openings and deliver equivalent performance to our 6.5-inch (165 mm) round speaker systems... guaranteed. So, don't make the mistake of losing cone area and efficiency by stepping down to a smaller round speaker... these ovals are as impressive as our round format systems.

The C2-570x system features 5 x 7 / 6 x 8-inch (125 x 180 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Sold as a pair. Grilles not available.

Sonic character: Clean and Dynamic

General Specifications

• Continuous Power Handling (RMS) 60 W
• Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
• System Efficiency 90.5 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 53 Hz - 22 KHz ± 3 dB

Coaxial Physical Specifications

• Frame Outer Diameter* (A) 5.47 x 7.68 in / 139 x 195 mm
• Grille Tray Outer Diameter (B) N/A
• Motor Outer Diameter (C) 2.76 in / 70 mm
• Frontal Coaxial Tweeter Protrusion** (D) 0.47 in / 12 mm
• Frontal Grille Protrusion (E) N/A
• Mounting Hole Diameter (F) N/A
• Mounting Depth (G) 2.43 in / 62 mm

Does not take into account mounting tabs

Frontal coaxial tweeter protrusion measured from mounting surface

What's In The Box

• Two 5x7" 2-way speakers
• 2 Bottom-mount spacer rings
• 8 Self-tapping screws (#8 x 1-3/16")
• 8 Speed clips
• Two Crimpable female quick slides (0.205"/5.2mm)
• 2 Crimpable female quick slides (0.11"/2.8mm)
• Owner's Manual

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
