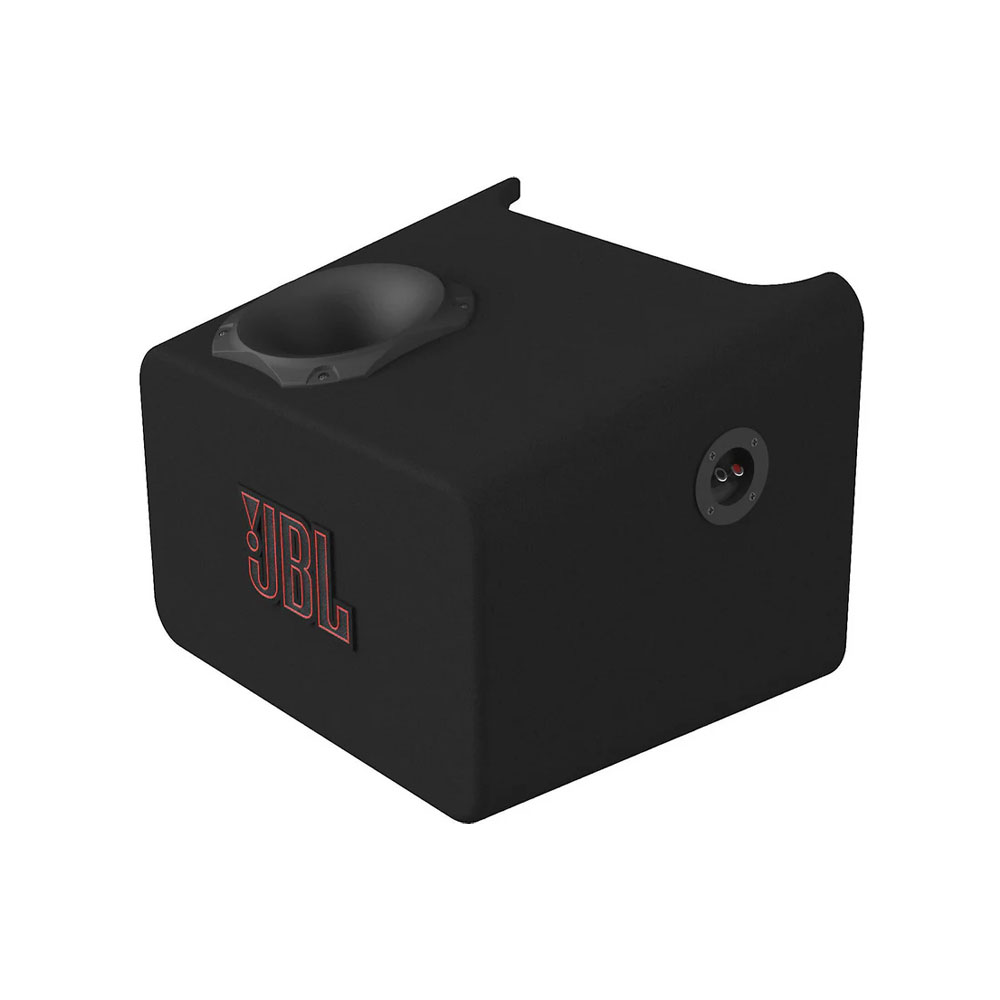

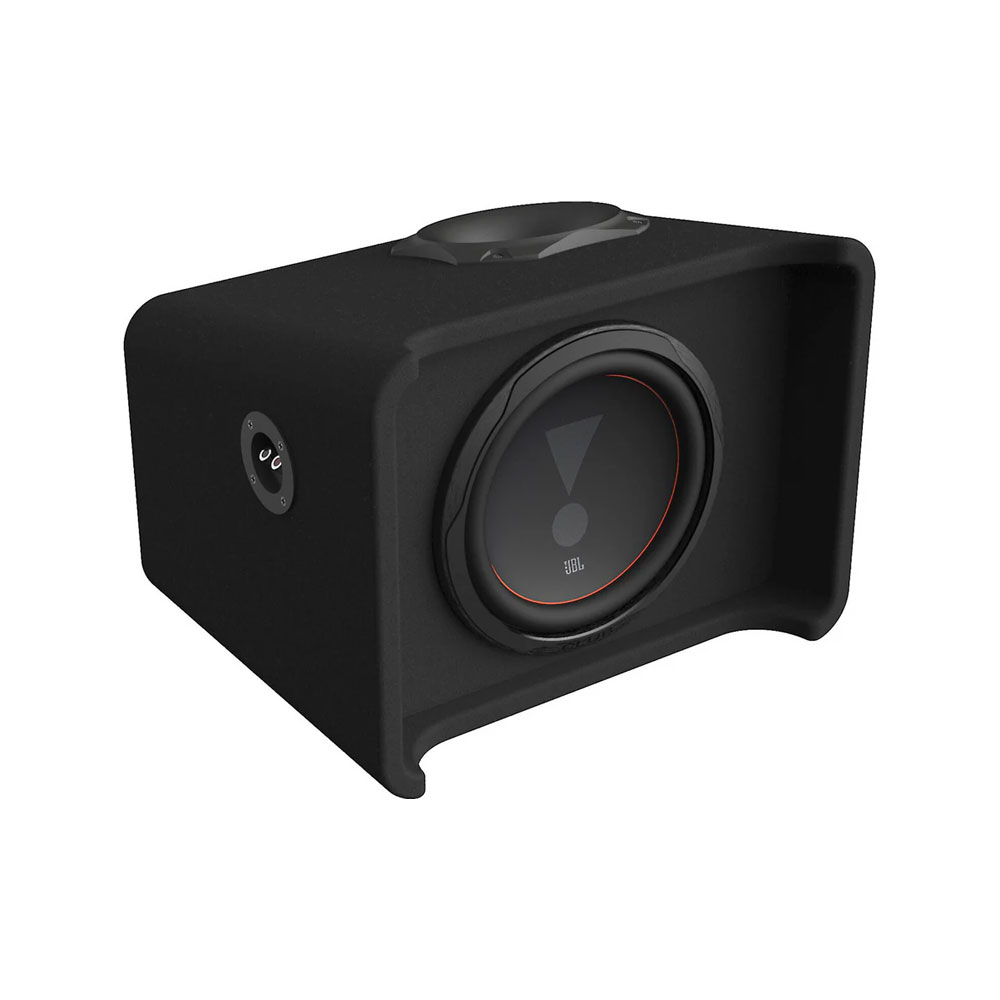

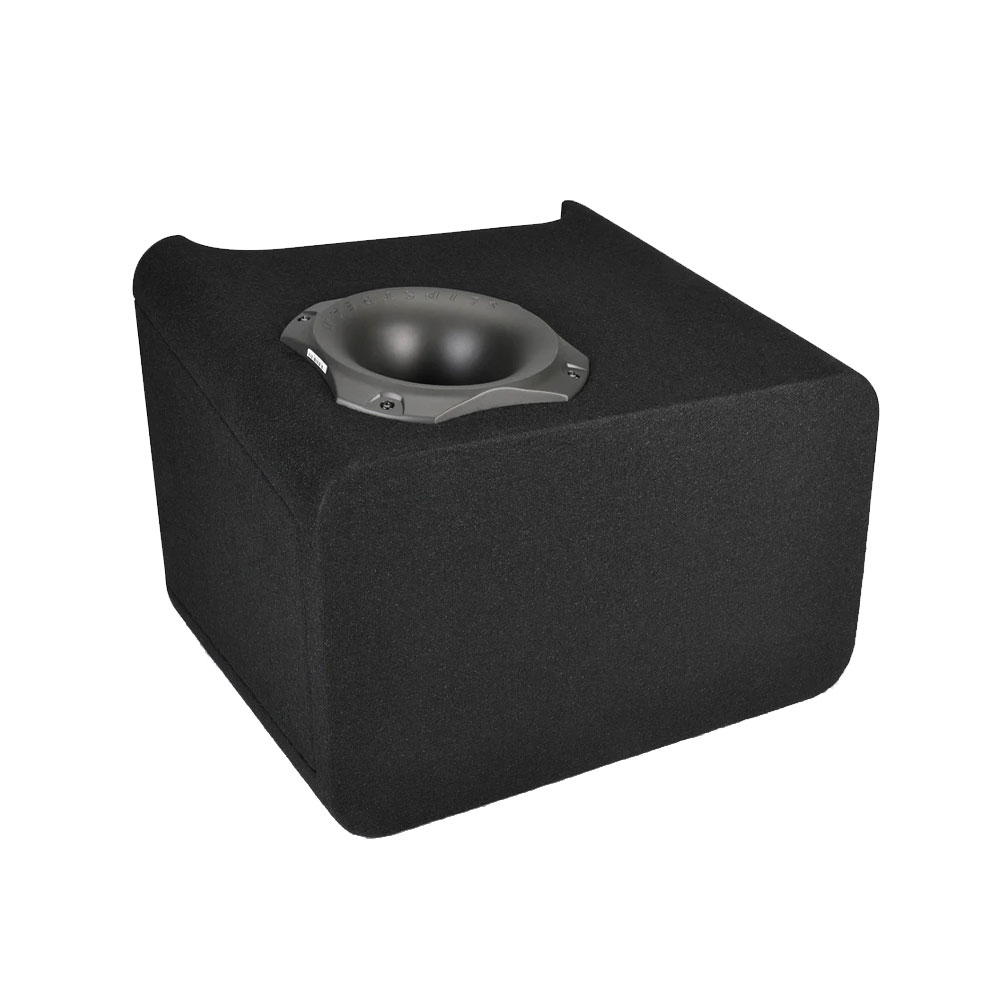

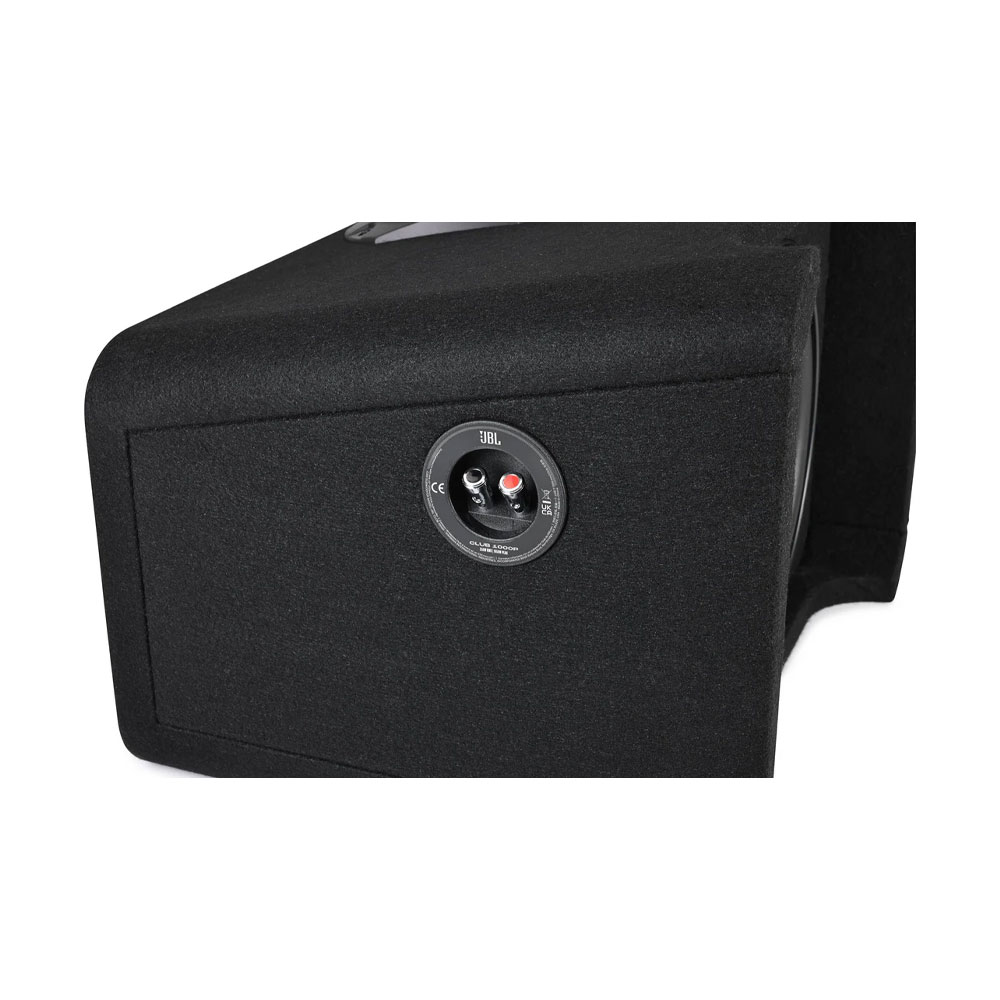

Club 1000P 10" Ported Enclosure Subwoofer

New JBL Club brings you their bass enclosures, the perfect marriage of subwoofer performance and box design. These enclosures are engineered with JBL’s patented Slipstream port uses a double-flared design to cut port noise and distortion by reducing turbulence. Less turbulence, more boom. The box is designed with wedge box type with rounded corner which allows flexible placement direction for best performance and maximize the space in vehicles. A removable logo badge is included allow you to put anywhere you like.

Slipstream Port Technology

Small enclosures require long ports to offer decent low-frequency performance. The unique port design of new Club enclosures efficiently limits the resulting air turbulence within the port, thus avoiding annoying port noise. The key benefit of our proprietary Slipstream port design is much higher output potential than with conventional ports and greatly reduced distortion – louder, cleaner bass.

Wedge Box with Rounded Corner Design

Club enclosures are designed in wedge box type with rounded corner which allows for flexible placement direction to get best performance and maximize the space in vehicle.

Removable Logo Badge

Club enclosures are designed with a removable logo badge so you can put anywhere you like.

Specifications:

• Subwoofer: 1x 10” (250mm) Polypropylene Driver
• Power Handling: 350W RMS, 1050W peak
• Sensitivity (1W/1m): 83dB
• Frequency Response (-6dB): 35Hz – 400Hz
• Nominal Impedance: 2 ohms
• Voice Coil Diameter: 2” (50mm)
• Enclosure dimensions: 264.8mm D1 x 345.2mm D2 x 447mm W x 379mm H/ 10-7/16” D1 x 13-5/8” D2 x 17-5/8” W x 14-15/16” H
• Enclosure materials: 11/16” (18mm) MDF with black carpet covering

What’s in the Box:

• 1x Subwoofer Enclosure
• 1x JBL logo badge
• 1x Owner’s Manual
