JBL Bass Pro Lite 7'' Underseat Subwoofer Boombox

JBL BassPro LITE delivers deep bass and takes up ultra-compact space.

JBL’s smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, BassPro LITE delivers accurate, tight bass you would expect from JBL, all while running cool and drawing minimal current from your vehicles charging system.

Features

• Big Bass,ultra-compact space
• Upgrade easier, Connected in series
• Intelligent Electronic Design for Reliable and Extraordinary Performance
• Die-Casting Aluminum Enclosure Design
• Bass boost Volume Control

Big Bass Ultra Compact Space

JBL BassPro LITE delivers deep bass and takes up ultra-compact space. Its onboard 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Upgrade Easier, Connected in Series

JBL BassPro LITE can be connected in series for user upgrade to purchase 2 set devices. The secondary BassPro LITE is still adjusted by them-self without extra Power / Single complex wires

Intelligent Electronic Design for Reliable and Extraordinary Performance

The BassPro LITE employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Die-Casting Aluminum Enclosure Design

The all-die-cast aluminum enclosure design is not only Ultra-compact size, but the ALL IN ONE is combined elegant JBL industry design element and powerful acoustic performance.

Bass Boost Volume Control

Bass boost Volume control is intergraded on I/O panel to let you adjust the sound freely

Specifications

• Driver Complement: super powerful 7''(178mm) Subwoofer
• Amplifier Power: Class D, 100Wrms; 200W Max
• Frequency Response: 30Hz – 150Hz
• Fuse: 15A
• Maximum Current Draw: 15 A
• Quiescent Current Draw: Input Sensitivity: 0.18 V – 5.0 V Low-
• Level Input; 0.75 V – 20V High-Level Input
• Crossover Frequency: 50 Hz – 150 Hz
• Crossover Slope: 12 dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz

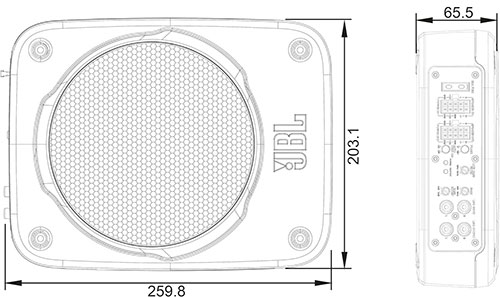

• Dimensions (L x W x H): 10-1/4'' x 8'' x 2-9/16'' (259.8mm x 203.1mm x 65.5mm)
• Weight: 8 lbs (3.5kg)

In The Box

• 1x Under seat subwoofer
• 4 x Screws
• 2 x Wiring harness for power and speaker level input (300mm)
• 1 x 15A Fuse
