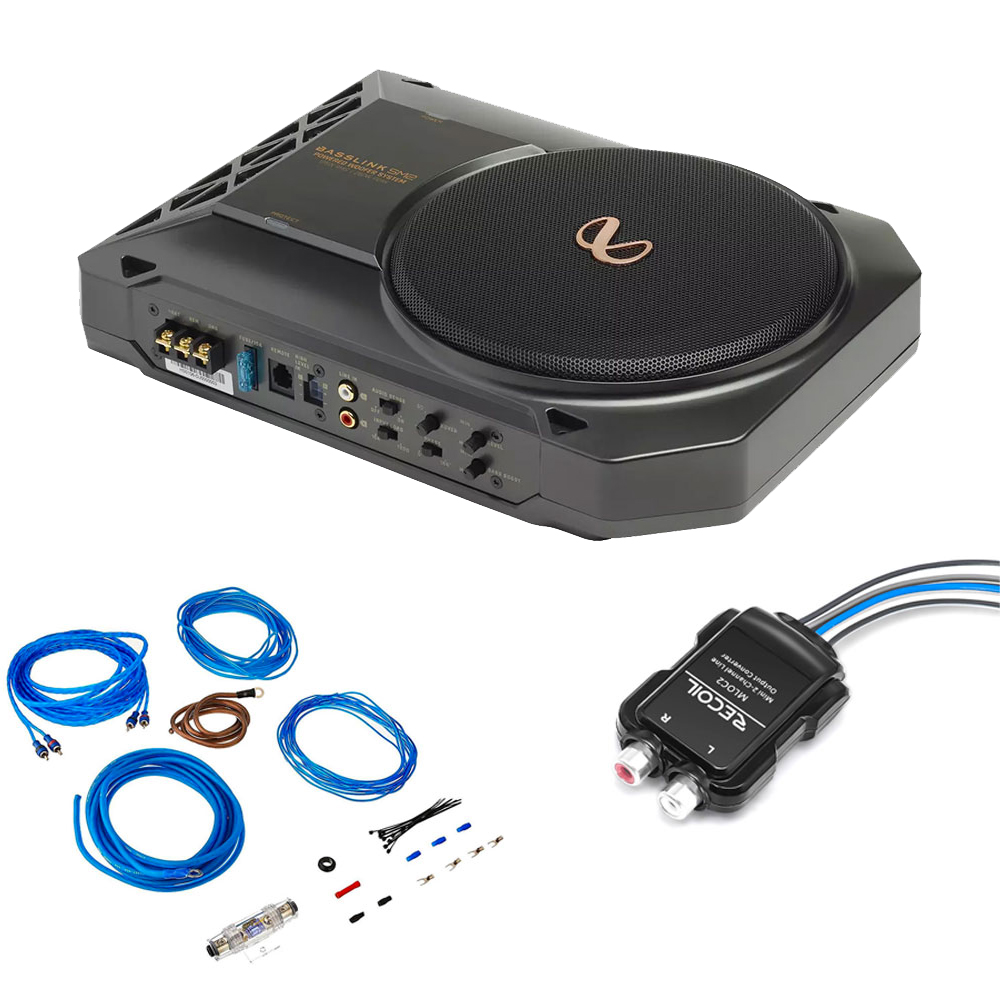

Package Includes

• Infinity BASSLINK SM2 Self Powered, 8" (200mm) Under Seat Subwoofer System
• Stinger SSK8 8GA 600W Complete Wiring Kit
• InCarTec 23-005 2-Channel 80W high-to-low Level Line-out Converter with Built in Amp Remote Trigger

Infinity BASSLINK SM2 Self Powered, 8" (200mm) Under Seat Subwoofer System

The BassLink SM2 self-powered subwoofer fits under the front seat of many vehicles, and adds great bass to any vehicle audio system. Its shallow-profile, 8" woofer and custom tuned low profile enclosure makes it possible to add bass in vehicles where space is limited. Its fully adjustable crossover and bass EQ, gives you the tools needed to tune the BassLink SM2 to your system and vehicle. To drive the proprietary 8" woofer an energy efficient Class D digital amplifier delivers great power while keeping cool and drawing minimal current from yor vehicles charing system.

Features

Proprietary, shallow-profile woofer
The 8" (200mm) subwoofer in the BassLink SM2 is designed specifically to provide low distortion and great bass performance in its custom tuned ABS enclosure with a remarkably compact footprint.

Efficient Class D amplifier
The amp that powers the BassLink SM2 produces minimal heat, and it doesn’t require a lot of current from the car’s electrical system.

Intelligent electronic design
The BassLink SM2 employs high-pass filters and limiters that deliver exceptional at-the-limits performance.

Crossover control
A variable crossover control (50Hz – 120Hz) lets you adjust how much upper bass and mid-bass the BassLink SM2 produces. Fine-tune the crossover to achieve a smooth transition from the BassLink SM2 to the rest of the system’s speakers.

Flexible EQ adjustments
Level control adjusts the BassLink SM2’s volume to the other speakers in your system, while Bass Boost control lets you minimize peaks or dips in bass frequencies in your car’s acoustic environment.

Line- and high-level inputs
For added installation flexibility, the BassLink SM2 features both line- and high-level inputs. If you use the high-level inputs to connect the BassLink SM2 to the head unit, an input load switch lets you switch from “Low” to “High” to achieve optimum results.

Wired, remote level control capability
The BassLink SM2 is compatible with the JBL GTO-RBC included, which enables you to control the bass level remotely.

General Specifications

• Woofer8" (200mm)
• Amplifier Power125W RMS
• Frequency Response35Hz – 120Hz
• Fuse15A
• Maximum Current Draw12A
• Quiescent Current Draw<800mA
• Input Sensitivity0.05V – 2V Line-Level Input; 0.5V – 20V High-Level Input
• Crossover Frequency50Hz – 120Hz
• Crossover Slope12dB/octave
• Bass Boost0dB to +9dB @ 70Hz

Dimensions

• (L x W x H)13-9/16" x 9-7/8" x 2-13/16" (344mm x 250mm x 71mm)

In The Box

• 1 x Powered woofer enclosure
• 4 x Mounting screws
• 1 x Remote bass level control
• 1 x Owner’s manual

Stinger SSK8 8GA 600W Complete Wiring Kit

Featuring Ultra Flexible CCA cable construction for excellent current transfer to power hungry amplifiers on a budget. Quality twisted pair interconnects for noise free signal transfer. Also includes ultra flexible speaker wire, remote turn-on, MIDI high current fuse holder and ring terminals for a complete installation package. All the necessary parts for installing your next 2 channel amplifier.

Includes

• 17FT Matte Blue Ultra Flexible Power Wire (CCA)
• 3FT Matte Gray Ultra Flexible Ground Wire (CCA)
• 17FT Twisted Pair RCA Interconnects (OFC)
• 17FT Blue Remote Turn-on Wire (CCA)
• 20FT Matte Blue Ultra Flexible Speaker Wire (CCA)
• 1pc. High Current Water-resistant MIDI Fuseholder with 60A Fuse

InCar Tec 23-005 2-Channel 80W high-to-low Level Line-out Converter

A 2 Channel 80W adjustable high-to-low level subwoofer amplifier Line Output Converter (LOC) with a built-in amplifier remote trigger. This device is designed to convert 2 channels of speaker level audio into 2 channels of line level audio that can be used by car audio amplifiers.

This interface detects an audio signal and generates an amplifier turn on signal based on this, the amplifier turn on signal stays on for 60 seconds after the audio signal disappears. This allows the amplifier to stay turned on between tracks and during moments of silent audio.

Features and Specifications

The line output converter is capable of handling 80 watts per channel of continuous input without over heating. The input circuitry is designed to correct the crossover distortion commonly found on standard LOCs while providing a high to low level stepdown of 6:1.

Output audio level is also easily adjustable using the on board high quality potentiometers. The remote output/ amplifier trigger is rated at 500mA (+12V) and can easily handle an outboard relay if additional current is needed.

The remote output will trigger instantaneously when the Line Output Converter (LOC) detects a DC voltage on the White, Left + audio input wire above 5V or a very low audio signal. It will shut off 60 seconds after no signal is detected.

Installation

The LOC should be installed on a stereo's speaker output wires or the output wires on an original OEM factory fitted amplifier of up to 80 watts per channel. These wires can usually be found behind the stereo in the vehicles dash, on the output of an original OEM amplifier, or on the input terminals of the vehicles original speakers.

Please refer to the wiring diagram on the instructions for the input connections.
