This InCarTec fitting kit allows the installation of a Pioneer SPH-PF97BT 9” Wi-Fi® stereo into Audi A3 (8P facelift, 2006–2013) models without steering wheel audio controls and with rear amplified sound systems.

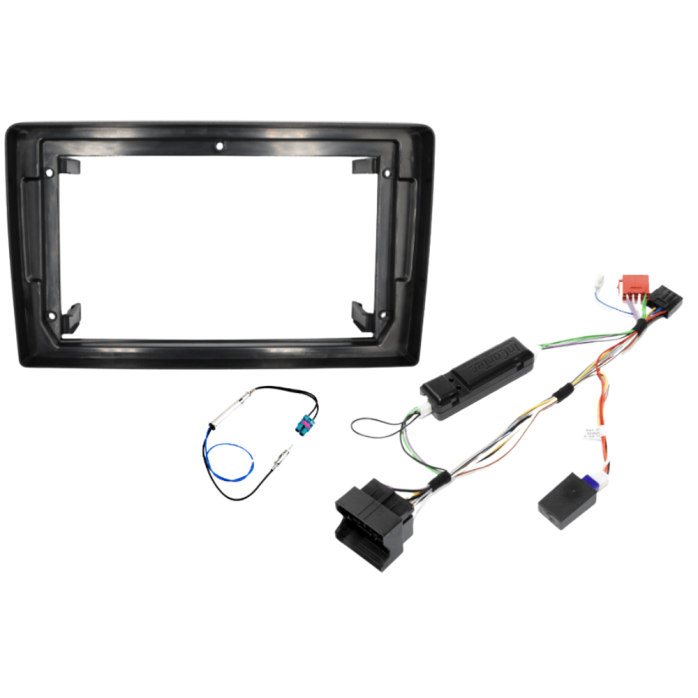

The kit includes an Audi quadlock to ISO adapter with CANbus ignition interface, an integrated high-to-low level adapter for amplified speakers, an antenna adapter cable, and a custom 9” fascia panel.

Designed specifically for the Pioneer SPH-PF97BT, this kit ensures a seamless and factory-style installation. Pioneer stereo sold seperately.

Package Includes

• 9 Inch Double DIN Fascia Adaptor Panel
• Qadlock to ISO Radio Adapter Cable with CANbus Ignition Interface
• Antenna adapter cable

PLEASE NOTE: This kit is suitable for Audi A3 car models without steering wheel audio controls and with rear amplified sound systems, for fully amplified systems please use PF-100FA-SWC

PLEASE NOTE: This kit is only suitable for 9 inch Pioneer perfect fit kits and is not compatible with standard 2-DIN 7” stereos, Pioneer SPH-PF97BT must be purchased separately.

This fitting kit is specifically designed for Audi A3 (8P facelift, 2006–2013) models that feature a rear amplified sound system and do not have steering wheel audio controls.

It provides everything required to professionally install the Pioneer SPH-PF97BT 9” Wi-Fi® car stereo, including a quadlock to ISO adapter harness with built-in CANbus ignition interface, an antenna adapter cable, and a custom fascia panel for perfect dashboard integration.

The harness adapter is fully plug and play, with an integrated CANbus ignition supply so the stereo powers on and off with the key. It also includes a built-in high-to-low level adapter to retain the use of the factory amplifier and subwoofer, ensuring clean audio performance.

The supplied fascia panel has been custom-designed for the A3’s interior, maintaining a factory look while securely housing the Pioneer SPH-PF97BT.

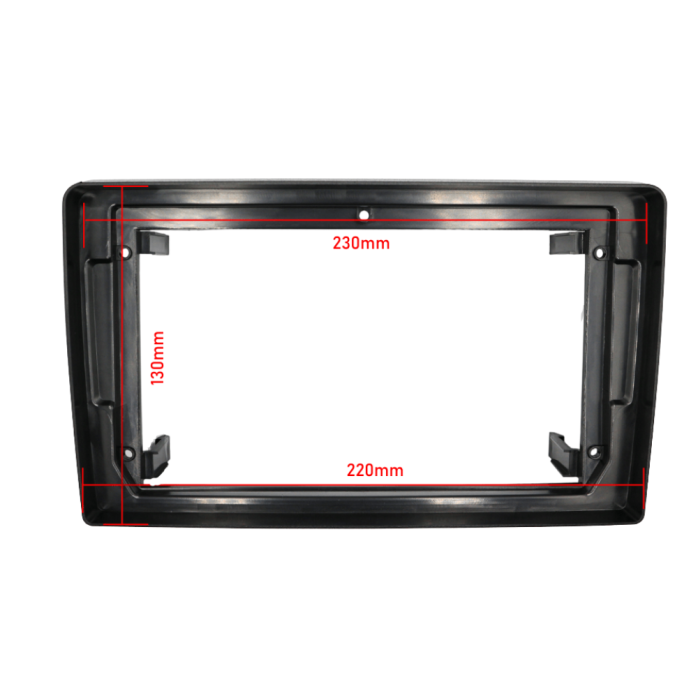

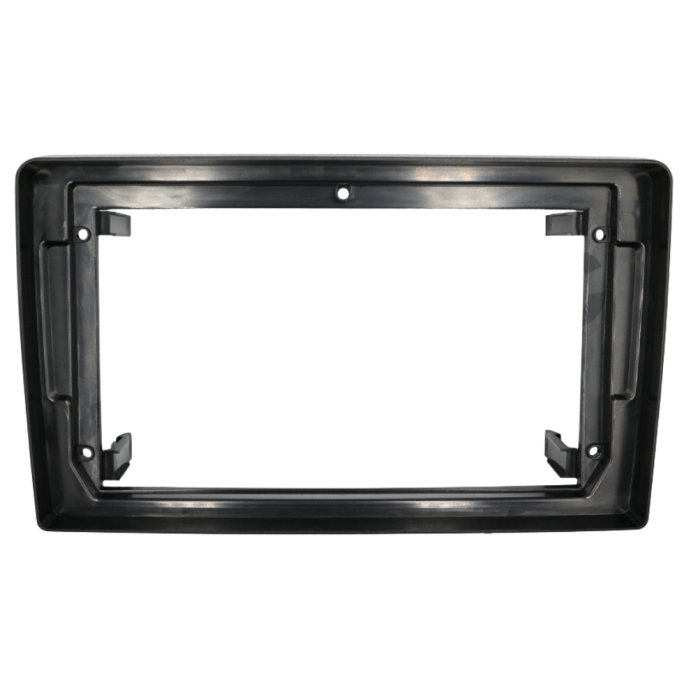

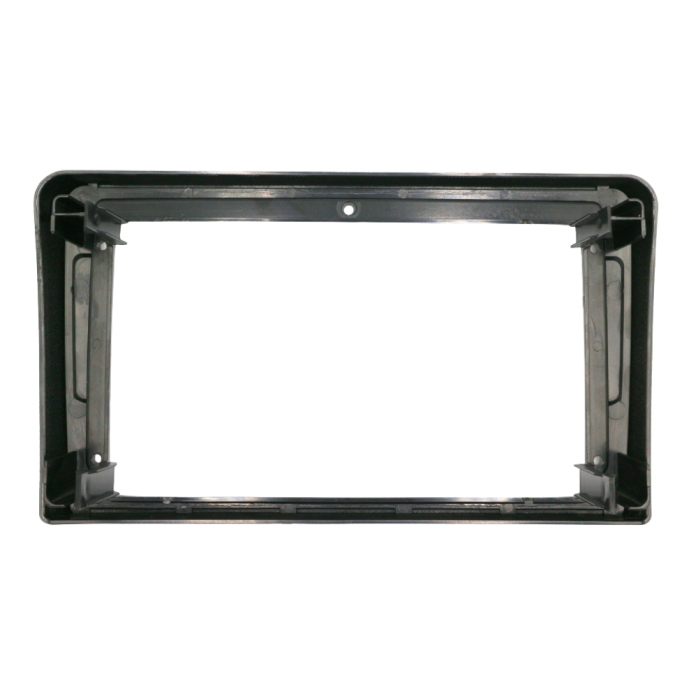

Fascia Adapter Panel

Custom-designed for the Audi A3 (8P) facelift (2006–2013), this fascia enables seamless installation of a universally mounted 4-screw stereo. It converts the factory aperture while maintaining a clean, OEM-style dashboard appearance.

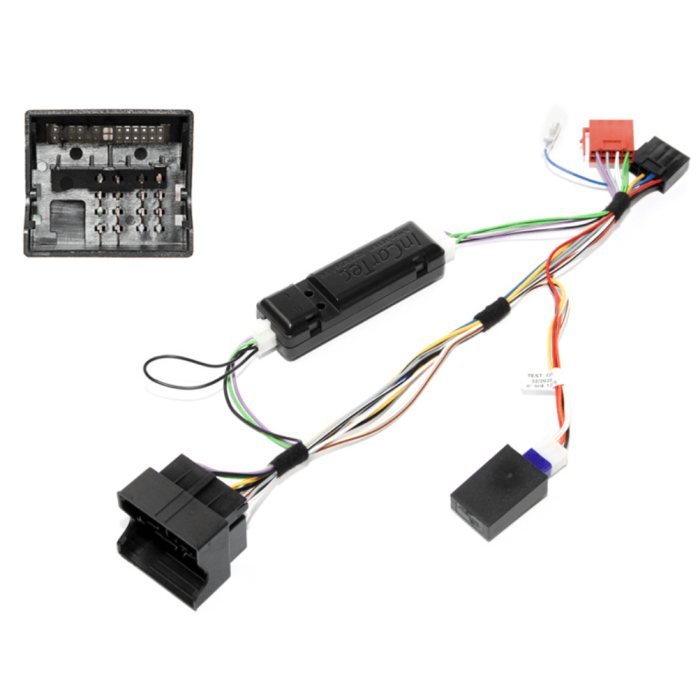

Audi Quadlock to ISO radio adapter cable with CANbus ignition interface

This Quadlock to ISO adapter cable with CANbus ignition adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors.

The CANbus ignition interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. This interface is built into the Quadlock to ISO harness adapter.

Quadlock to ISO cable also has a built in high to low level adapter for the amplified speakers. The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The adjustable high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.

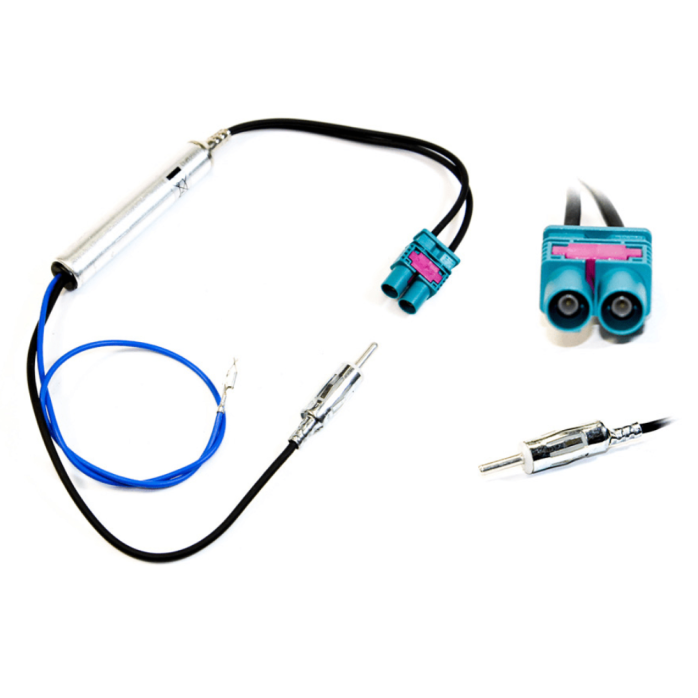

Antenna adapter cable

Double moulded Fakra Aerial adapter cable for European cars that have amplified original antennas. Use with cars that have twin antenna both requiring power. This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by most car radio manufacturers. Will also provide a power feed to give 12 volt from the car radio to the cars amplified antenna.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
