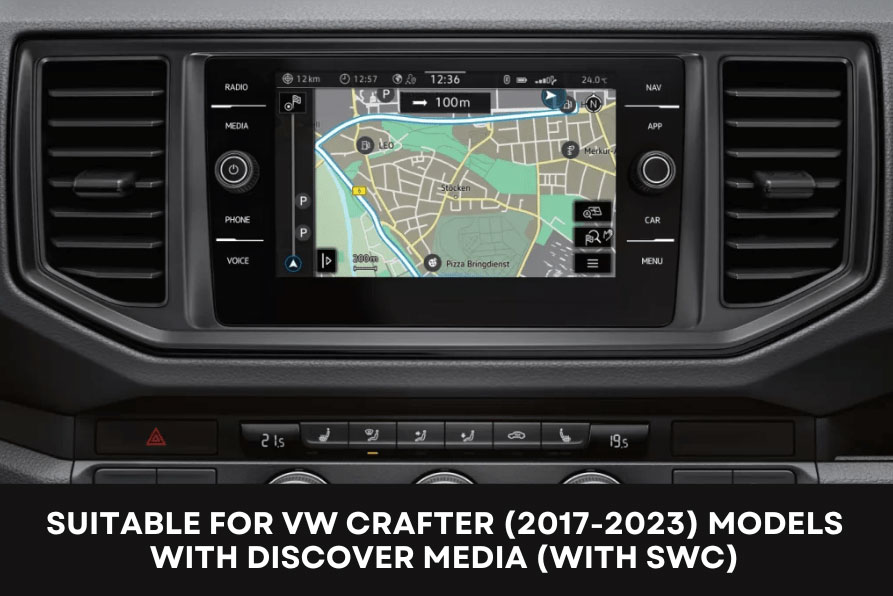

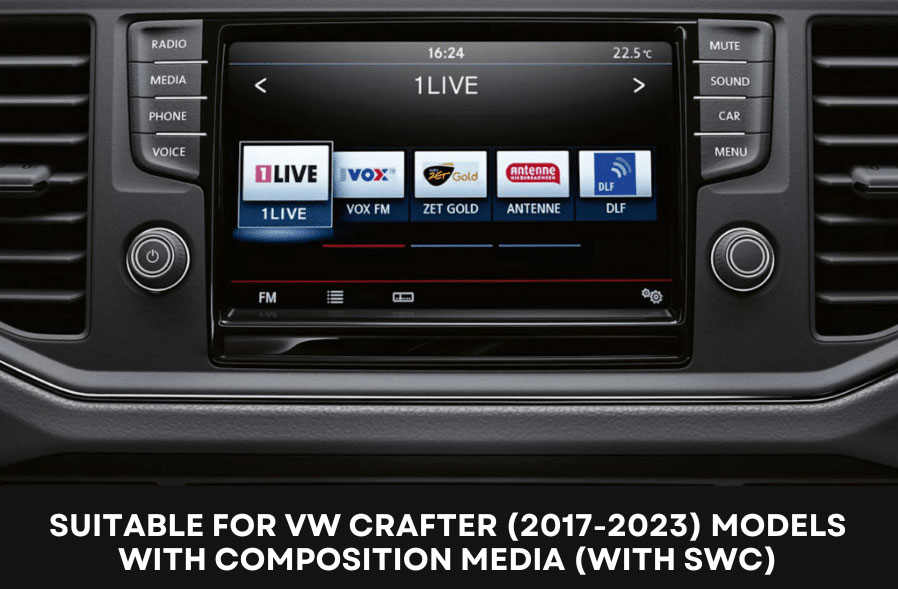

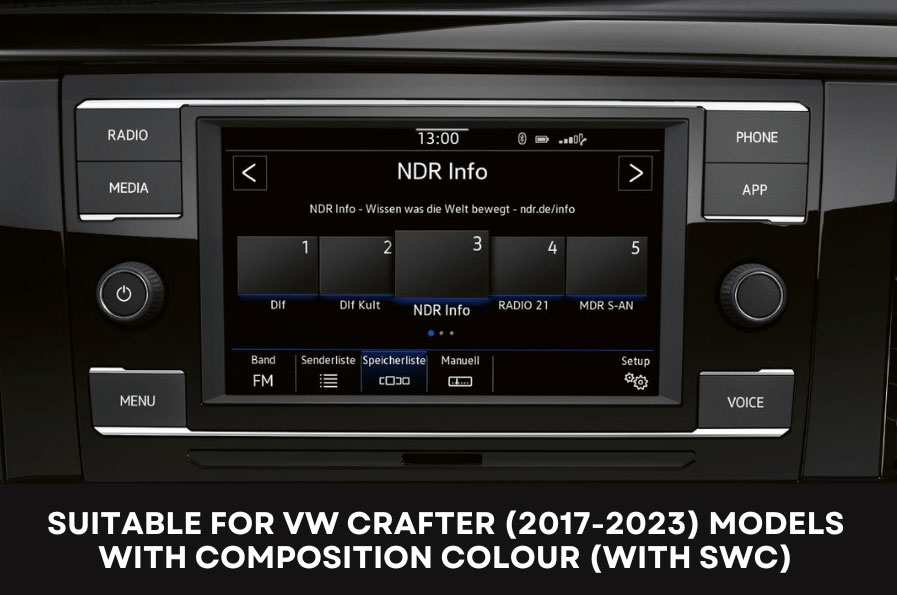

Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in select VW Crafter (2017-2023) vehicle models.

As well as steering wheel control retention, the interface in this kit will also retain phone button functionality (if equipped) and also provide outputs for Park Brake, Speed Pulse, Reverse Gear and Mute.

Package Includes

• Double Din Radio Fascia
• Steering Wheel Control Infoadapter Interface
• Double Fakra to DIN Antenna Adaptor Cable
• Male Fakra to Female SMB DAB Adaptor
• Universal Patch Lead (Included)

Only suitable for aftermarket head units with slim chassis/ modular fit design,

Installation Depth

Due to the lower section behind the radio having ducts for the air vents on the Volkswagen Crafter (2017-2023) there is only space for a Single DIN radio chassis or a slim chassis/ modular head unit (maximum mounting depth for the aftermarket radio of 55mm). These units must have the single DIN body relocated to the top of the dashboard because in the crafter the single DIN hole is at the top, the lower part is only 55mm deep and is not a DIN depth so would not allow you to mount a traditional Double DIN radio.

Examples of Compatible Head Units with this Fascia Include:

JVC KW-M595DBT
Sony XAV-AX3250DB

Careful attention needs to be paid to the radio that is to be fitted and modifications may be required, either to the fascia kit or the vehicle.

We strongly recommend the installation is done by an experienced car audio technician only

See the image below that shows the available space behind the original radio

Fascia Adaptor

Car radio fascia adapter panel to allow the fitting of an aftermarket Double DIN car stereo upgrade. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

This fascia is supplied with side fixing brackets so a radio can be installed without the need for a fitting cage

Steering Wheel Control Infoadapter Interface

Car Audio Steering wheel interface allowing use of original buttons with a new aftermarket head-unit. This interface allows the use of the Steering Wheel audio controls, as well retaining the vehicle menus when installing an aftermarket head unit.

This interface also provides optional input for reversing camera/ parking sensors (if applicable) and outputs for park brake, speed pulse, reverse gear and mute

Product Features

• Retains Steering Wheel Control Functionality
• Retains Phone Button Functionality
• Retains Vehicle Settings and Generates Settings Menus
• Provides Optional Input for Aftermarket Reversing Camera
• Retains Parking Sensor Audio and Generates Parking Sensor Graphics
• Provides Outputs for Park Brake, Reverse Gear, Speed Pulse and Mute

Compatible Vehicles

This Steering Wheel Control/ Infoadapter interface is designed for select Volkswagen Group vehicle models with original MIB II radio systems.

Double Fakra to DIN Antenna Adapter Cable

This cable converts the original antenna connector in the car, known as a Double Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a junior timer receptacle terminal to make it easy to connect into the electric antenna turn on position of a standard ISO connector. We also have this part available with a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces with a female bullet connection for the electric antenna turn on, the 21-139K.

Fakra DAB Male to DAB SMB Female Antenna Adapter

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Universal Patch Lead

Universal patch lead for 29-CT series steering controls. Suitable for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony and Chinese head-units that are steering wheel remote ready.

This cable plugs into the Steering wheel control box and into either the 3.5mm socket or single wire on the back of the head-units. Follow instruction to cut loops if needed.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
