Complete fitting kit to install an aftermarket Double Din stereo and retain use of the factory steering wheel controls in select Fiat Ducato motorhomes with factory fitted Daiichi radios and larger 52pin connector.

This fitting kit will retain use of the factory steering wheel controls, as well as providing a USB extension from the back of a new head-unit to the Ducato's dash or centre console.

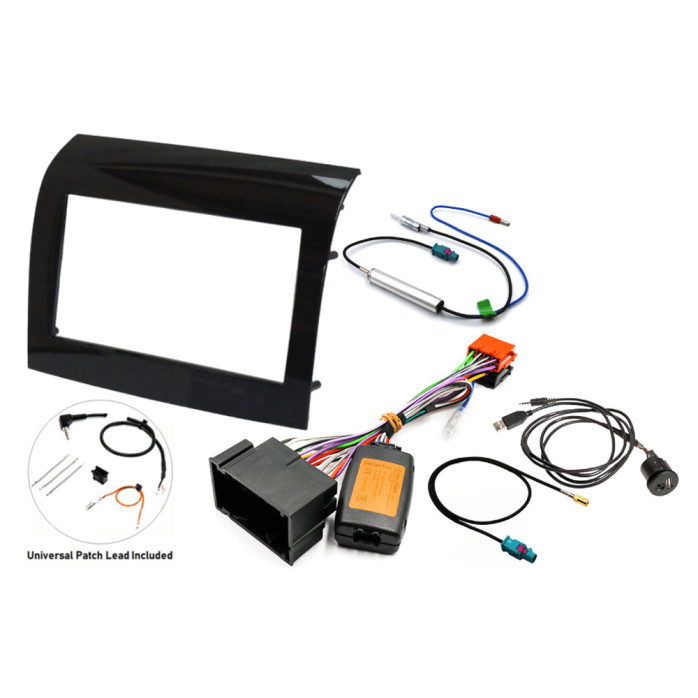

Package Includes

• Double Din Fascia with Side Fix Brackets (GLOSS BLACK)
• CANbus Steering Wheel Control Interface (Daiichi radios)
• Fakra DAB Male to DAB SMB Female Antenna Adapter
• Fakra to Din Aerial Adapter with Phantom Power
• USB/ AUX Socket Extension

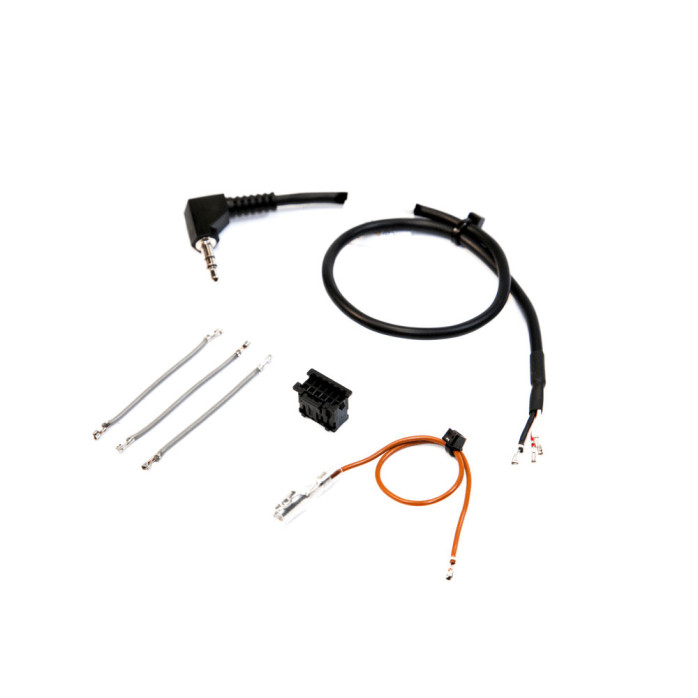

• Universal patch lead (Included)

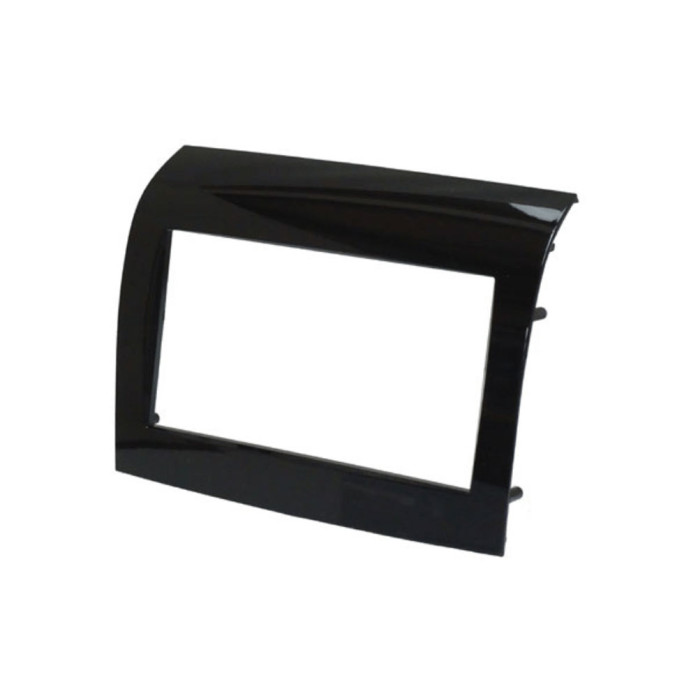

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Double Din fascia kit for 2014 onwards facelifted vehicles. This kit comes with side fixing brackets so no cage kit is required.

For single DIN installation an additional pocket will be required. There may be some additional plastic that requires cutting to allow the installation of a double-din unit.

This fitting kit is only suitable for vehicles with original large gloss black head units. Some vehicles are fitted with original basic single din units or with an open dashboard, these vehicles require different fitting parts.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

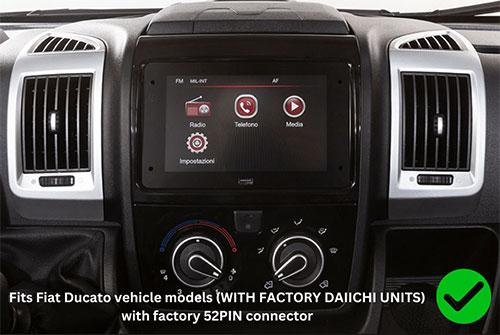

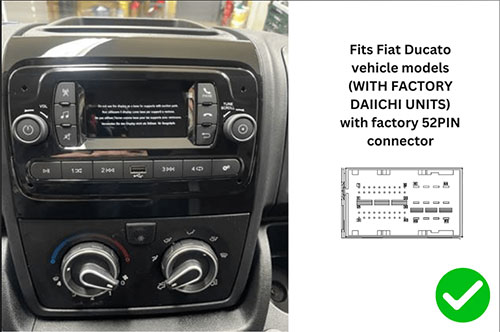

This interface is designed for the Fiat Ducato (2020 Onwards) originally fitted with a Daiichi Standard or Navigation radio (with single USB port below screen) and 8 button steering wheel as seen below:

These models use the later 52 pin large Fiat connector but do not use CAN ignition for the radio and operate with a switched 12v live.

This interface includes PHONE commands for compatible Bluetooth head-units

Fakra to DIN Aerial Adapter with Phantom Power

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces with a female bullet connection for the electric antenna turn on

USB/ AUX Socket Extension

28mm push fit USB socket with 3.5mm AUX in Jack  extension cable. Allows you to extend the USB and 3.5mm jack sockets from the back of a new aftermarket head-unit to the cars dash or centre console.

Fakra DAB Male to DAB SMB Female Antenna Adapter

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
