Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in Alfa Romeo Giulietta & Fiat 500 1st Gen Facelift car models with a factory UConnect 5 Inch radio systems.

This interface included in this kit will also allow vehicle information such as clock adjustment and vehicle settings to be displayed on the new aftermarket head unit.

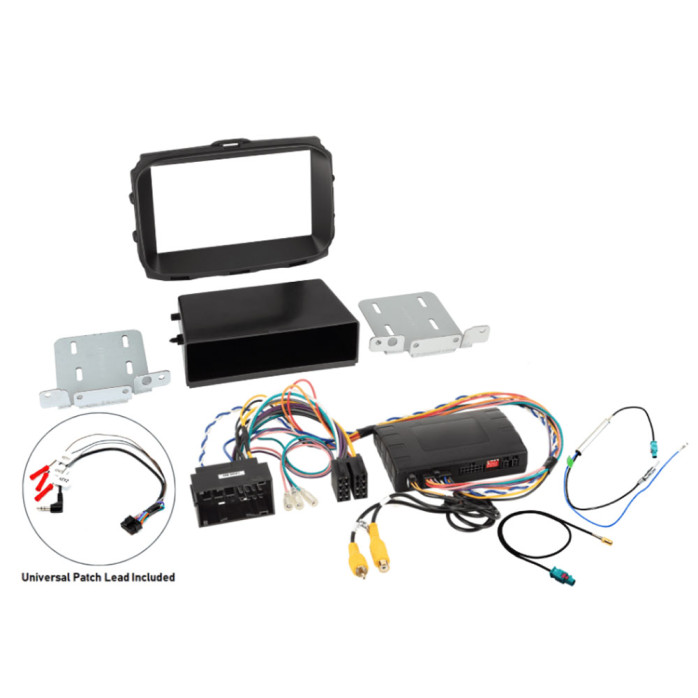

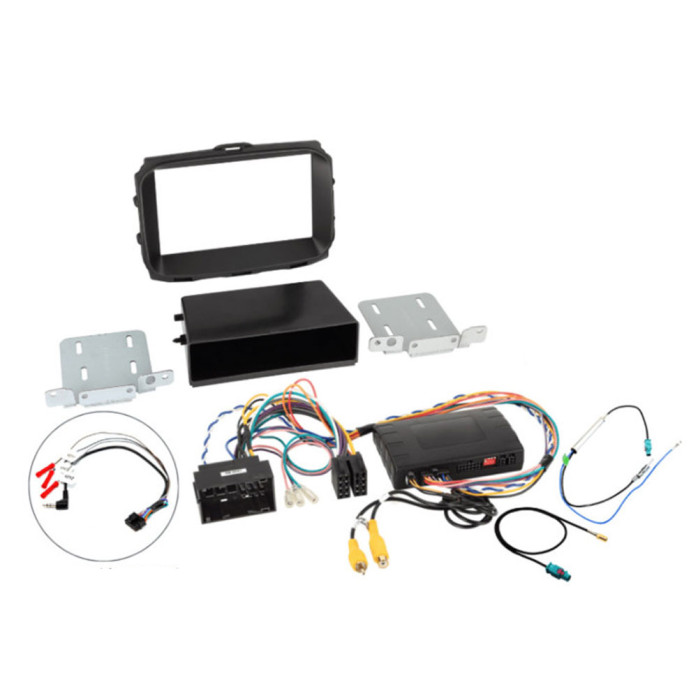

Package Includes

• Single / Double Din Radio Fascia (MATT BLACK)
• Steering Wheel Control Infoadapter Interface
• Fakra to Din Antenna Adaptor Cable
• Fakra DAB Male to DAB SMB Female Antenna adaptor
• Universal Patch Lead (Included)

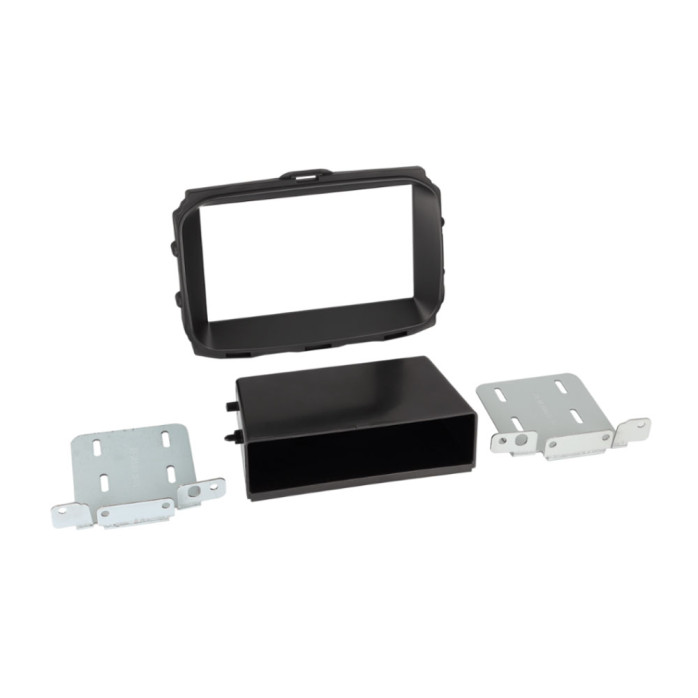

Fascia Adaptor

Replacement car audio fascia to enable you to change the original radio in the car to a Single or Double DIN aftermarket version

This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel.

A removable pocket is included for Single DIN installation

COLOUR: MATT BLACK

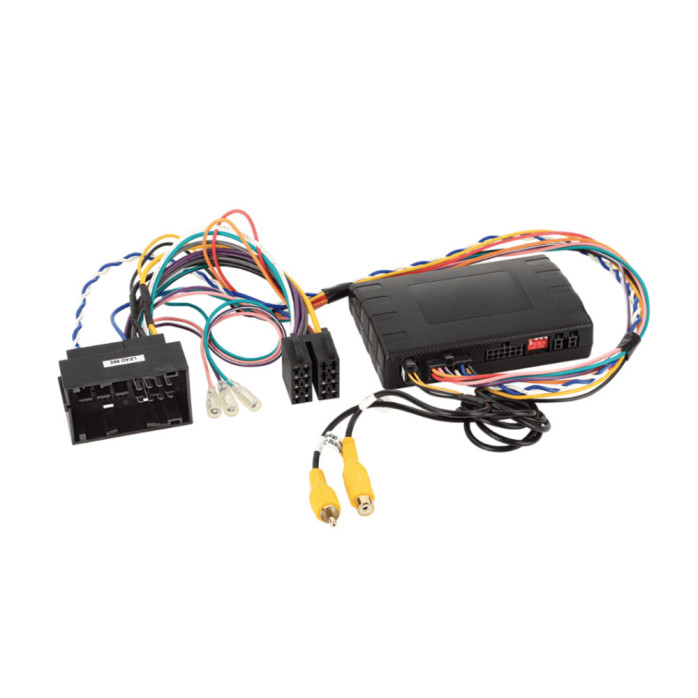

Steering Wheel Control Infoadaptor Interface

Car Audio Steering wheel interface allowing use of original buttons with a new aftermarket head-unit. This interface will also allow vehicle information such as clock adjustment and vehicle settings to be displayed on the new aftermarket head unit.

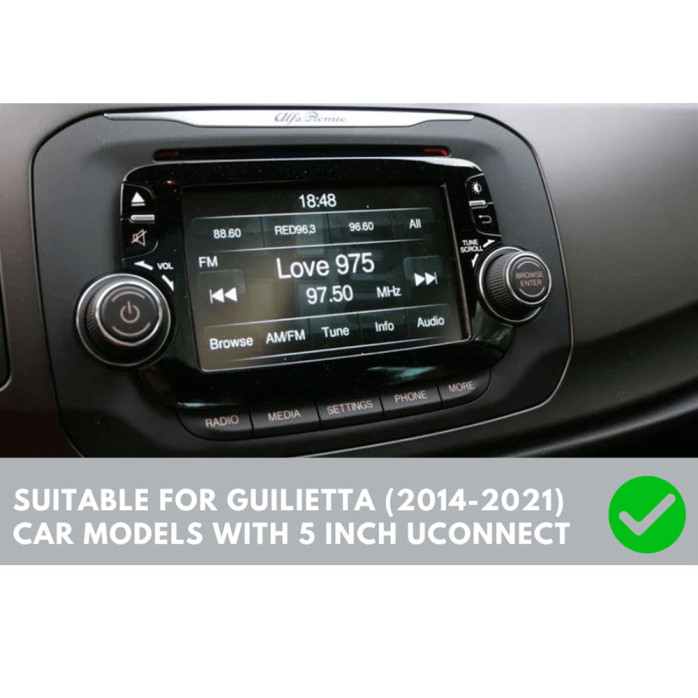

Suitable for select Alfa Romeo & Fiat 500 vehicle models with original 5 inch UConnect head units.

Product Features

• Retains Steering Wheel Controls
• Retains vehicle settings menus
• Retains clock adjustment

Compatibility Notes

• Please check the connections in the vehicle match the harness you are purchasing

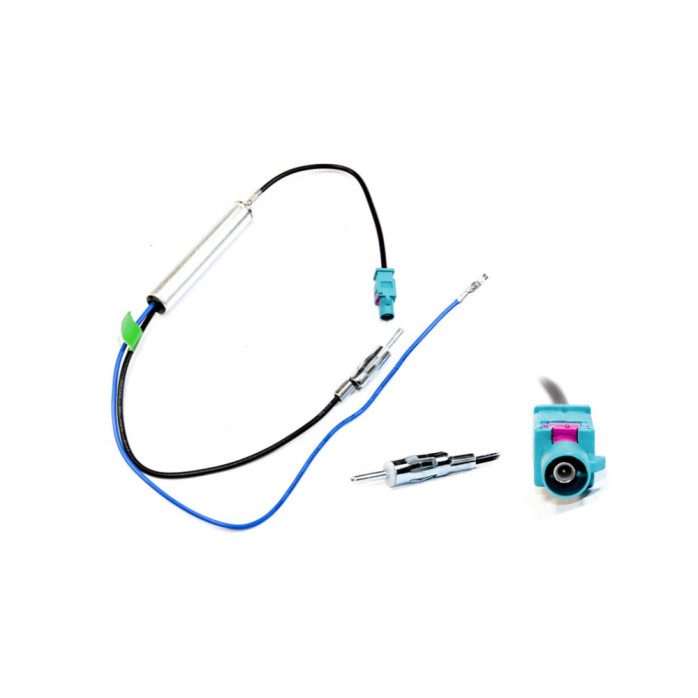

Fakra to Din Antenna Adaptor Cable

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a junior timer receptacle terminal to make it easy to connect into the electric antenna turn on position of a standard ISO connector. We also have this part available with a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces

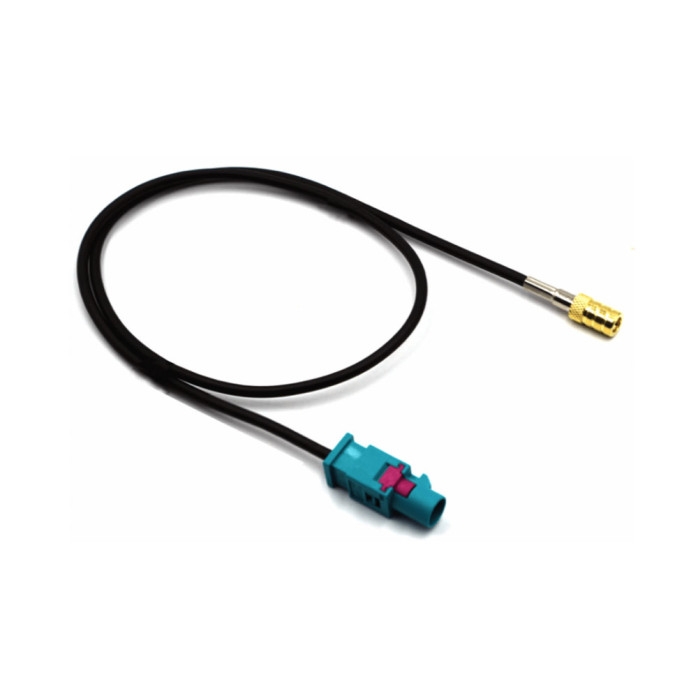

Fakra DAB Male to DAB SMB Female Antenna Adaptor

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

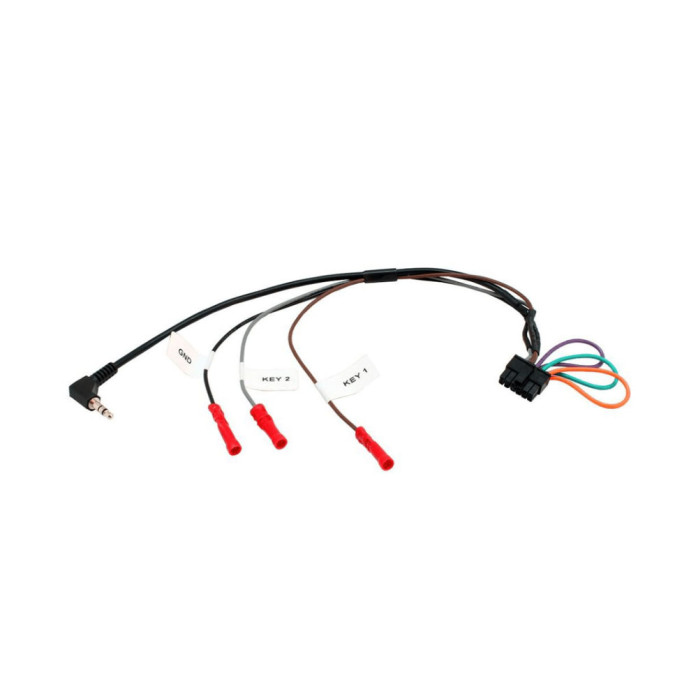

Universal Patch Lead

Universal patch lead for 29-CT series steering controls. Suitable for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony and Chinese head-units that are steering wheel remote ready.

This cable plugs into the Steering wheel control box and into either the 3.5mm socket or single wire on the back of the head-units. Follow instruction to cut loops if needed.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
