Complete stereo upgrade kit to install a Double DIN aftermarket radio and retain the use of the steering wheel controls in select Vauxhall vehicles.

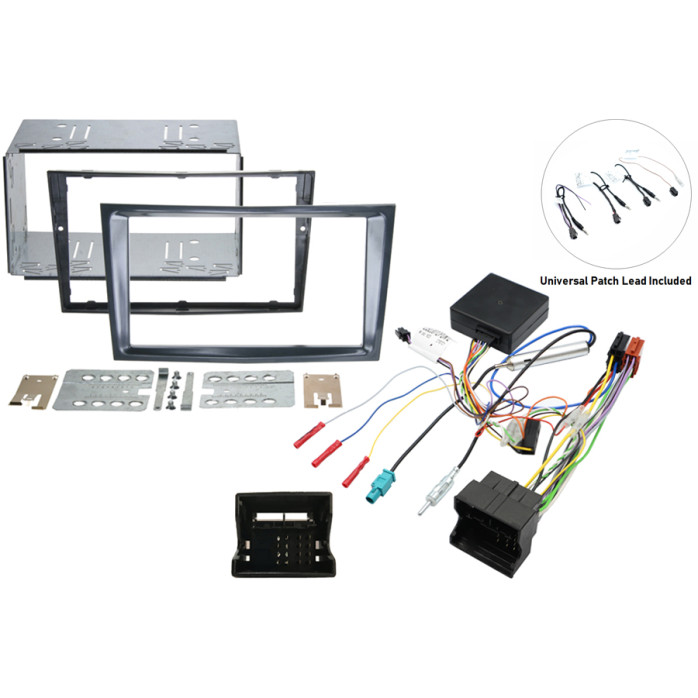

Package Includes

• Double Din Fascia (GLOSS GREY/STEALTH BLACK)
• Double DIN Fitting Cage
• Steering wheel control interface
• Fakra to Din Aerial Adaptor, 12v phantom power
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fascia adapter panel is to fit a double din aftermarket radio. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. The fascia is a silver finish and is a flush mount style so it replaces the radio trim supplied with the aftermarket radio. This gives a flush professional finish to the installation. The fascia is supplied with a double din fitting cage. Standard cages supplied with aftermarket radios are too big for the fascia trim. The gloss stealth black colour fascia is commonly in Corsa D (Elegance and Innovation trim cars), Astra H and Zafira B cars.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

CANbus interface to maintain the steering wheel controls. This interface will also adapt from the quadlock connector in the car to standard after market ISO connectors. Provides a CANbus, powered antenna, ignition output, speed pulse, reverse gear signal and hand brake signal. This interface will also allow you to use the car's original steering control buttons to access the original display screen to update the time and date settings.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

Universal Patch Lead

Patch cable set to connect a UNICAN interface between an after market head unit and the steering wheel controls. Can be used with Alpine, Kenwood, JVC (single wire), Pioneer, Sony and Chinese/Resistive learning head units with either two wires or a 3.5mm jack.

To remove the original radio, you will require radio release keys, part number 52-012

This fitting kit comes with a universal patch lead which can be used with Alpine, Kenwood, JVC, Pioneer, Sony and Chinese/ Resistive learning Head-units

Important Fascia Notes:

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
