Complete fitting kit to install a Double DIN head unit and retain the original steering wheel controls in BMW 3 series (E90/E91/E92/E93) car models.

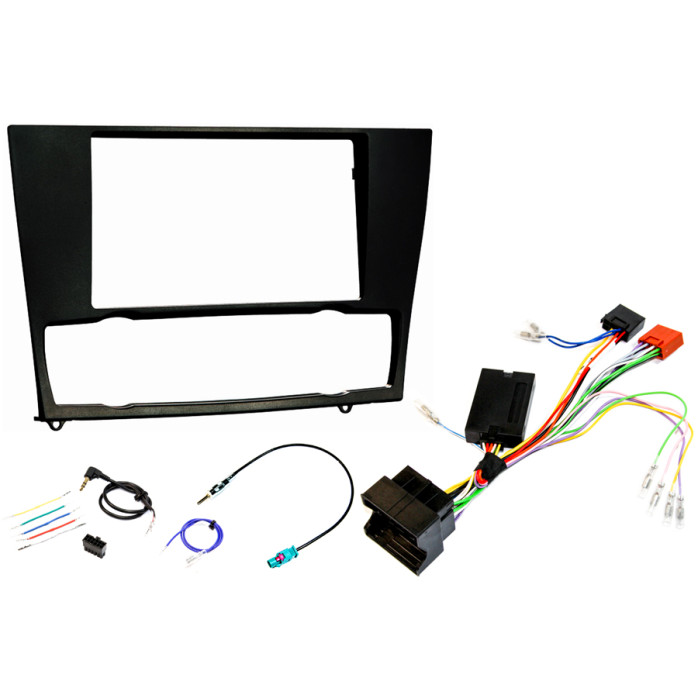

Package Includes

• Double Din Fascia Adaptor
• Steering Wheel Control Interface
• Antenna Adaptor  (Fakra to Din)
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This kit uses side fixing brackets for a flush fit, so no radio cage is needed.

Fits BMW 3-Series E90 (2005-2013) including E91 Touring, E92 Coupe and E93 Convertible

Only for models without OEM navigation and with automatic climate control / air conditioning. If your car has heated seats or start/stop then you will also need to purchase 50-746-ASH to relocate the switches to replace the ash tray.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

The cable adapts from the Quadlock connector in the car to standard ISO aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. The CANbus interface will also provide CANbus key present ignition, illumination, speed pulse, reverse gear and handbrake outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

Some BMW cars go into Eco mode and the +12V supply to the radio drops causing the memory of the new radio to be lost, these cars will need a power supply directly from the battery to be supplied.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade.

Universal Patch Lead

A universal patch lead is supplied in the kit, this is to pair the steering control interface to the steering control input of Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

Some cars with start/stop technology may require an additional voltage stabiliser to prevent the radio turning off when the engine restarts.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
