Complete stereo upgrade fitting kit to install a Double DIN aftermarket radio in various Volkswagen group cars with Highline display or Amplified original sound systems.

Package Includes

• Double Din Flush Fit Fascia Adaptor With Side Fixing Brackets
• Radio Replacement Steering Wheel Adaptor Interface
• Double Fakra Antenna Adaptor
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Provides CANbus ignition to the new radio and CANbus speed pulse, reverse gear and handbrake outputs. The interface also provides a CAN amplifier turn on signal for cars fitted with the original Dynaudio and select Fender sound systems. (These systems can be identified by the branding on the speaker grills, pictured below)

This interface also retains the original parking sensor display, (Parking Distance Control - PDC) and climate control information that is shown on the original radio. IF AVAILABLE ON THE VEHICLE

This information is transferred to the white display on the instrument cluster.

The PDC and climate info is shown on the cars central display between the clocks, NOT ON THE NEW RADIO

See the example images below for how the information is displayed and the white display which is compatible.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Double moulded Fakra Aerial adapter cable for European cars that have amplified original antennas. Use with cars that have twin antenna both requiring power.

Universal Patch Lead

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

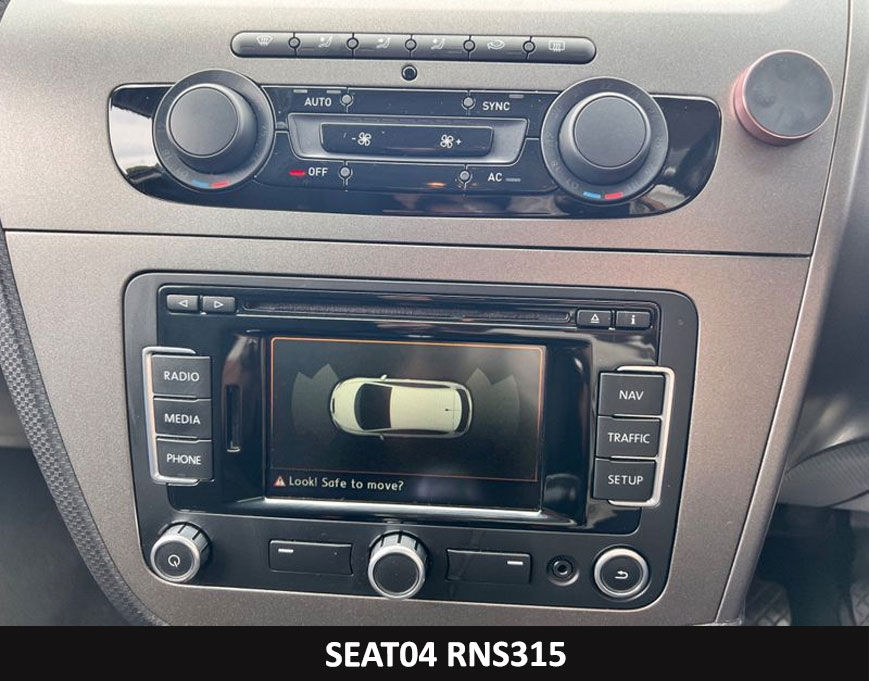

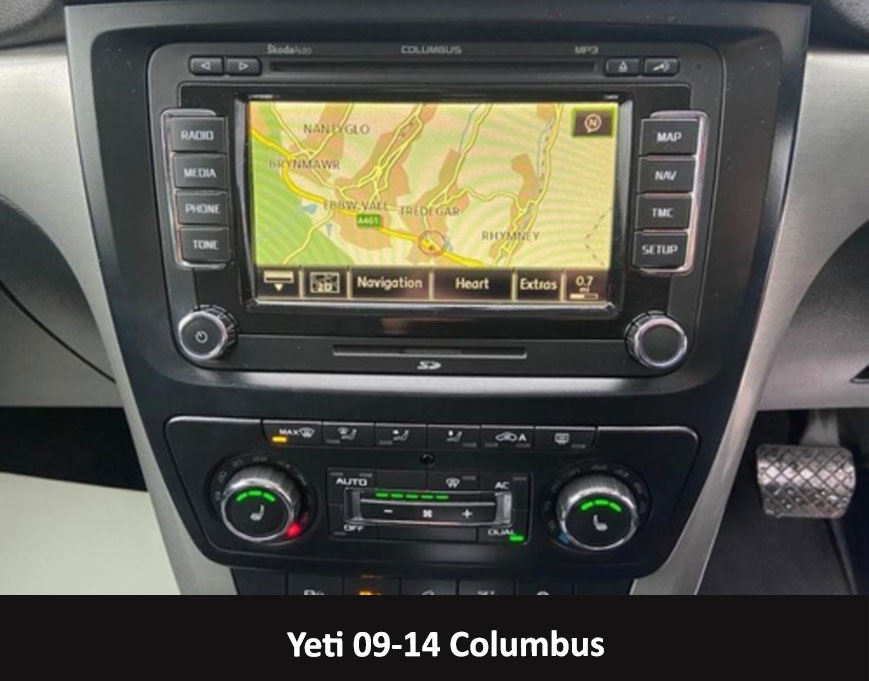

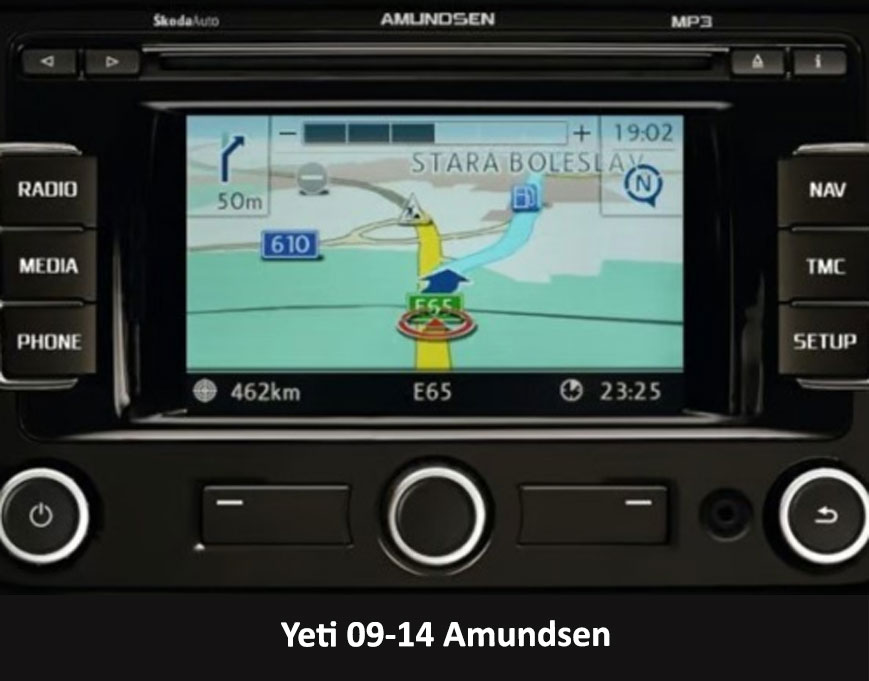

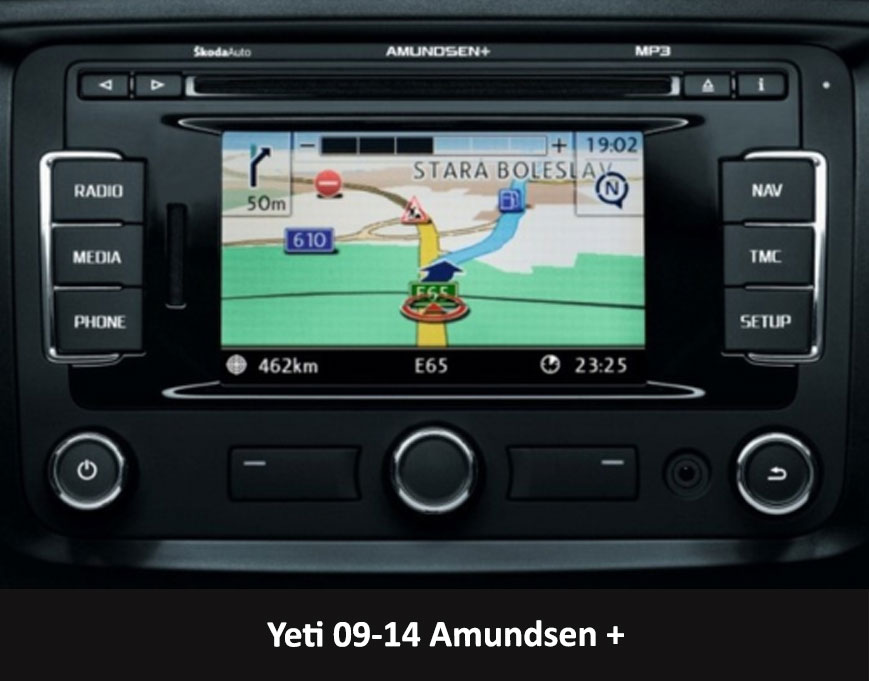

This fitting kit is compatible with Volkswagen original head units fitted with a twin Fakra connection and an amplified sound system. Please see pictures below.

Please Note

that some vehicles have original DAB. This is not retained with this kit and will require 21-037 Fakra to SMB adapter.

This kit also does not retain original reverse cameras or USB and AUX ports. Please see the other items listed against your car and original head unit to see if these are available as they vary by model and originally fitted radio.

Not suitable for later (2017 onwards) Composition or Discover systems.

Important Fascia Notes

• The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
