Complete fitting kit to install a Single DIN head unit and retain the original USB and steering wheel controls in Toyota Yaris (2012-2020) car models.

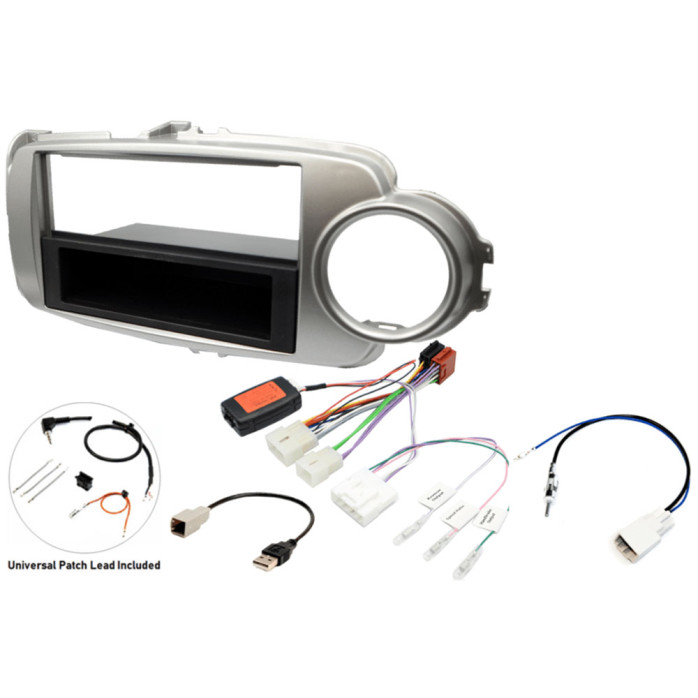

Package Includes

• Single Din Fascia
• Steering Wheel Control Interface
• Toyota USB Port Retention Cable
• Toyota to Din Car Aerial Antenna Adaptor
• Universal Patch Lead (Included)

For Double DIN installations please use FK-624/1-D

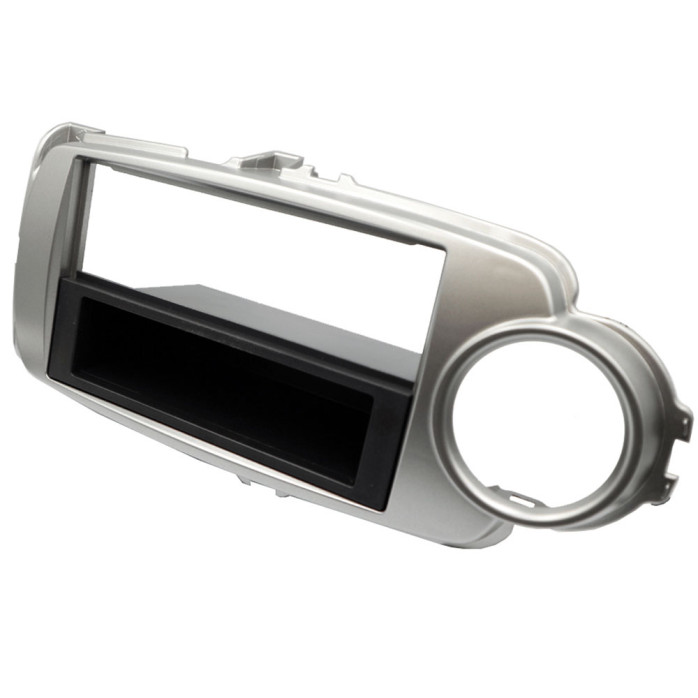

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio fascia to enable you to change the original radio in the car to a Single DIN aftermarket version.
The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.
Toyota Yaris (2012-2020) car models where the original radio is integrated into the fascia that surrounds the hazard switch, seatbelt and airbag lights.
COLOUR: SILVER

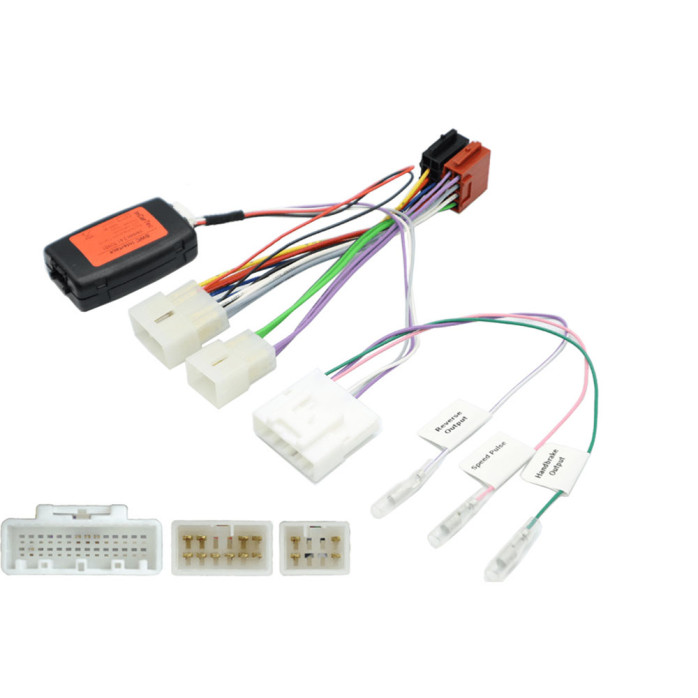

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

Steering wheel control interface and adapter cable for various Toyota and Lexus cars made after 2012
The interface and radio adapter cable is plug and play, it is used to connect an aftermarket stereo upgrade and retain the use of the volume, track skip, source and phone buttons from the steering wheel with the new radio.
The cable also provides a speed pulse signal to the new stereo.

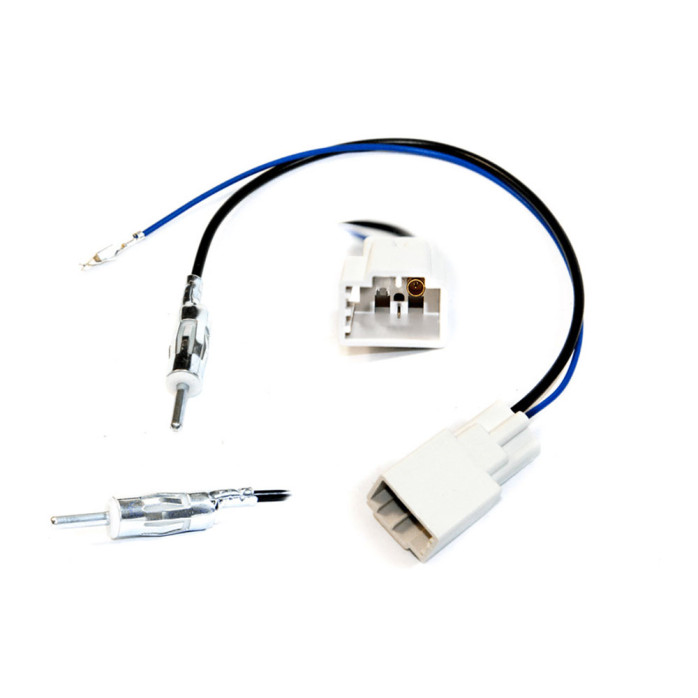

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable adapts from the 2009 onward style Toyota antenna connection at the back of the cars original radio to a standard aftermarket male DIN antenna connection to allow the fitting of an aftermarket radio upgrade.
The Toyota connector is rectangular with a round antenna terminal inside. The antenna adapter has a loose blue wire, this needs to be connected to the antenna turn on output on the new stereo. This will turn on the original antenna amplifier in the car.

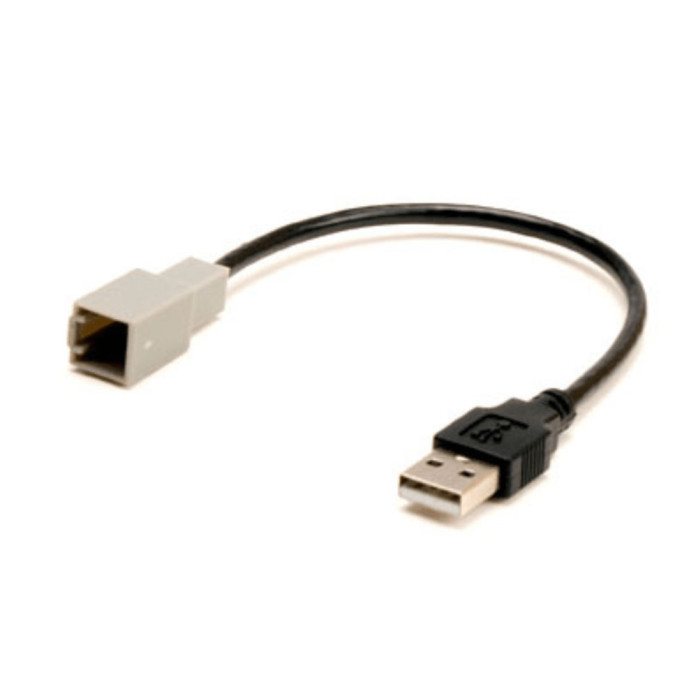

Toyota USB Port Retention Cable

Cable to retain the use of the original USB port when replacing the original head unit.

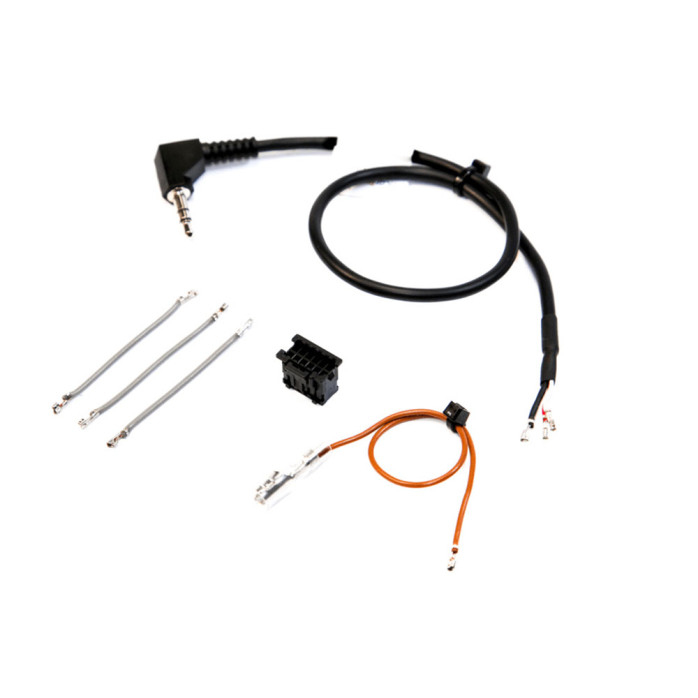

Universal patch lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. This cable plugs into the 29-Series control box and connects to the 3.5mm socket or single wire on the back of the new head-unit.
Suitable for Use with Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
