Complete stereo upgrade fitting kit to install a Single/Double DIN aftermarket radio in Audi A4 (B7) (2005-2008) car models with CANBus ignition and rear amplified sound systems.

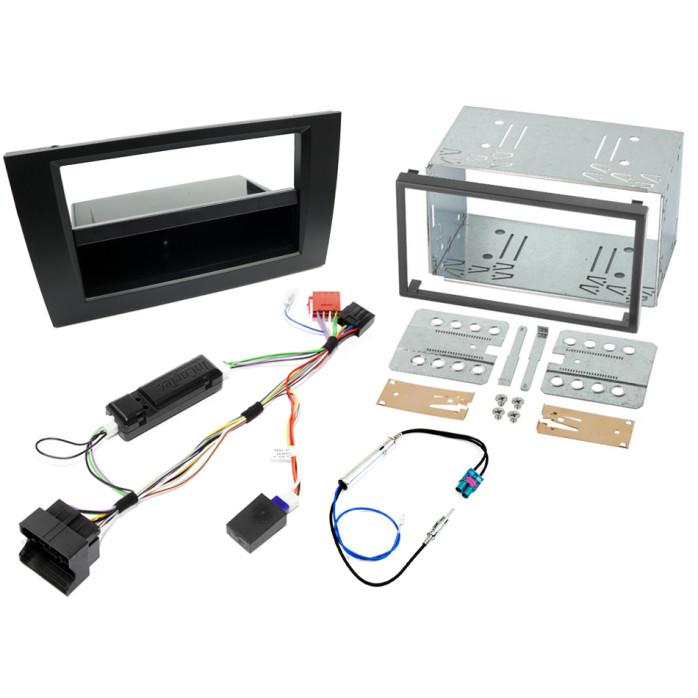

Package Includes

• Single / Double Din Fascia (Matt Black)
• Double Din Fitting Cage
• Quadlock to ISO Harness Adaptor Cable
• CAN Ignition Interface
• Antenna Adaptor

Fascia Adaptor

This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Audi A4 car radio fascia adapter panel to allow the fitting of an aftermarket Single or Double din car stereo upgrade.
The fascia Adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.
Use the supplied pocket with the fascia adapter to fit a single din radio, or remove the pocket and use the fascia trim only with a 103mm fitting cage to fit a double din after-market head unit. Most aftermarket radios are supplied with a 113mm high cage, because of this an additional 103mm fitting cage is included with this kit.

Double Din Fitting Cage

This kit is designed to replace the metal cage kit that is usually supplied with your new aftermarket double din head-unit or navigation system. It is used along with fascias that have 103mm high hole sizes.
Complete with fixings to attach to the new car radio body.

Audi Quadlock to ISO Radio Adaptor Cable with CANBus Ignition Interface

This Quadlock to ISO adapter cable with CANbus ignition adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus ignition interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. This interface is built into the Quadlock to ISO harness adapter so installation is plug and play.

The plug and play Quadlock to ISO cable also has a built in high to low level adapter for the amplified speakers.  The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The adjustable high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Double moulded Fakra Aerial adapter cable for European cars that have amplified original antennas. Use with cars that have twin antenna both requiring power. This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by most car radio manufacturers. Will also provide a power feed to give 12 volt from the car radio to the cars amplified antenna.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
