Complete stereo upgrade fitting kit to install a Single DIN aftermarket radio and retain the use of the steering wheel controls in select Mercedes vehicles with factory fitted Comand APS NTG2.5 systems and Quadlock Connection.

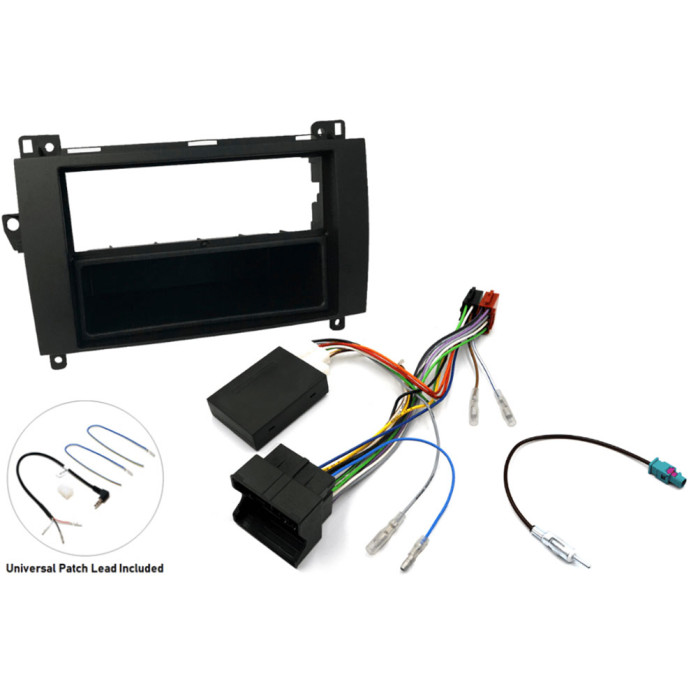

Package Includes

• Single Din Car Audio Fascia Adaptor
• Steering Wheel Control Interface
• Fakra to Din Antenna Adaptor Cable
• Universal patch lead (Included)

THIS INTERFACE IS ONLY SUITABLE FOR FACTORY FITTED COMAND APS NTG2.5 SYSTEMS

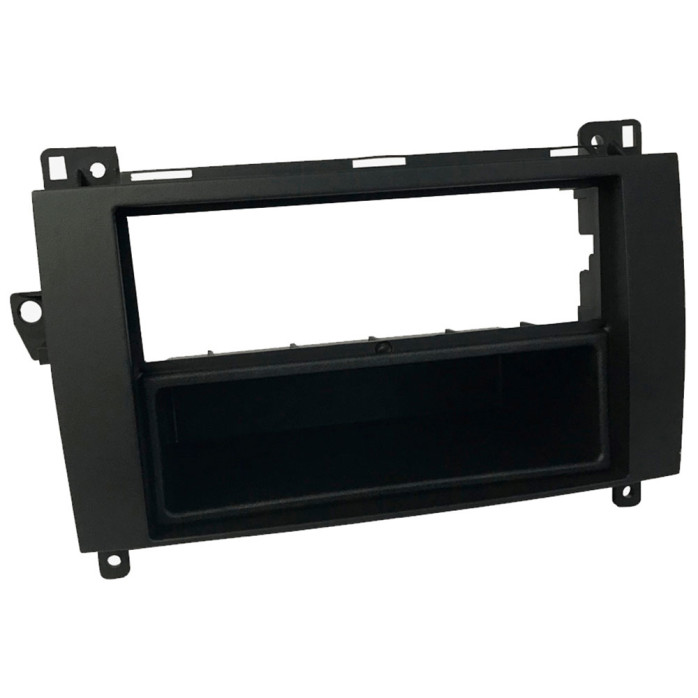

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

Use the supplied pocket with the fascia adapter panel to fit a single din radio, or remove the pocket and use the fascia trim only to fit a double din aftermarket head unit.

For Double DIN installation the fascia takes a 113mm high cage, this is the size of cages supplied with all major brand head unit manufacturers.

COLOUR: MATT BLACK

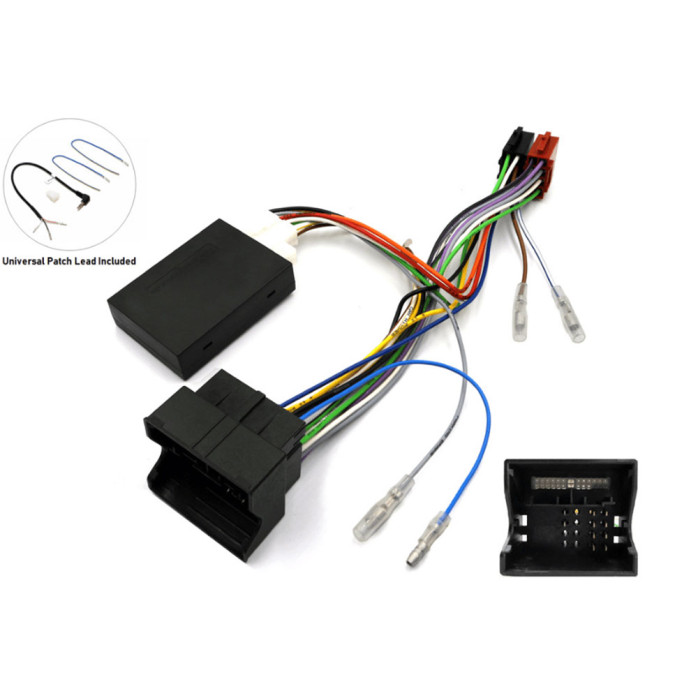

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

CANbus steering wheel control interface for Mercedes vehicles from 2008 - 2013 with original Mercedes Comand APS NTG2.5 head units.

This interface uses quadlock connections behind the original radio to allow the use of the original steering wheel control buttons with a new aftermarket head-unit. It also provides CANbus outputs as well as Ignition, speed pulse, reverse gear, handbrake and illumination signals to the new stereo.

This interface comes with a universal patch lead which can be used with Alpine, Blaupunkt, Clarion, Pioneer, JVC, Kenwood, Sony, Zenec or resistive programming Head-units.

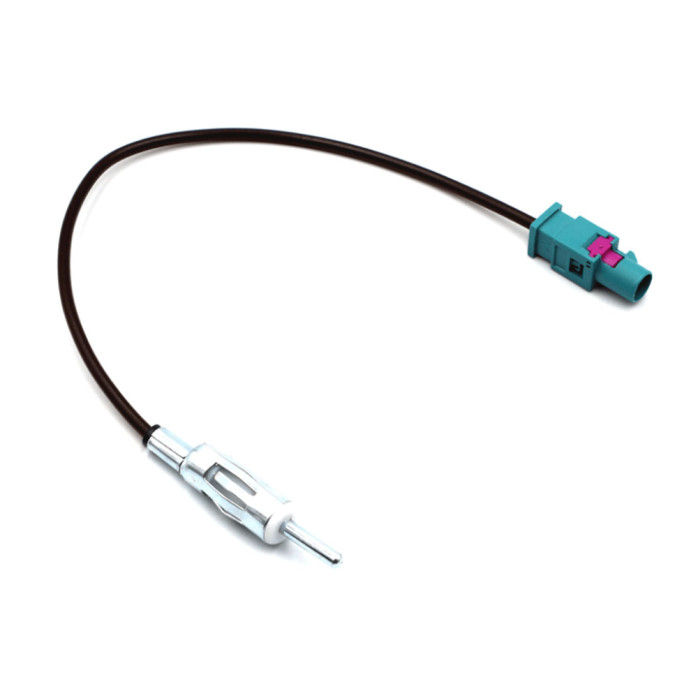

Fakra to DIN antenna adapter cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

For Double DIN installation the central bar of the fascia needs to be cut out or use FK-711-NTG2.5

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
