Complete stereo upgrade fitting kit to install a Single DIN aftermarket radio and retain the use of the steering wheel controls in a Vauxhall Corsa D. The CAN bus cable in these kits has a loose wire that needs to be connected to a wire at the rear of the small screen on top of the dashboard.

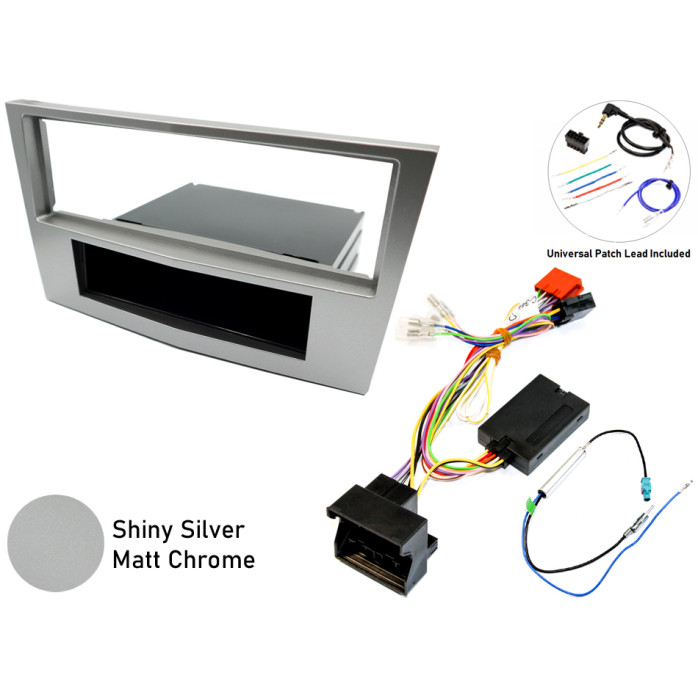

Package Includes

• Single Din Fascia (SHINY SILVER/ MATT CHROME)
• Steering Control Interface Adaptor
• Antenna Adaptor
• Release Keys
• Universal patch lead (Included)

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

A Quadlock to ISO adapter cable with CANbus steering control interface is supplied in the kit. This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus steering wheel control interface will retain the use of the original radio controls on the steering wheel with an aftermarket stereo. The CANbus interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. The interface also generates speed pulse, reverse gear and handbrake output signals, these are used when installing multimedia, navigation units and reverse cameras. This interface is built into the Quadlock to ISO harness adapter so installation is plug and play.

The CANbus interface requires a data wire to be connected at the rear of the display screen at the top of the dashboard (instructions are included), because our interface connects to the data signal here, rather than at the rear of the radio, it means that it never loses the data connection to the car. Other interfaces, when connected at the rear of the radio, will lose the data connection, this is because the car recognises that the original radio is no longer present and shuts down the data signal. This data signal does not shut down at the display screen. The CAN bus cable in these kits has a loose wire on it that needs to be connected to a wire at the rear of the small screen on top of the dashboard (Instructions are included)

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

Stereo Removal Keys

Stereo Removal Keys to remove headunit from the fascia cage. Many OEM manufacturers are incorporating special locking mechanisms into their head units in an attempt to prevent stereo theft. This means that to remove one of these units you will require a manufacturer specific stereo removal key to prevent damage to the head unit or the surrounding fascia and cage.

To remove the original radio, you will require radio release keys, part number 52-012

Universal Patch Lead

A universal patch lead is supplied in the kit, this is to pair the steering control interface to the steering control input of Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

FOR UNBRANDED/ CHINESE HEAD UNITS YOU WILL REQUIRE A DEDICATED 49-000 PATCH LEAD

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
