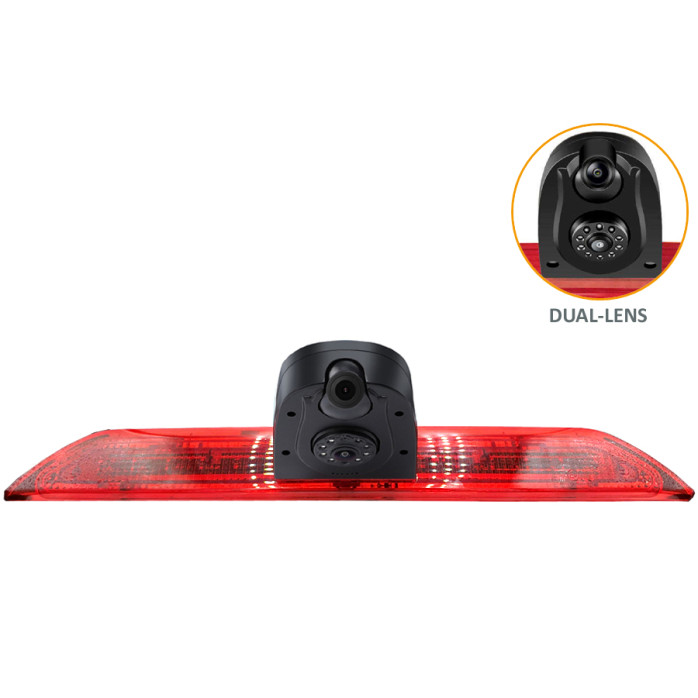

Dual-Lens rear view camera specially designed for Ford Transit MK8 (2013-2018) and Ford Transit MK8 Facelift (2018 Onwards) vehicles.

If you are fitting to the cars original screen and are unsure of which version of SYNC you have then please see our guide to identifying SYNC and which camera interface to use.

This camera replaces the high level brake light at the rear of the vehicle and provides additional visual safety to the back of the vehicle, whilst still maintaining it's original appearance.

The dual-camera feature allows the driver to view the rear of the vehicle in real time as well as providing a camera feed to make reversing a more comfortable and stress-free experience.

This dual-lens camera features a 170 degree lens viewing angle, 1/3" CMOS image censor, 756 x 504 resolution and are waterproof rated at IP68 as standard.

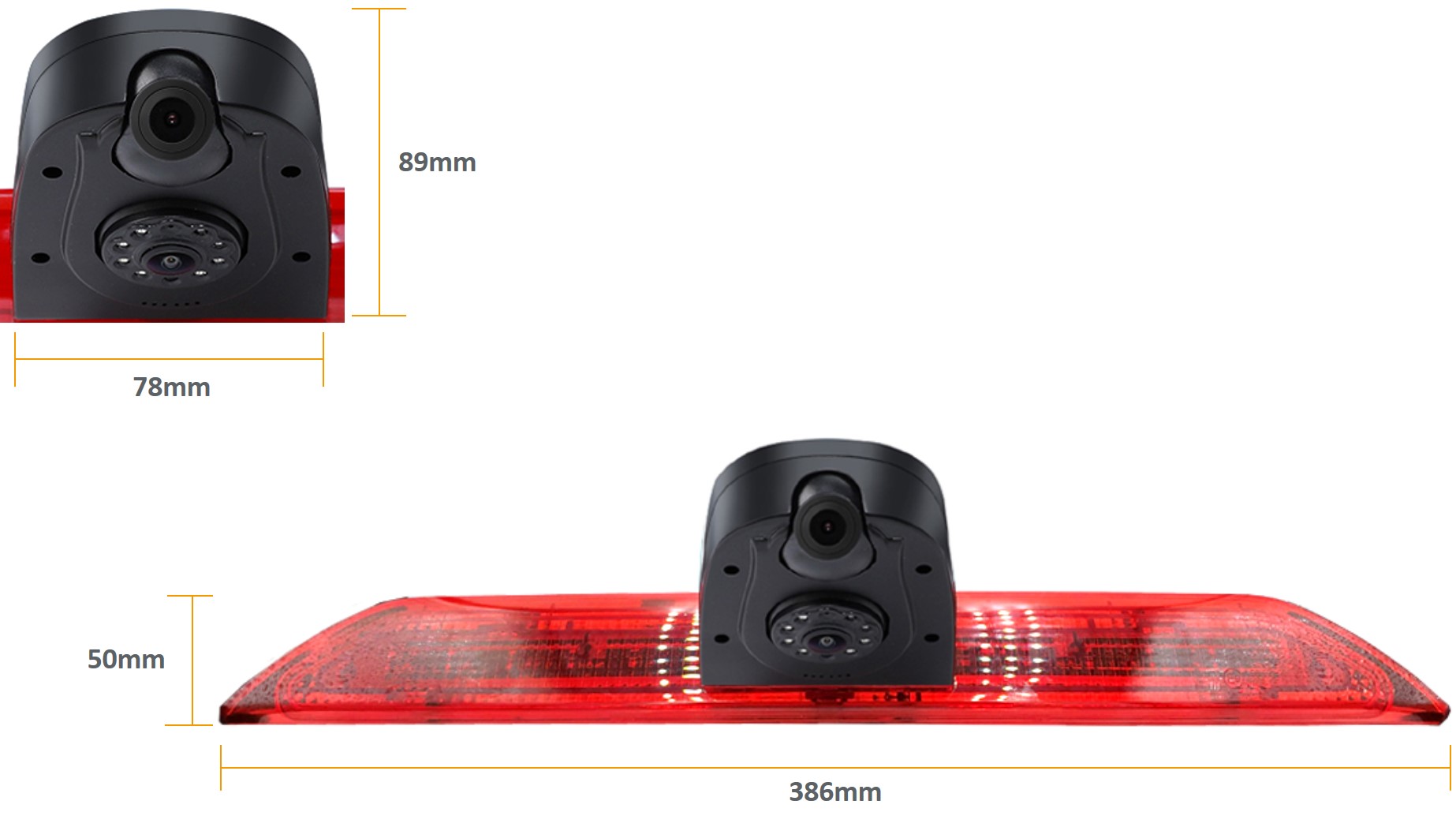

Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

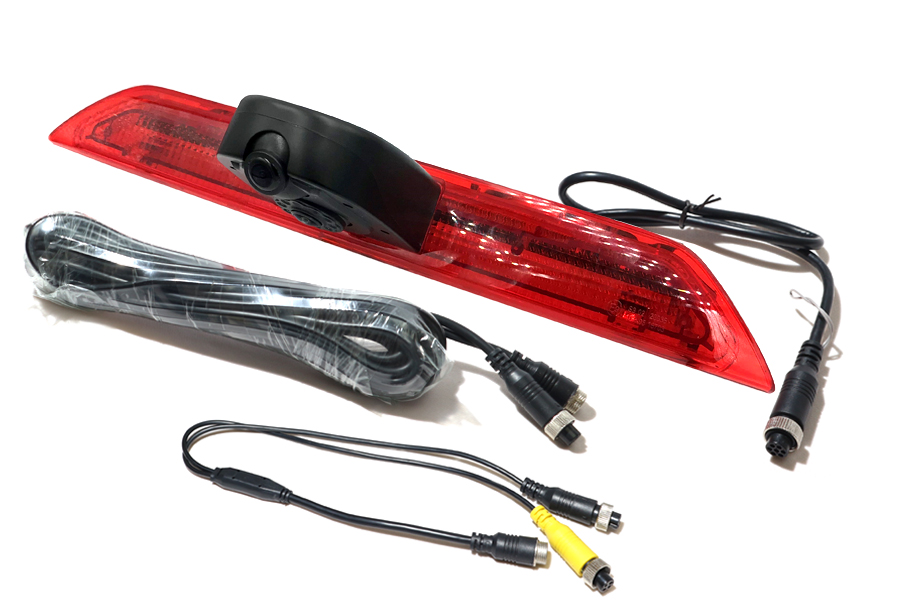

This camera kit Includes a 10m 7-pin extension cable and 4-pin to 7-pin cable splitter

Whilst we do our best to make sure our product compatibility listings are as accurate as possible, there may still be exceptions. Please check that the image and dimensions of the camera matches the existing high level brake light on the vehicle.

Specifications

• Image sensors: 1/3 color HD CMOS/CCD
• System: NTSC/PAL (TV system)
• Min illumination:0Lux (LED ON)
• Perfect IR night vision, 8 pcs IR LED
• Lens Angle: 170°
• Night Vision distance:30ft
• Minimum illumination. <0.5 BLC: Auto
• White Balance: Auto,Video Color: Colorful
• Waterproof Class: IP68
• Effective Pixels : 756(H)*504(V)
• Pixel Resolution : 600TV lines
• Video Output: 1.0Vp-p,75
• Electronic Shutter: 1/60(NTSC)-1/10000S
• S/N ratio: Better Than 48db
• Operation Temperature: -20°C+70°C RH95%
• Storage Temperature: -40°C+100°C RH95%
• Working Power (DC): 12V/1,5
• Watt Current consumption: 90mA Max
• Video cable is RCA connector/4Pin aviation
