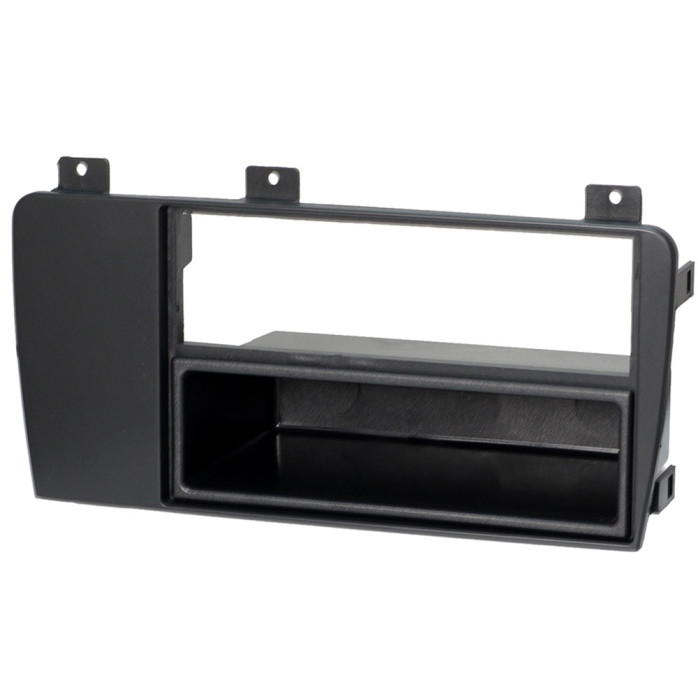

Car radio fascia adaptor panel to allow the fitting of an aftermarket single or double DIN  car radio upgrade.

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.

Use the supplied pocket with the fascia adapter to fit a single din radio, or remove the pocket and use the fascia trim only to fit a double din aftermarket head unit. For double din installation the fascia takes a 113mm high cage, this is the size of cage supplied with all major brand aftermarket radio manufacturers.

For Double DIN installation the central bar of the fascia needs to be cut out.

This fascia is designed to fit facelift 2005 - 2007 Volvo S60, V70 and XC70 cars.

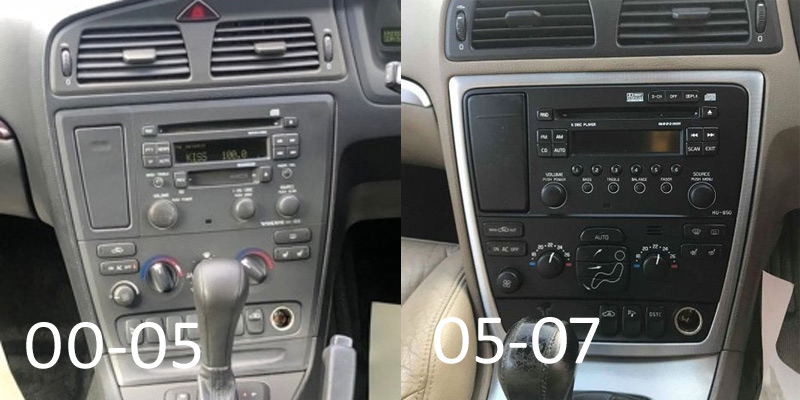

The image below shows examples of pre and post facelift dashboards from a Volvo V70. Note the shape and styling differences of the trim around the radios.

Important Fascia Notes

• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.
• If the cage supplied with the stereo does not fit the fascia then you must purchase a universal cage which is slightly smaller.
• Click here for CT23UN01 UNIVERSAL Mounting Cage

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.

Please make sure that is the correct Fascia for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
